Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

5 part groups · 7 illustrations

Illustrations

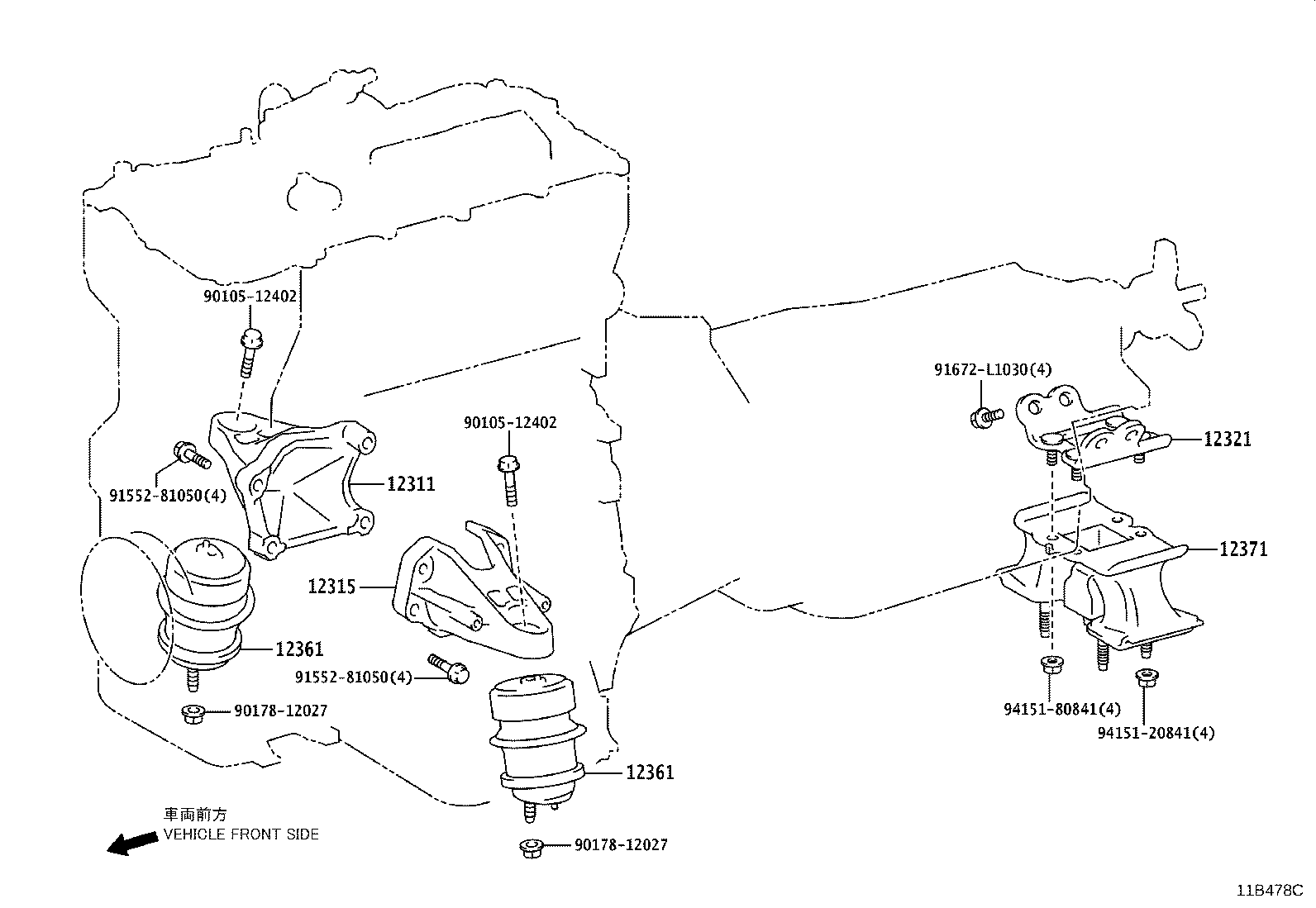

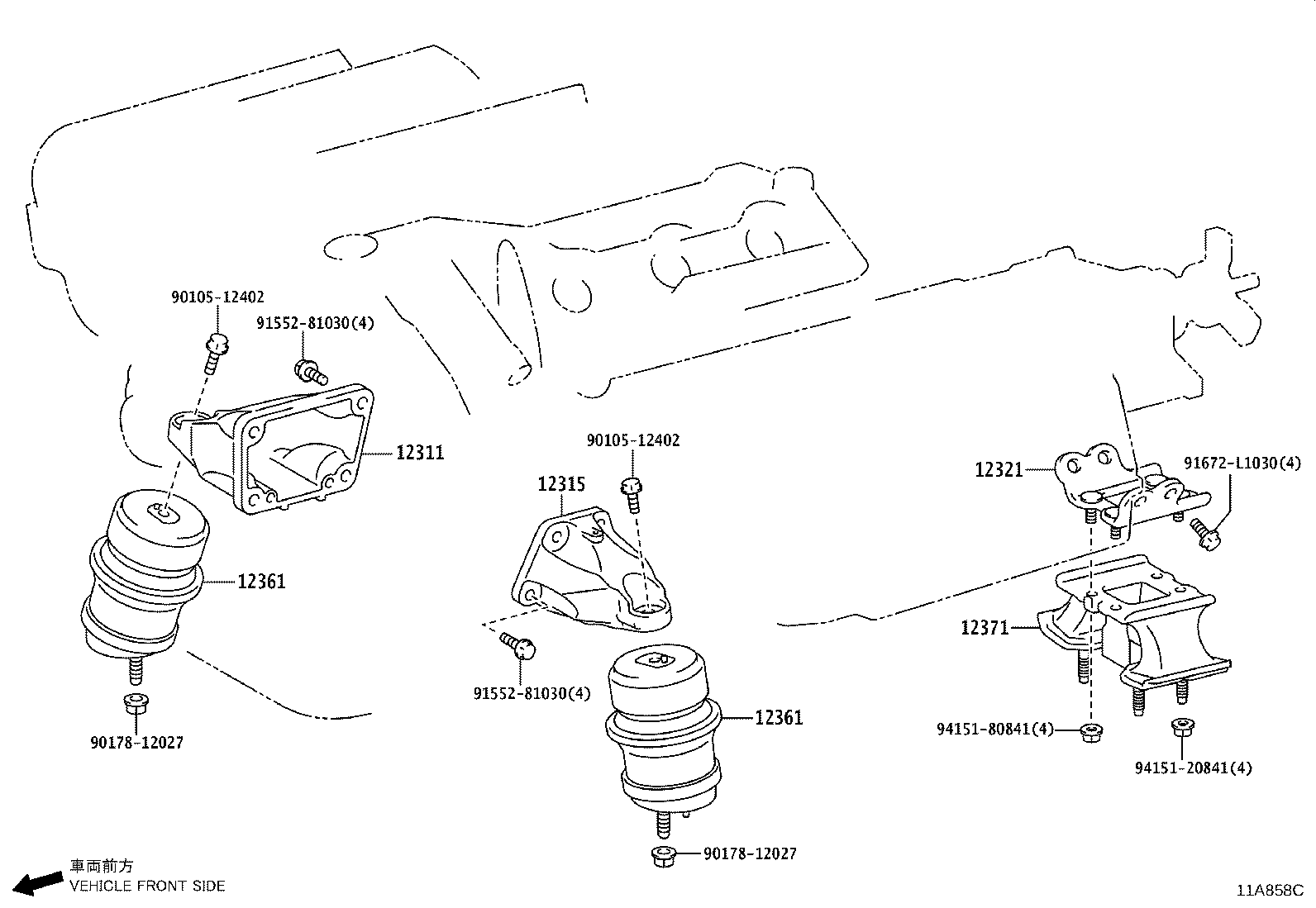

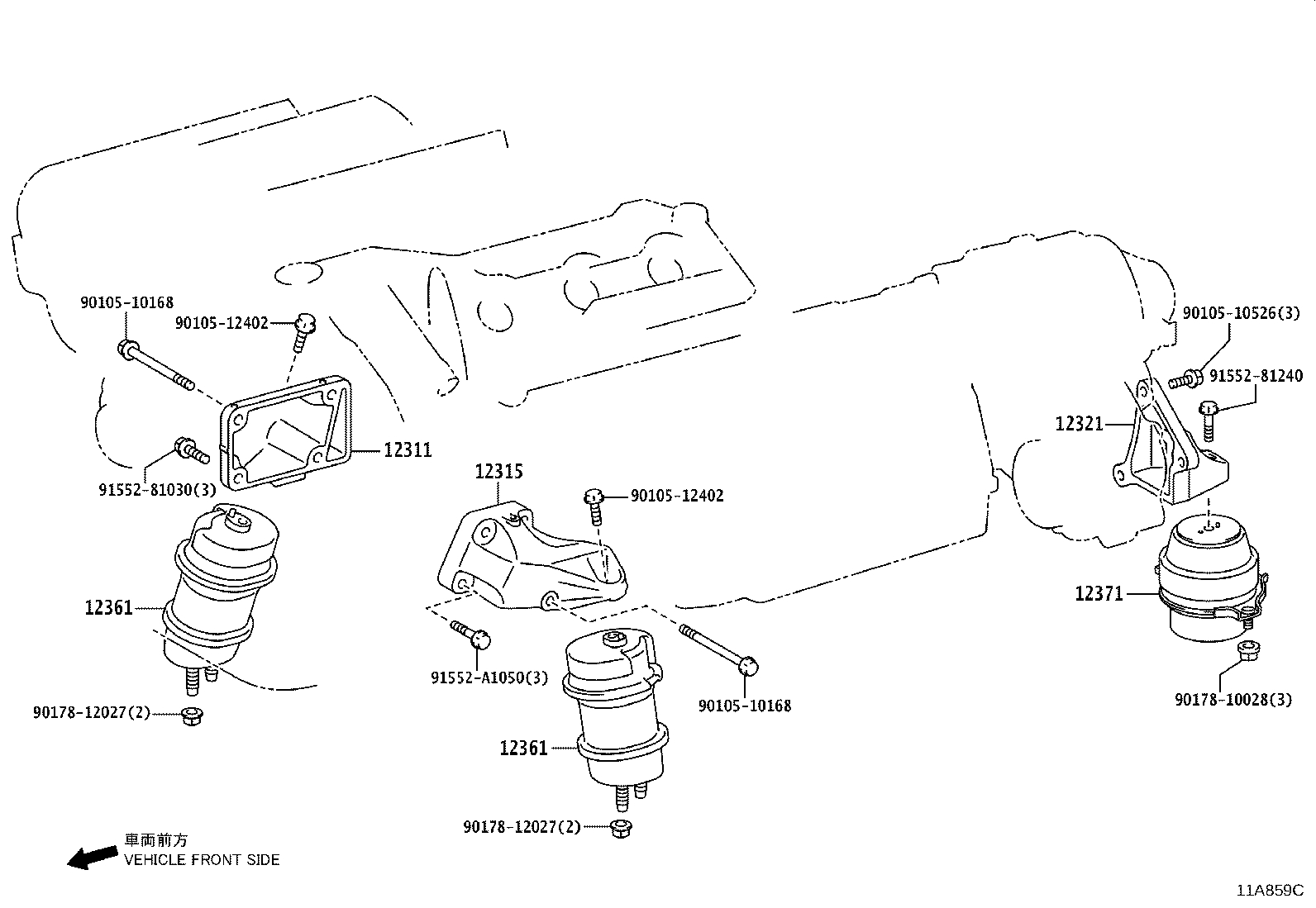

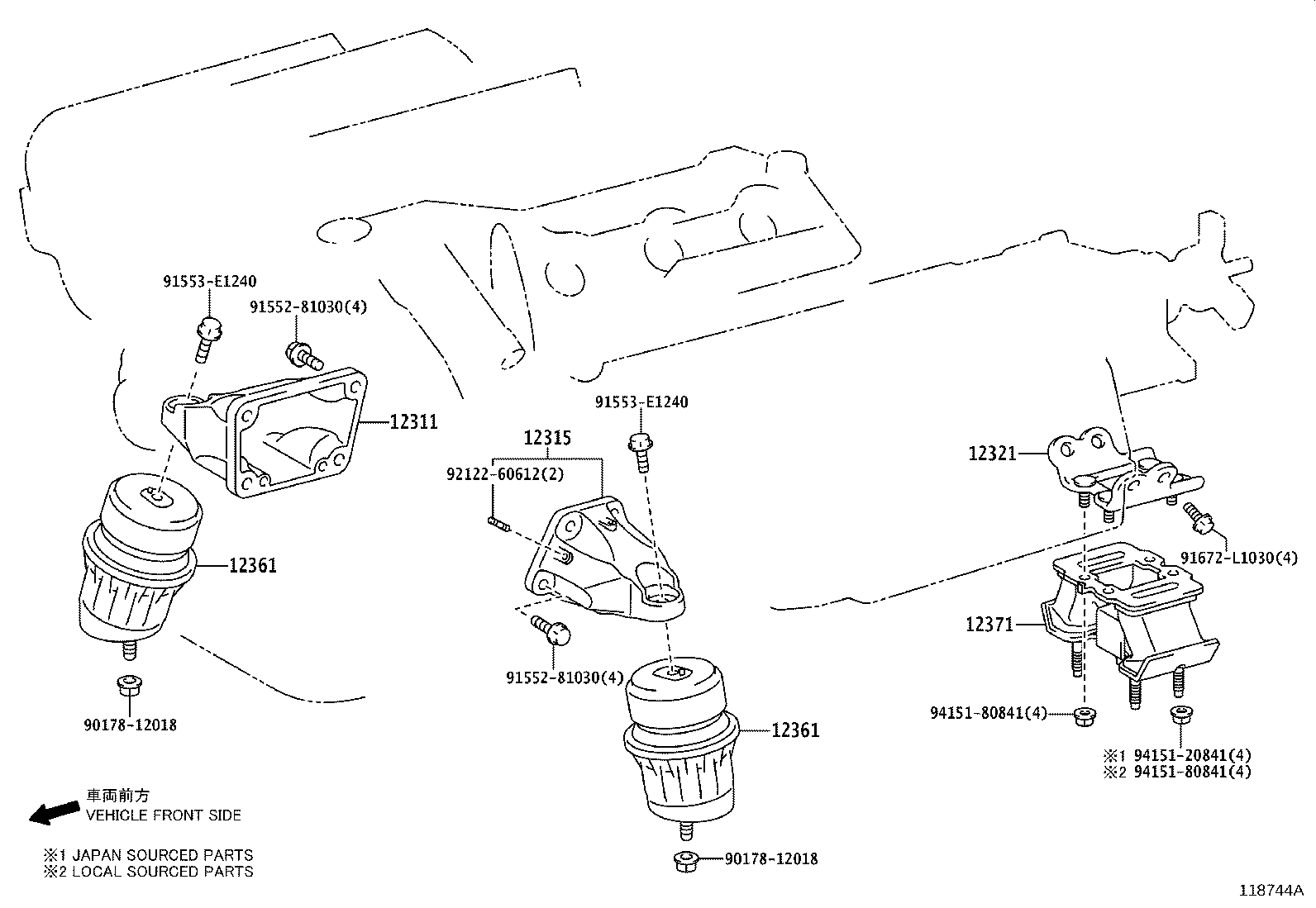

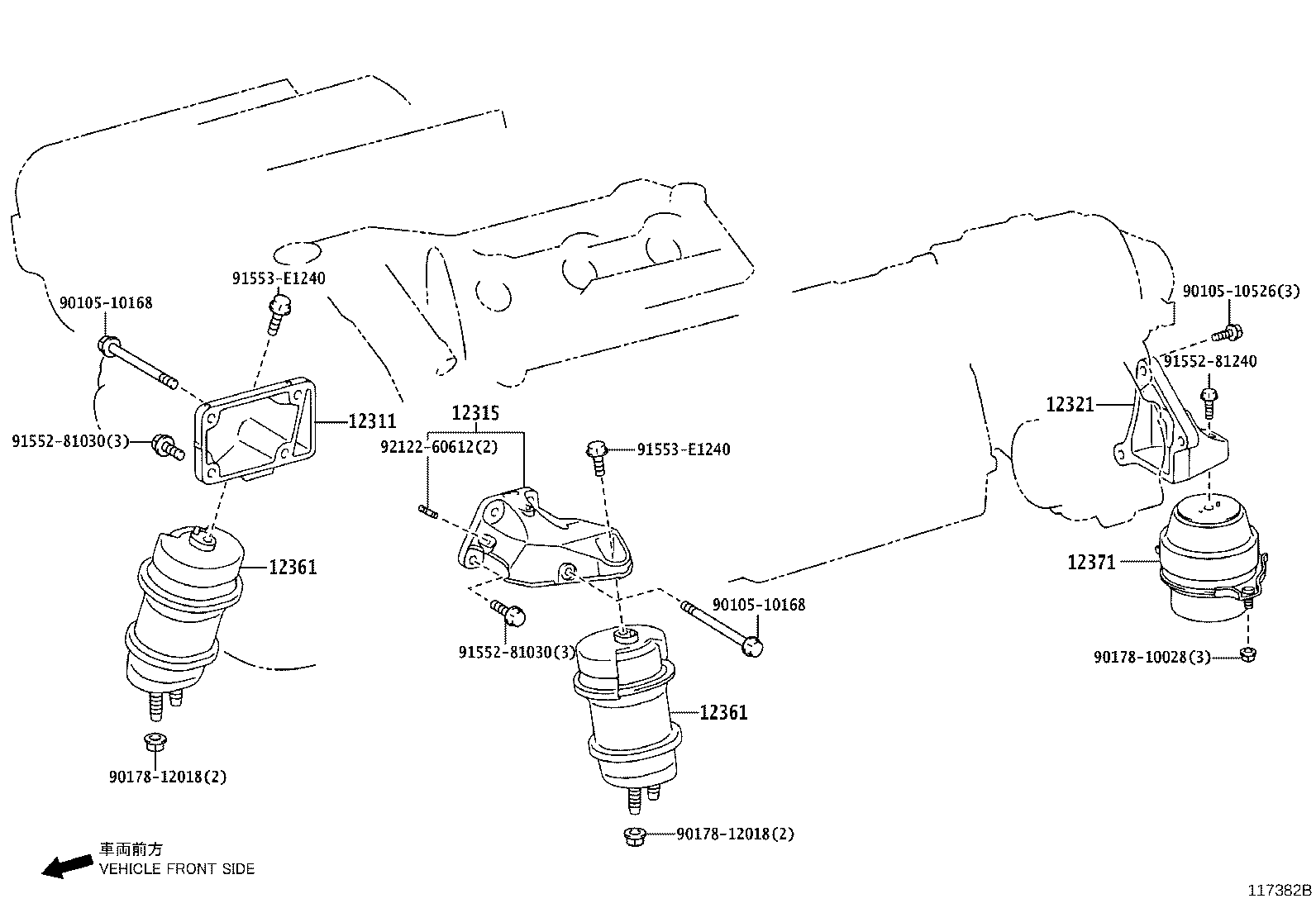

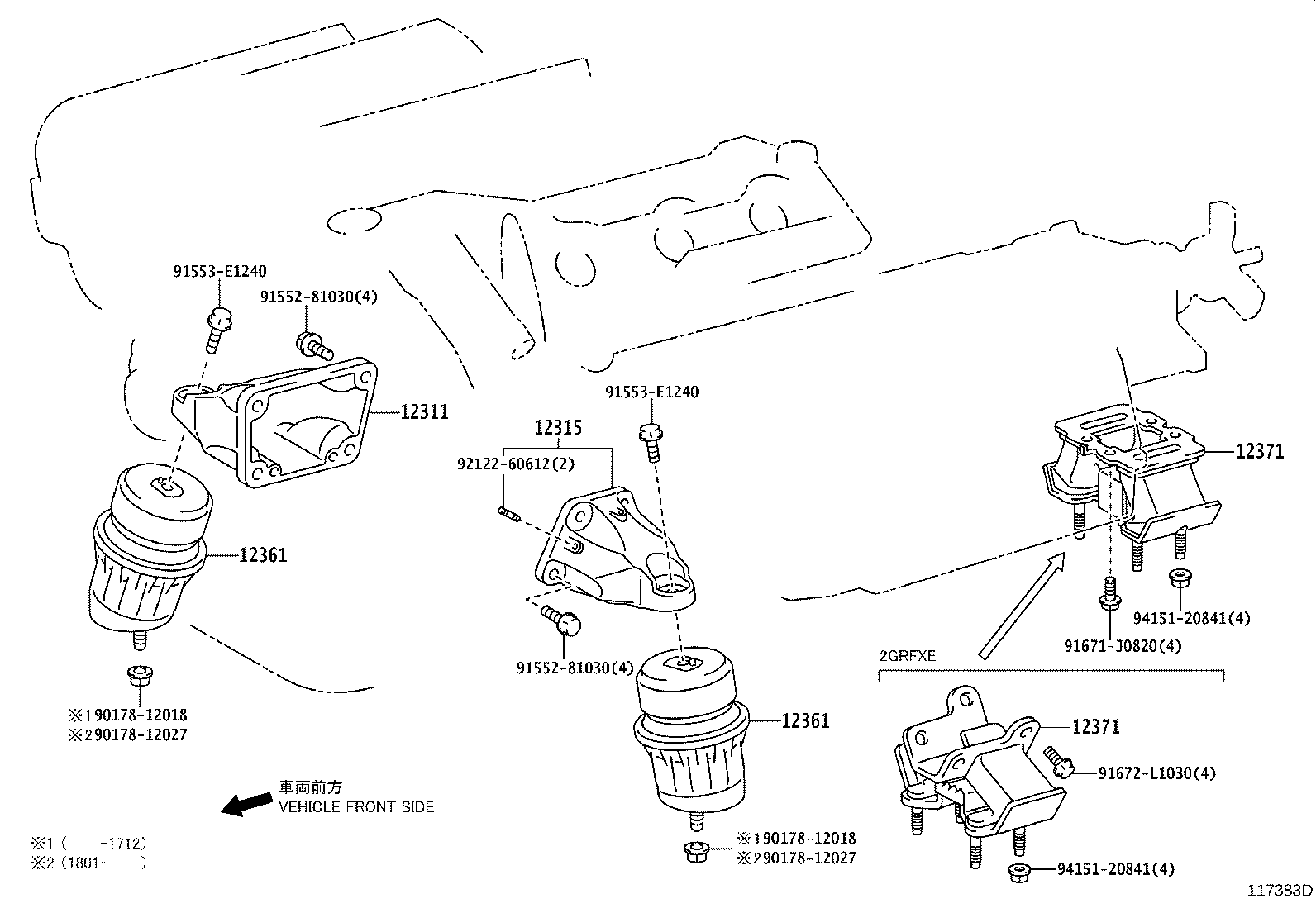

Figure 118665C 118665C 2013-09 → — Figure 11B478C 11B478C 2016-09 → — Figure 118744A 118744A 2013-09 → — Figure 117383D 117383D 2011-12 → — Figure 117382B 117382B 2011-12 → — Figure 11A858C 11A858C 2015-10 → — Figure 11A859C 11A859C 2015-10 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
