Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 7 illustrations

Illustrations

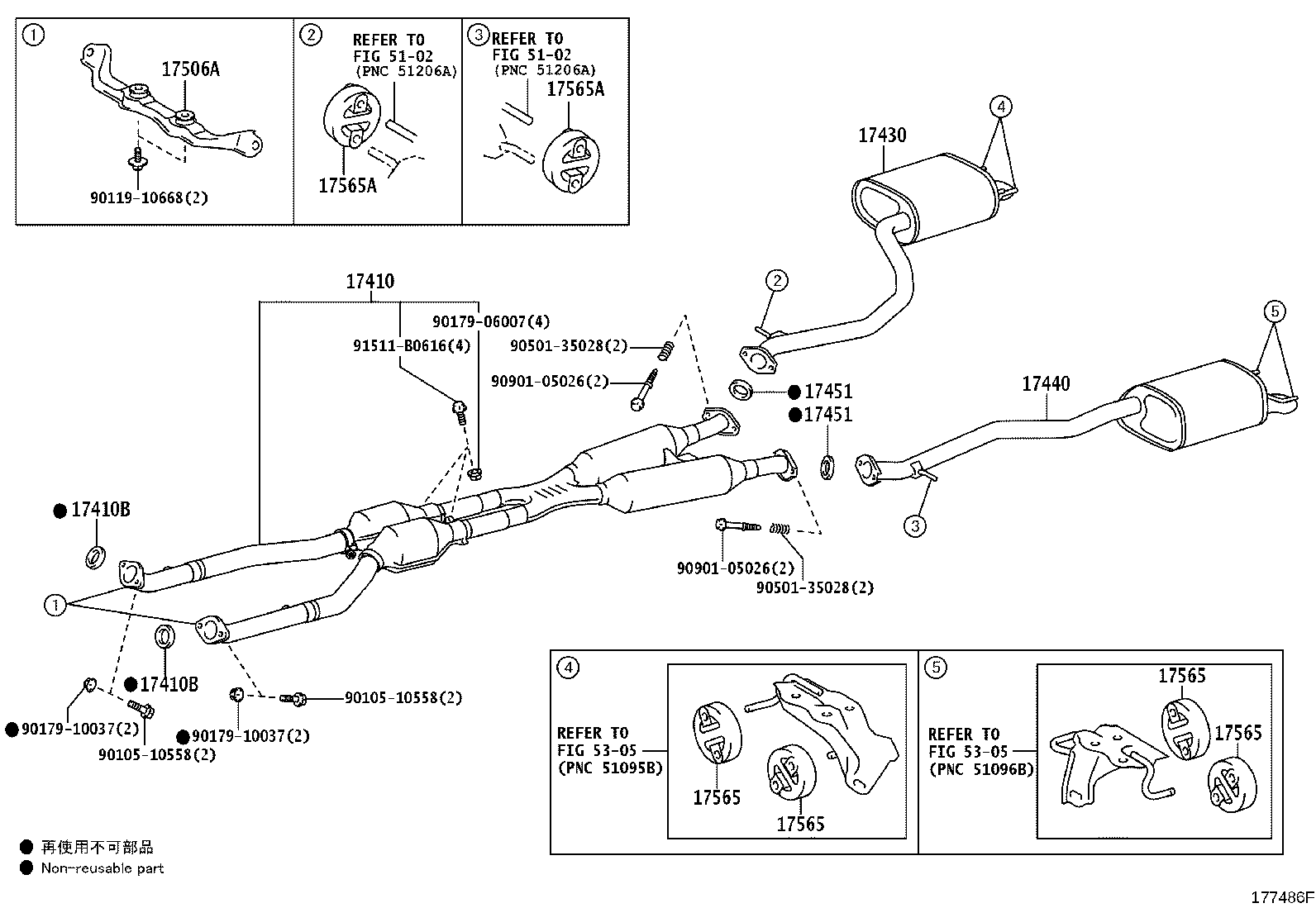

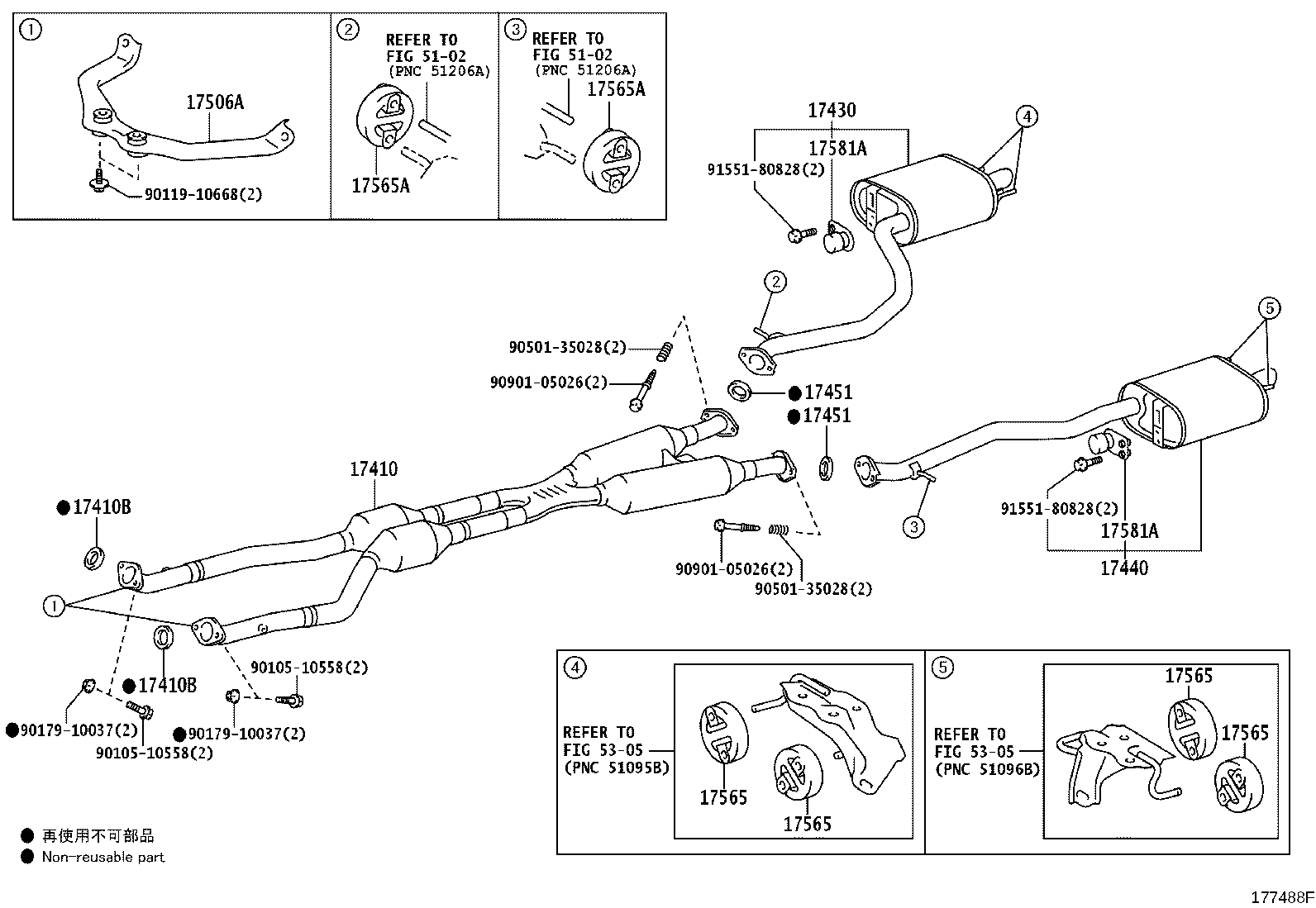

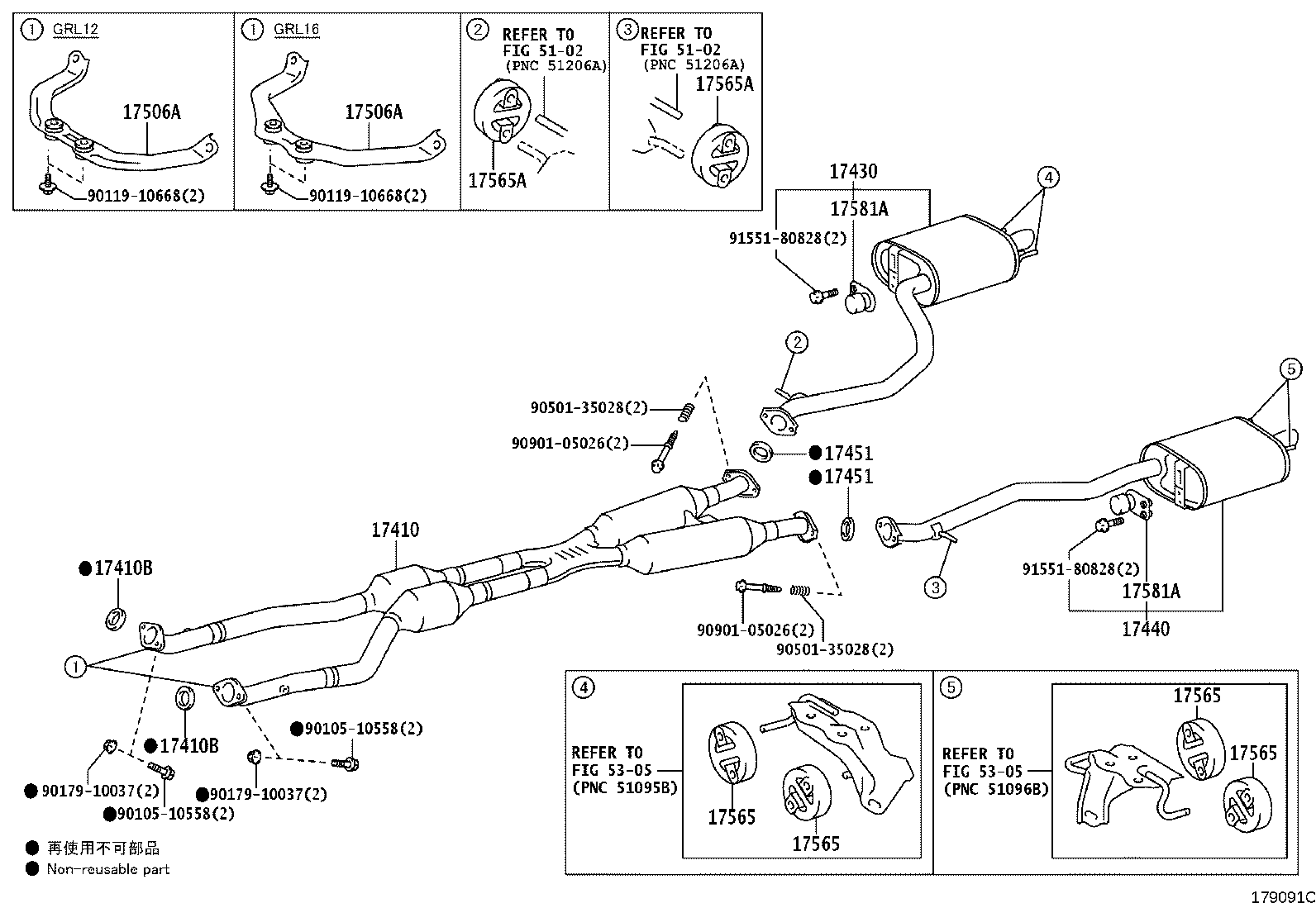

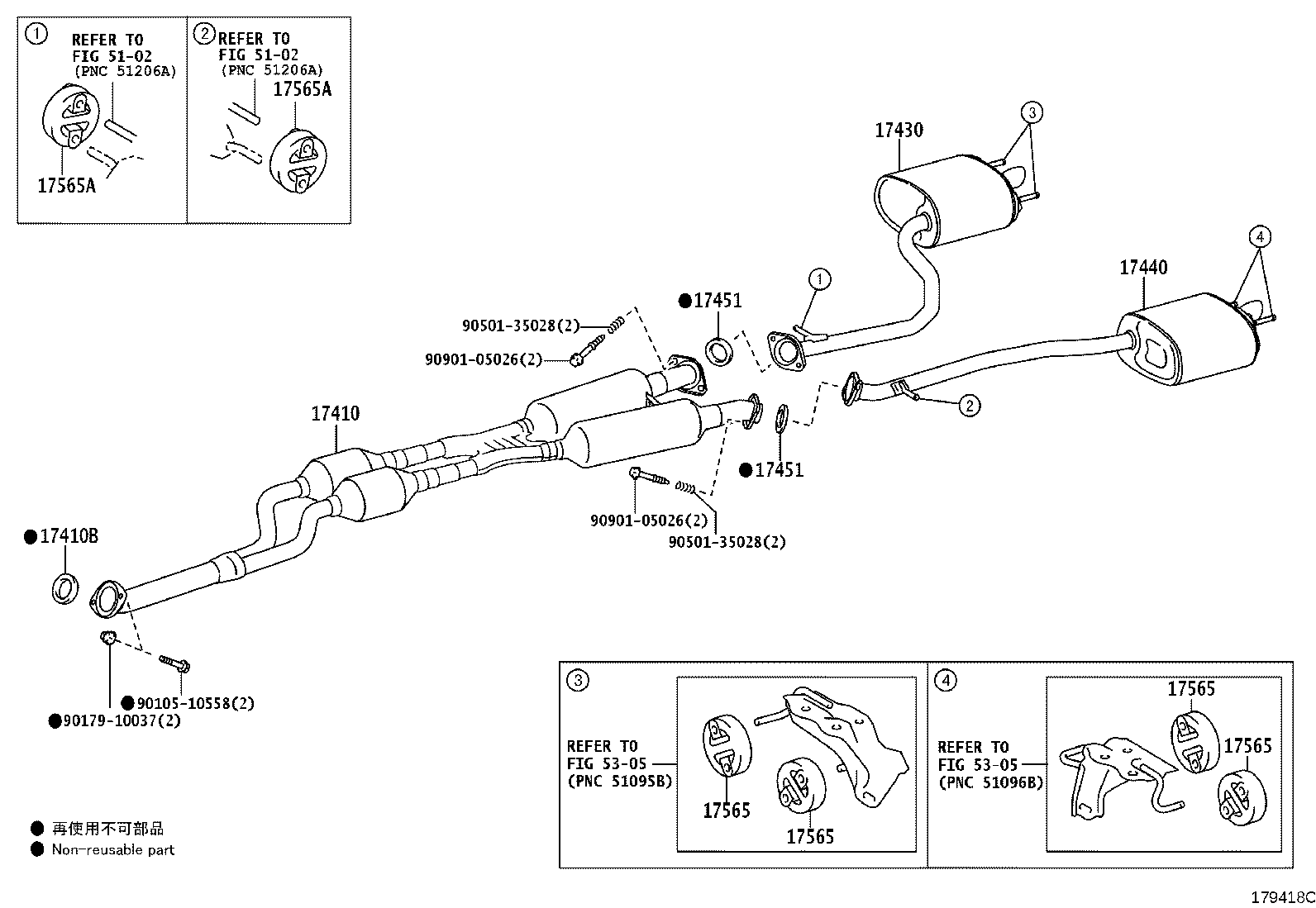

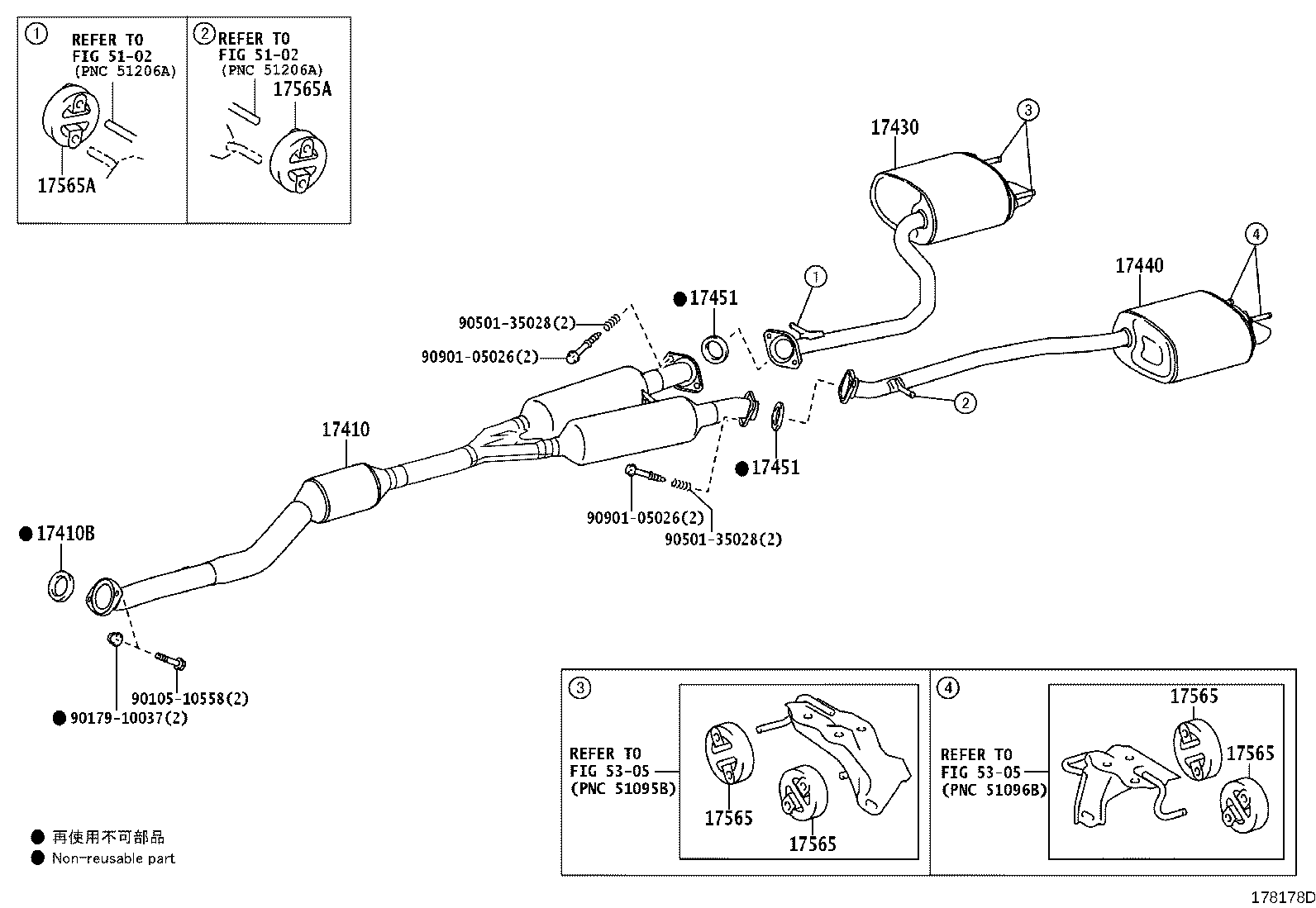

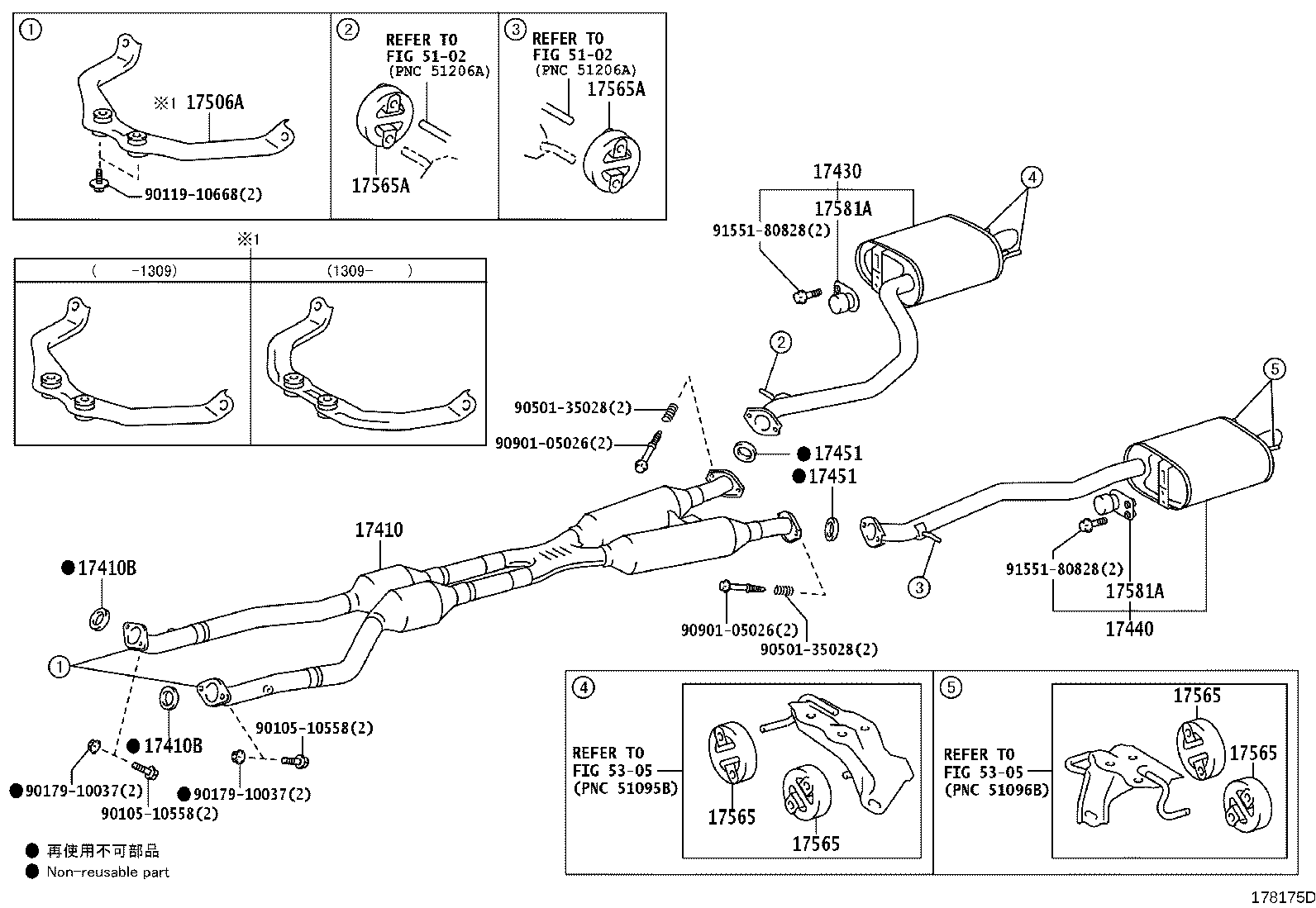

Figure 177489E 177489E 2011-12 → 2013-11 Figure 178175D 178175D 2011-12 → 2015-10 Figure 177486F 177486F 2012-03 → — Figure 178178D 178178D 2013-09 → — Figure 177488F 177488F 2013-11 → — Figure 179091C 179091C 2015-10 → — Figure 179418C 179418C 2016-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
