Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan
Supported model
Data version 2021-03

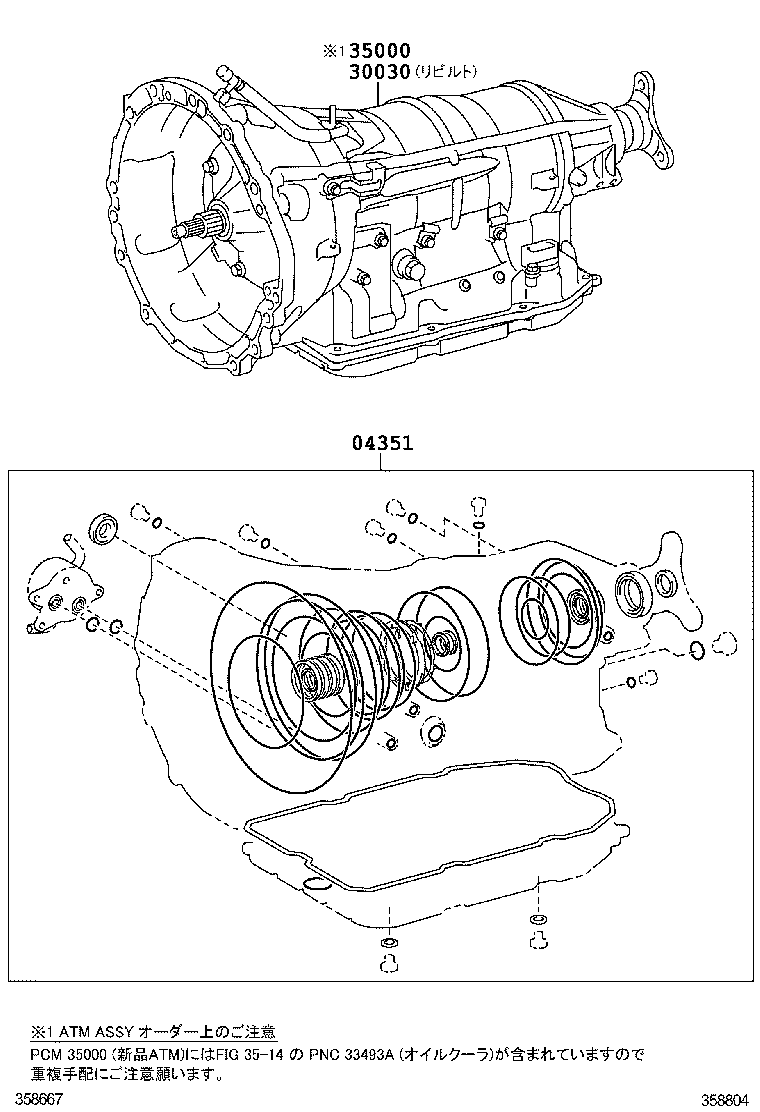

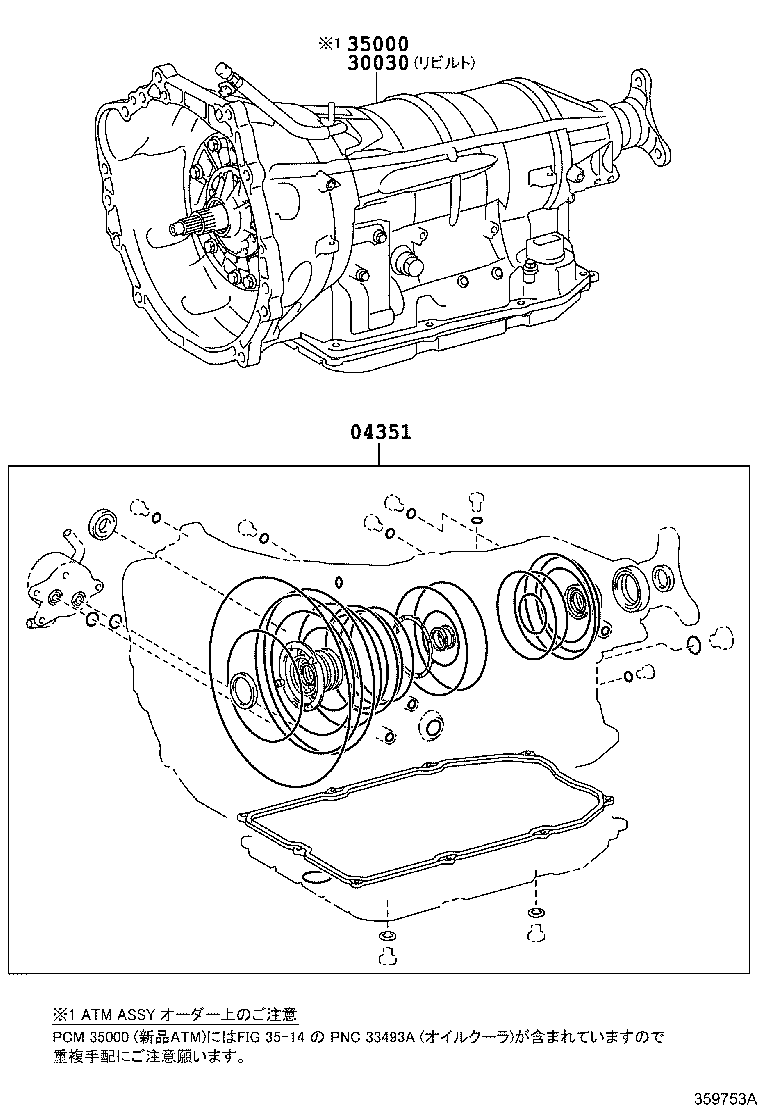

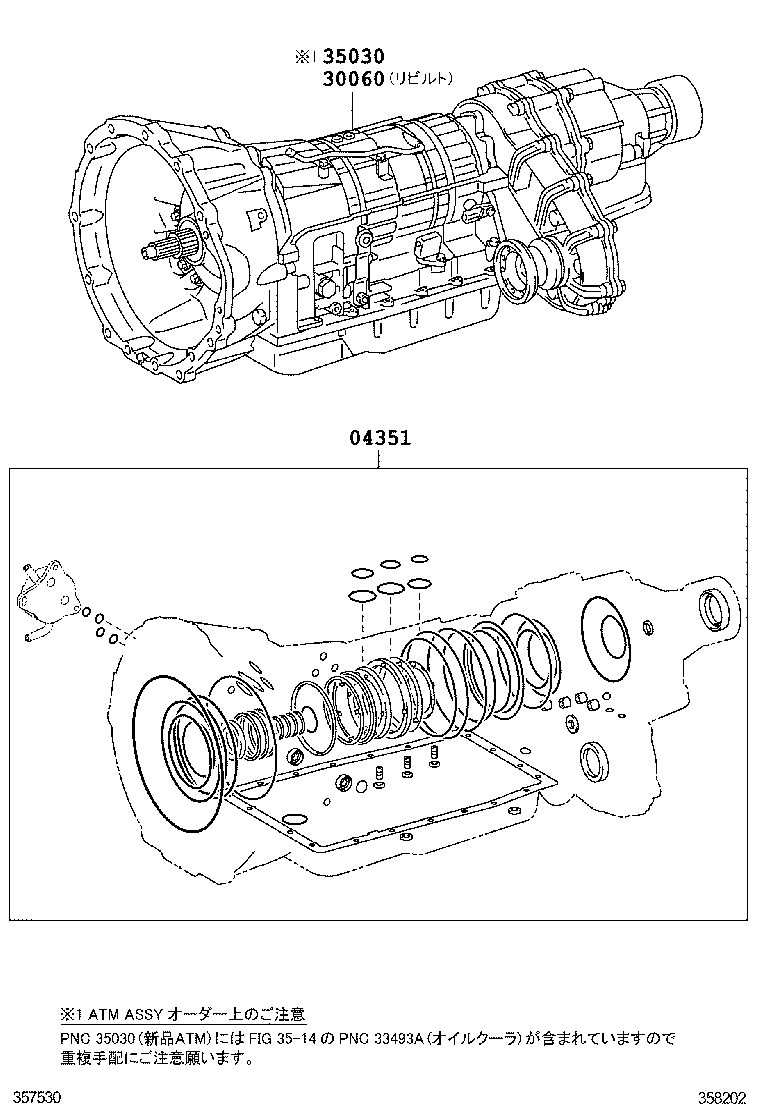

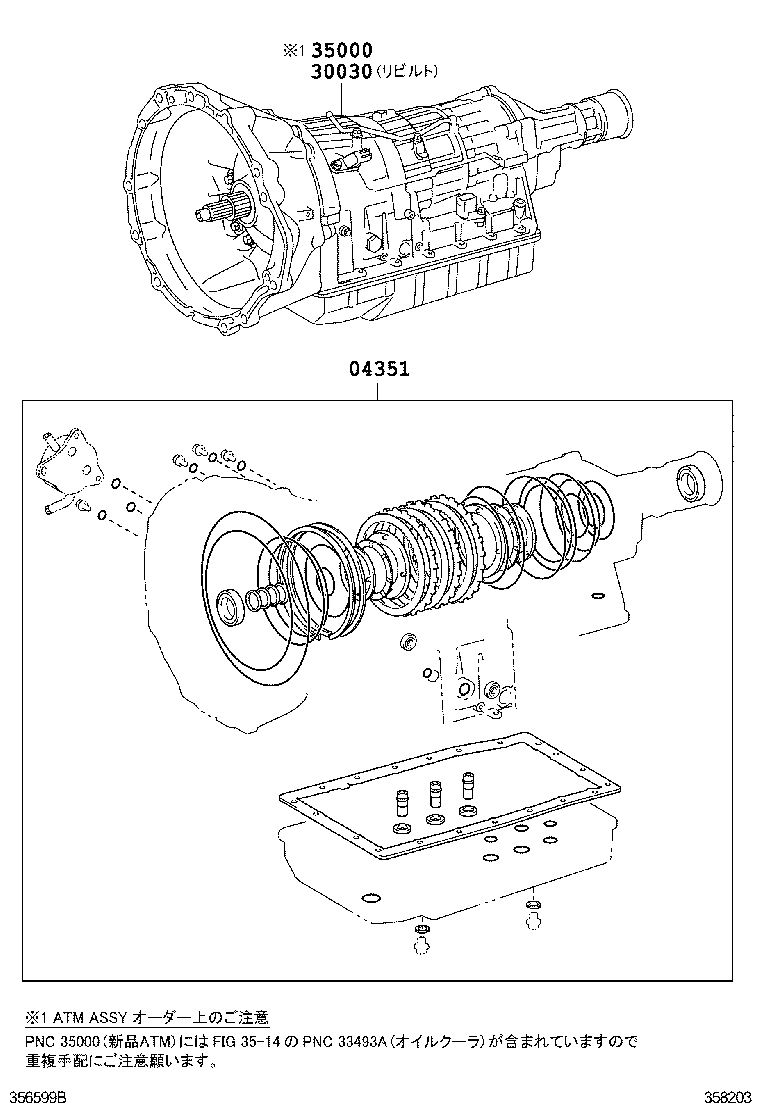

Transaxle OR Transmission Assy & Gasket Kit (ATM)
5 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04351 | Gasket Kit, Automatic Transmission Overhaul |
| 30030 | Transmission Assy, Rebuilt |
| 30060 | Transmission Assy, W/Transfer, Rebuilt |
| 35000 | Transmission Assy, Automatic |
| 35030 | Transmission Assy, Automatic W/Transfer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
