Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan
Supported model
Data version 2021-03

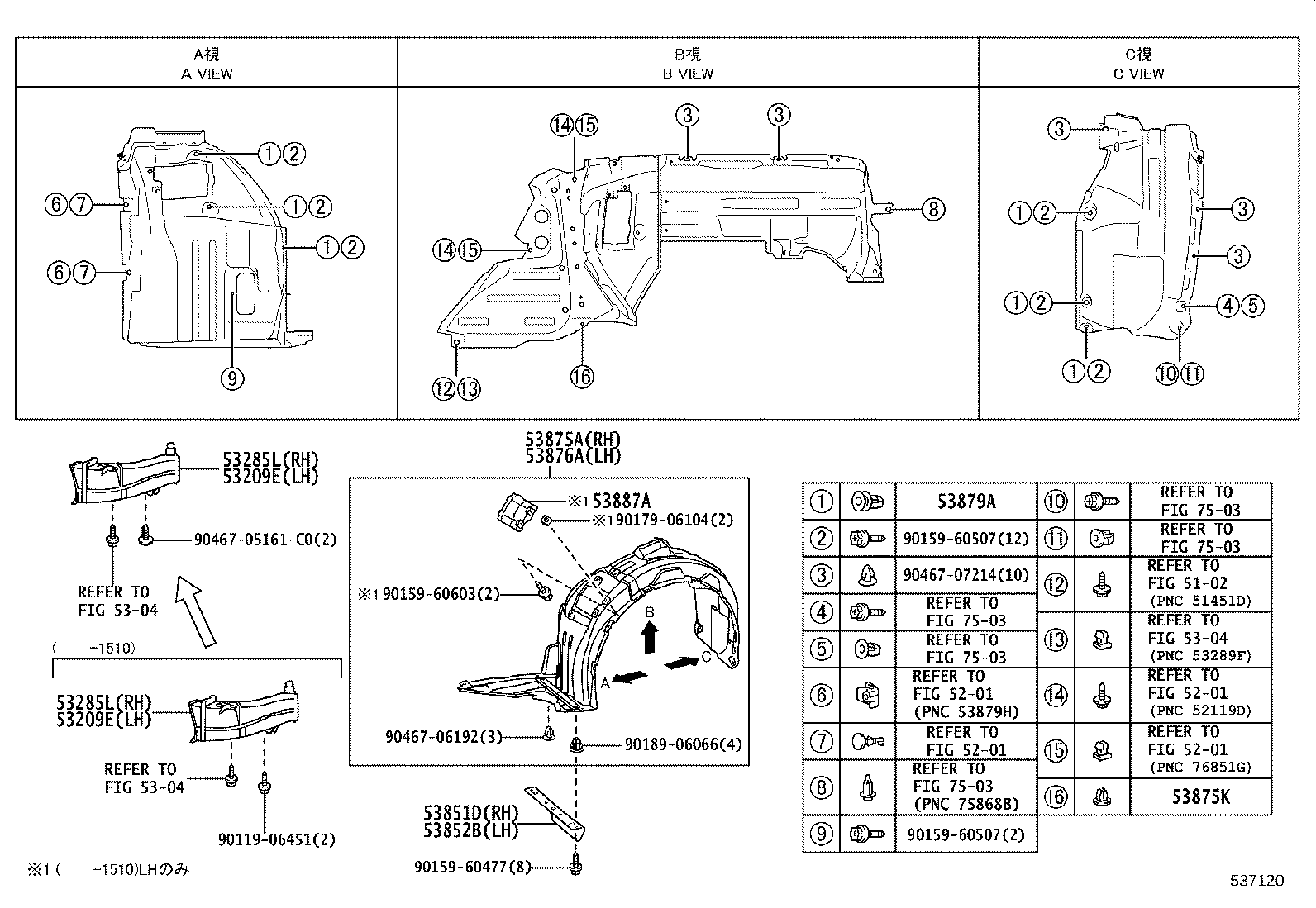

Hood & Front Fender
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53209E | Duct Sub-assy, Cool Air Intake, NO.3 |
| 53285L | Duct, Cool Air Intake, NO.2 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341D | Clip(FOR HOOD INSULATER) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53393B | Protector, Hood, Front |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53835C | Bracket, Front Side Panel, RH |
| 53836B | Bracket, Front Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53866A | Clip(FOR FRONT FENDER TO COWL SIDE SEAL) |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882N | Clip(FOR FRONT FENDER SEAL) |
| 53882P | Seal, Front Fender, RH |
| 53883K | Seal, Front Fender, LH |
| 53887A | Seal, Front Fender Splash Shield, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
