Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan
Supported model
Data version 2021-03

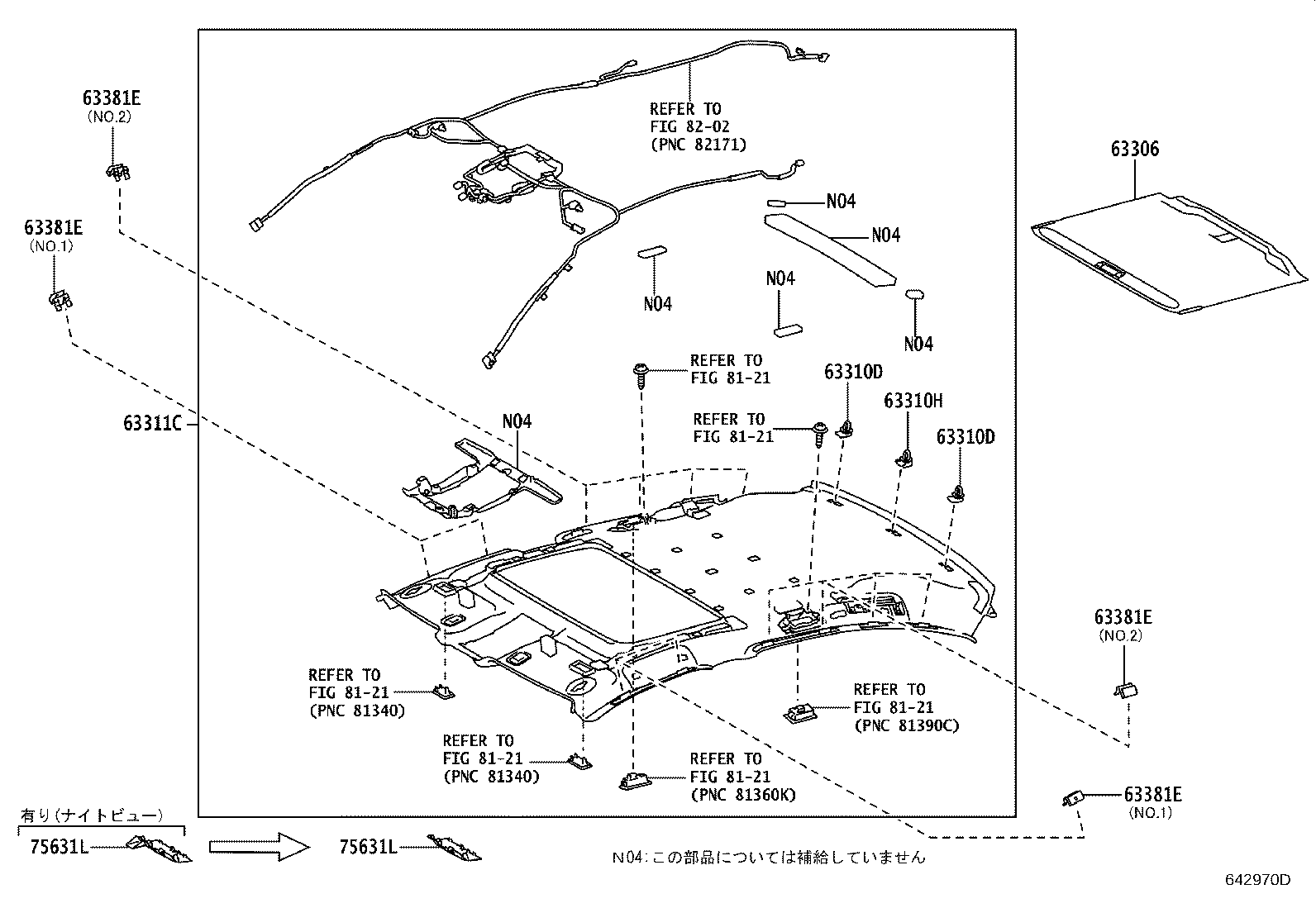

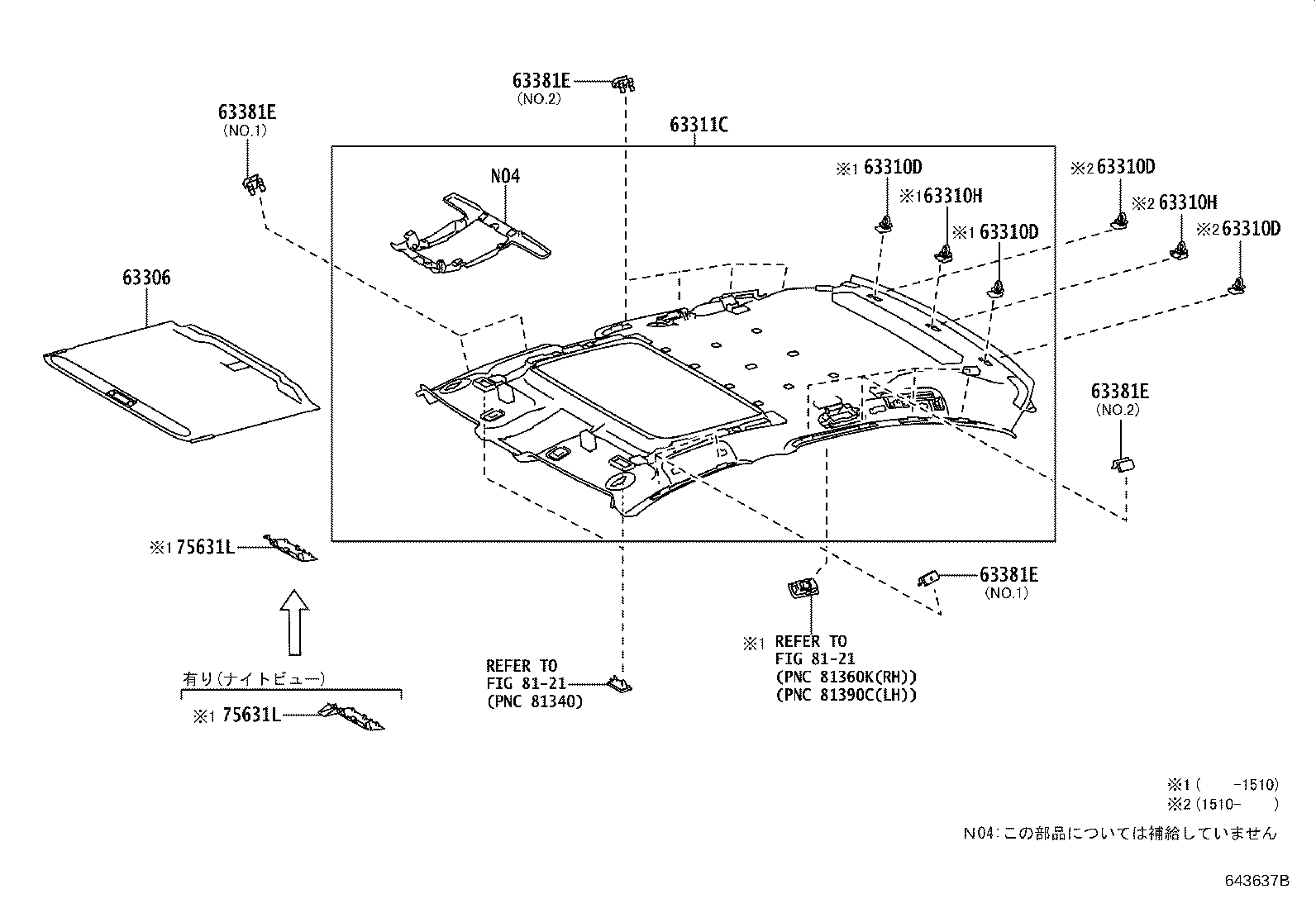

Roof Headlining & Silencer Pad
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311C | Headlining, Roof |
| 63327E | Fastener, Roof Headlining, NO.1 |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 75631L | Garnish, Roof Top, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
