Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan
Supported model
Data version 2021-03

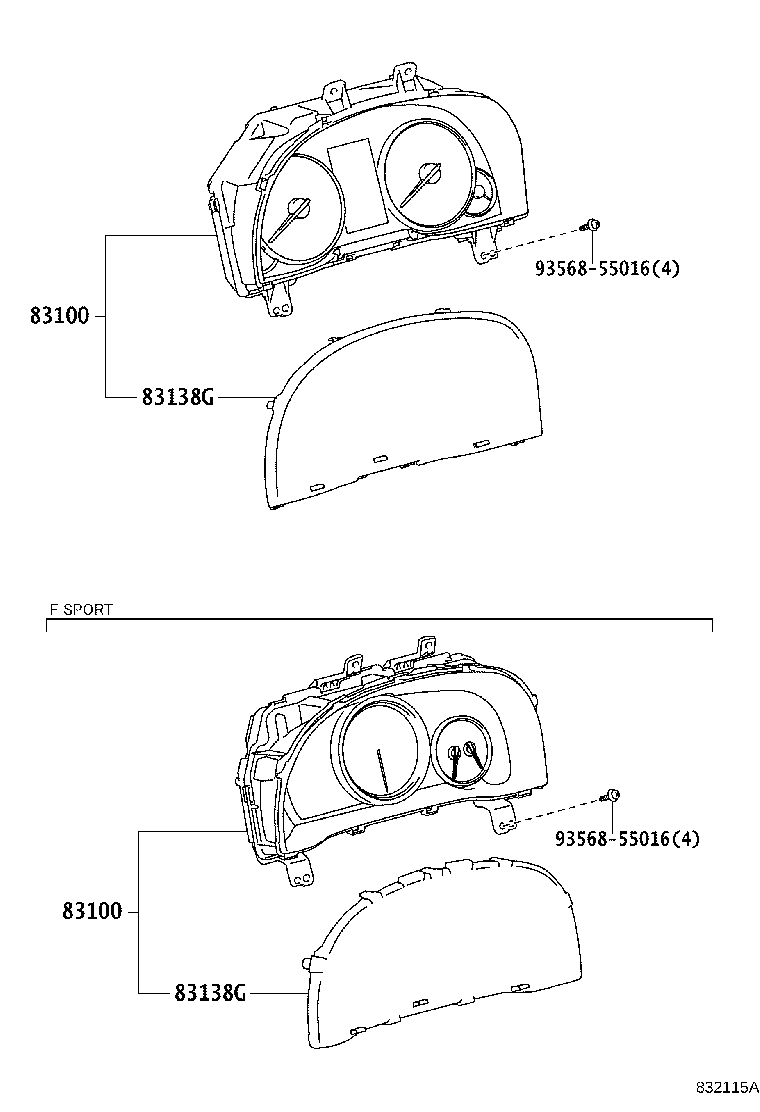

Meter
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83138G | Glass, Combination Meter |
| 83141A | Computer, Combination Meter Mirror |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83166 | Bracket, Combination Meter Mirror, NO.1 |
| 83166A | Bracket, Combination Meter Mirror, NO.1 |
| 83167 | Glass, Combination Meter Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
