Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 2 illustrations

Illustrations

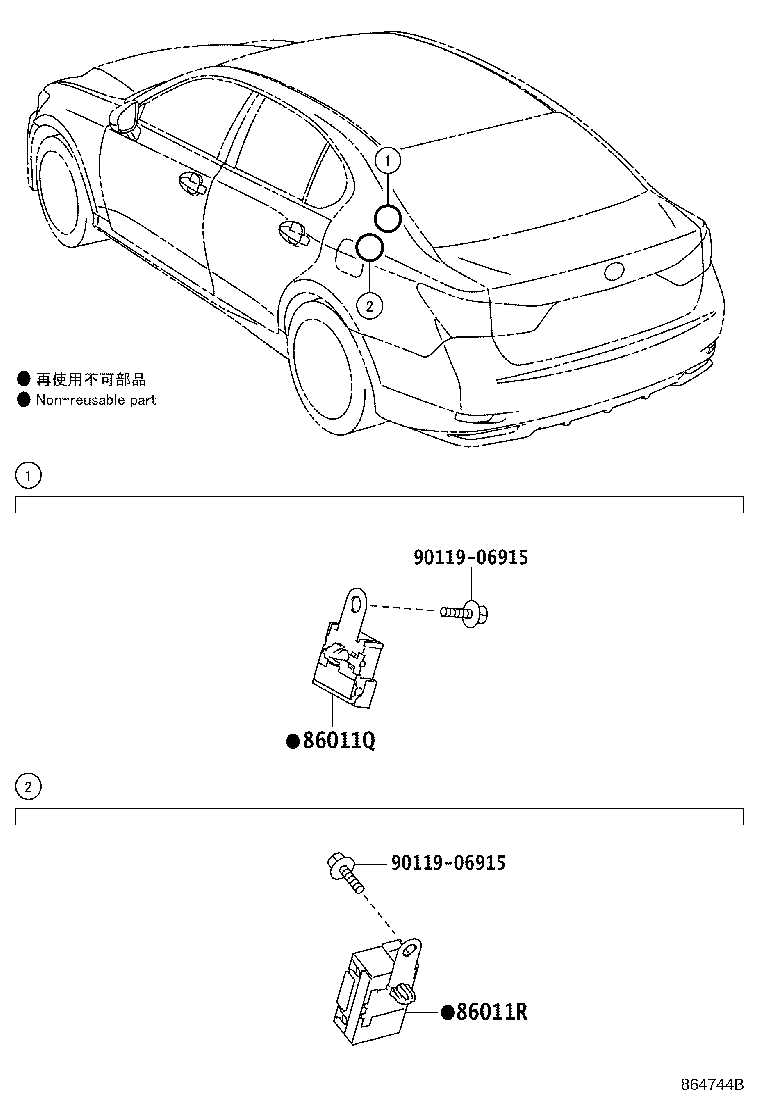

Figure 864743E 864743E 2011-12 → — Figure 864744B 864744B 2011-12 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280K Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286B Bracket, Amplifier, NO.2
G92C0A Converter Assy, Eco-run Vehicle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
