Toyota Lexus GS Series
2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan
Supported model
Data version 2021-03

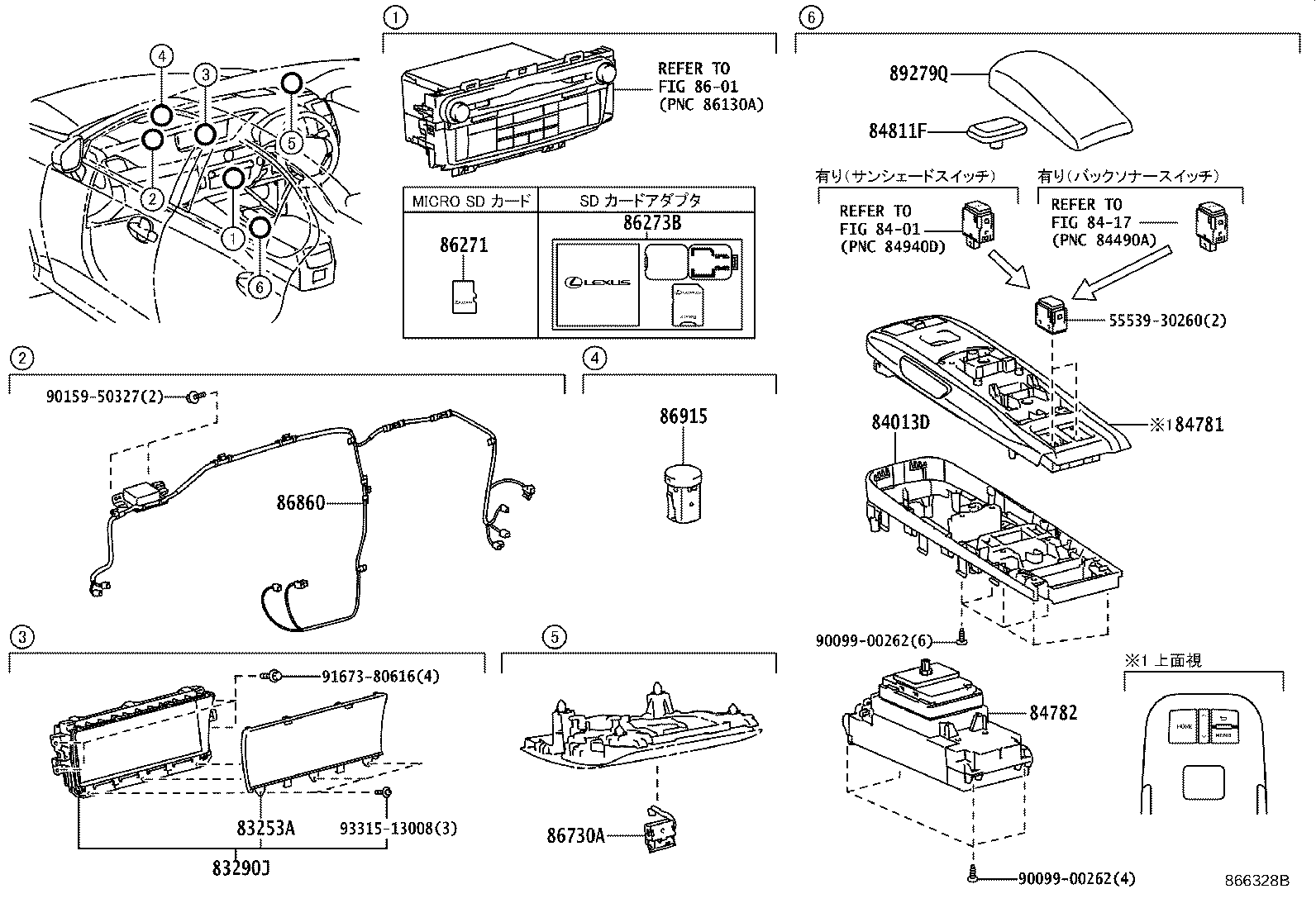

Navigation & Front Monitor Display
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81610P | Cover Assy, RH |
| 83253A | Glass, Accessory Meter |
| 83290J | Meter Assy, Accessory |
| 84013D | Panel Sub-assy, Integration |
| 84781 | Switch, Remote Operation |
| 84782 | Board, Remote Operation |
| 84811F | Knob, Switch |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86273B | Adapter, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
| 86915 | Transceiver, Optical Beacon |
| 89279Q | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
