Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

57 part groups · 8 illustrations

Illustrations

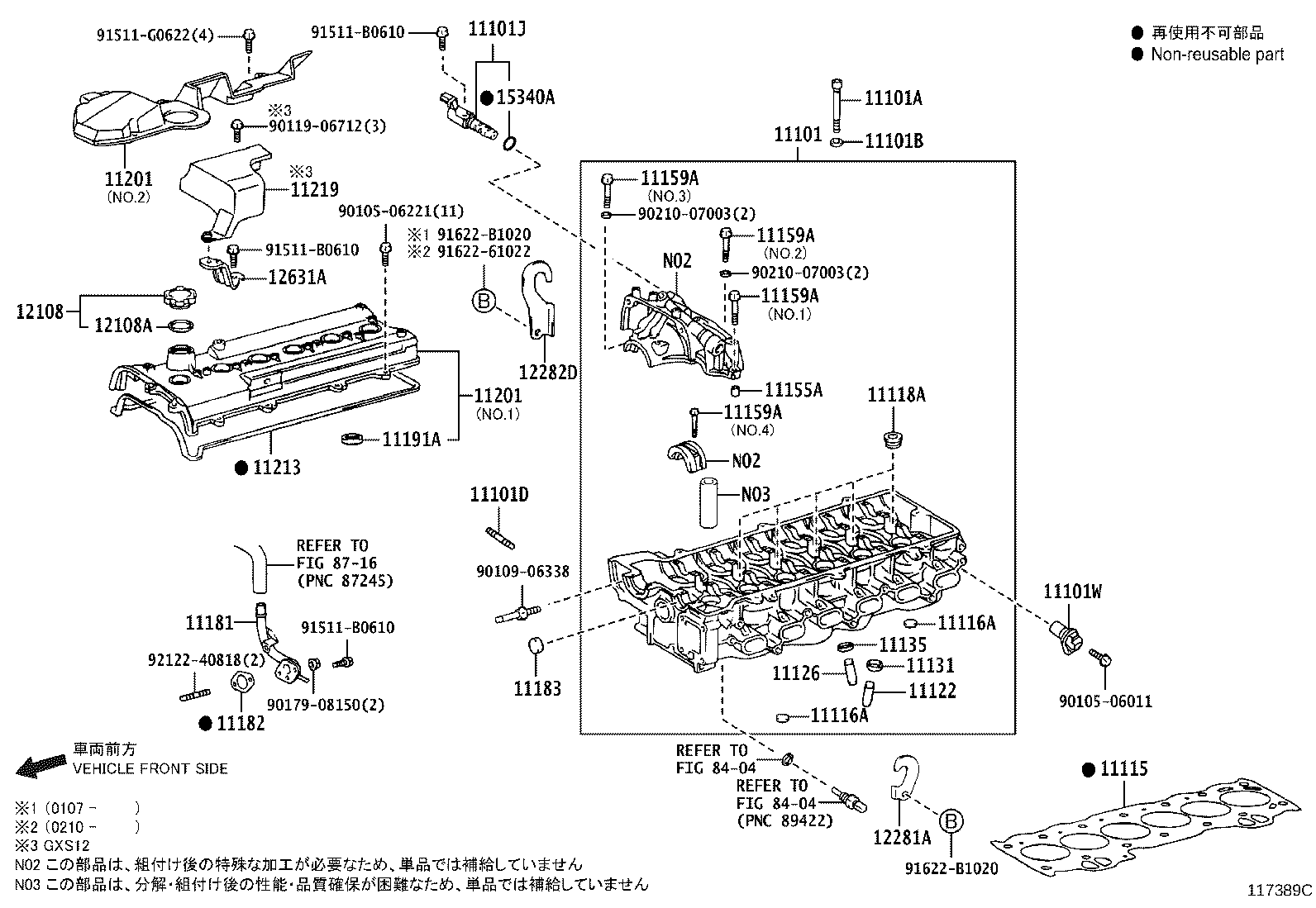

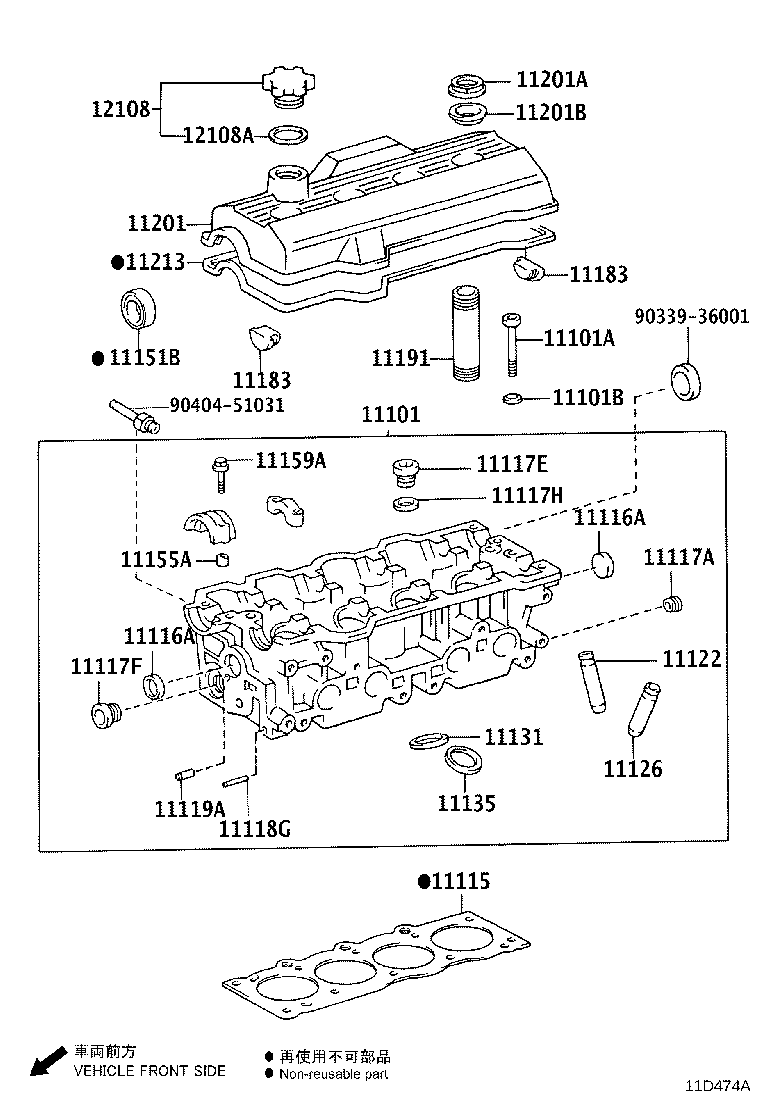

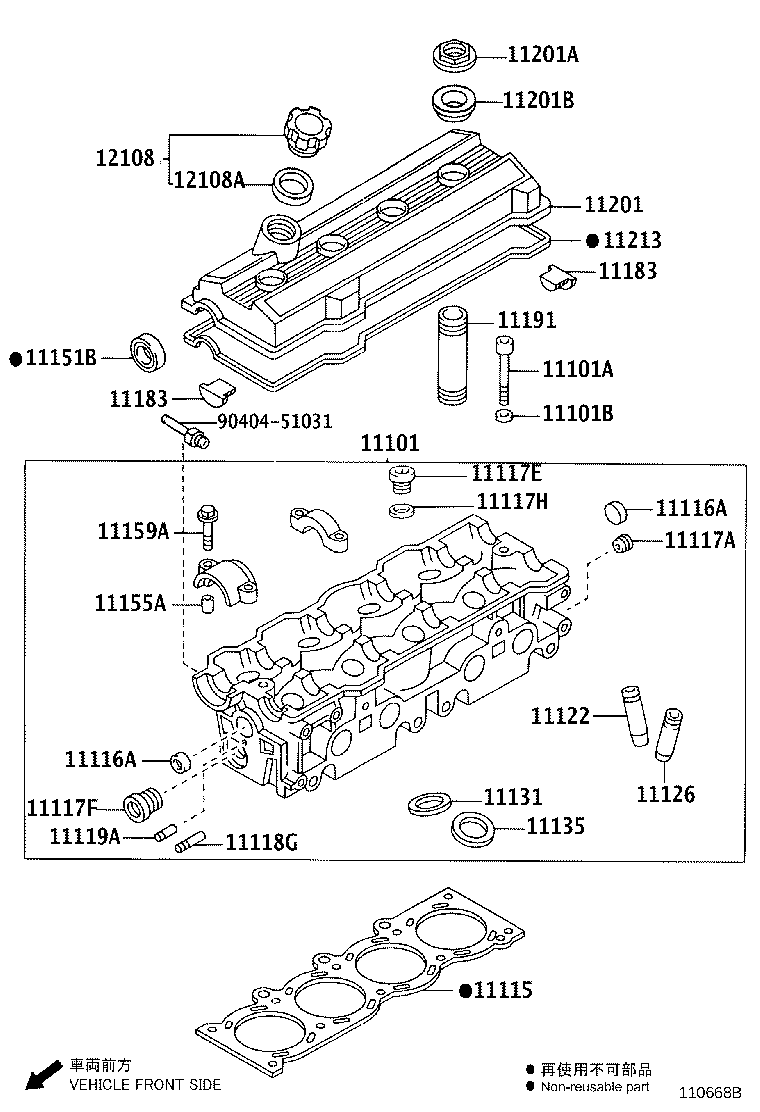

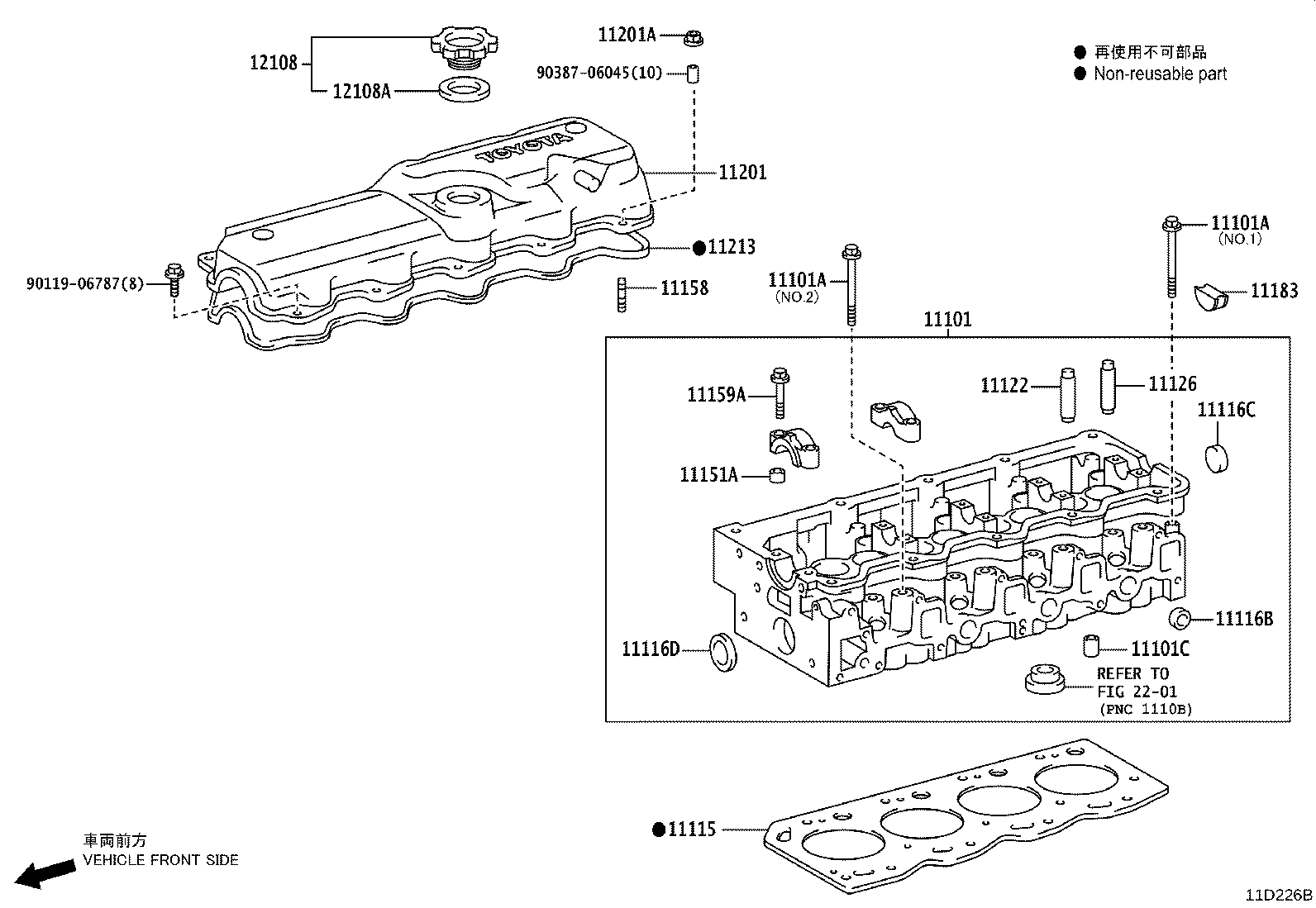

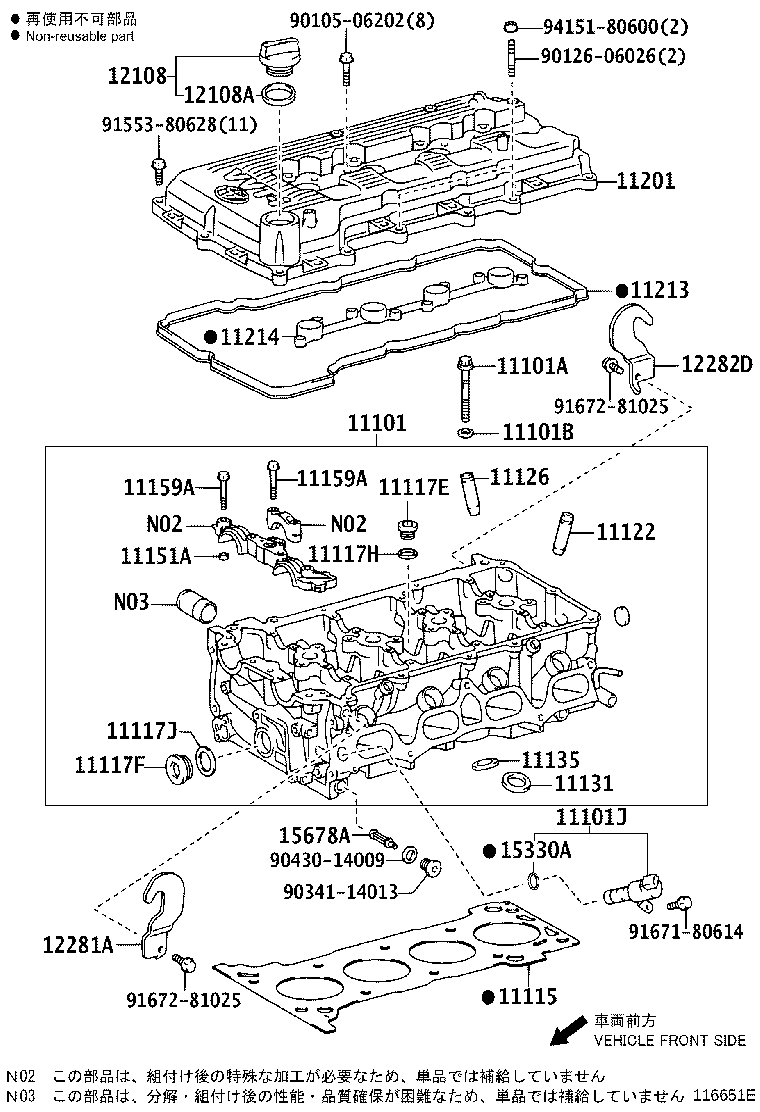

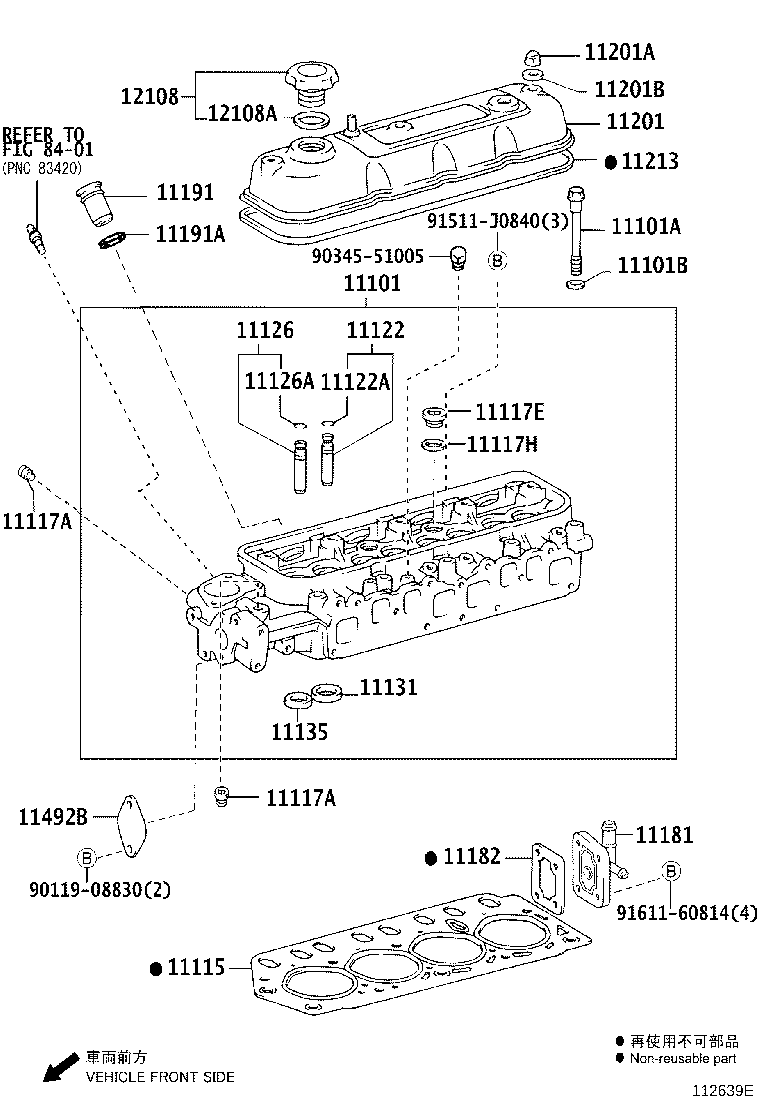

Figure 111878B 111878B 1995-12 → 2001-02 Figure 111878B 111878B 2001-10 → — Figure 117389C 117389C 2001-08 → — Figure 11D226B 11D226B 1995-12 → 1999-08 Figure 110668B 110668B 1996-04 → 2001-08 Figure 11D474A 11D474A 2001-08 → — Figure 116651E 116651E 2007-09 → — Figure 112639E 112639E 1995-12 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101D Bolt, Stud(FOR WATER OUTLET)
11101G Union(FOR CYLINDER HEAD)
11101J Valve Assy, Camshaft Timing Oil Control
11101P Bolt, Stud(FOR DISTRIBUTOR)
11101R Bolt, Stud(FOR FUEL PIPE)
11101W Sensor, Crank Position, NO.1
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11117A Plug, W/Head Taper Screw, NO.1
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11118A Plug, Straight, NO.1
11118G Pin, Slotted Spring, NO.1
11119A Pin, Straight, NO.1
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11181A Cover, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11191 Tube, Spark Plug
11191A Gasket(FOR SPARK PLUG TUBE)
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201T Pin(FOR CYLINDER HEAD COVER)
11201U Bush(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11219 Cover, Cylinder Head, NO.3
11492B Plate, Water Seal
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12631A Bracket, Engine Cover
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15340A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
