Timing Gear Cover & Rear End Plate

46 part groups · 11 illustrations

Illustrations

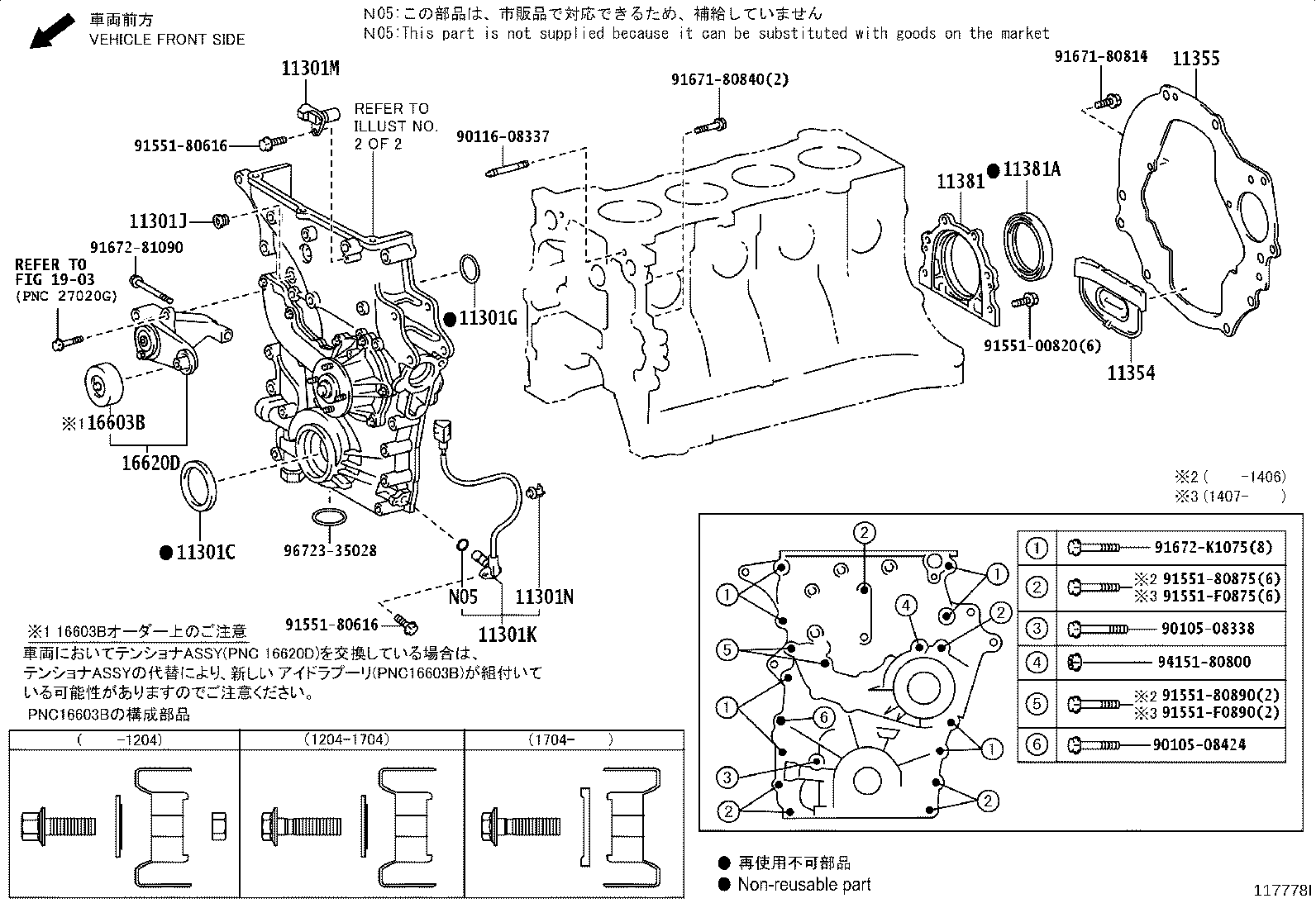

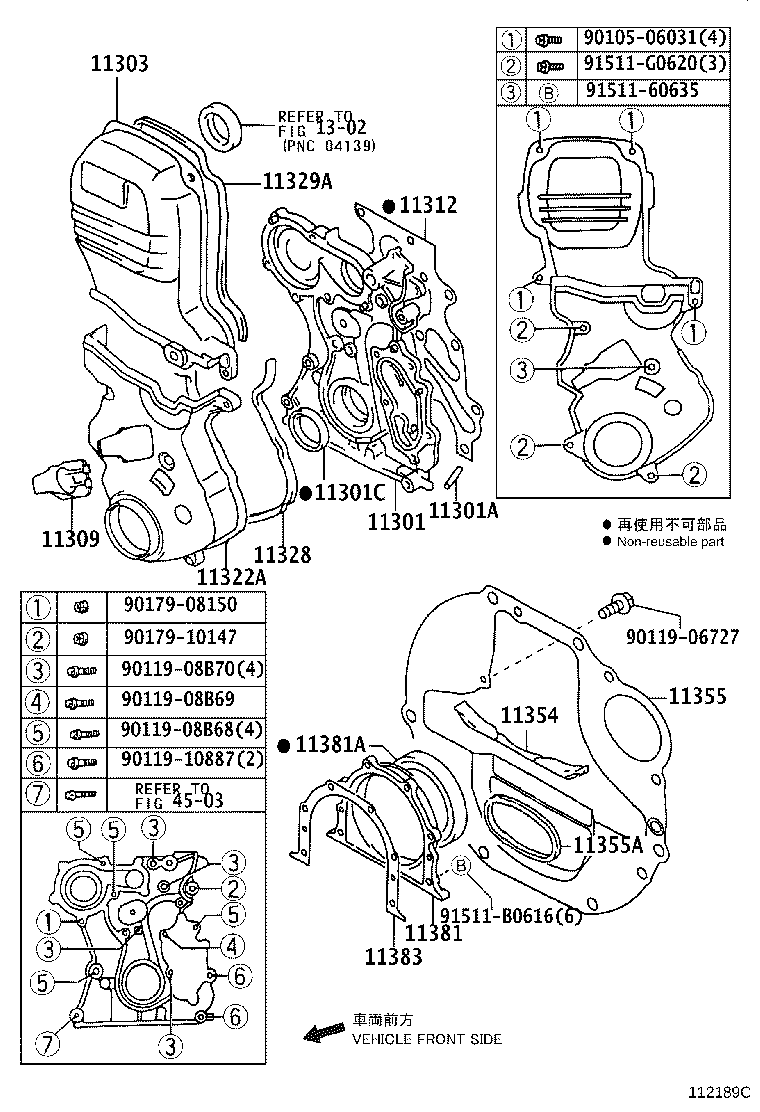

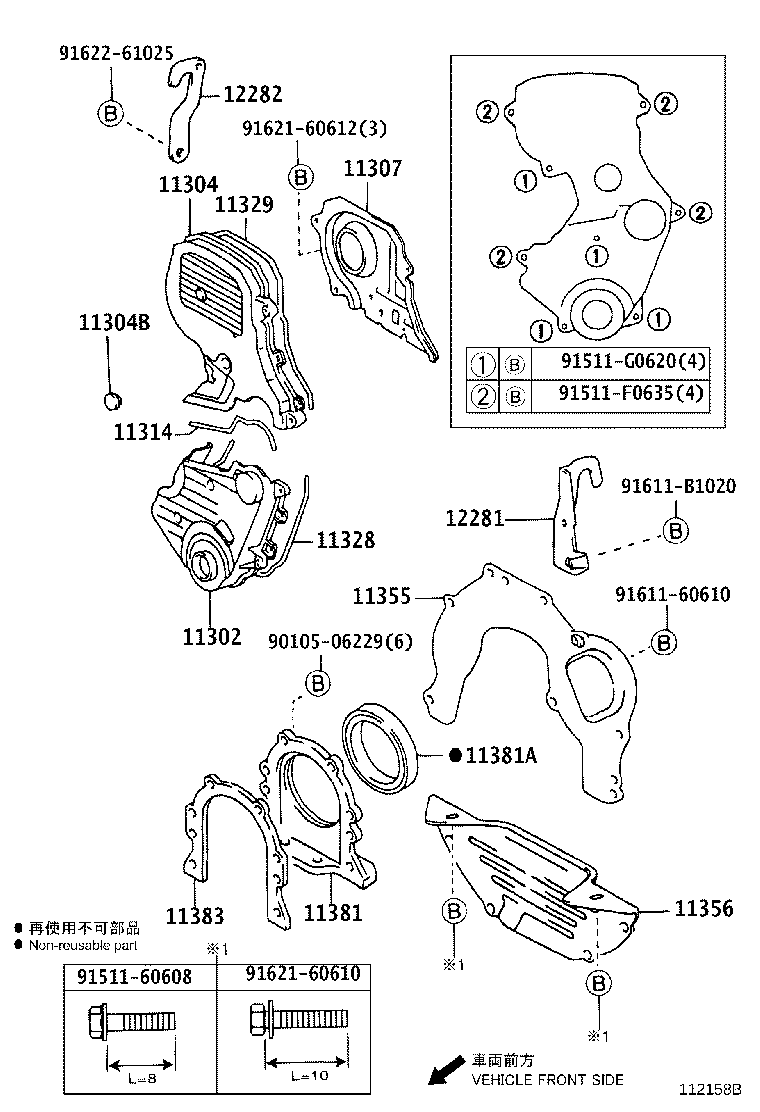

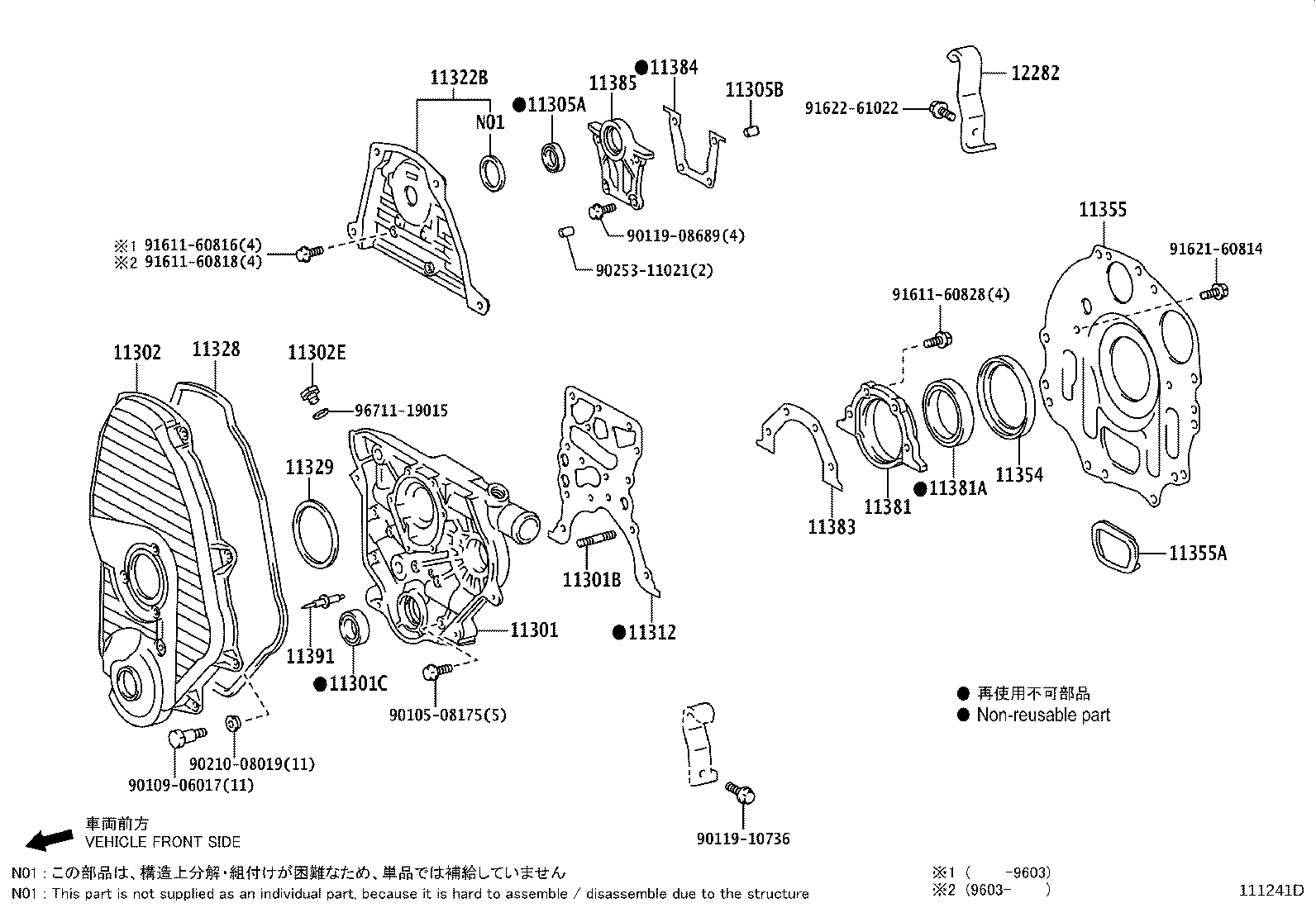

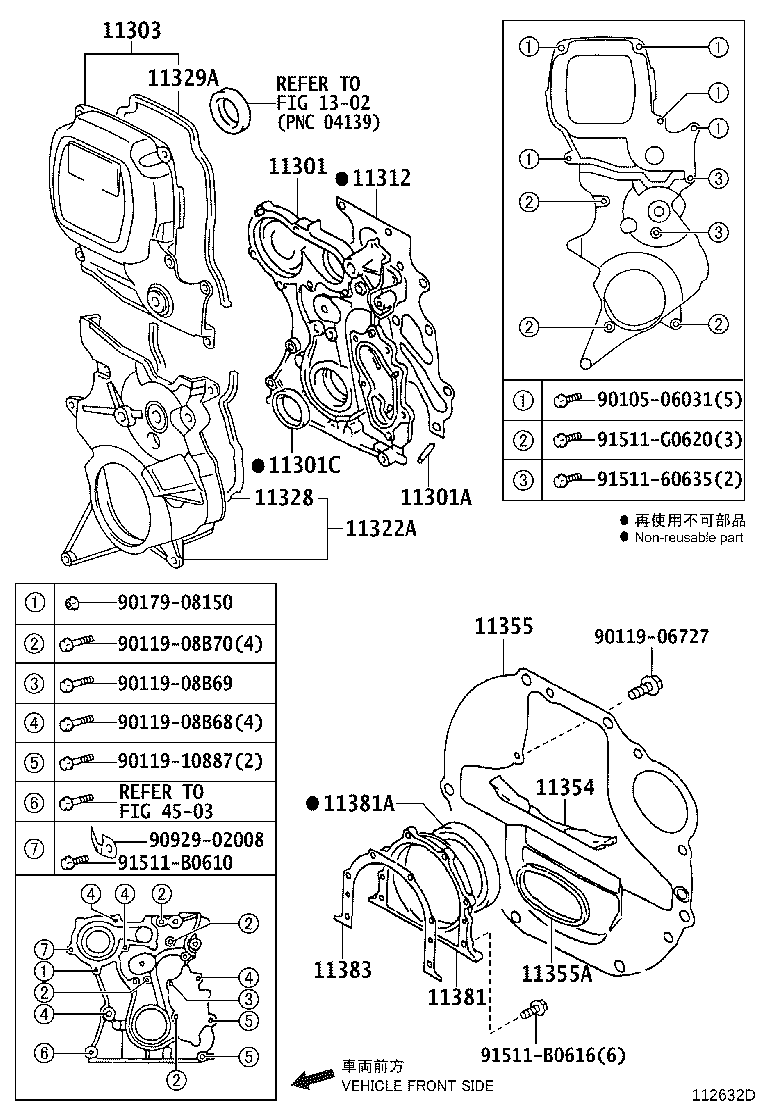

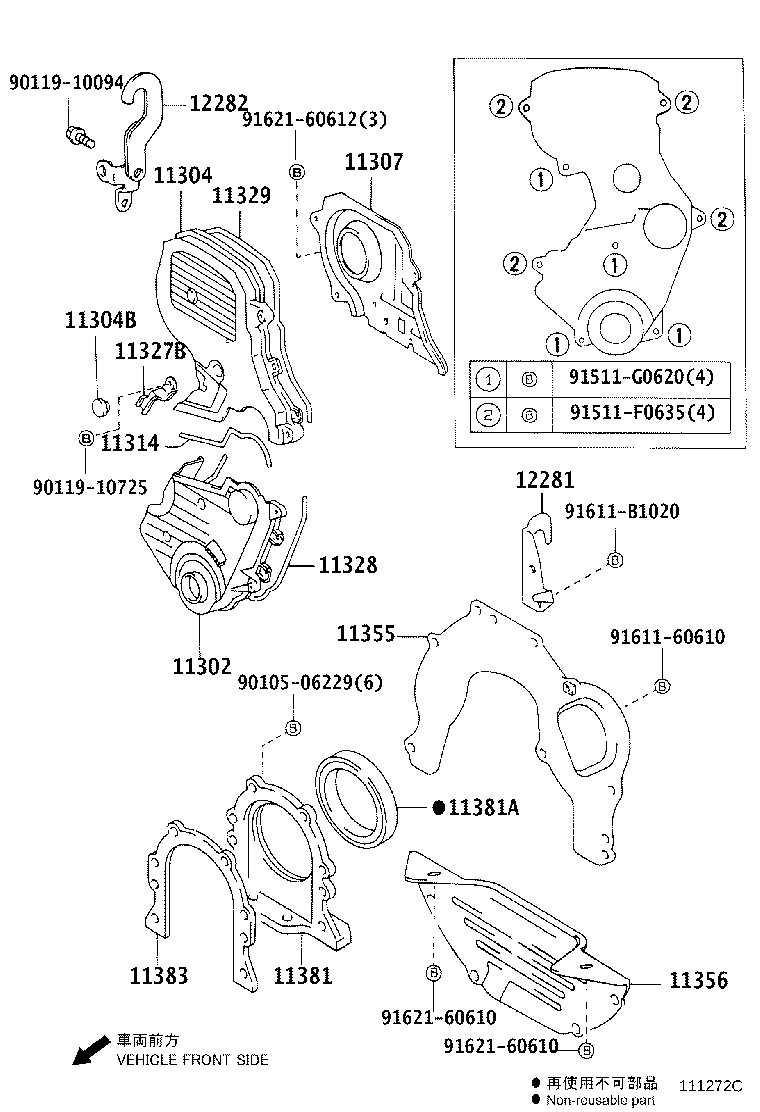

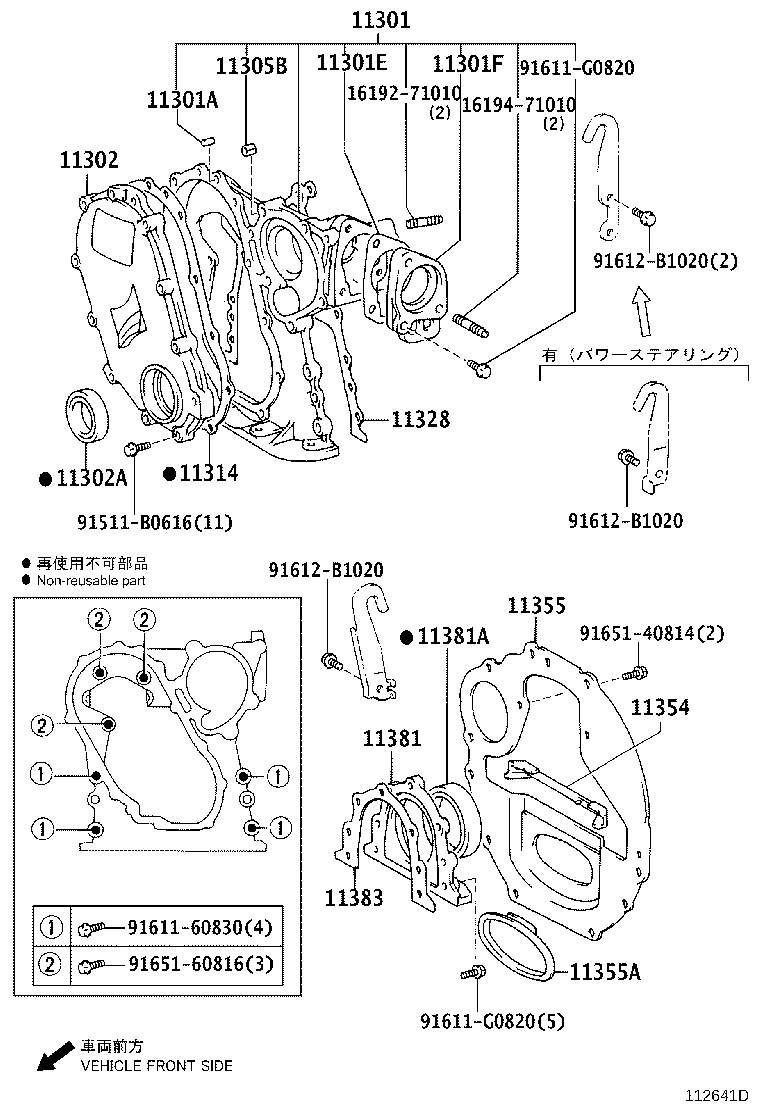

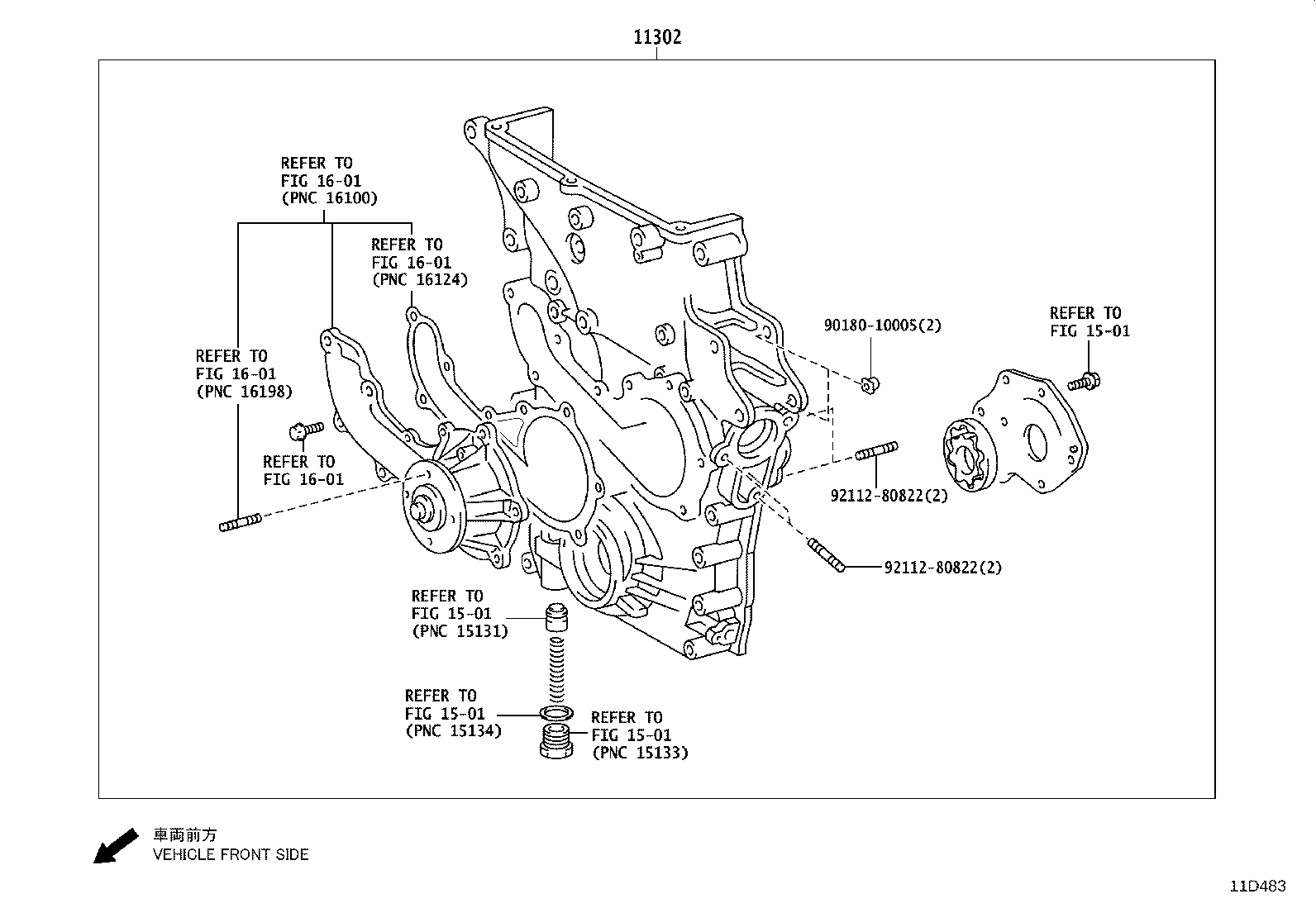

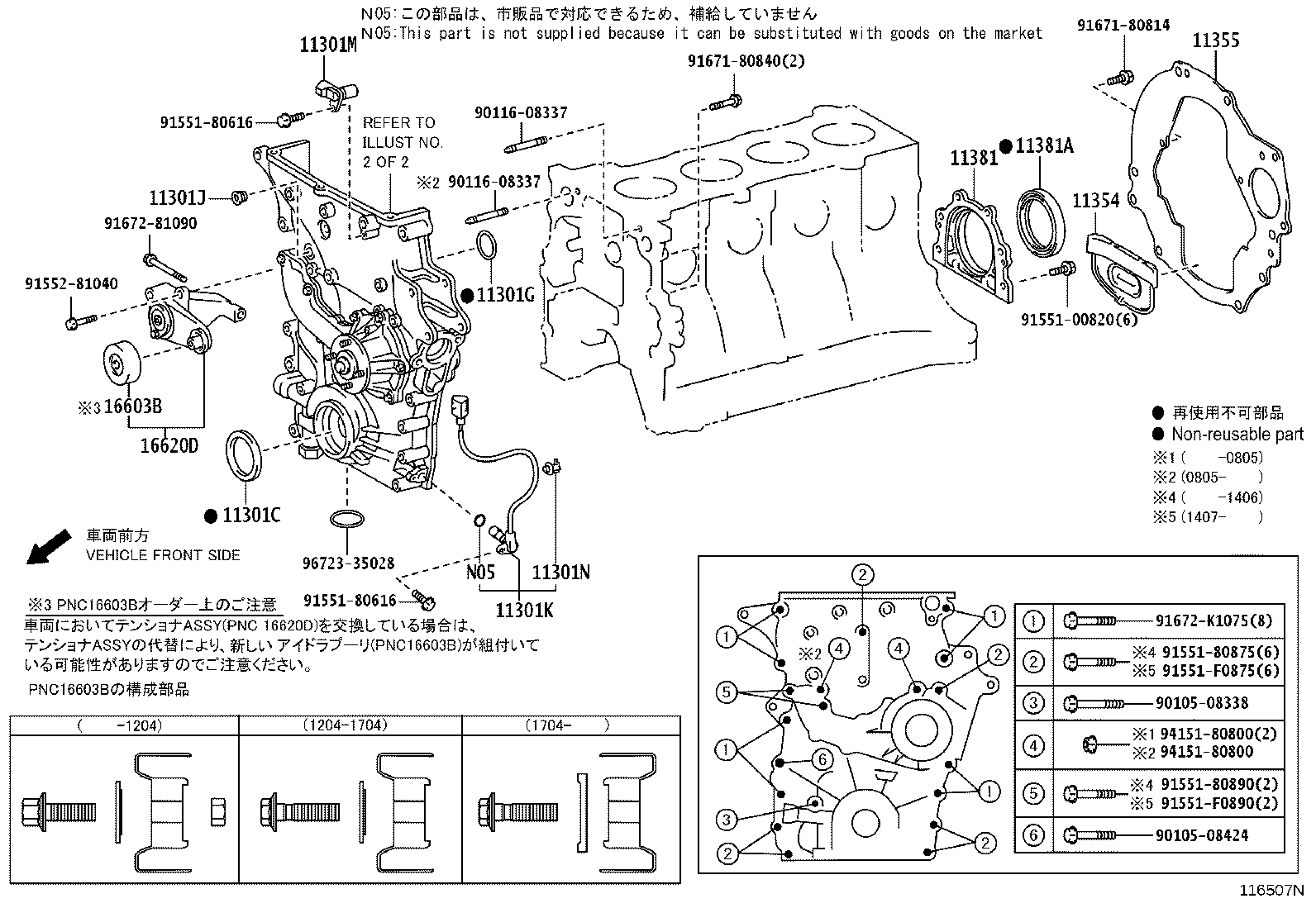

Figure 111137G 111137G 1995-12 → 2001-02 Figure 111137G 111137G 2001-10 → — Figure 112189C 112189C 2001-08 → — Figure 112632D 112632D 2002-10 → — Figure 111241D 111241D 1995-12 → 1999-08 Figure 111272C 111272C 1996-04 → 2001-08 Figure 112158B 112158B 2001-08 → — Figure 116507N 116507N 2007-09 → — Figure 117778I 117778I 2008-08 → — Figure 11D483 11D483 2007-09 → — Figure 112641D 112641D 1995-12 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301E Gasket, Thermostat Guide
11301F Plate, Water Pump Thermostat Guide
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11301N Clamp
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11312 Gasket, Front End Plate
11314 Gasket, Timing Chain NO.2 Cover
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11322E Gasket, Timing Belt Cover, NO.2
11327B Stay, Timing Belt Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
11391 Pointer, Timing
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
