Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 8 illustrations

Illustrations

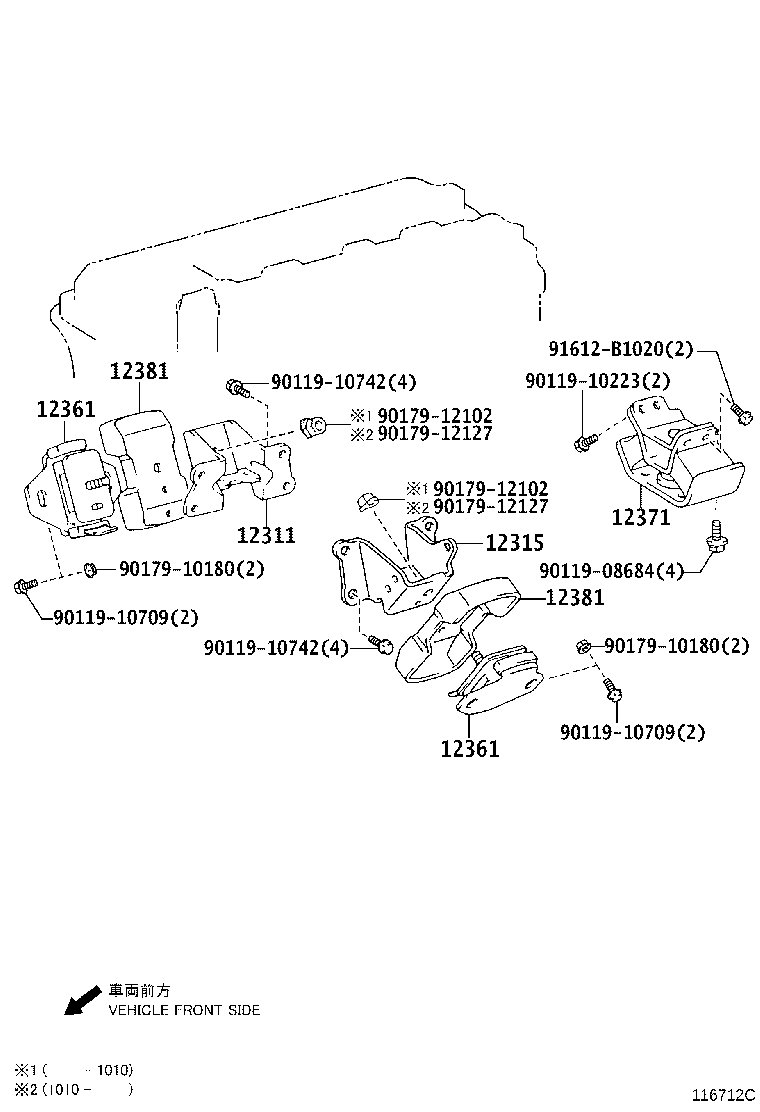

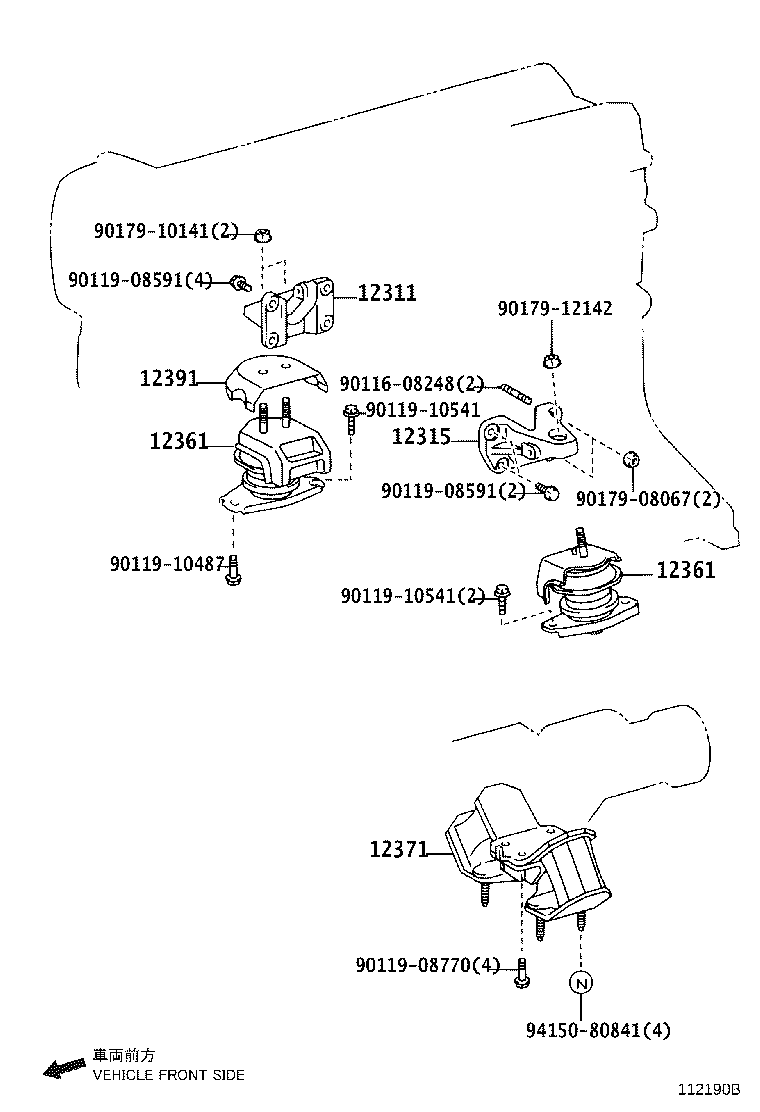

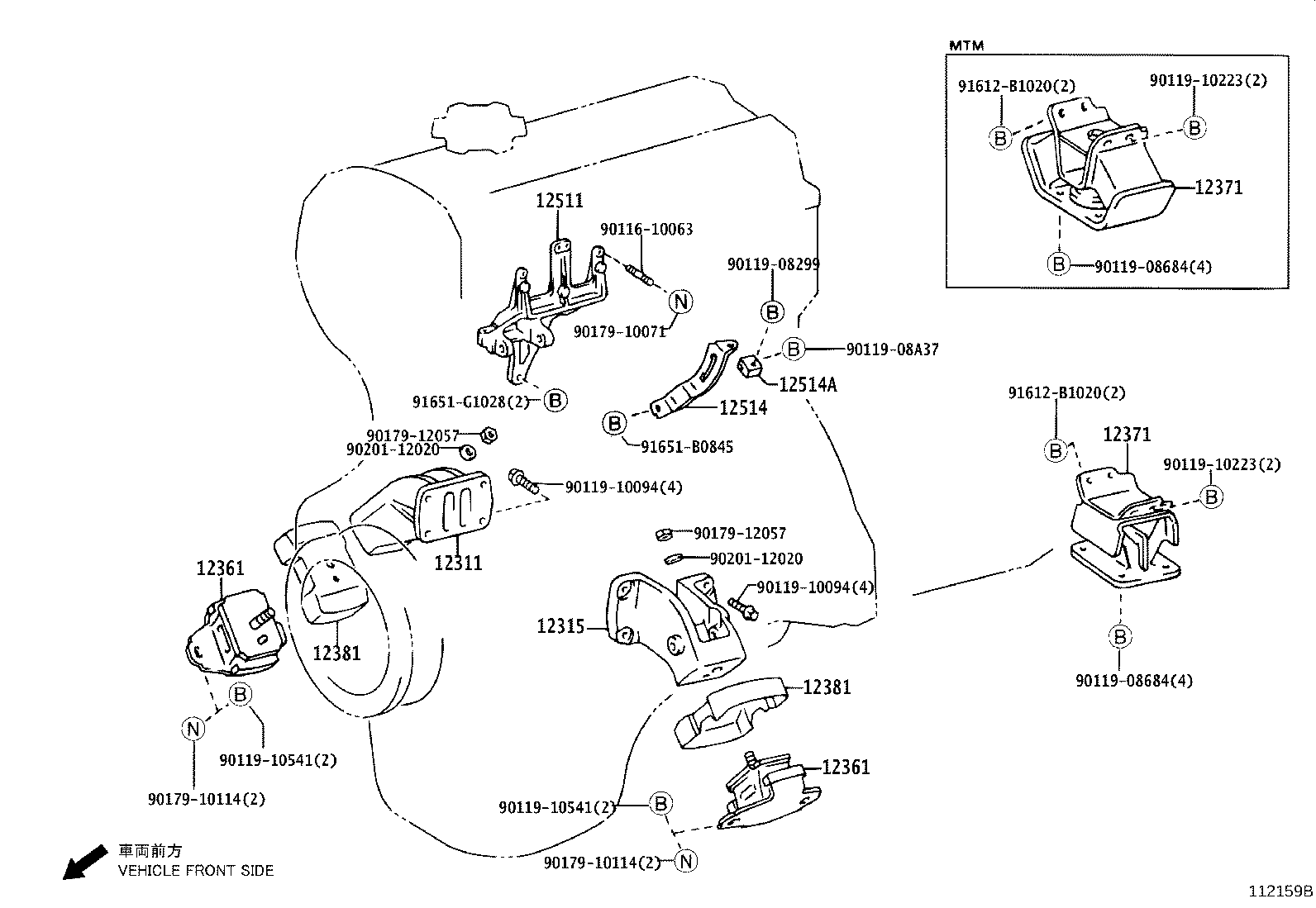

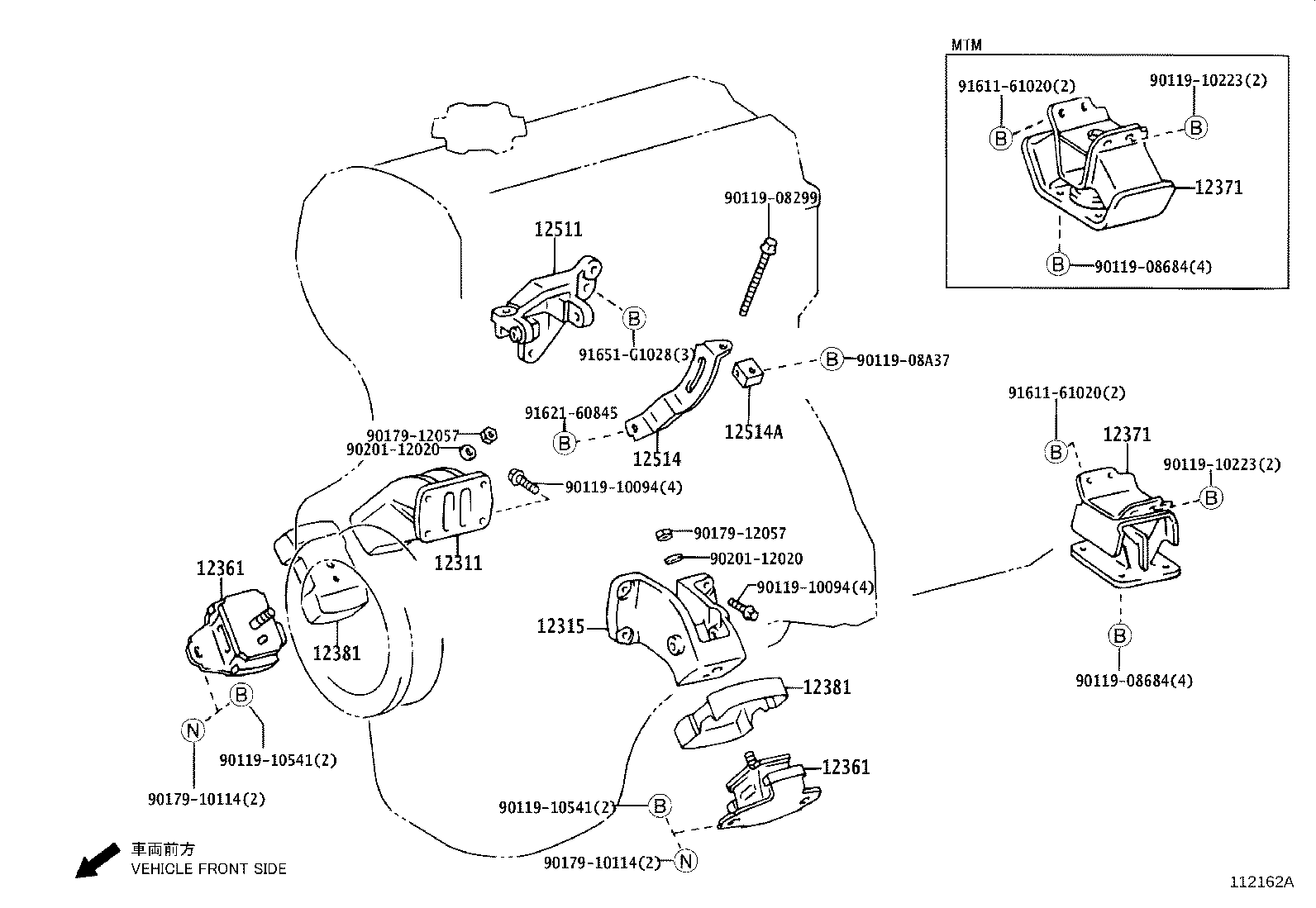

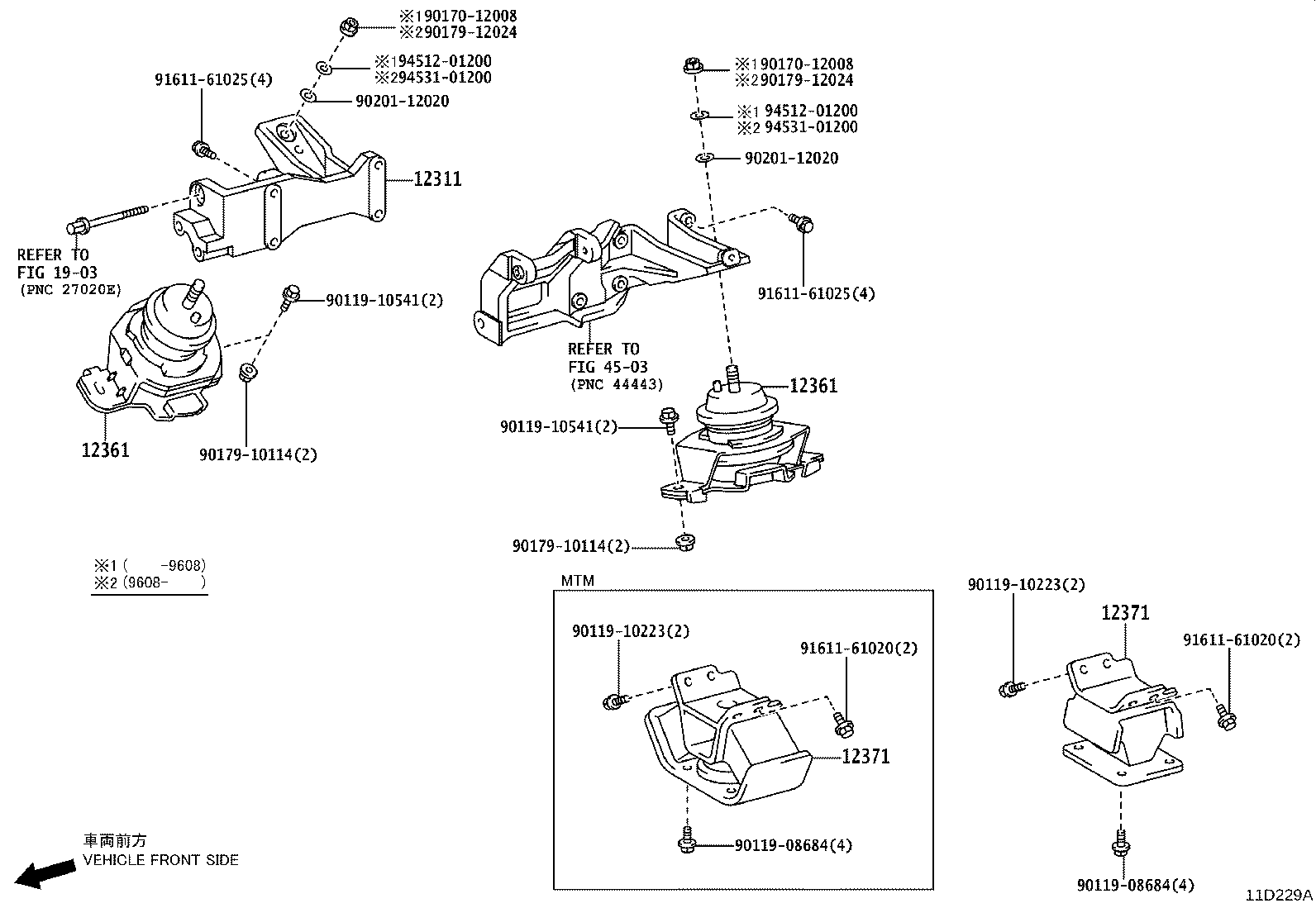

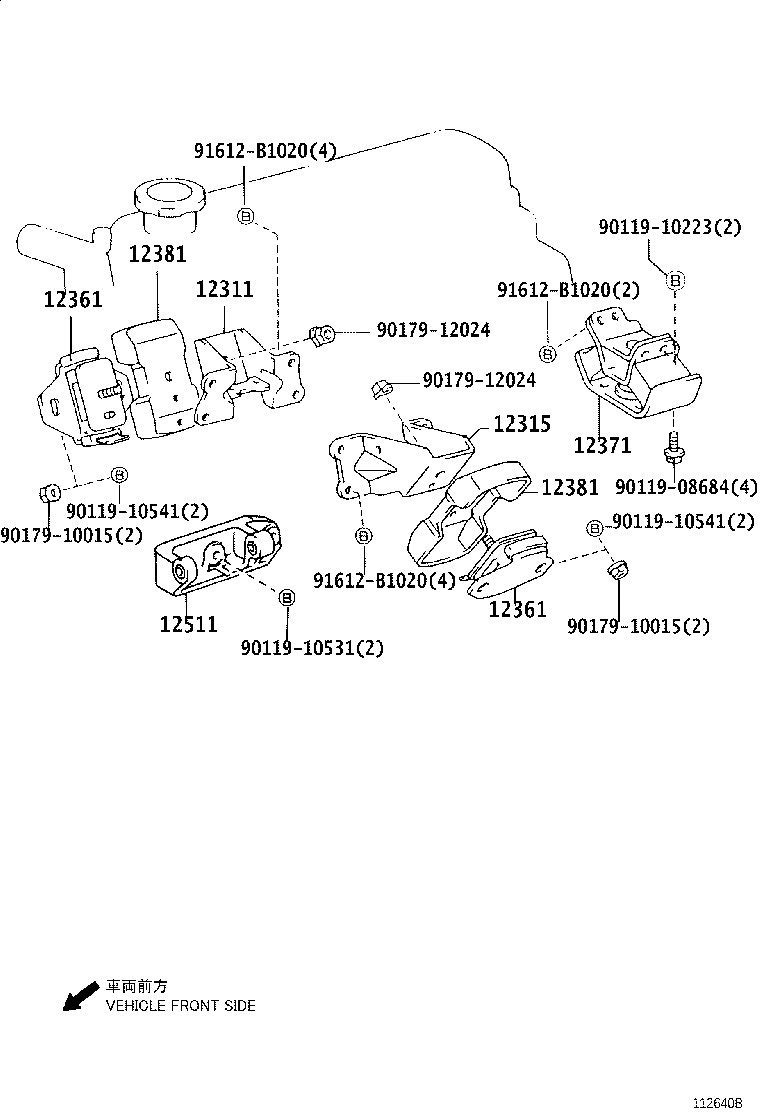

Figure 112250A 112250A 1995-12 → 2001-02 Figure 112250A 112250A 2001-08 → — Figure 112190B 112190B 2001-08 → — Figure 11D229A 11D229A 1995-12 → 1999-08 Figure 112162A 112162A 1996-04 → 2001-08 Figure 112159B 112159B 2001-08 → — Figure 116712C 116712C 2007-09 → — Figure 112640B 112640B 1995-12 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
