Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

53 part groups · 8 illustrations

Illustrations

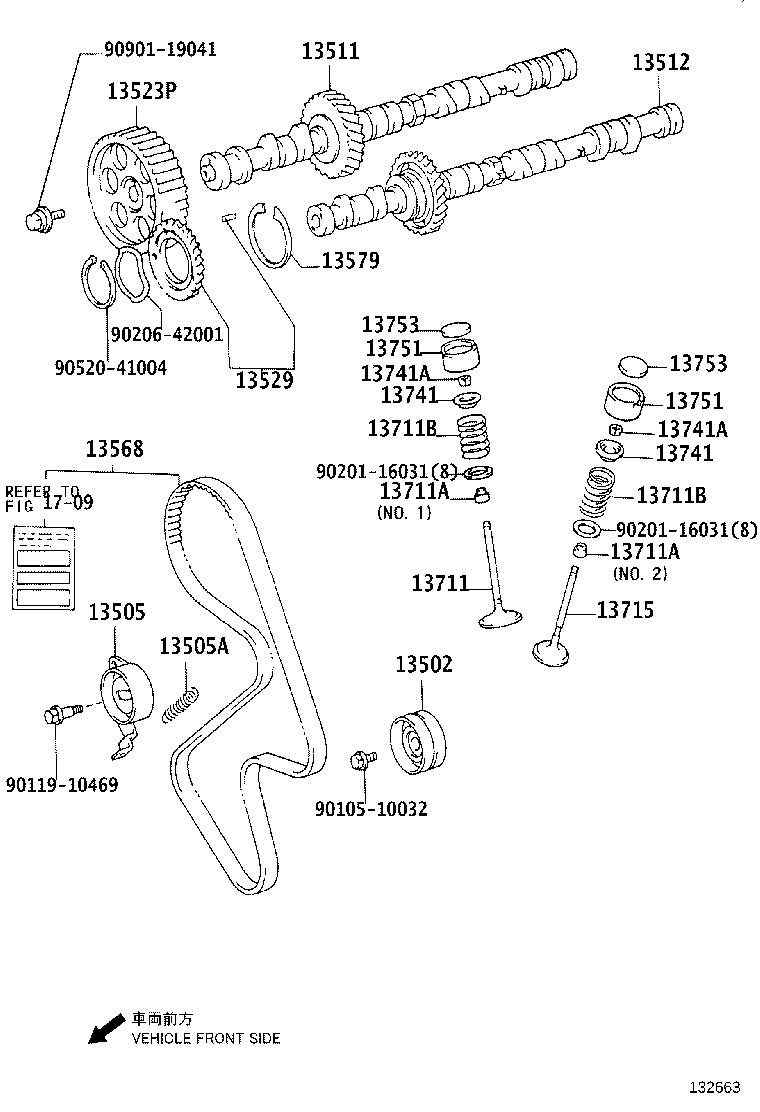

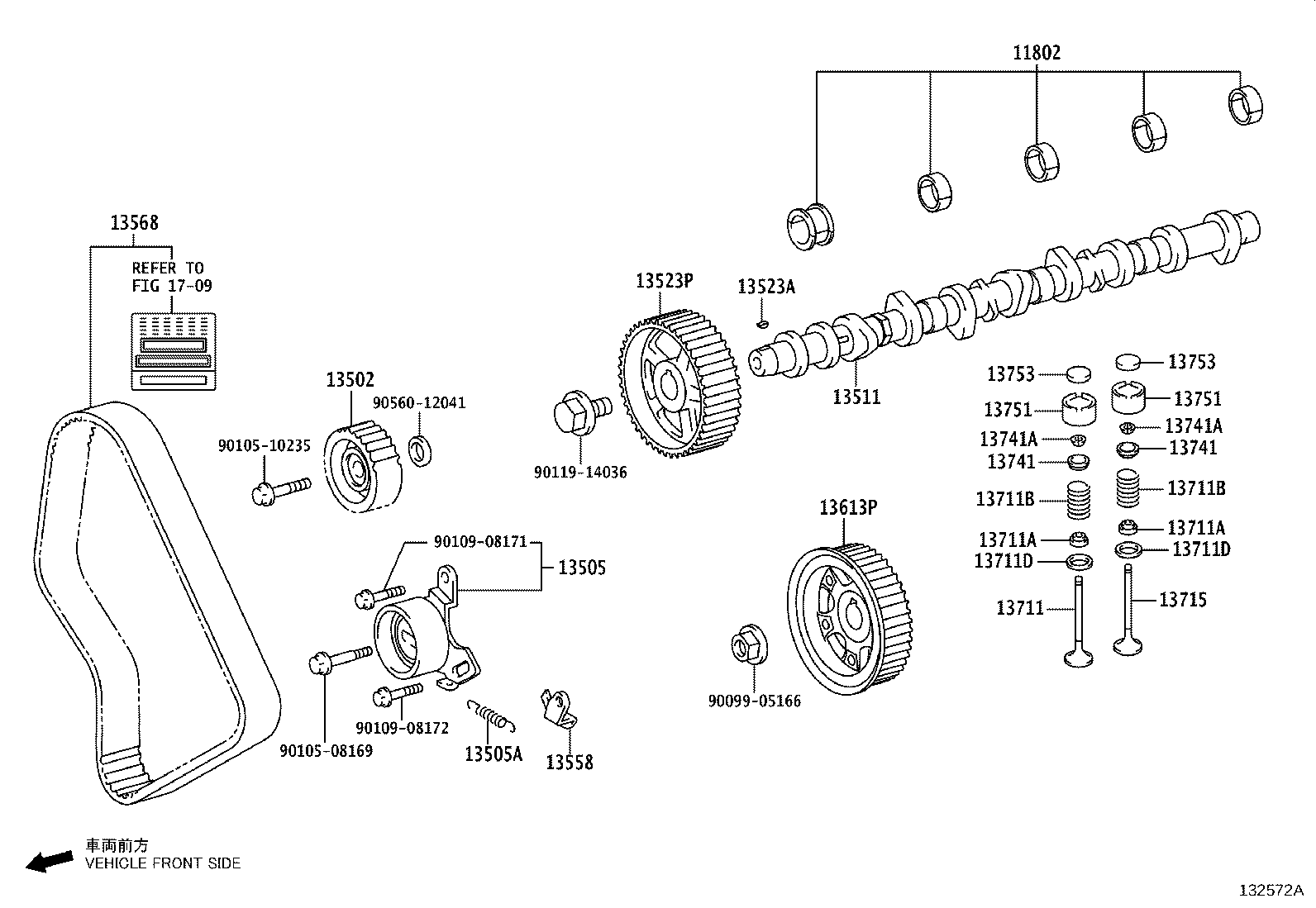

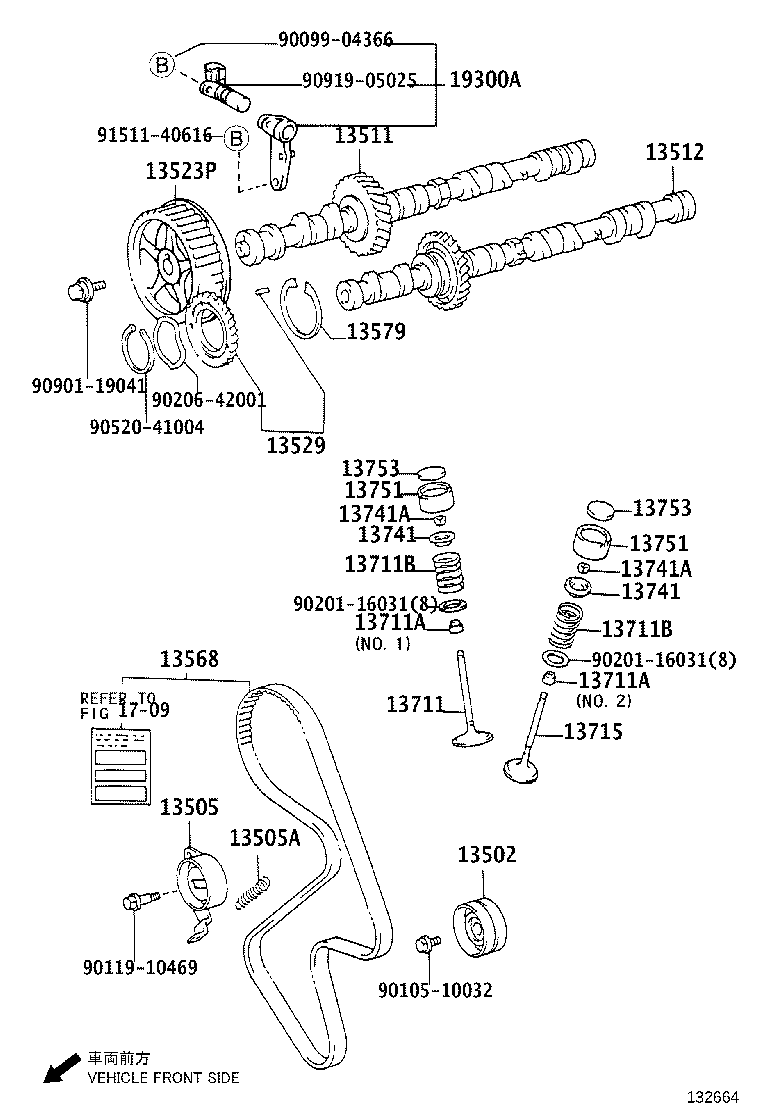

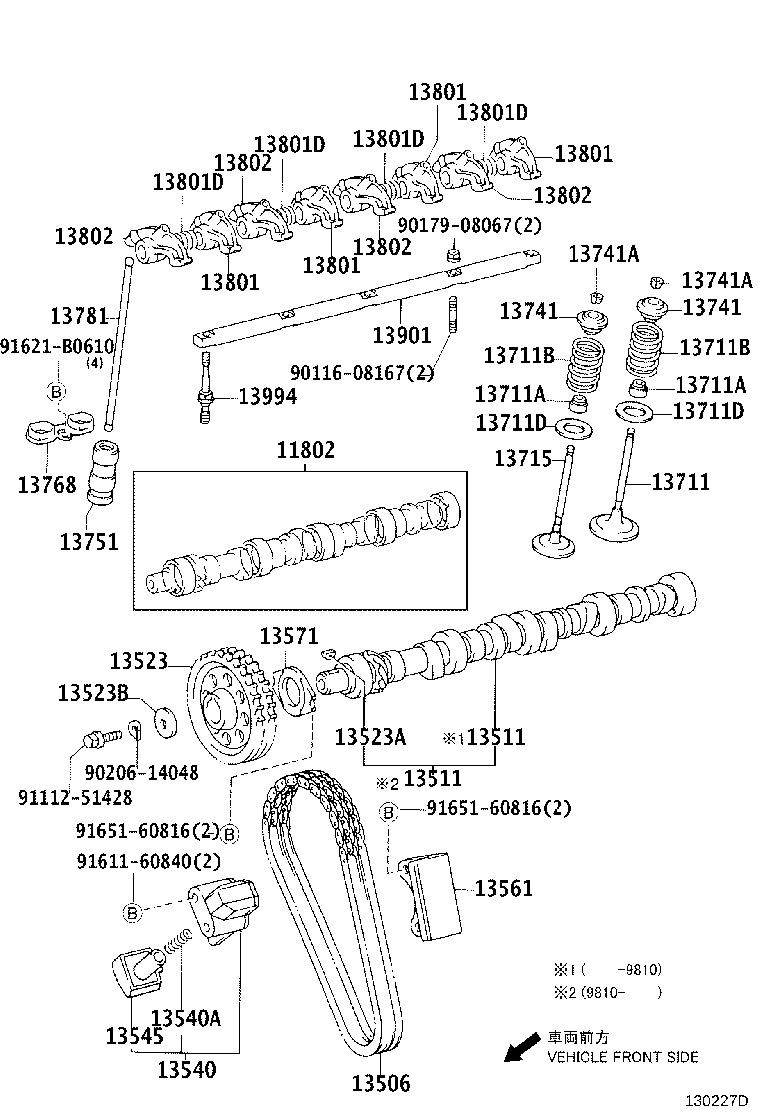

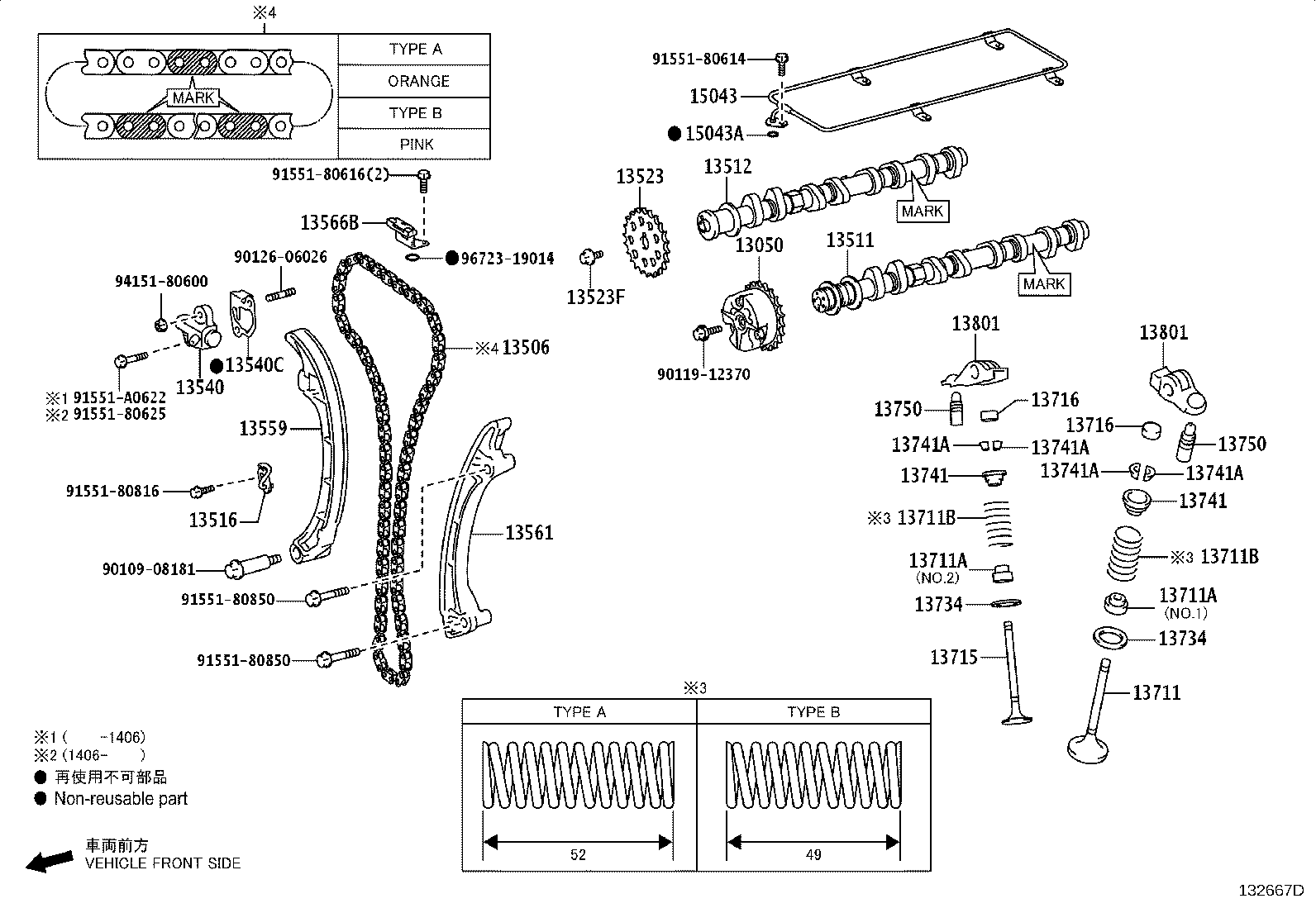

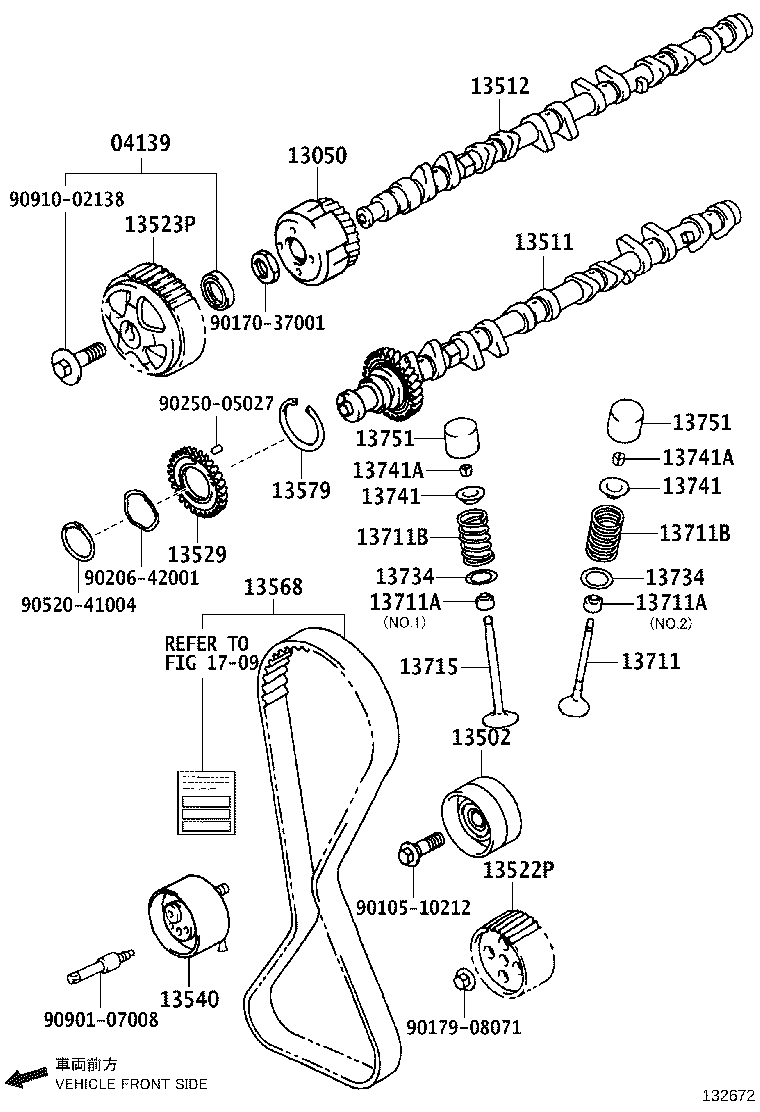

Figure 130438B 130438B 1995-12 → 2001-02 Figure 130438B 130438B 2001-10 → — Figure 132672 132672 2001-08 → — Figure 132572A 132572A 1995-12 → 1999-08 Figure 132663 132663 1996-04 → 2001-08 Figure 132664 132664 2001-08 → — Figure 132667D 132667D 2007-09 → — Figure 130227D 130227D 1995-12 → —

Part groups

PNCDescription
04139 Bolt Kit, Camshaft Timing Pulley
11802 Bearing Set, Camshaft
13050 Gear Assy, Camshaft Timing
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13506 Chain Sub-assy
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13516 Jet, Oil
13522P Pulley, Pump Drive Shaft
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523F Bolt(FOR CAMSHAFT TIMING GEAR)
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13540 Tensioner Assy, Chain, NO.1
13540A Spring, Compression(FOR CHAIN TENSIONER)
13540C Gasket(FOR CHAIN TENSIONER)
13545 Plunger, Chain Tensioner
13558 Bracket, Spring(FOR IDLER)
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13566B Guide, Timing Chain
13568 Belt, Timing
13571 Plate, Camshaft Thrust
13579 Washer, Camshaft Timing Gear Bolt
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13751 Lifter, Valve
13751D Pad, Valve Adjusting
13753 Shim, Valve Adjusting
13768 Guide, Valve Lifter
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13994 Bolt, Rocker Shaft Stud
15043 Pipe Sub-assy, Camshaft Oil Delivery
15043A Ring, O(FOR CAMSHAFT OIL DELIVERY PIPE)
19300A Sensor Assy, Cam Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
