Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

21 part groups · 8 illustrations

Illustrations

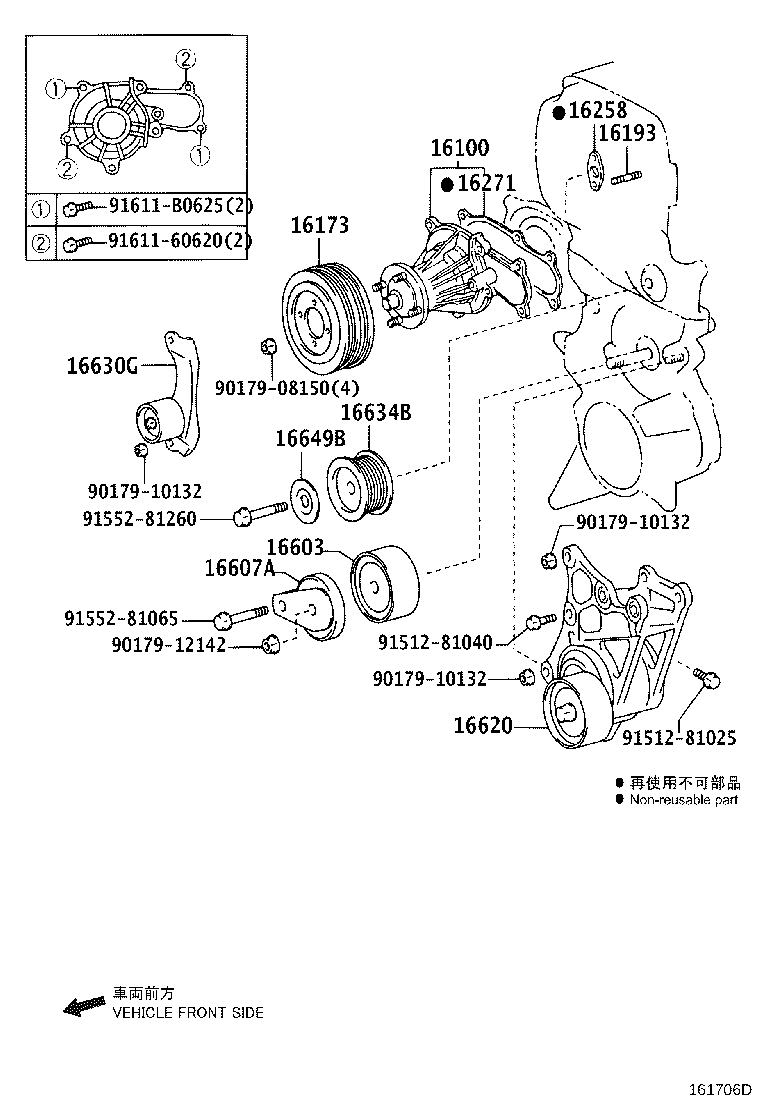

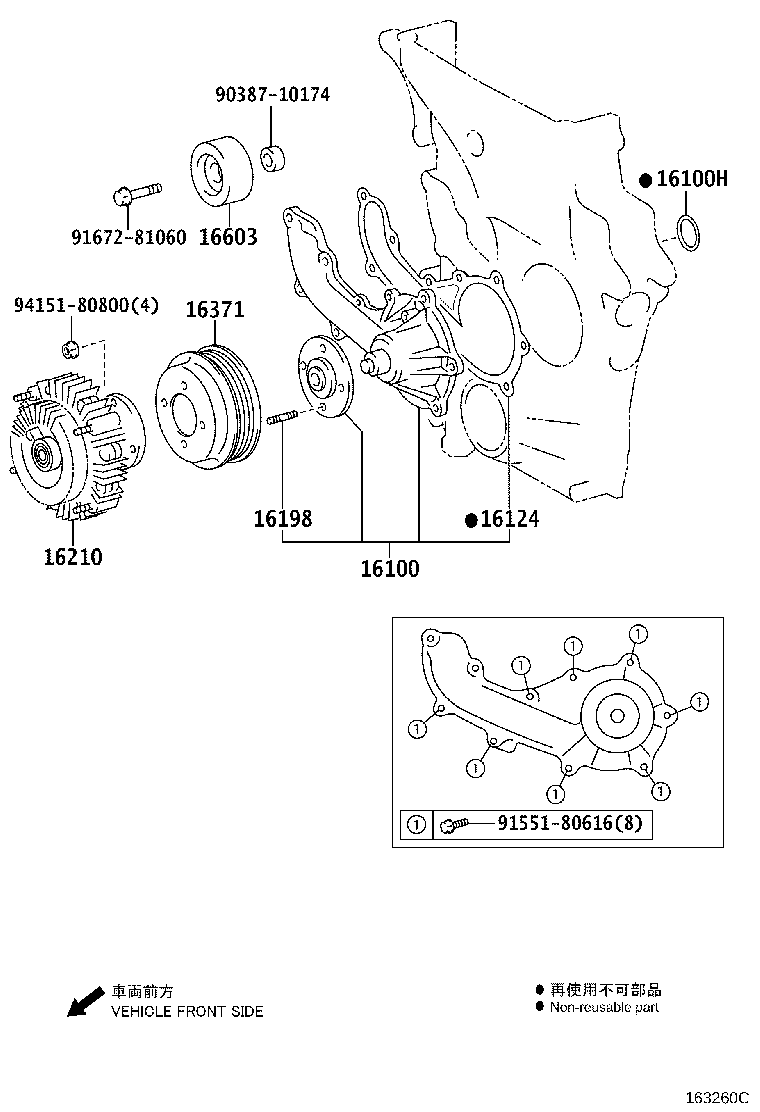

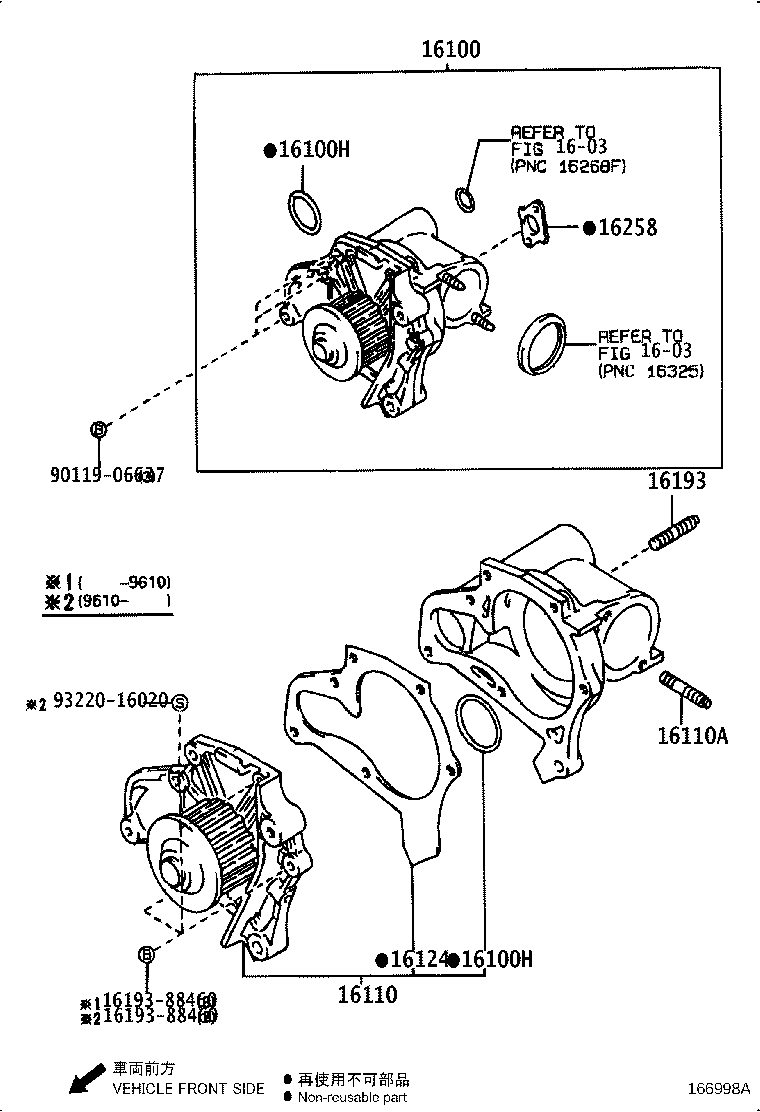

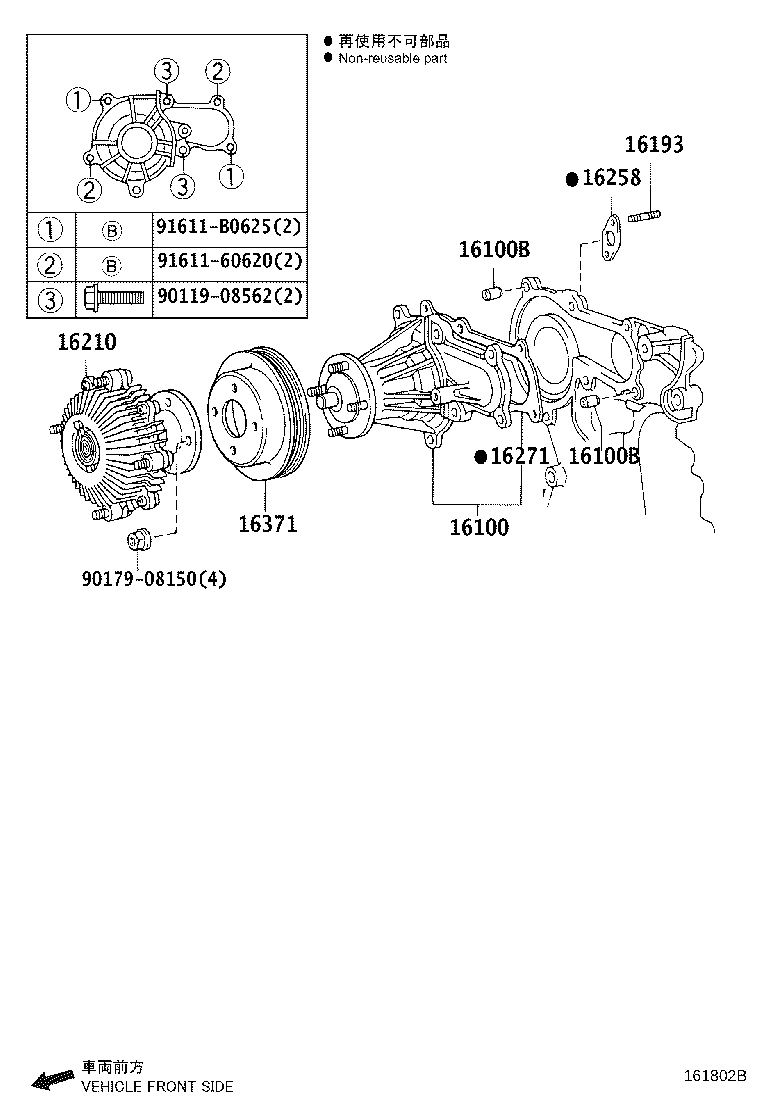

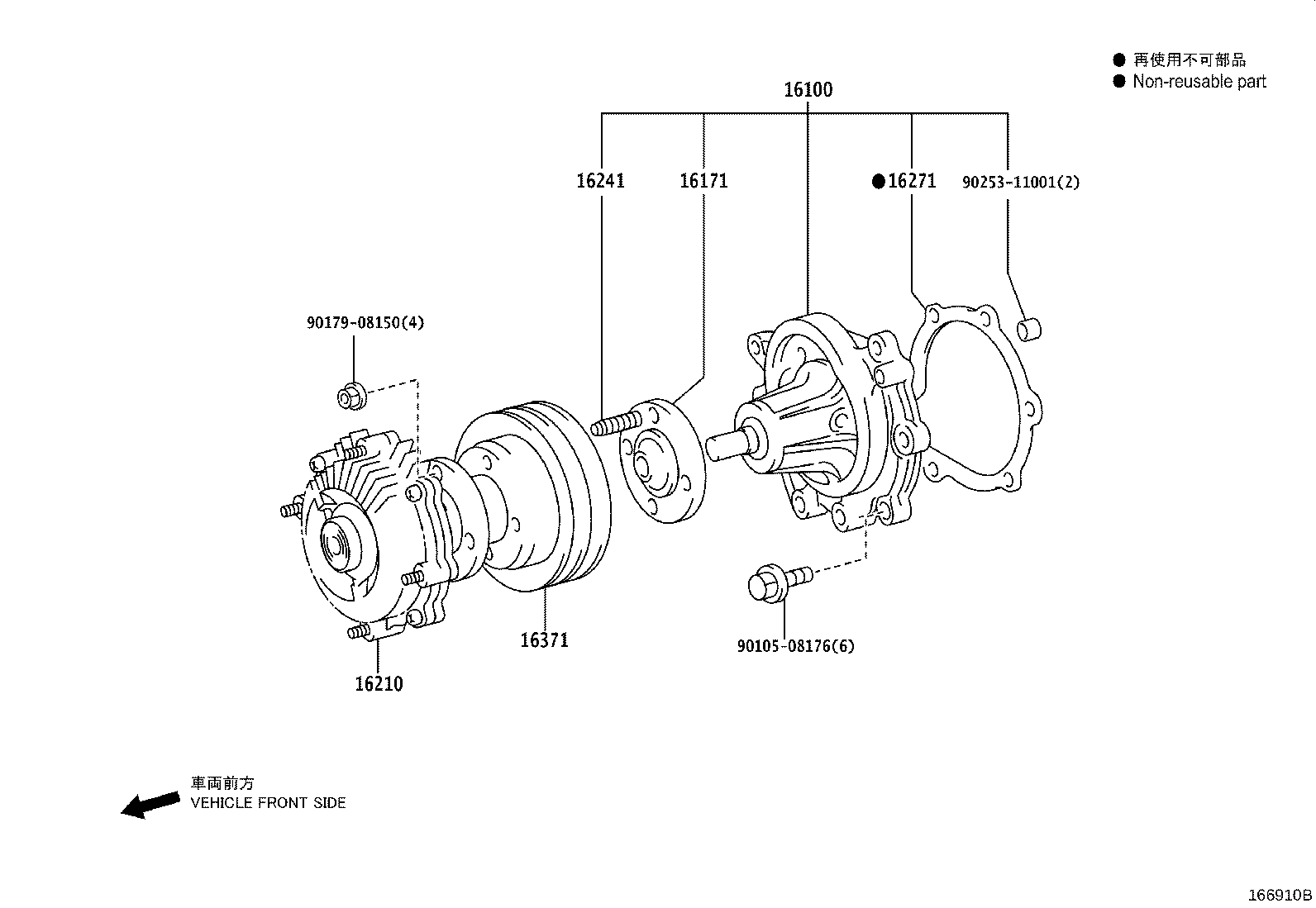

Figure 161394C 161394C 2001-08 → — Figure 161802B 161802B 1995-12 → 2001-02 Figure 161802B 161802B 2001-10 → — Figure 161706D 161706D 2002-10 → — Figure 166910B 166910B 1995-12 → 1999-08 Figure 166998A 166998A 1996-04 → — Figure 163260C 163260C 2007-09 → — Figure 161718F 161718F 1995-12 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100H Ring, O(FOR WATER PUMP)
16110 Pump Assy, Water, W/O Coupling
16110A Bolt, Stud(FOR WATER OUTLET SETTING)
16124 Gasket, Water Pump Cover
16171 Seat, Water Pump Pulley
16173 Pulley, Water Pump
16193 Bolt, Stud(FOR WATER PUMP COVER)
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16258 Gasket(FOR HEATER RETURN)
16271 Gasket, Water Pump
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16607A Bracket Sub-assy, Idler Pulley, NO.1
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16634B Pulley Assy, Idler
16649B Plate, Idler Pulley Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
