Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

73 part groups · 22 illustrations

Illustrations

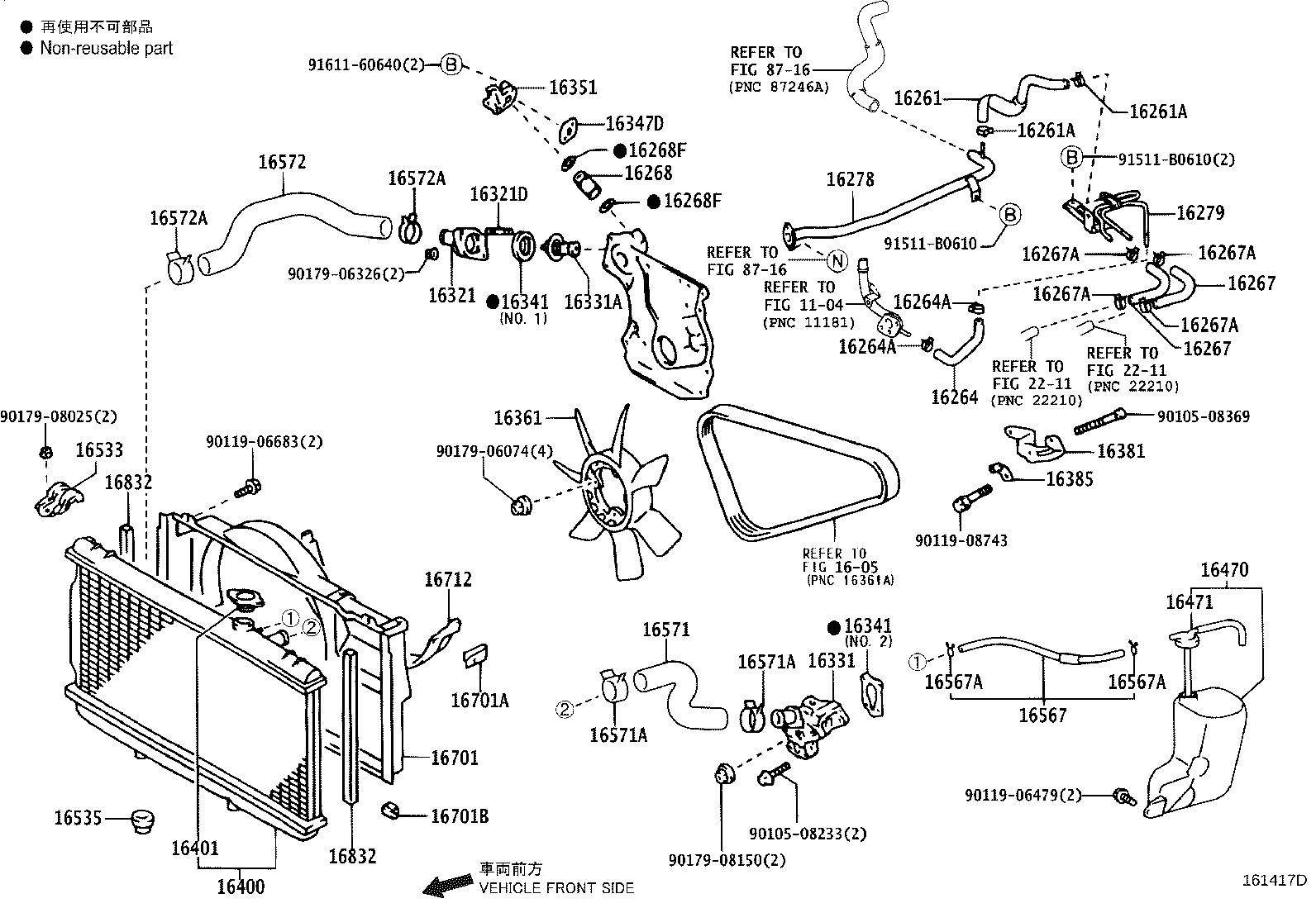

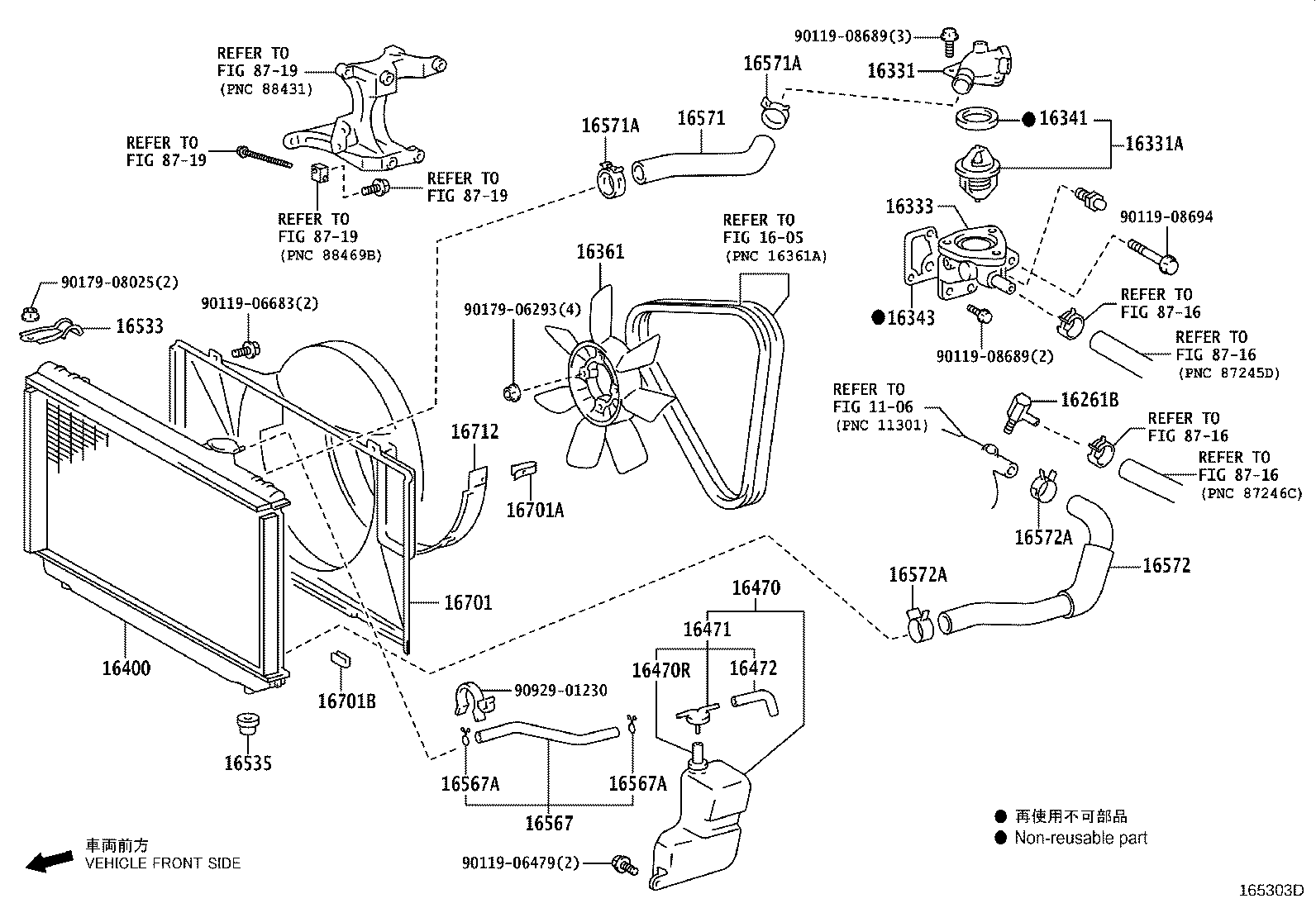

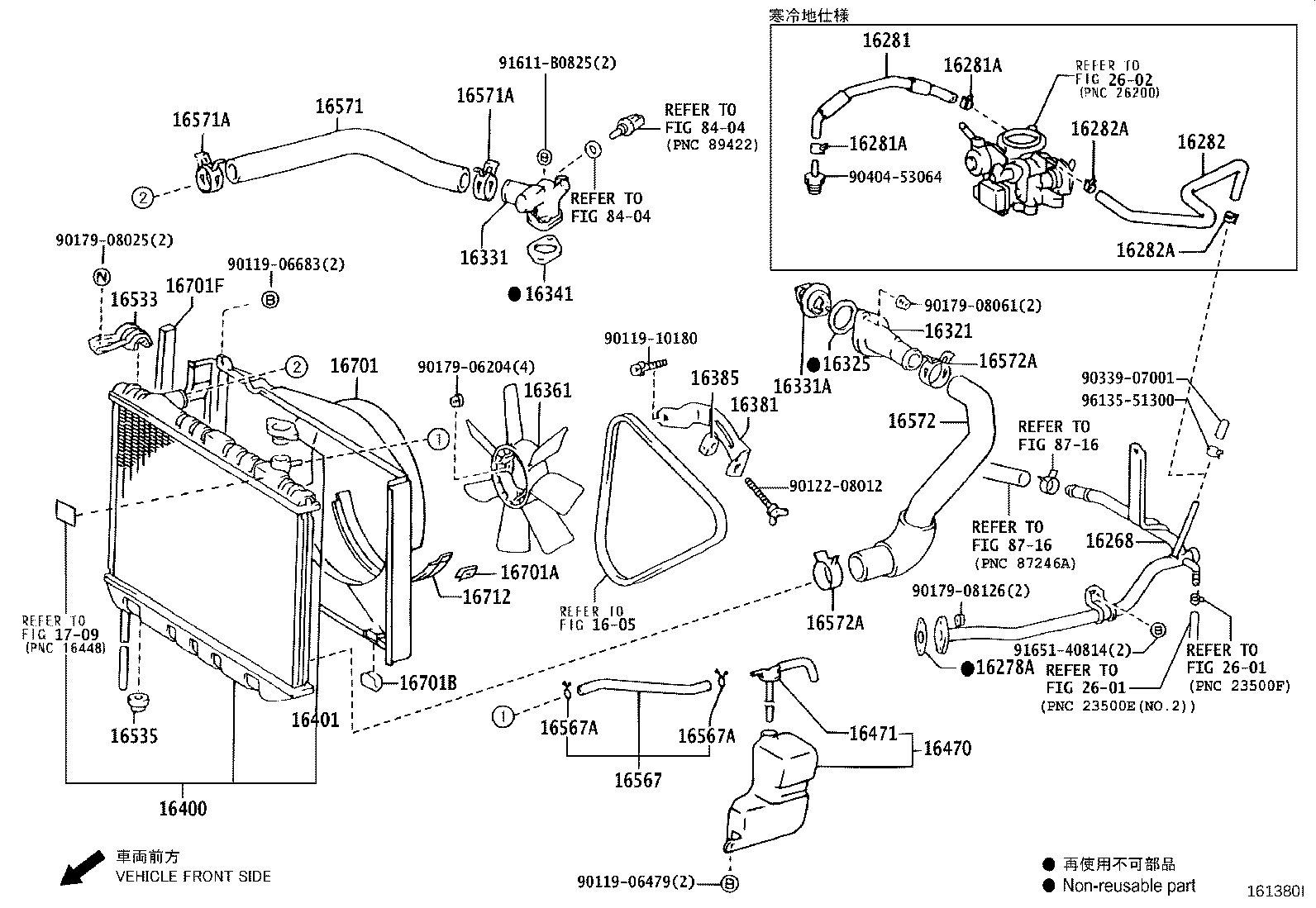

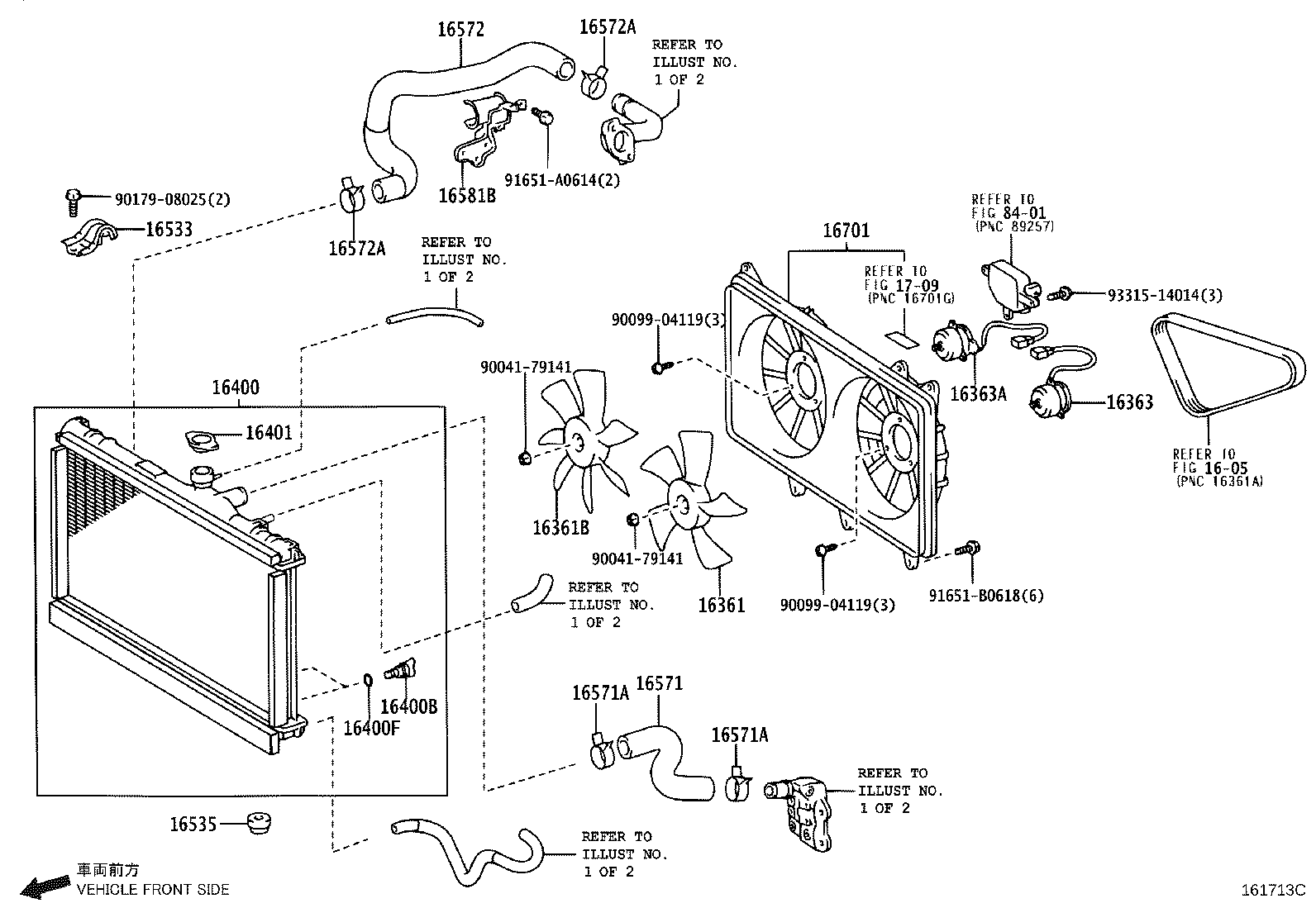

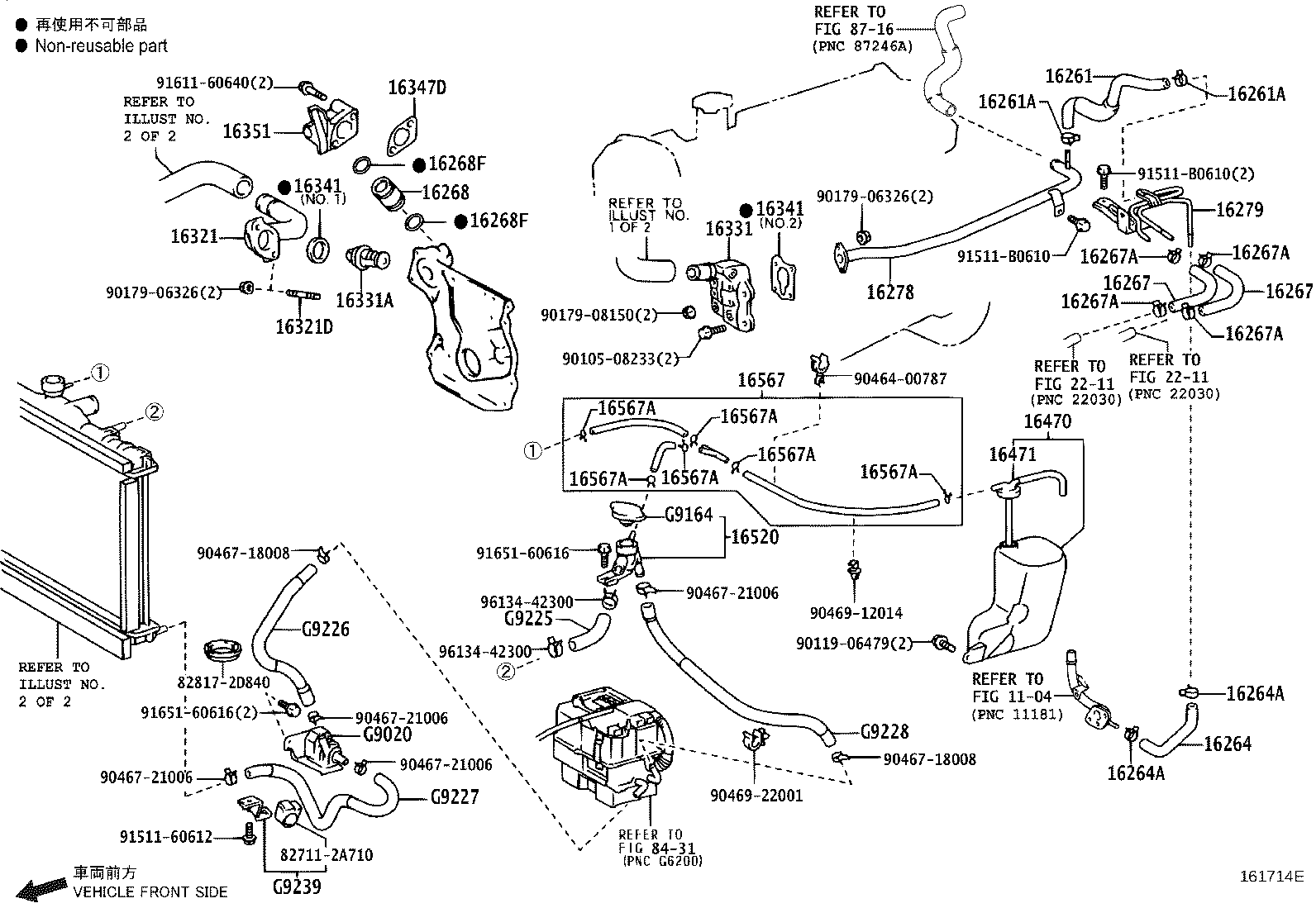

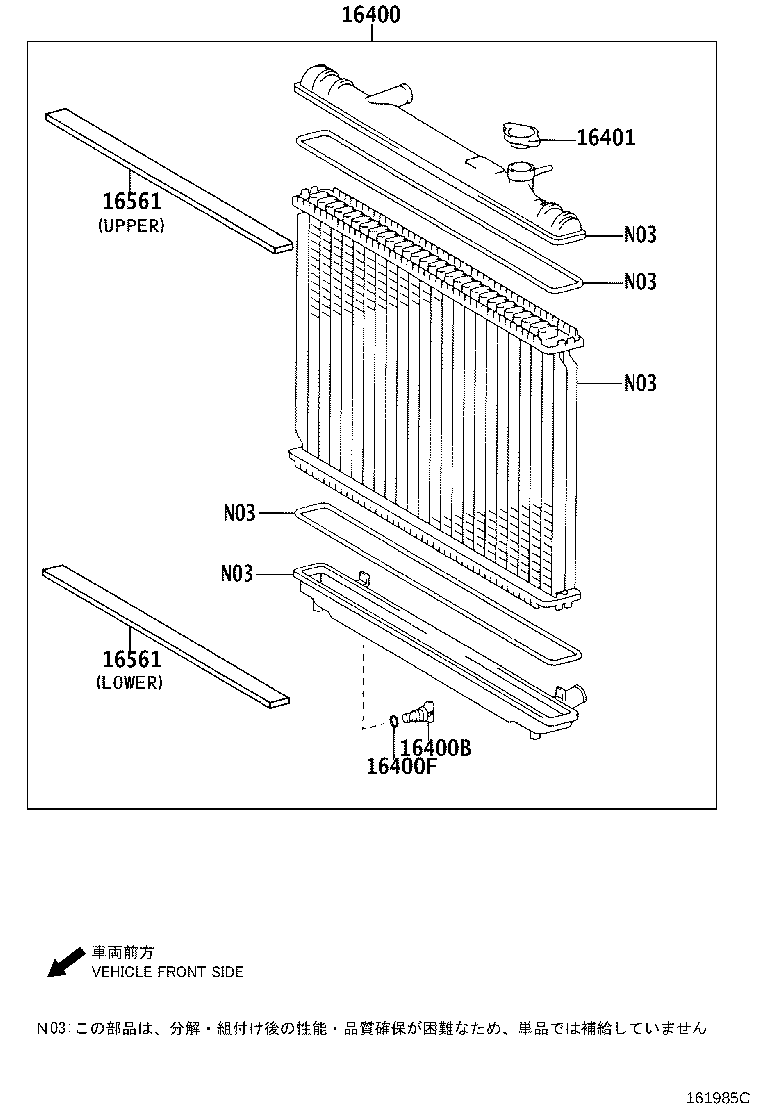

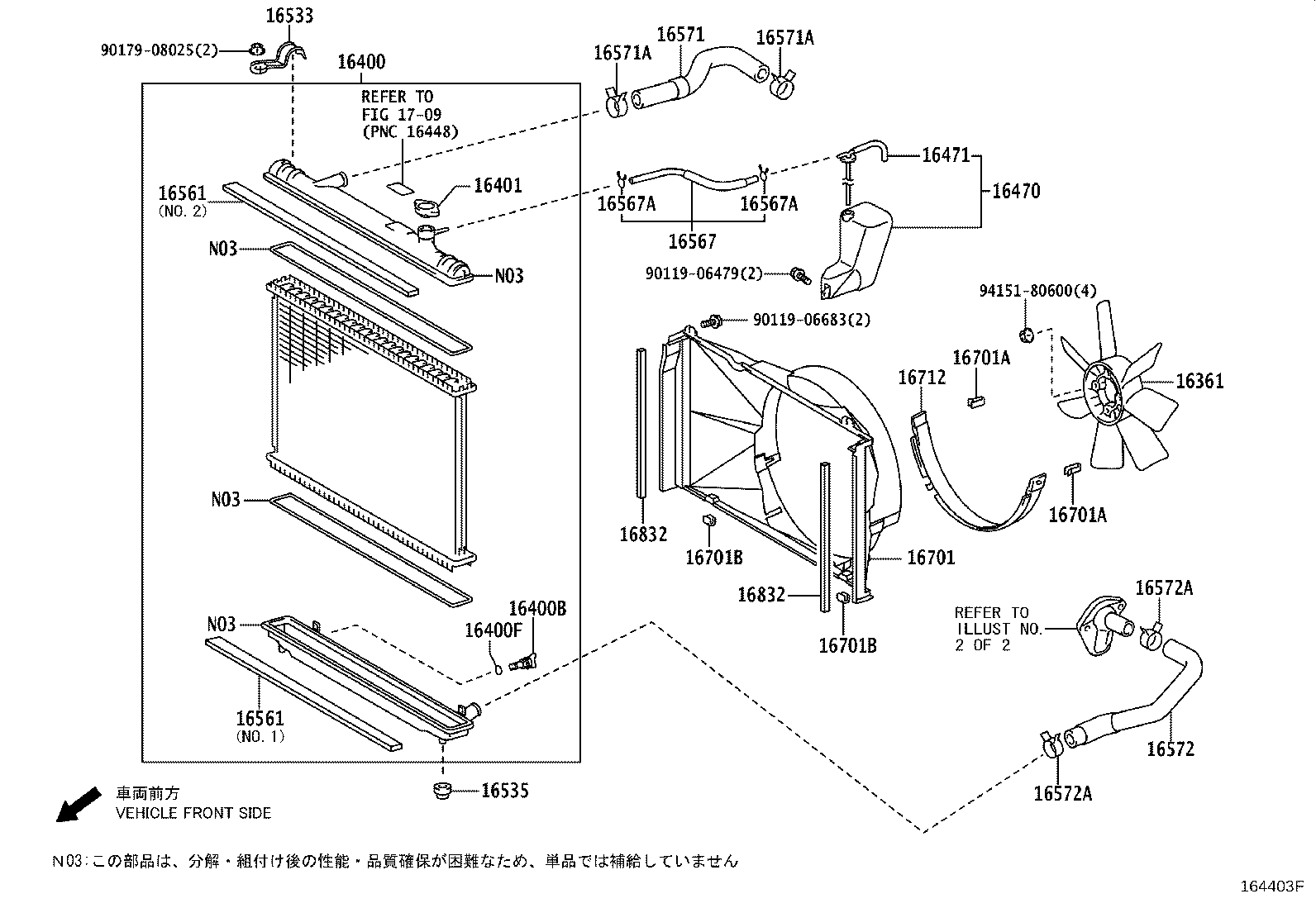

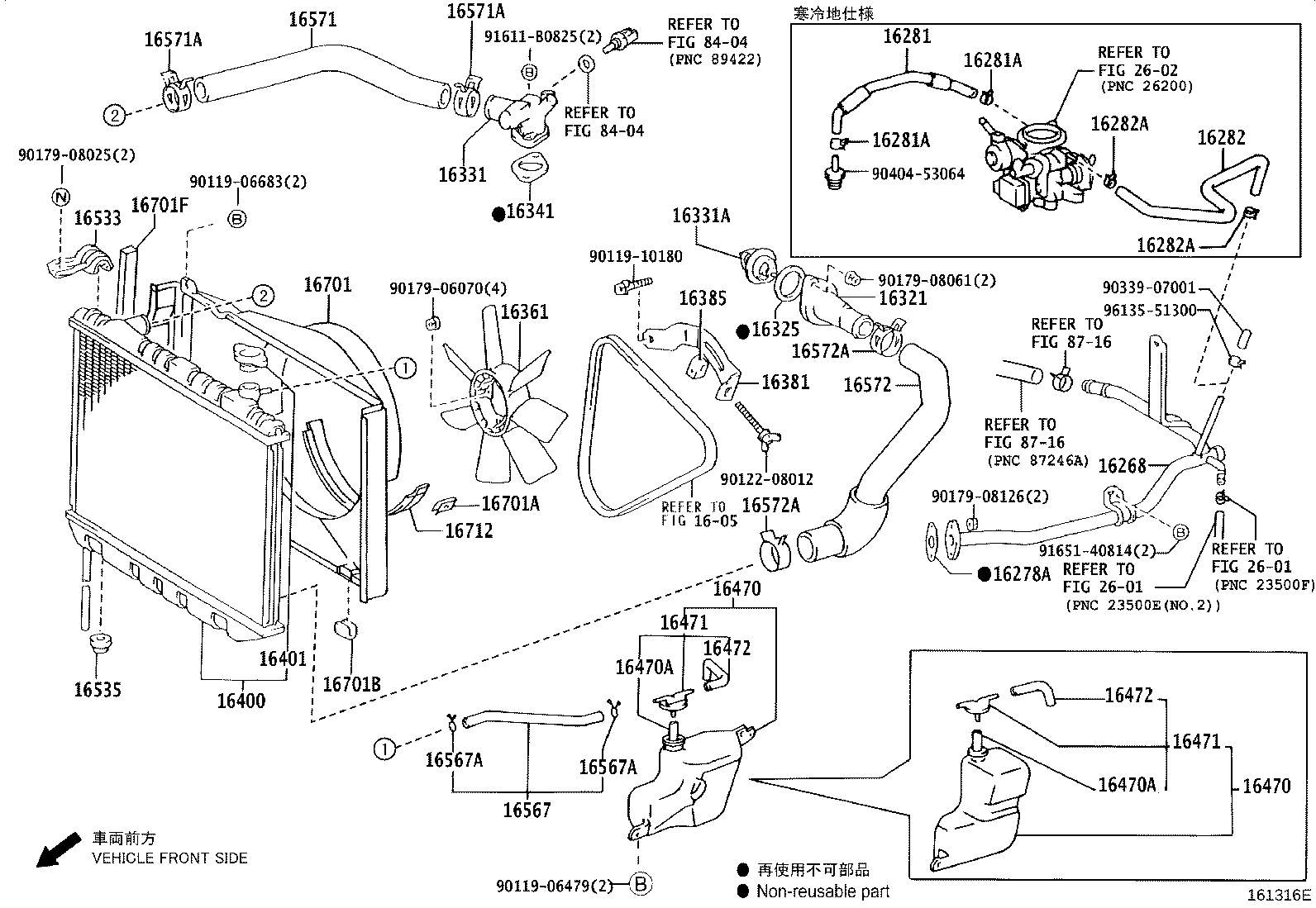

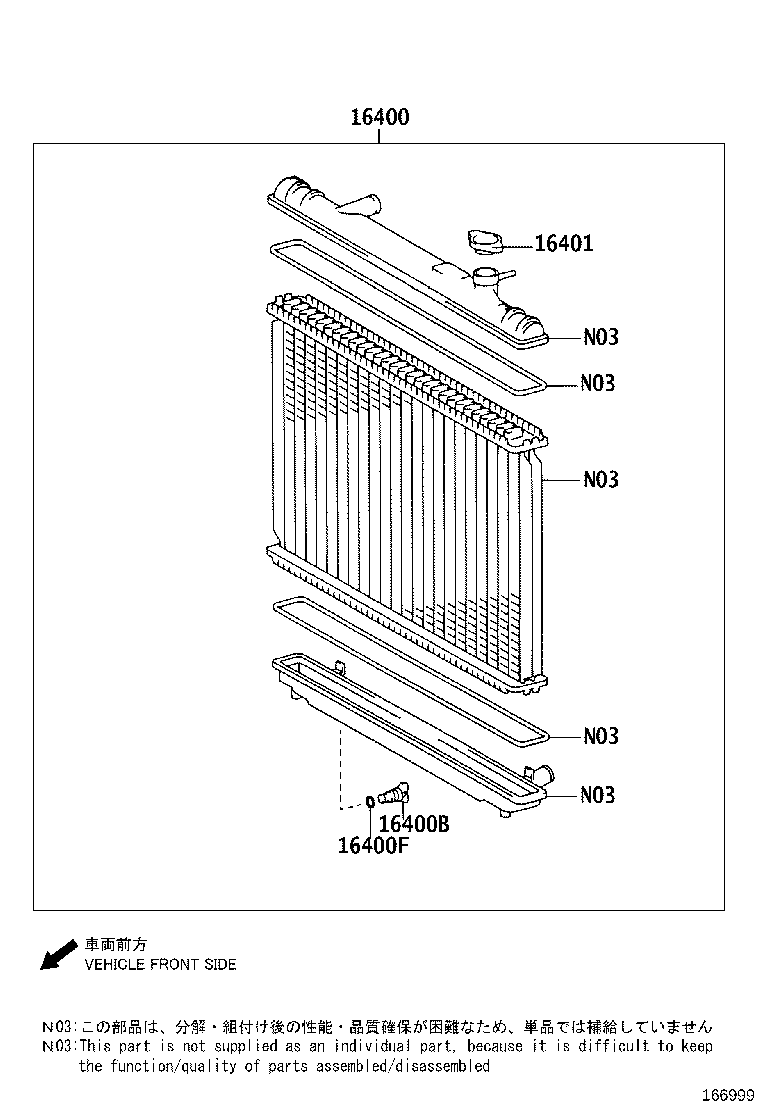

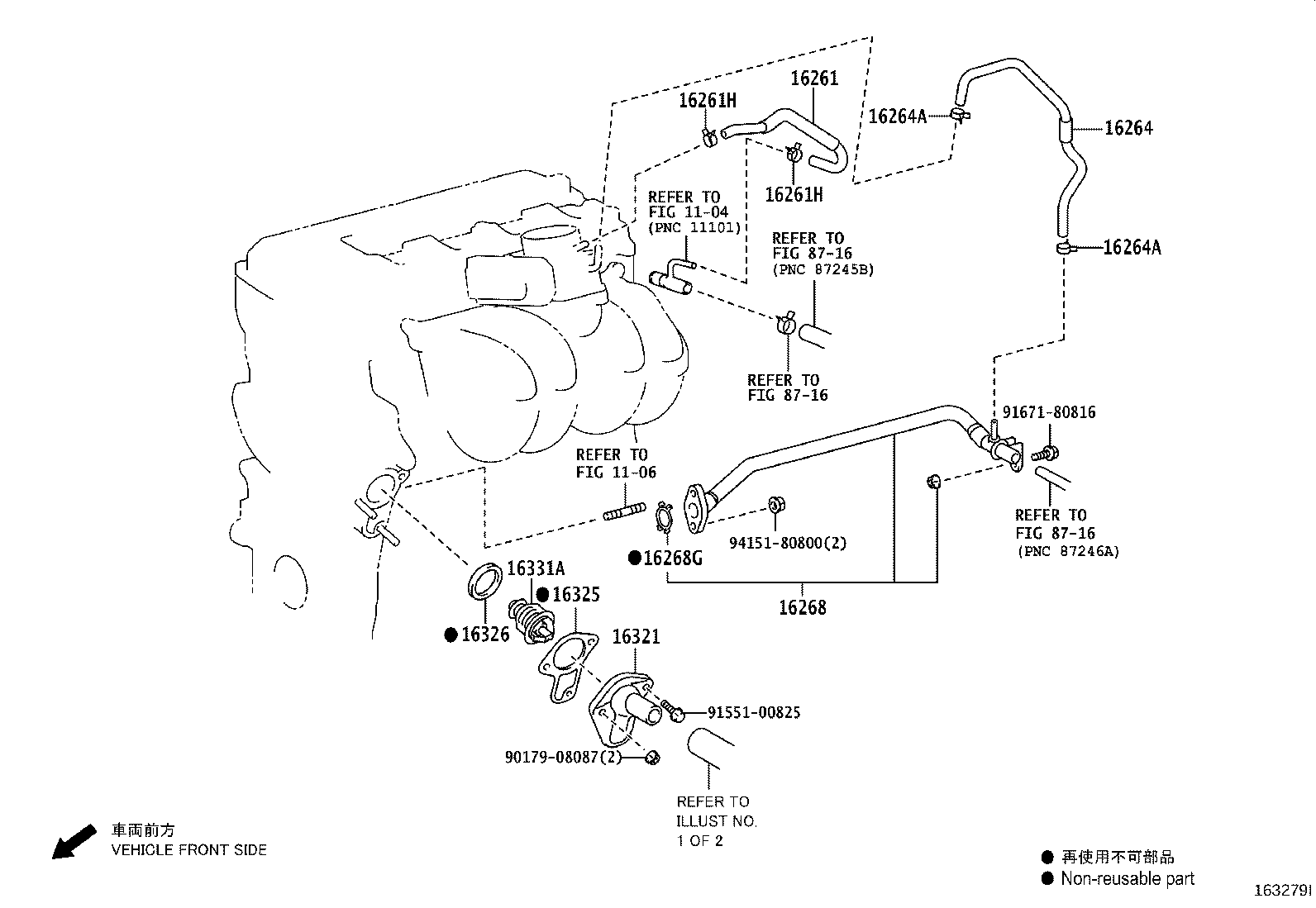

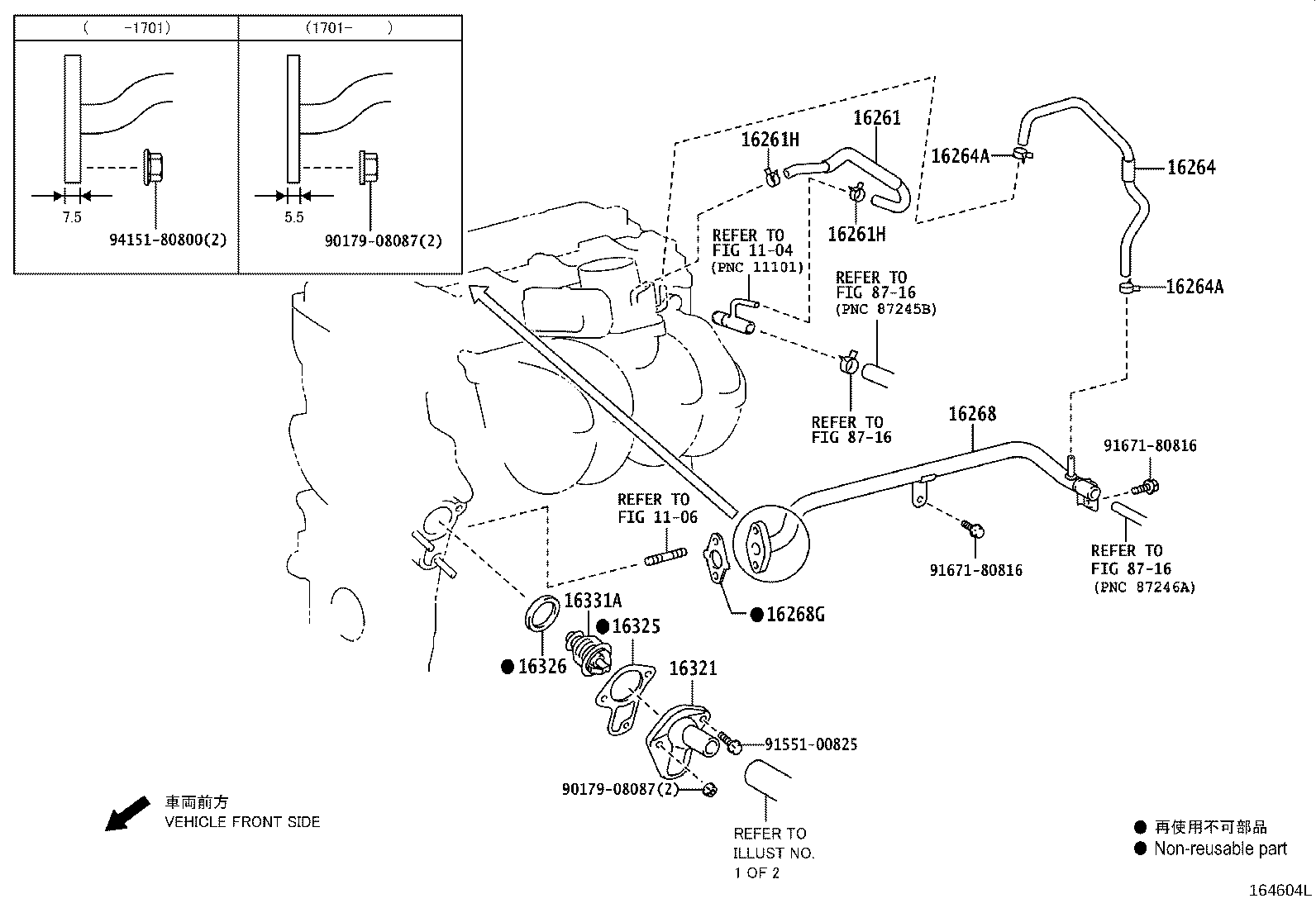

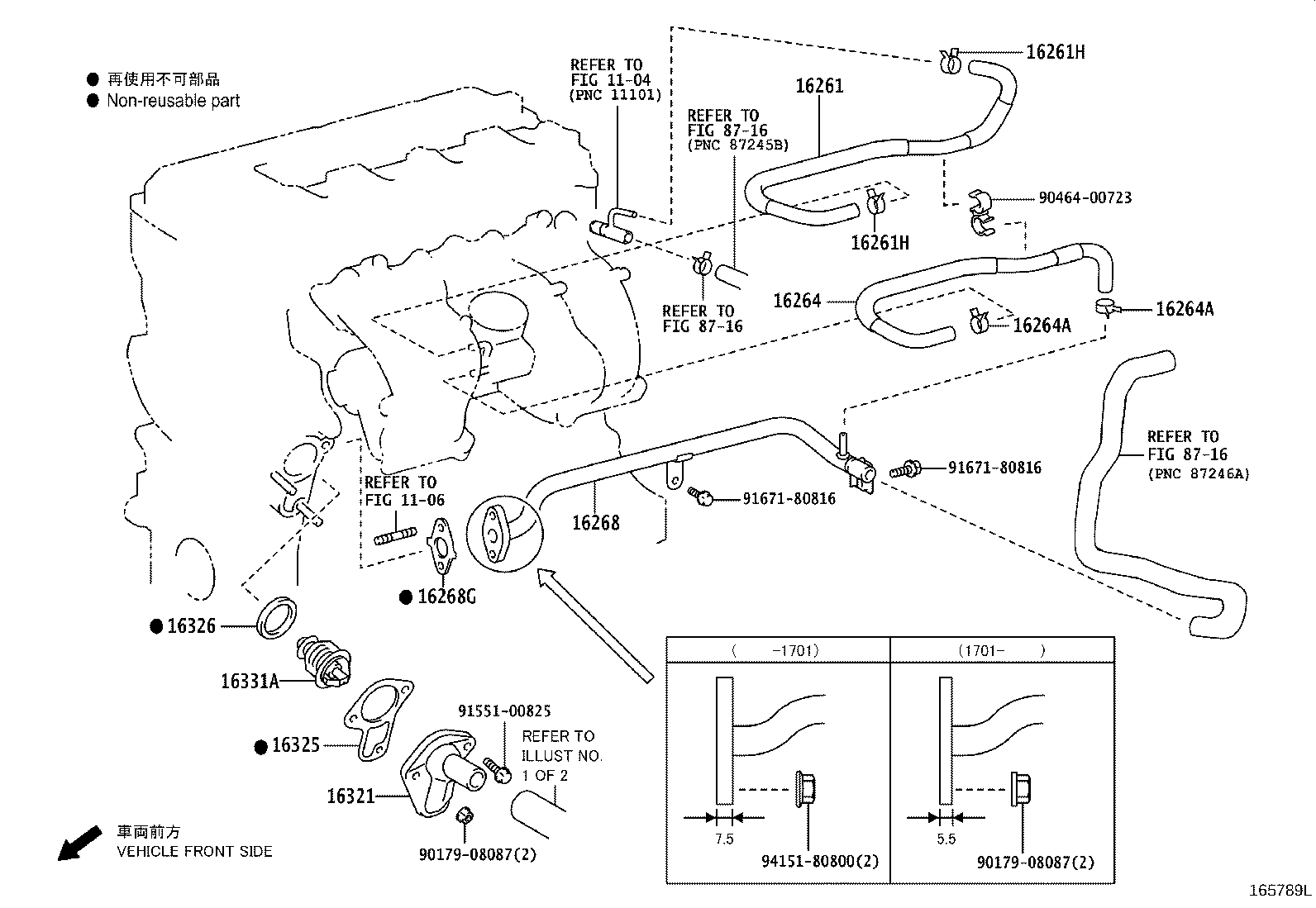

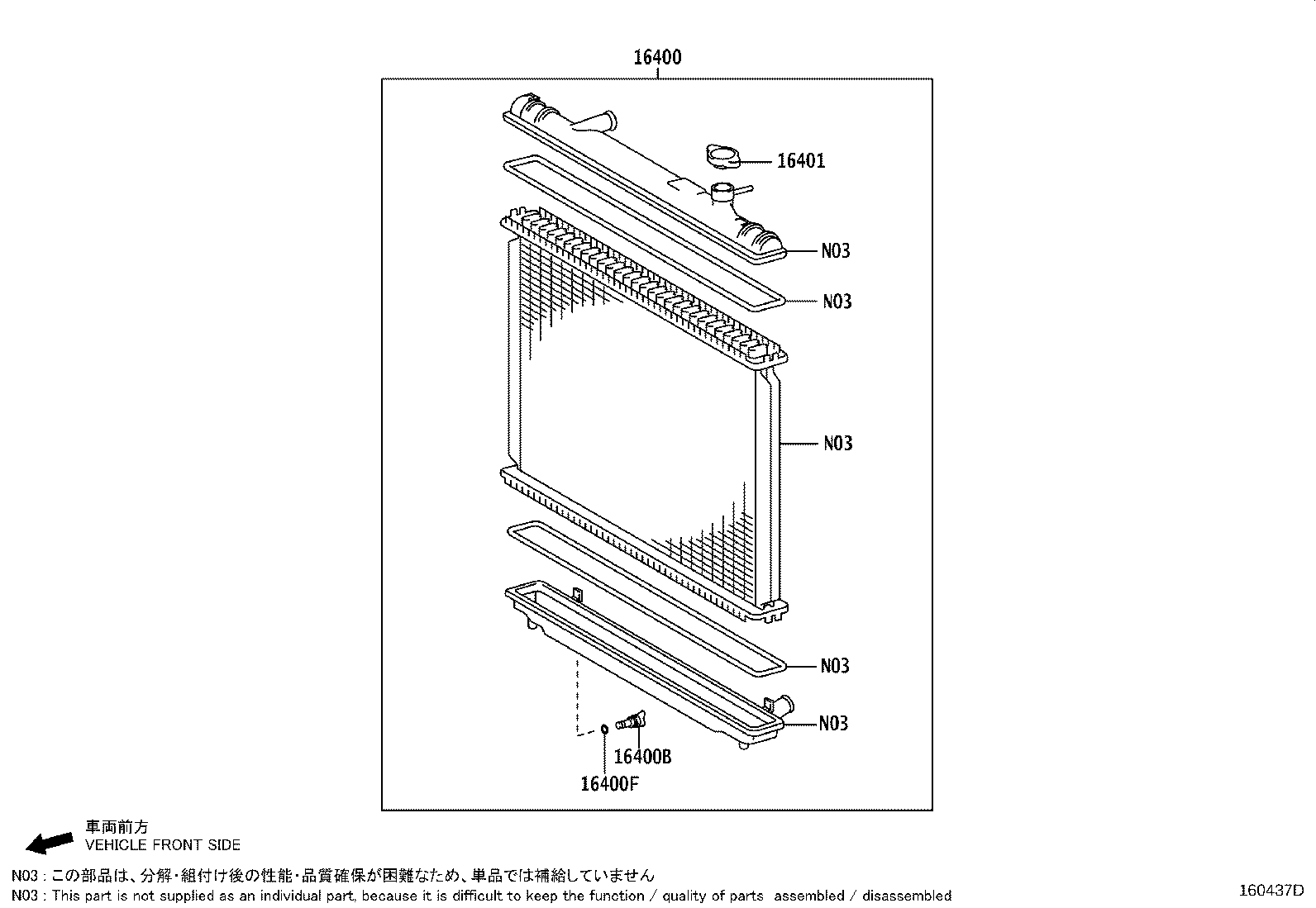

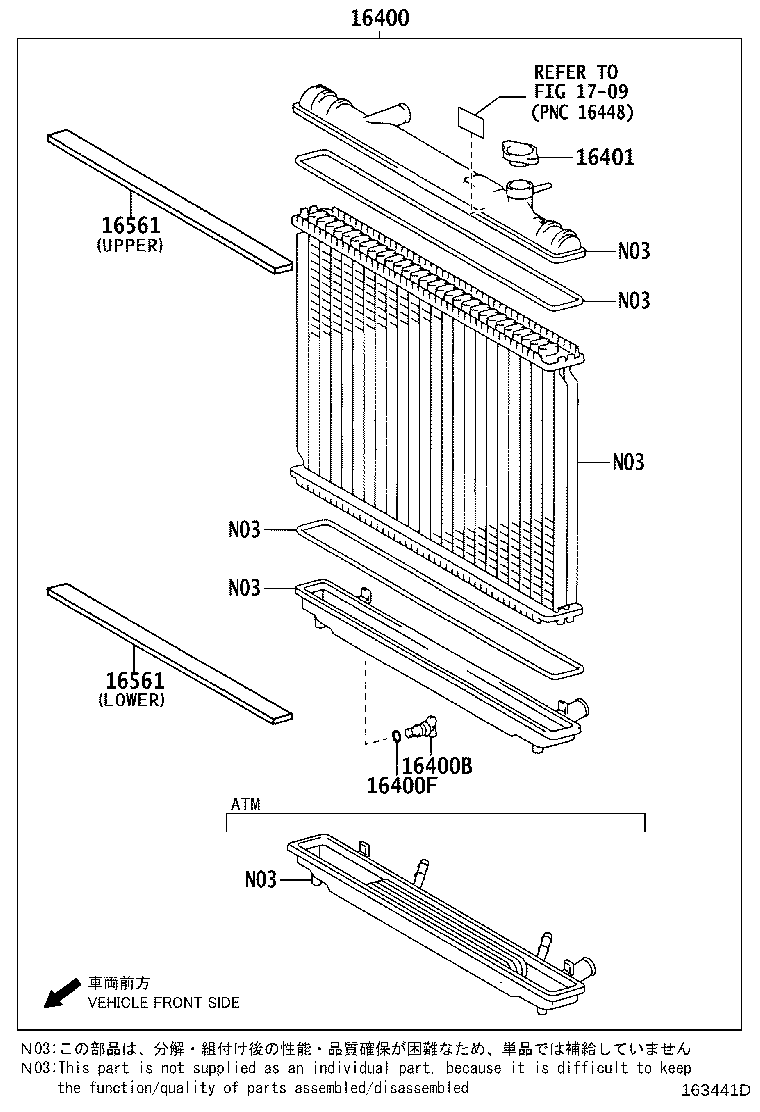

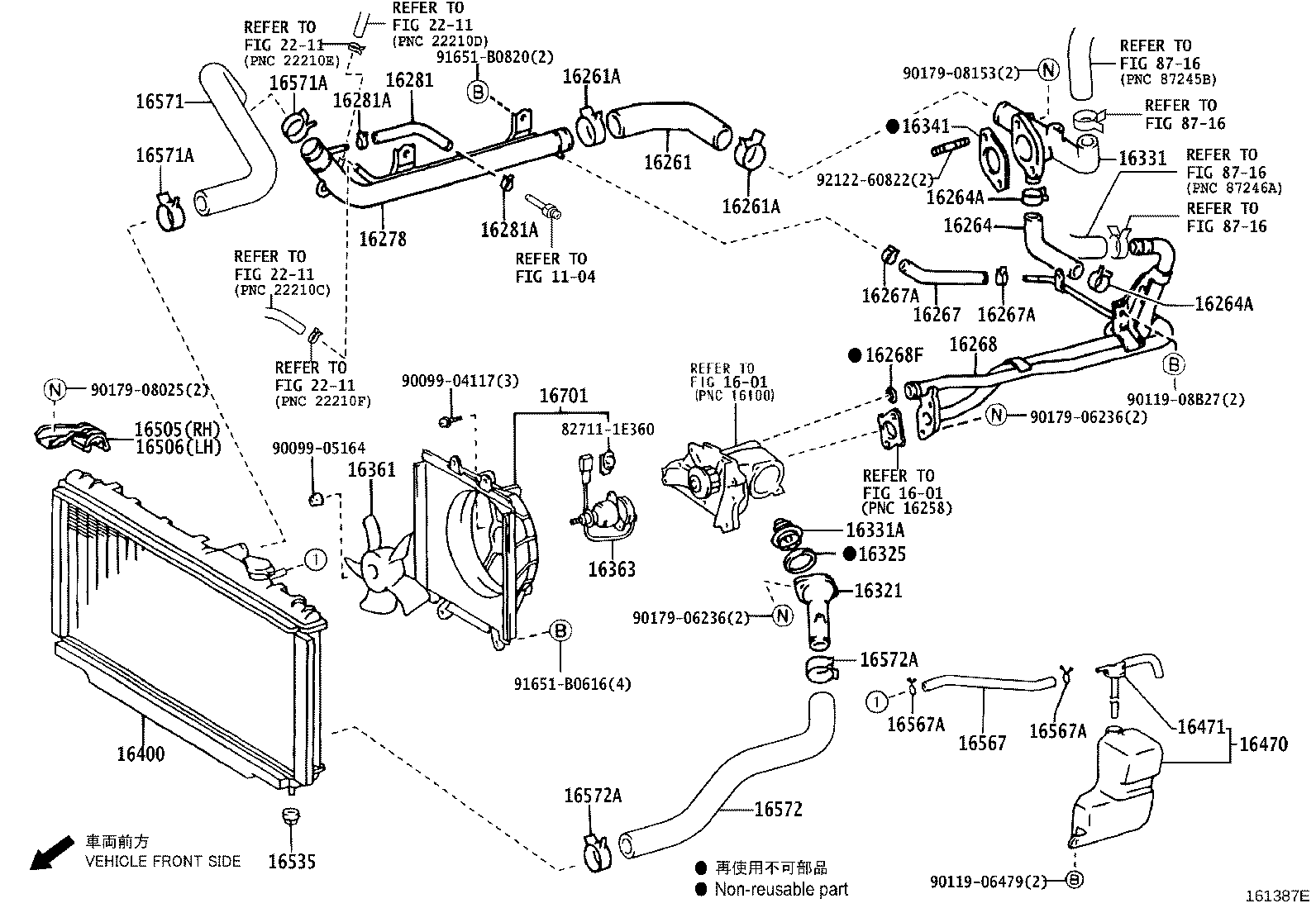

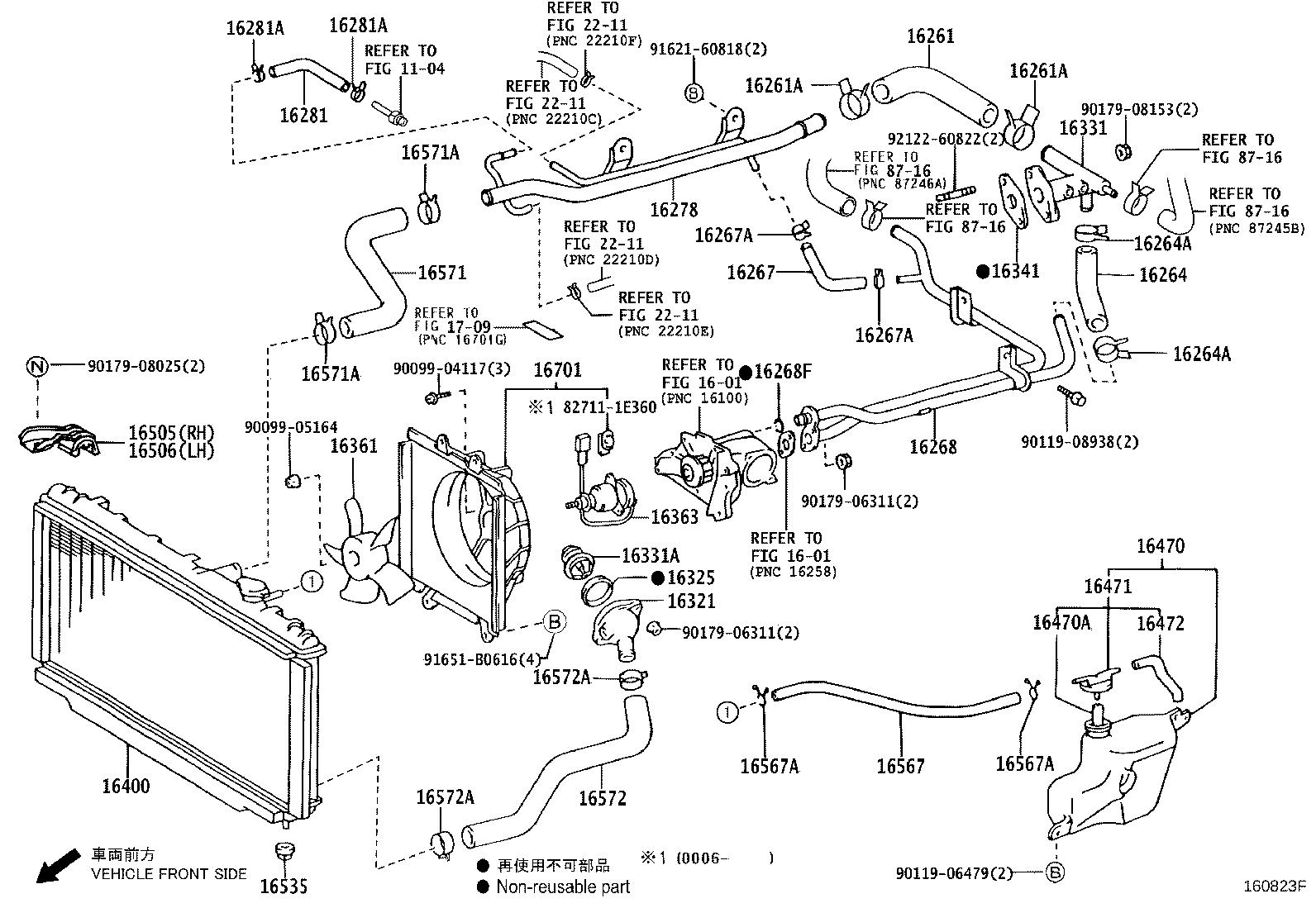

Figure 160595H 160595H 1995-12 → 2001-02 Figure 160595H 160595H 2001-10 → — Figure 161417D 161417D 2001-08 → — Figure 166999 166999 1995-12 → 2001-02 Figure 166999 166999 2001-08 → — Figure 166999 166999 2001-10 → — Figure 161714E 161714E 2002-10 → — Figure 161713C 161713C 2002-10 → — Figure 165303D 165303D 1995-12 → 1999-08 Figure 160437D 160437D 1995-12 → 1999-08 Figure 160823F 160823F 1996-04 → 2001-08 Figure 161387E 161387E 2001-08 → — Figure 166999 166999 1996-04 → 2001-08 Figure 166999 166999 2001-08 → — Figure 164403F 164403F 2007-09 → — Figure 163279I 163279I 2007-09 → 2011-05 Figure 164604L 164604L 2011-05 → — Figure 165789L 165789L 2008-08 → — Figure 161316E 161316E 1995-12 → 2001-08 Figure 161985C 161985C 1995-12 → 2001-08 Figure 161380I 161380I 2001-08 → — Figure 163441D 163441D 2001-08 → —

Part groups

PNCDescription
16206 Pipe Sub-assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268F Ring, O(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16321 Inlet, Water
16321D Bolt, Stud(FOR WATER INLET)
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16347D Gasket, Water By-pass
16351 Outlet, Water By-pass
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16505 Support Sub-assy, Radiator, RH
16506 Support Sub-assy, Radiator, LH
16520 Filler Assy, Water
16533 Support, Radiator, Upper
16535 Support, Radiator, Lower
16561 Seal, Radiator TO Support, NO.1
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16701 Shroud Sub-assy, Fan
16701A Clip(FOR FAN SHROUD)
16701B Cushion, Fan Shroud
16701F Seal(FOR FAN SHROUD)
16712 Shroud, Fan, NO.2
16832 Seal, Fan Shroud
G9020 Pump Assy,HV Water, NO.1
G9164 Cap, Inverter Radiator
G9225 Hose, Inverter Cooling, NO.1
G9226 Hose, Inverter Cooling, NO.2
G9227 Hose, Inverter Cooling, NO.3
G9228 Hose, Inverter Cooling, NO.4
G9239 Bracket, Inverter Cooling Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
