Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

35 part groups · 10 illustrations

Illustrations

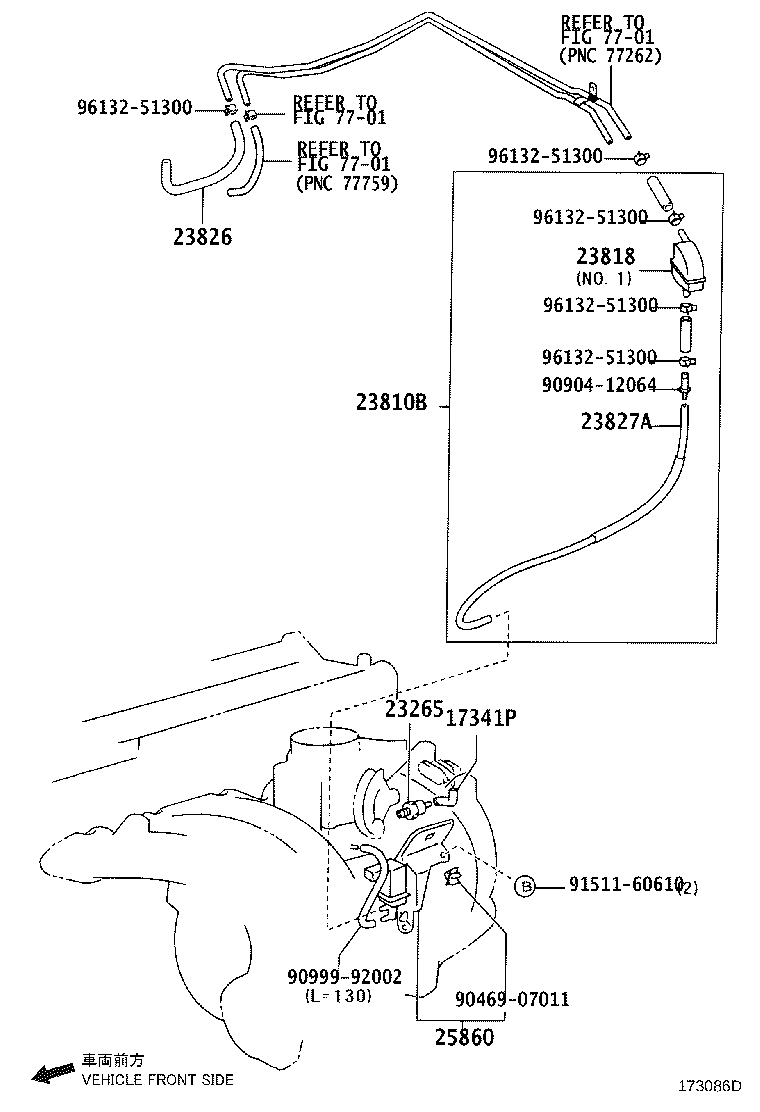

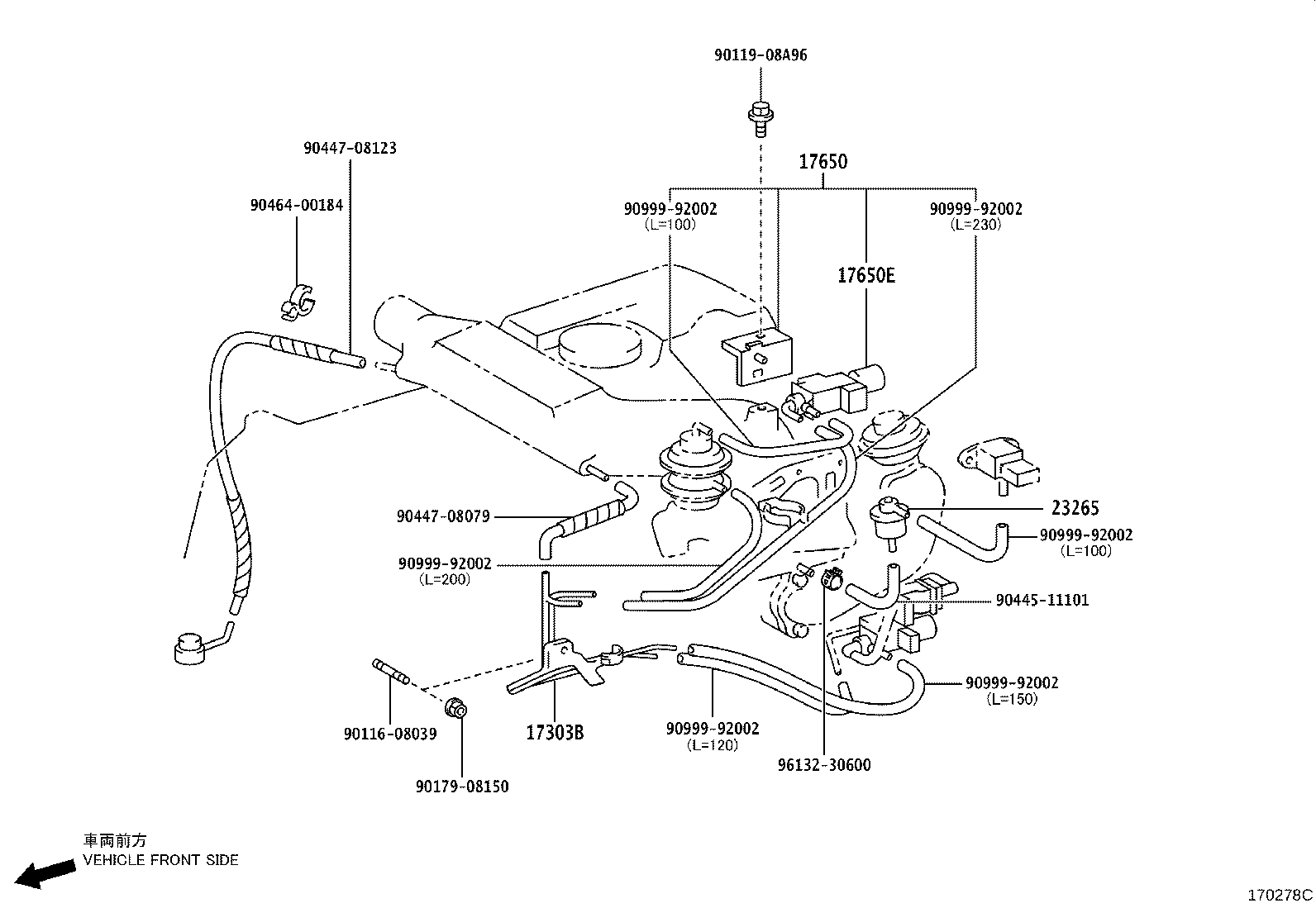

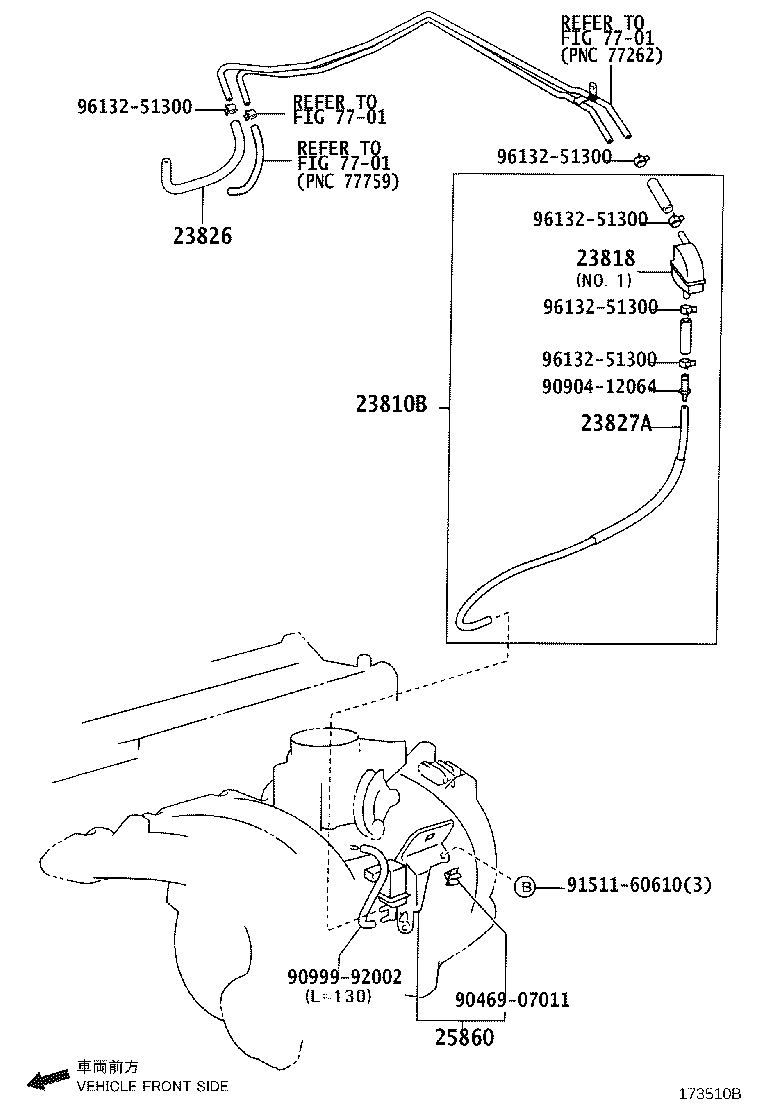

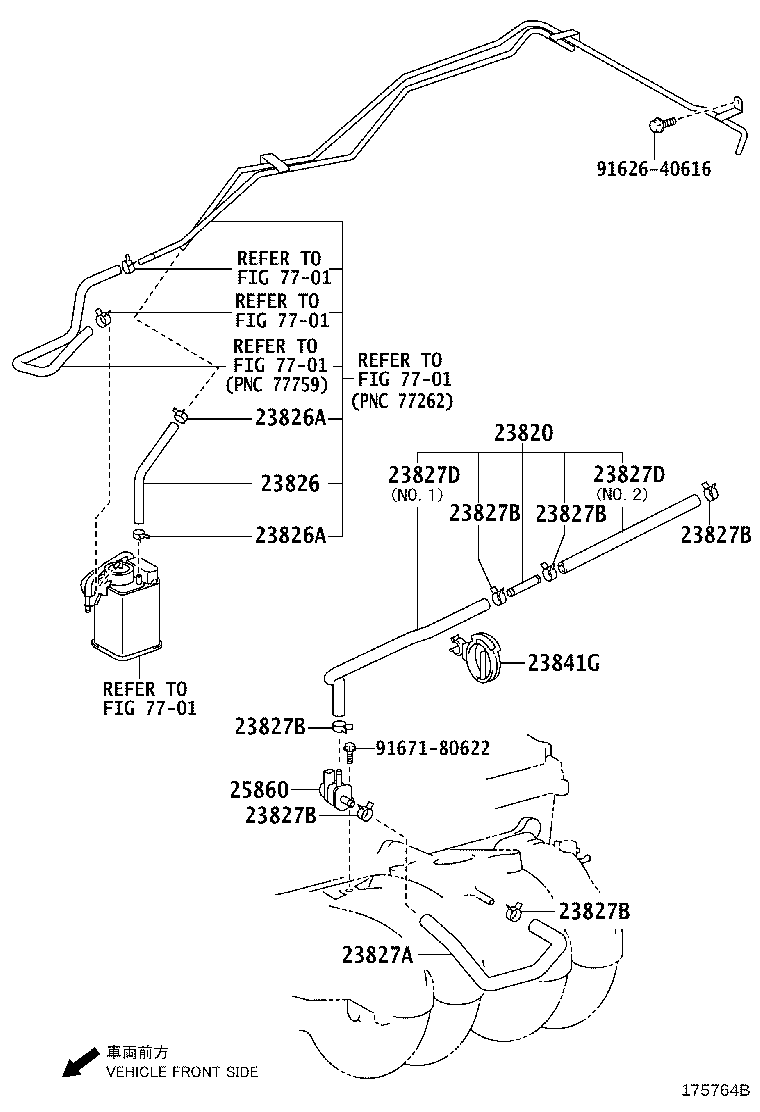

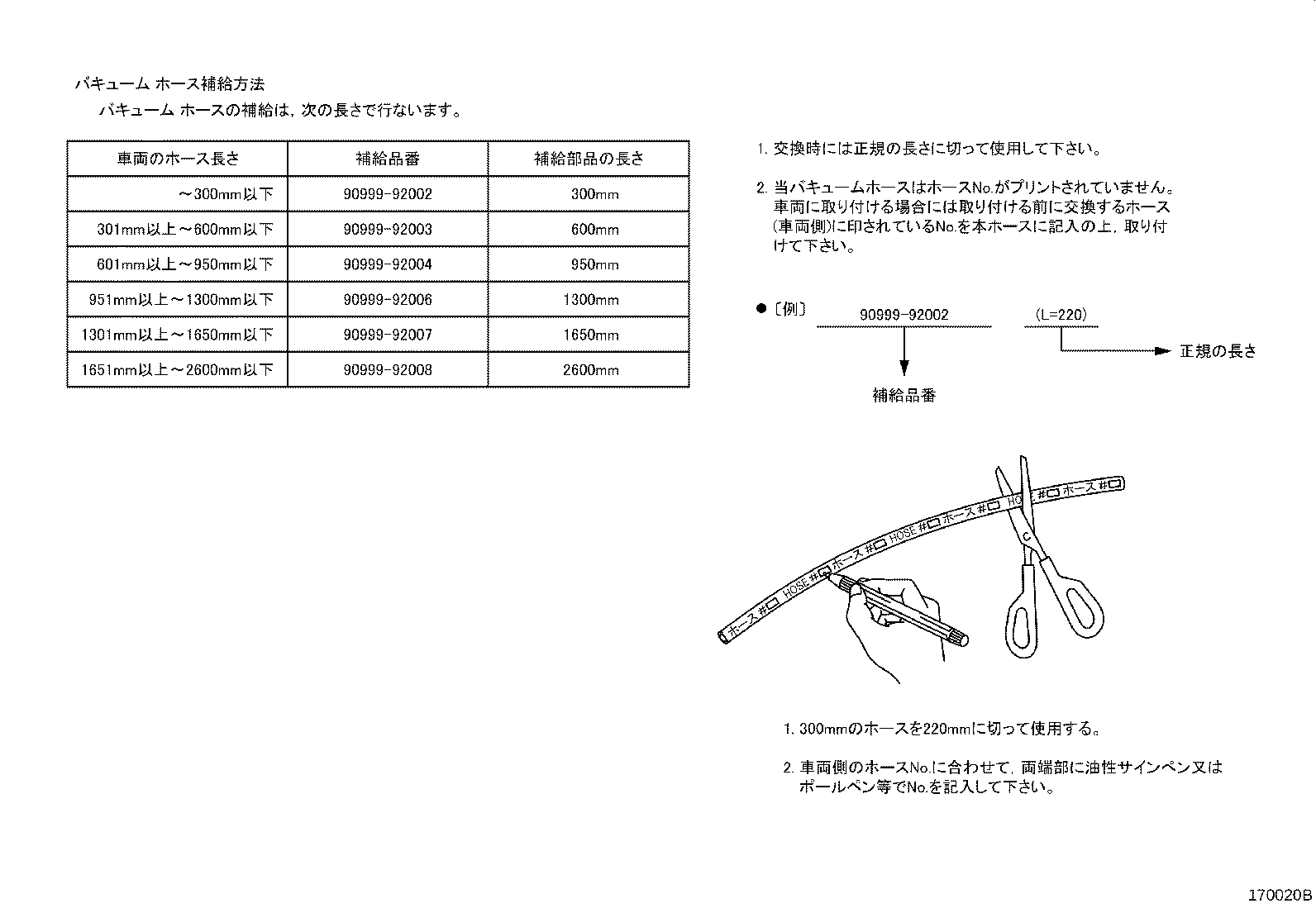

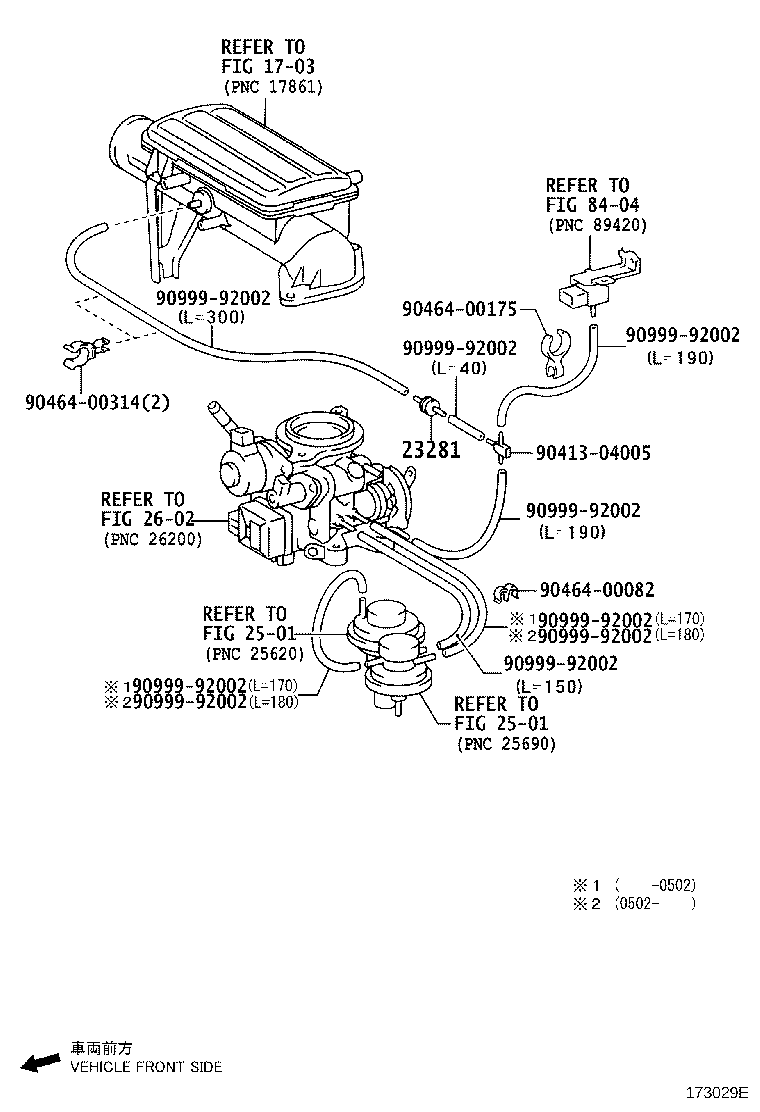

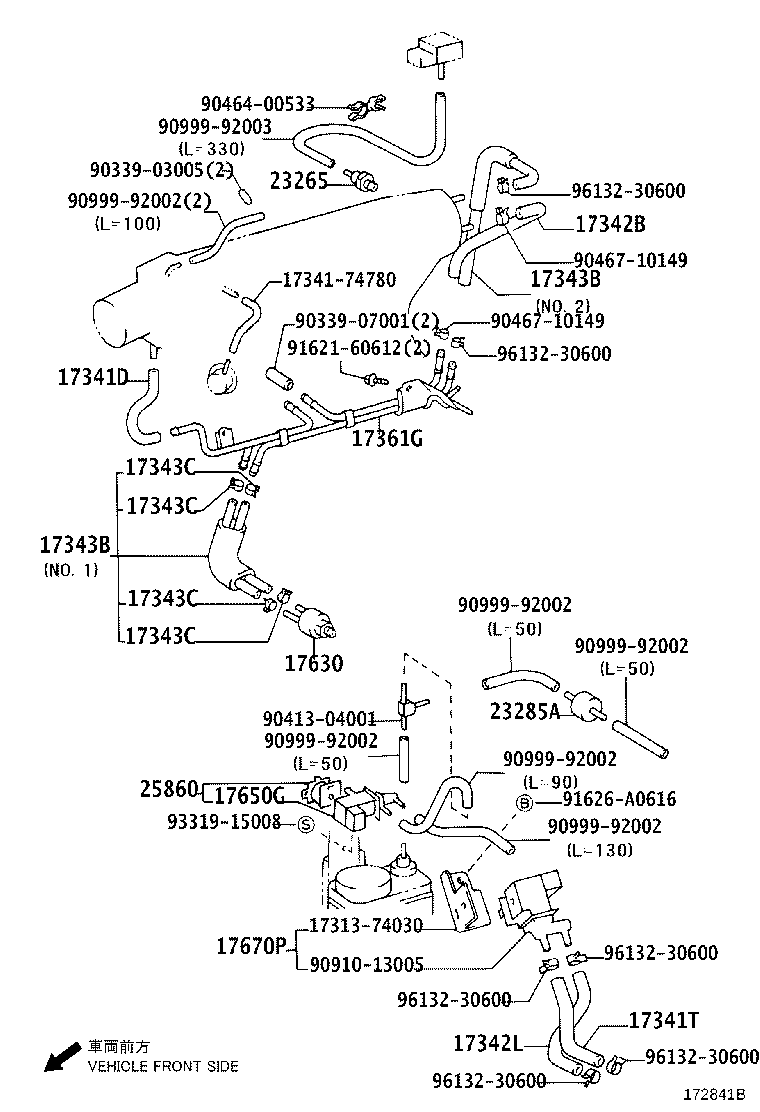

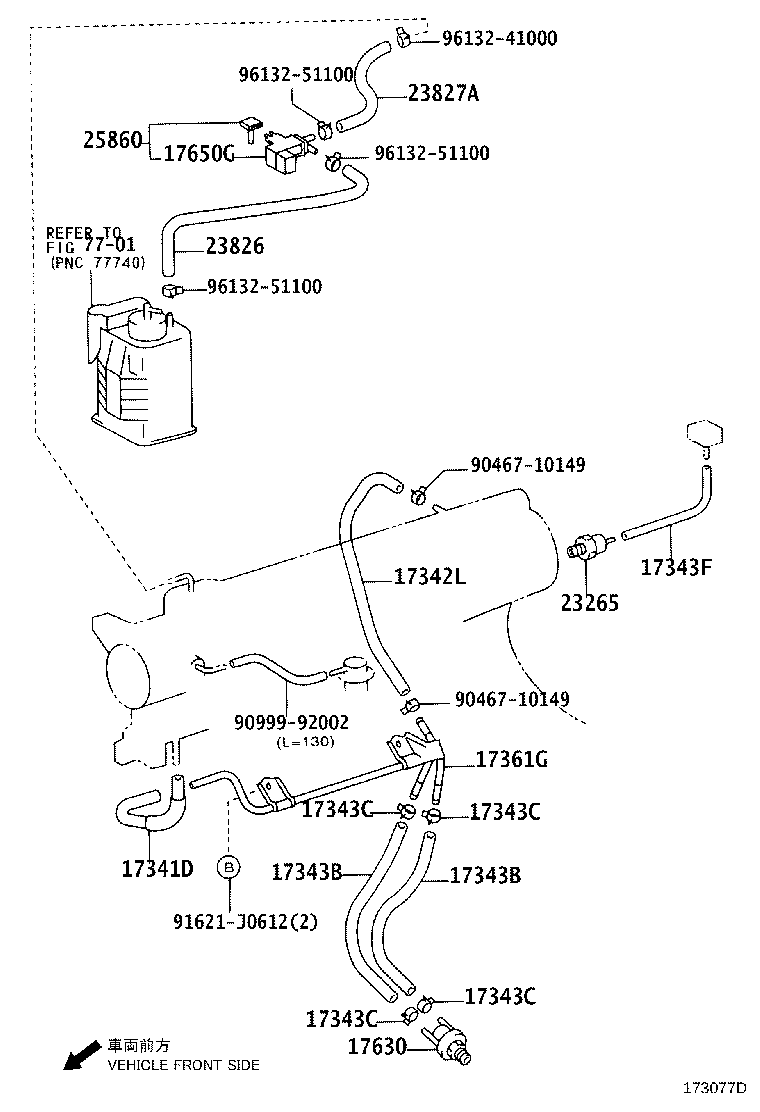

Figure 173082C 173082C 2001-10 → — Figure 173086D 173086D 2001-08 → — Figure 173510B 173510B 2002-10 → — Figure 170020B 170020B 1995-12 → 1999-08 Figure 170278C 170278C 1995-12 → 1999-08 Figure 172841B 172841B 1996-04 → 2001-08 Figure 173077D 173077D 2001-08 → — Figure 175764B 175764B 2007-09 → — Figure 171085A 171085A 1995-12 → 2001-08 Figure 173029E 173029E 2001-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17341T Hose, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17342L Hose, Air, NO.2
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17670P Valve Assy, Air By-pass
22241A Limitter Vacuum
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23810B Pipe Assy, Fuel Vapor Feed
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827D Hose, Fuel Vapor Feed, NO.2
23841G Clamp, Fuel Hose
25701 Valve Set, Emission Control
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
