Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

35 part groups · 15 illustrations

Illustrations

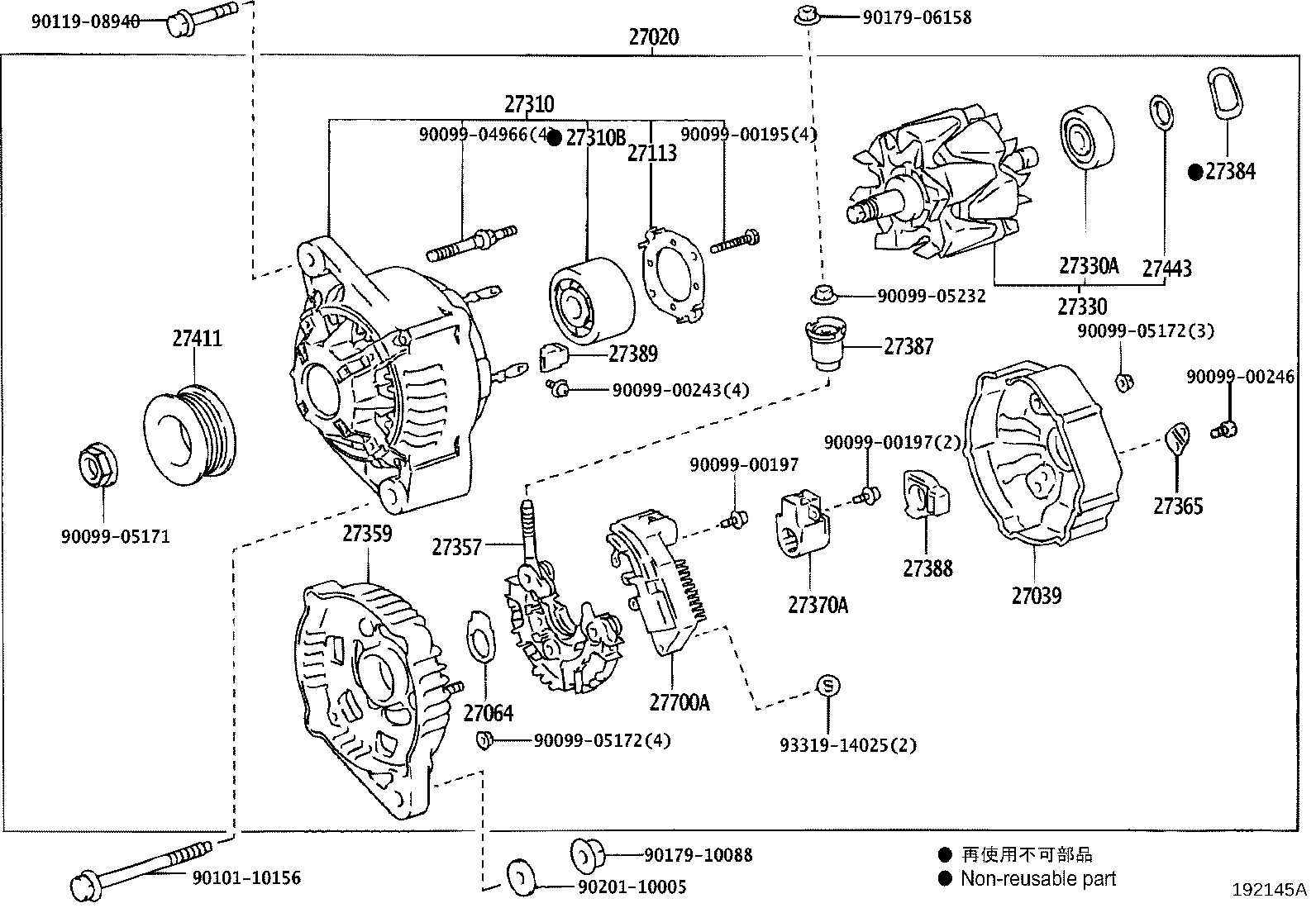

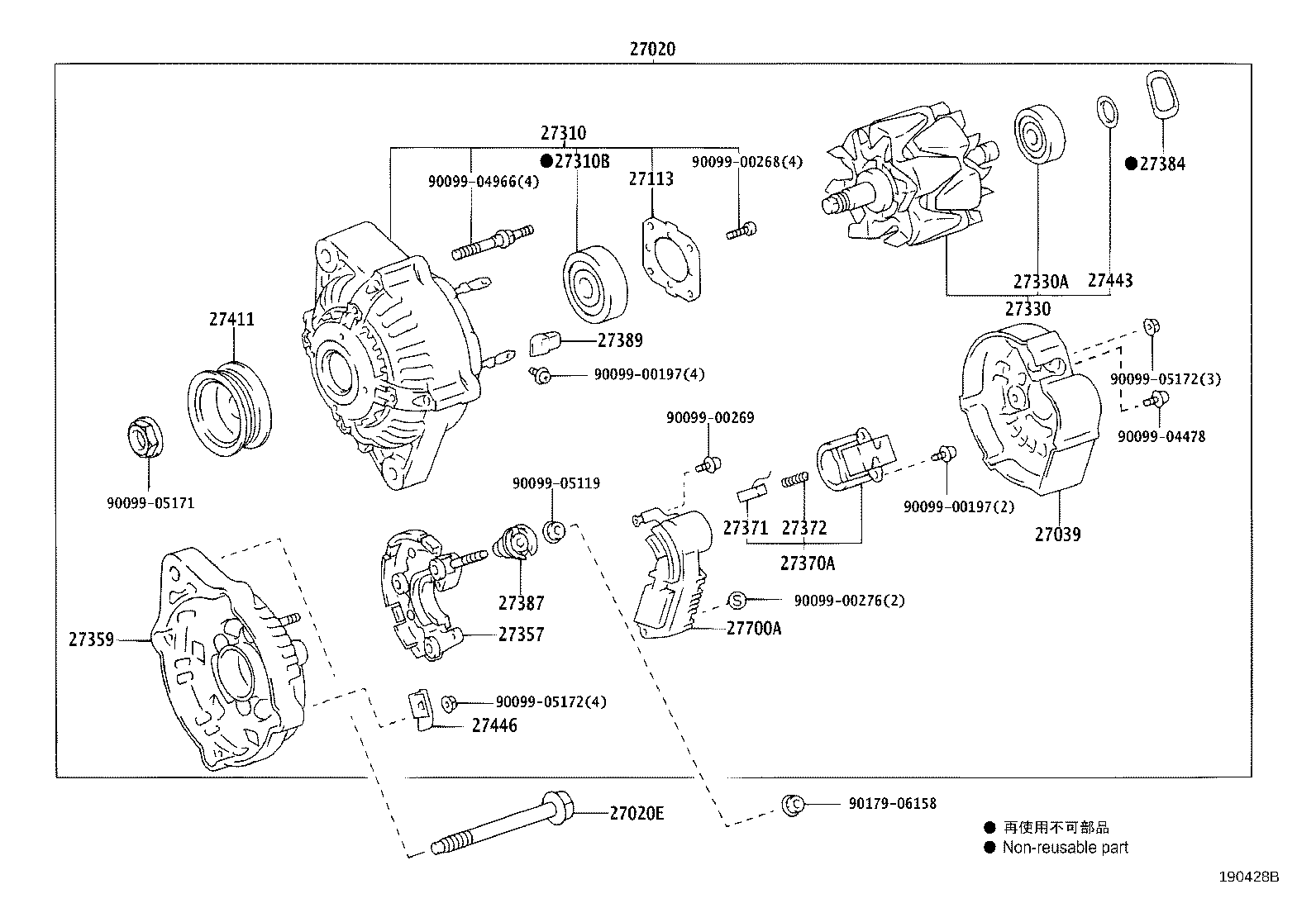

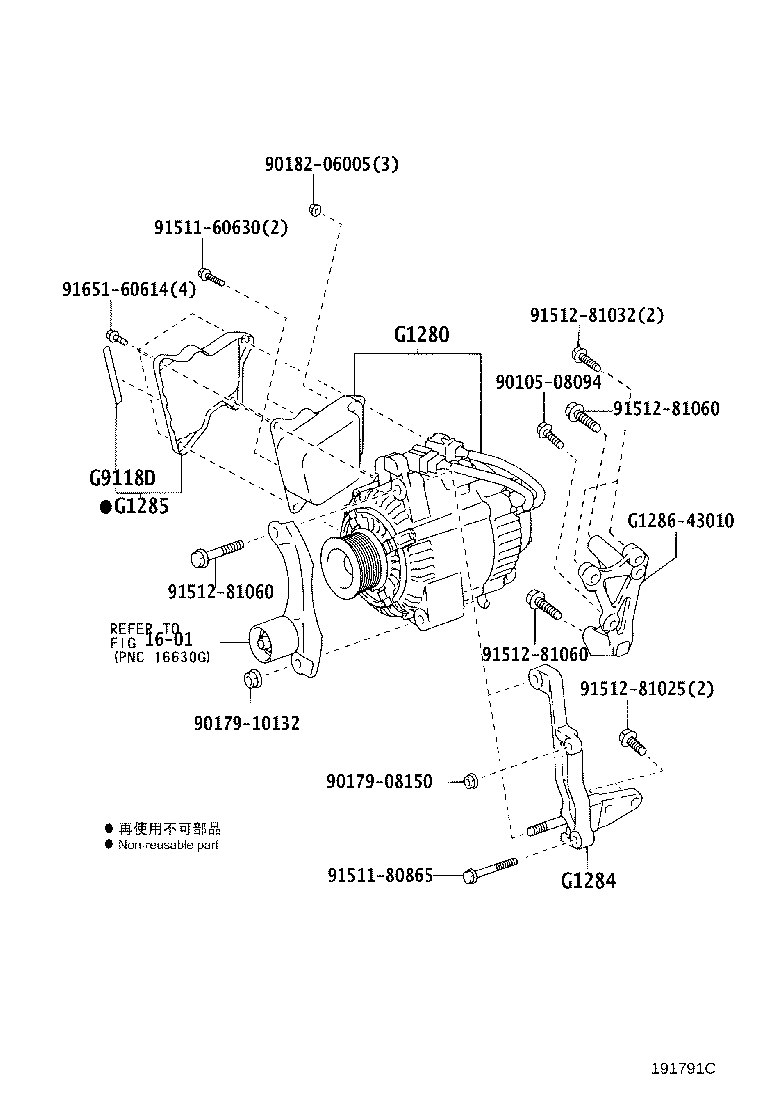

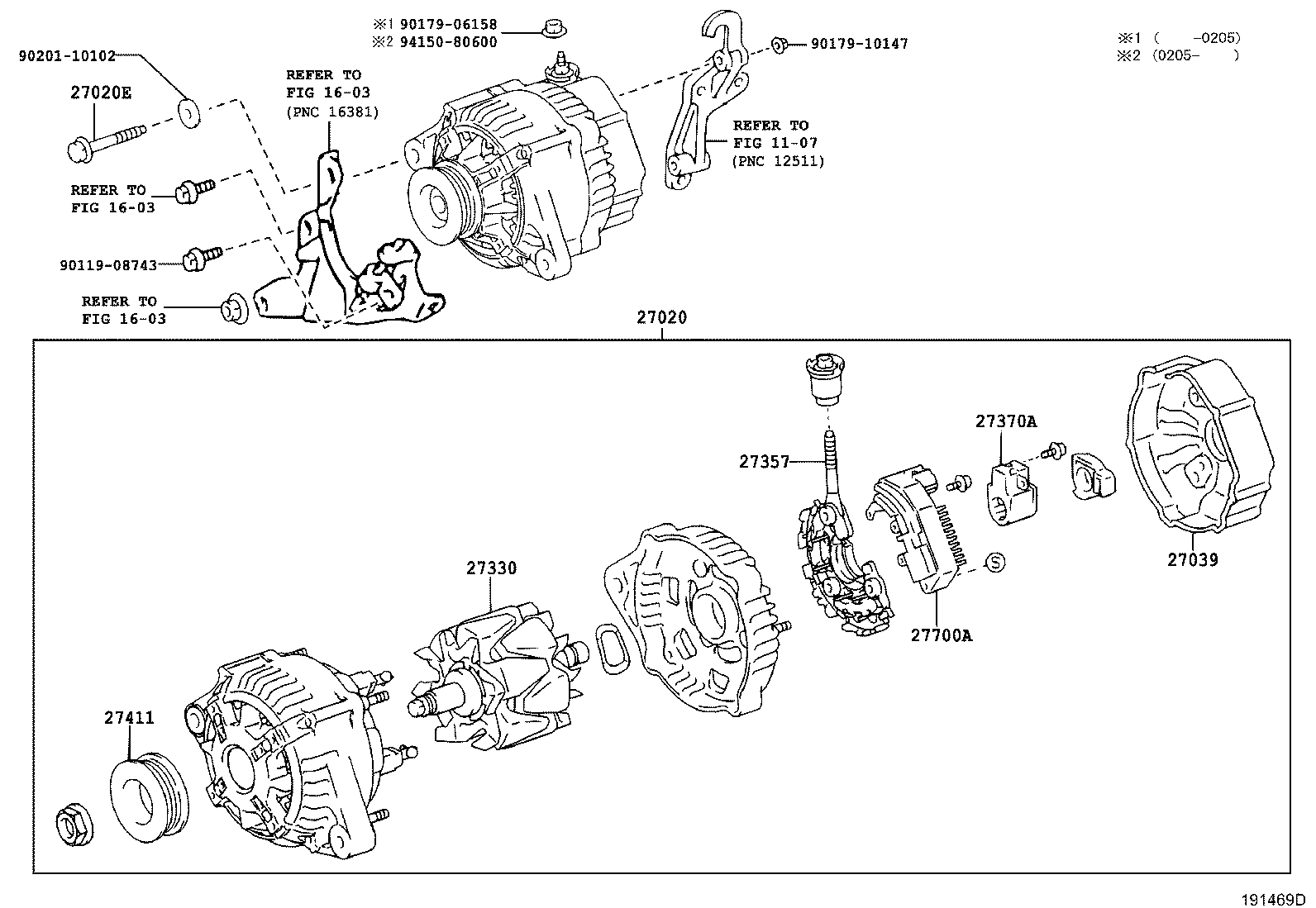

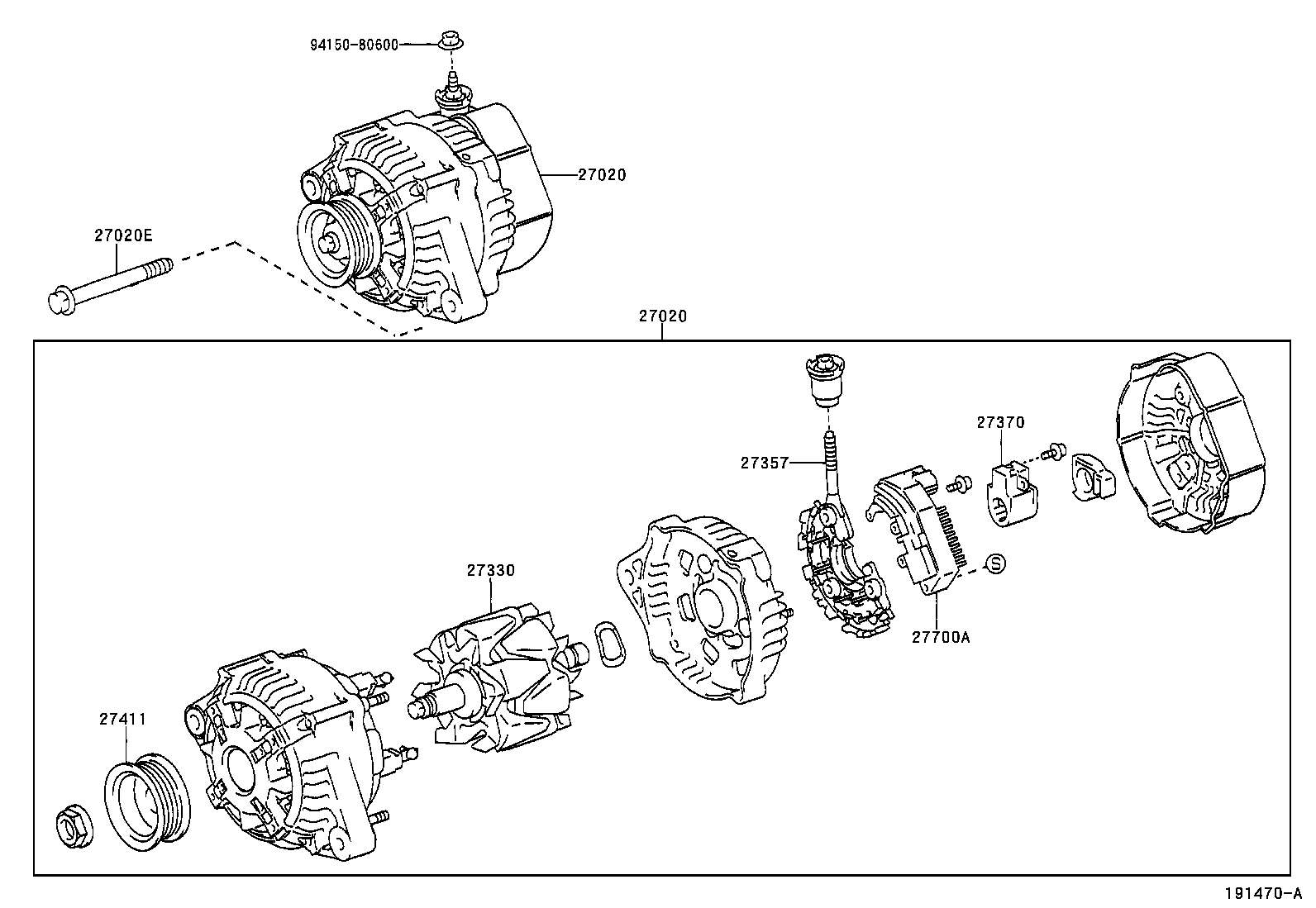

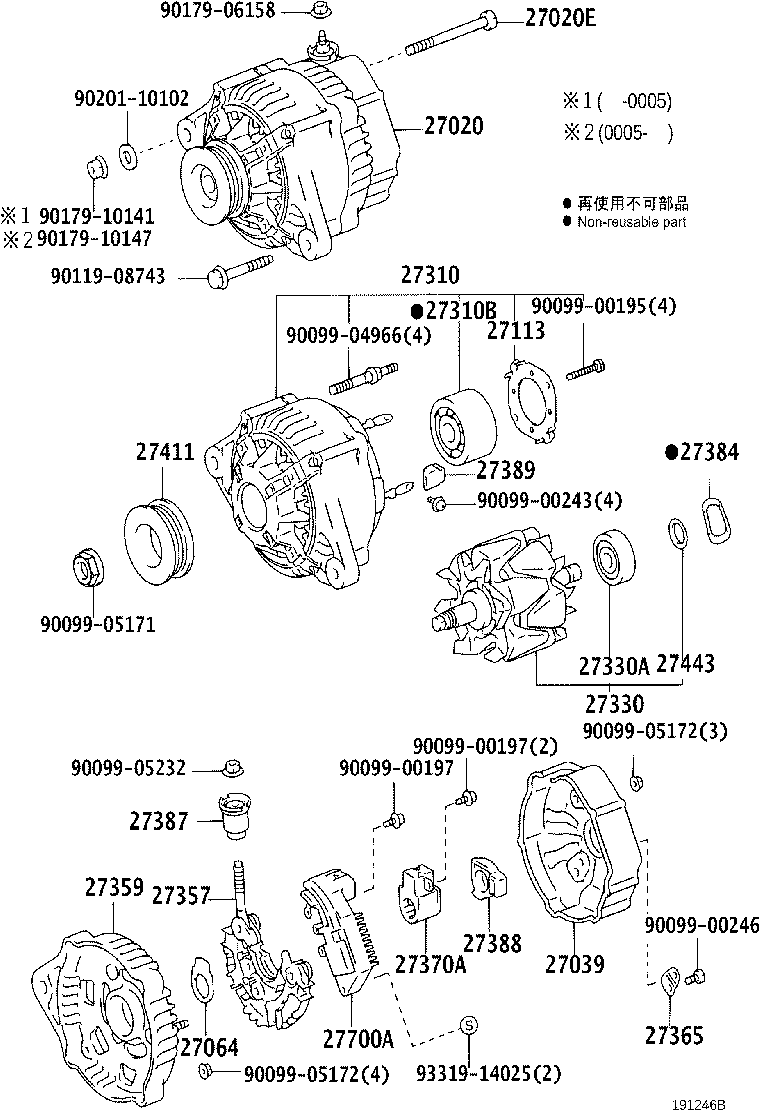

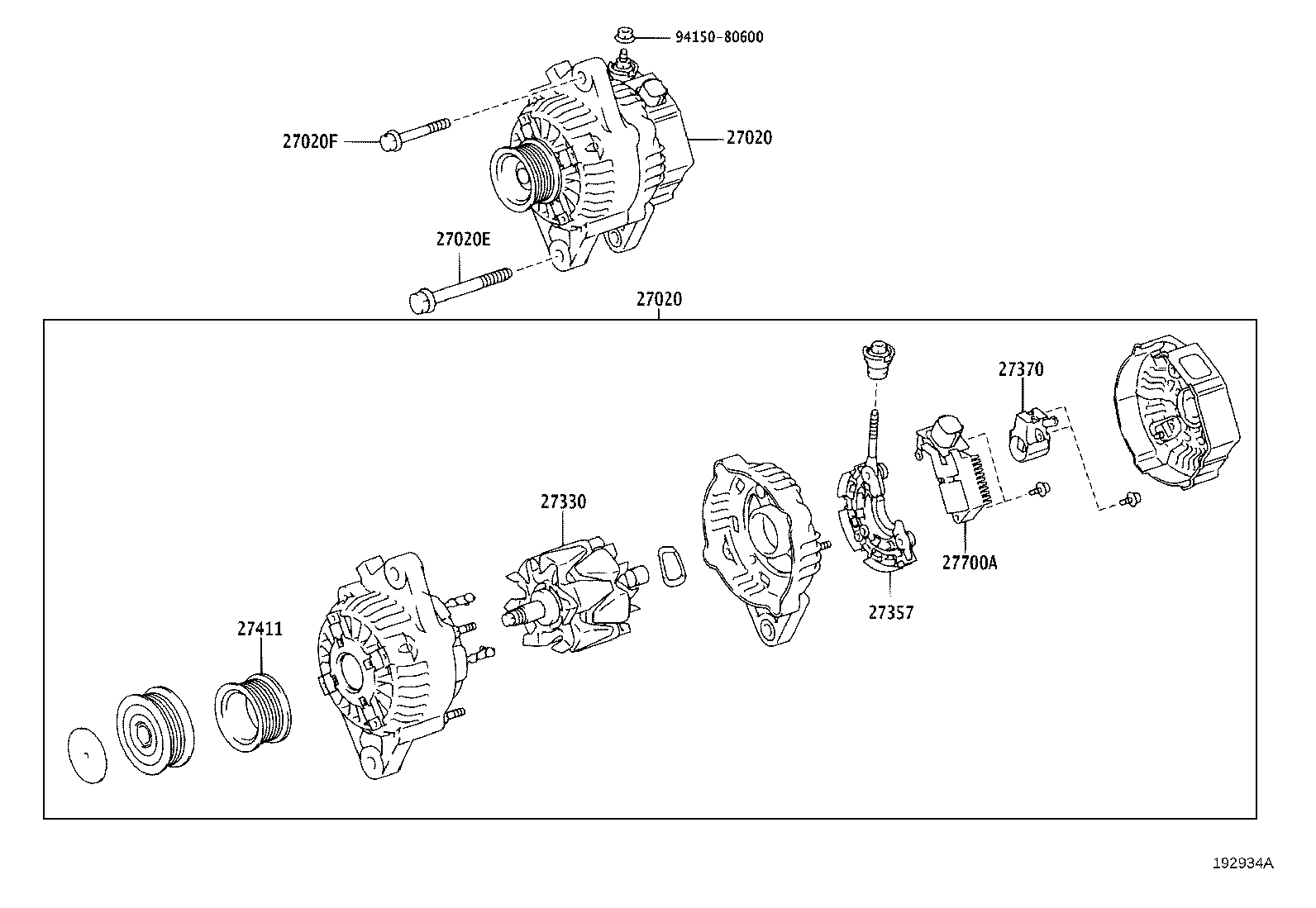

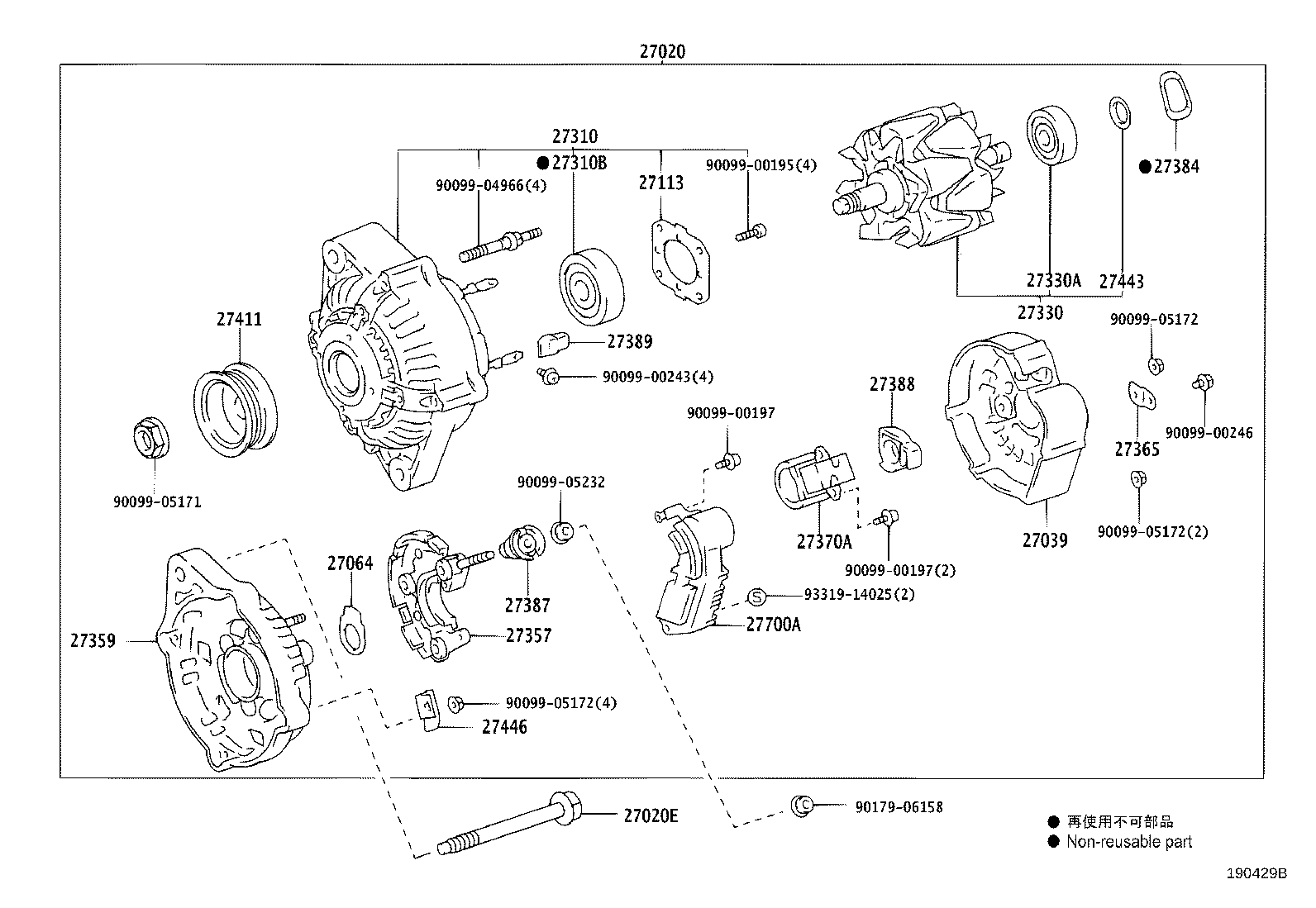

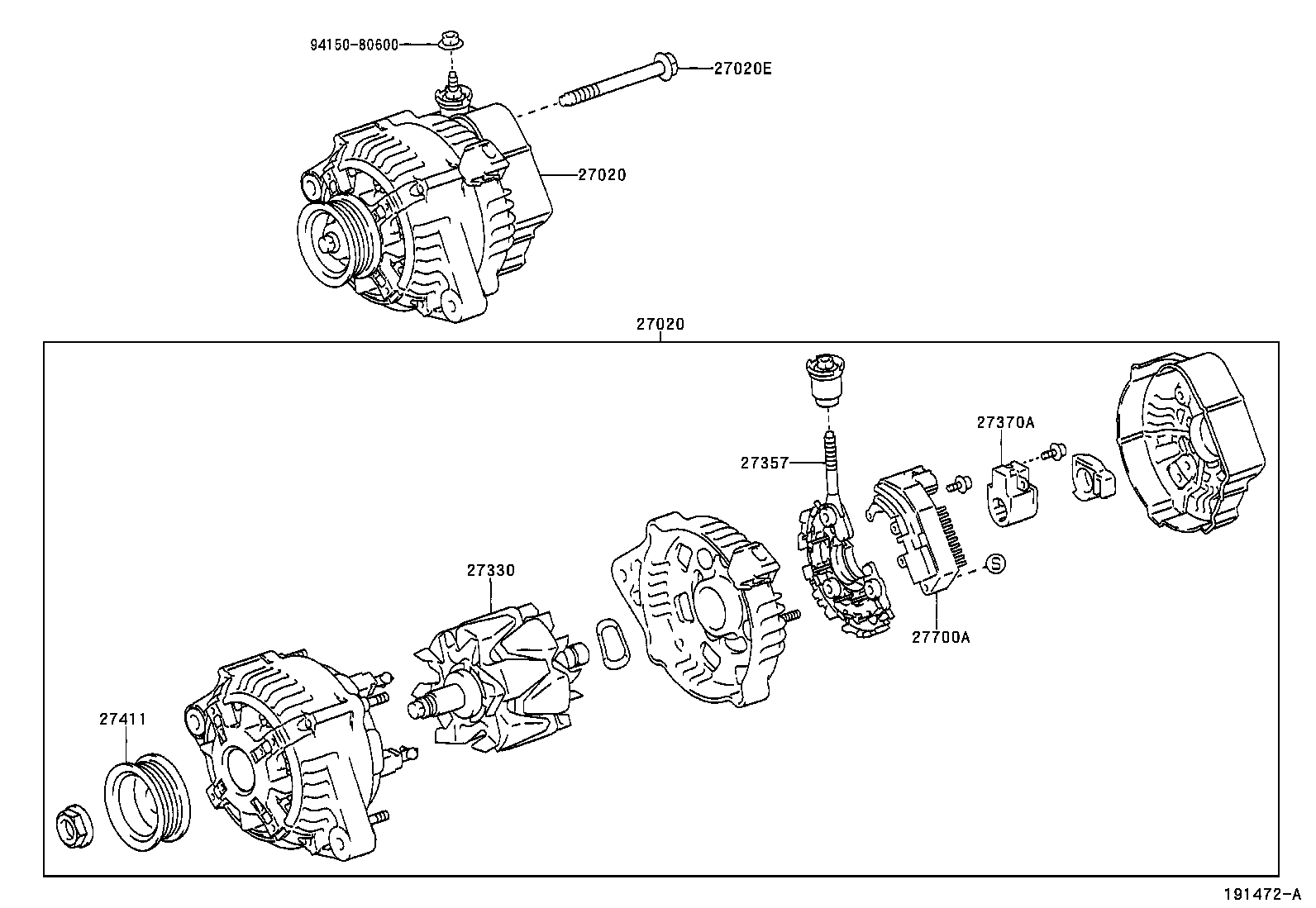

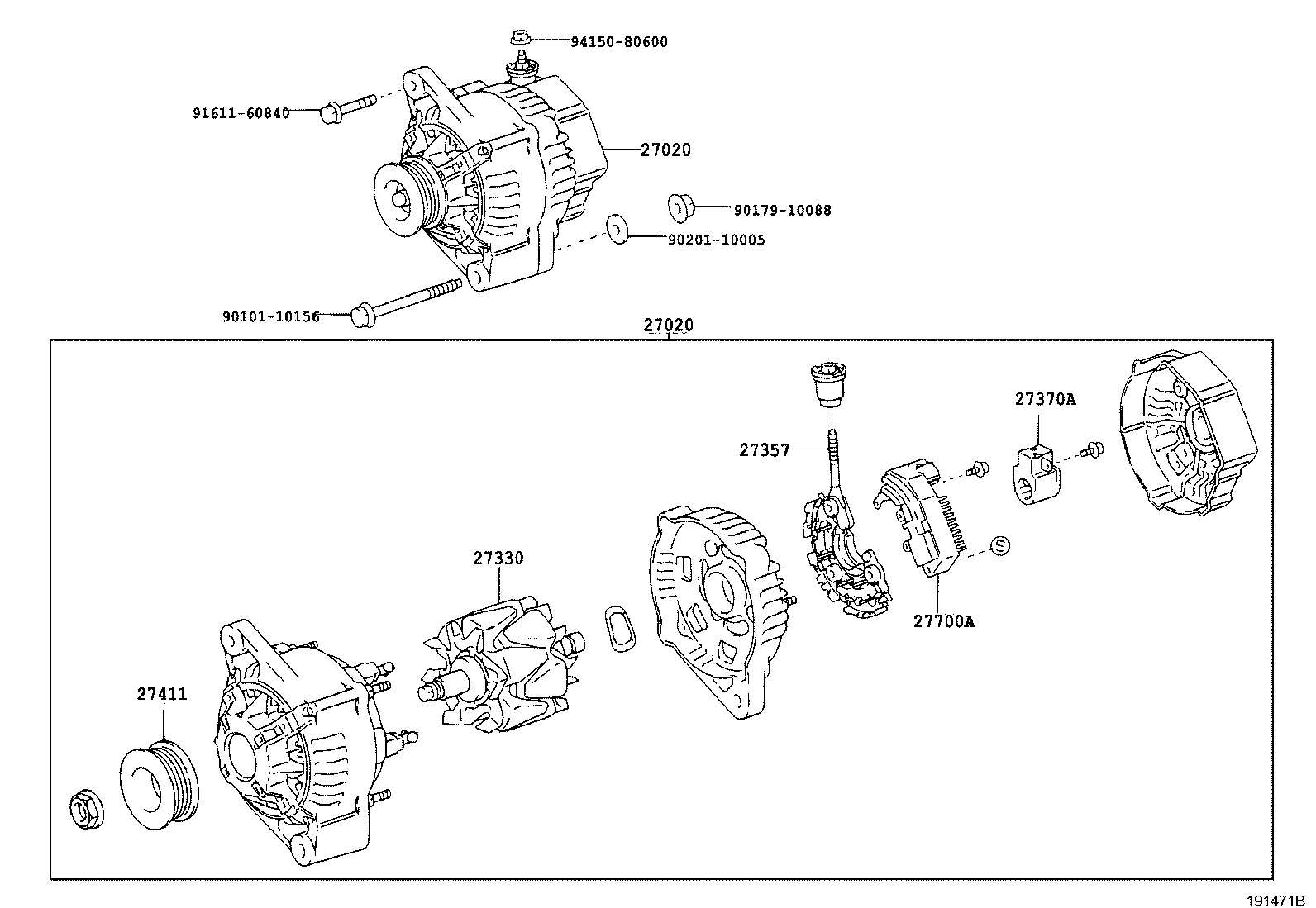

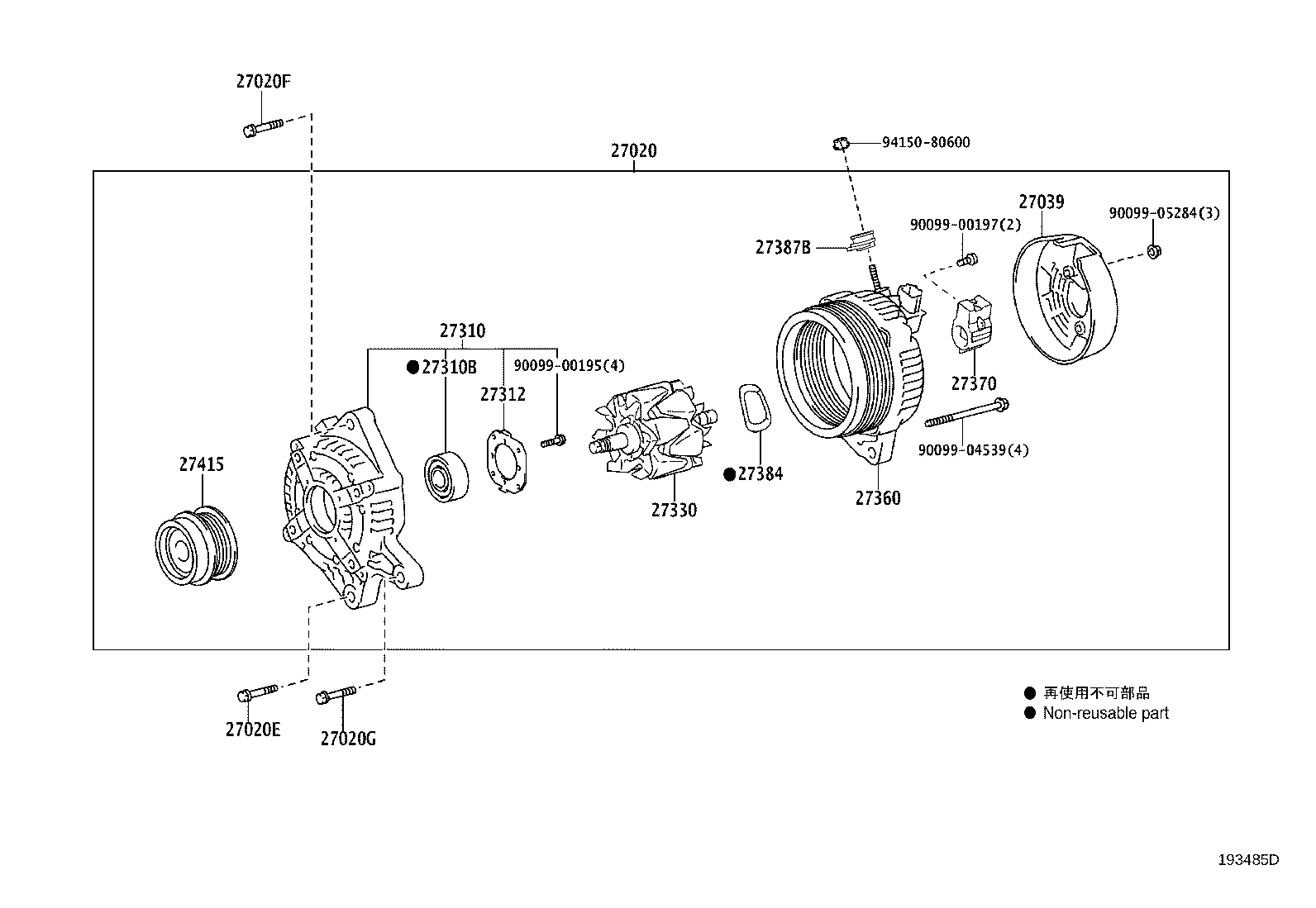

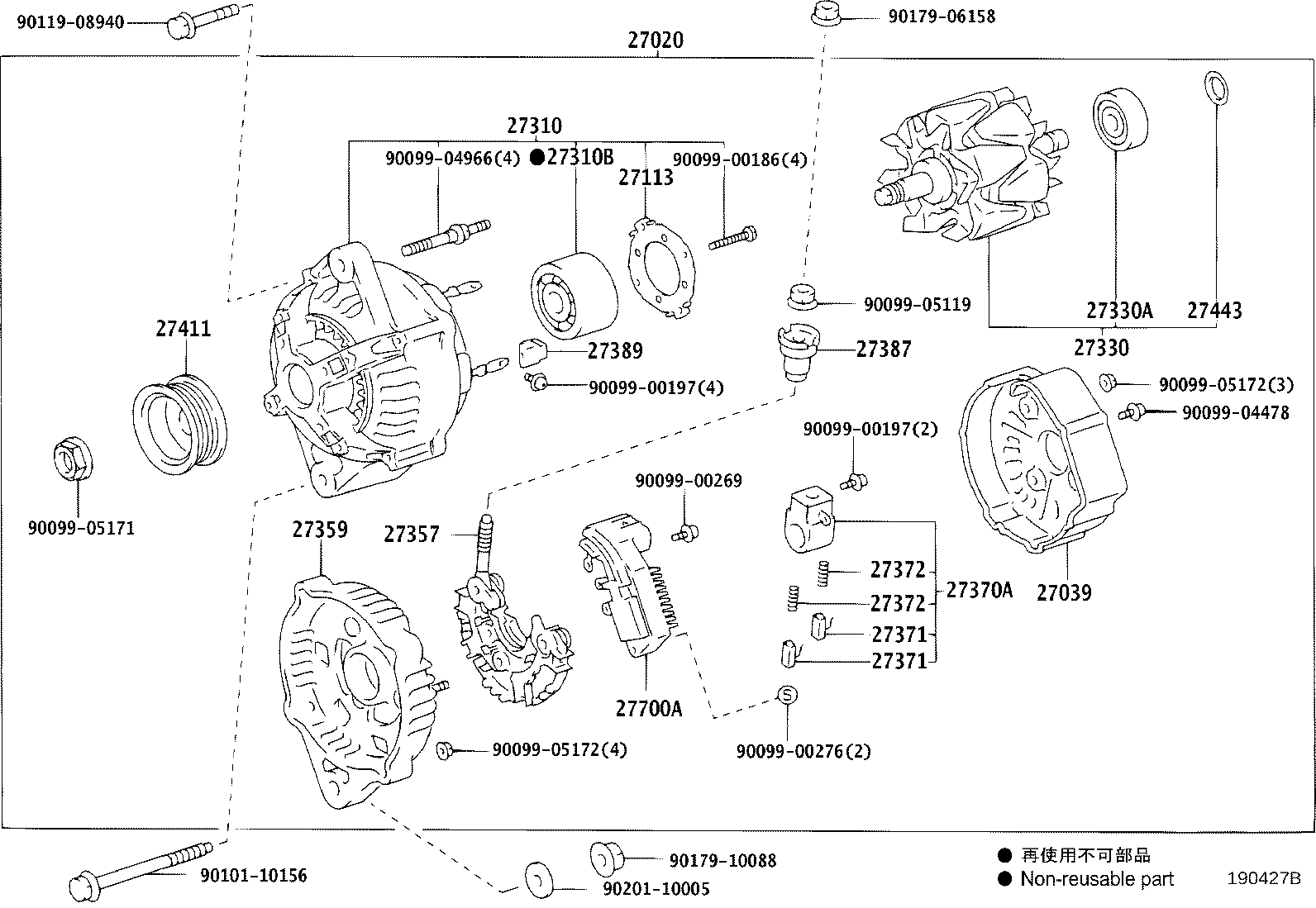

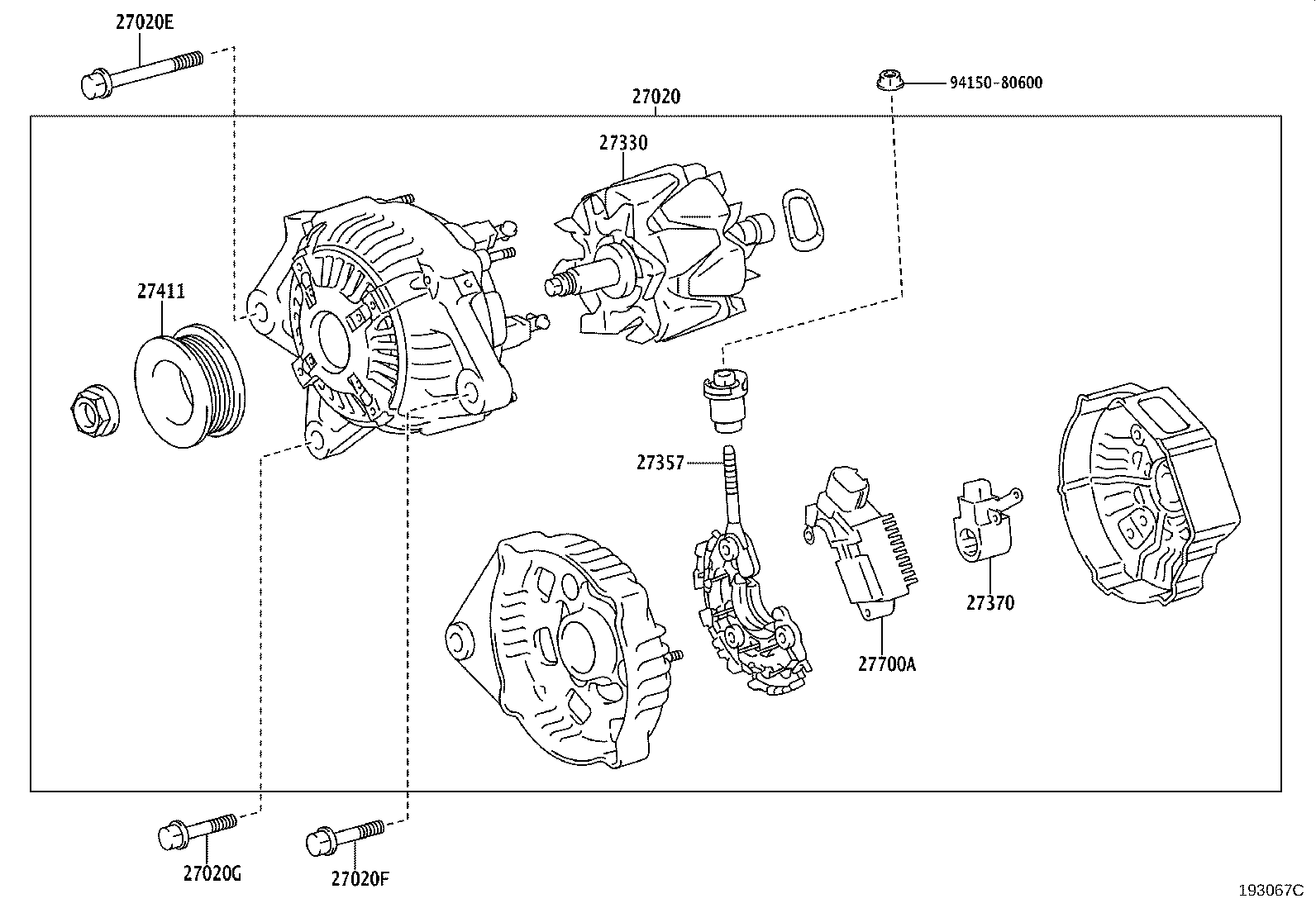

Figure 192144A 192144A 1995-12 → 2001-08 Figure 191246B 191246B 1995-12 → 2001-08 Figure 190427B 190427B 1995-12 → 2001-08 Figure 192145A 192145A 1995-12 → 2001-08 Figure 190428B 190428B 1996-04 → 2001-08 Figure 190429B 190429B 1996-04 → 2001-08 Figure 191470A 191470A 2001-08 → — Figure 191471B 191471B 2001-08 → — Figure 191472A 191472A 2001-08 → — Figure 191469D 191469D 2001-10 → — Figure 191791C 191791C 2002-10 → — Figure 192934A 192934A 2007-09 → — Figure 193067C 193067C 2008-08 → 2010-11 Figure 193067C 193067C 2010-11 → — Figure 193485D 193485D 2010-11 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27020F Bolt, NO.1(FOR ALTERNATOR)
27020G Bolt, NO.2(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27113 Plate, Bearing Retainer, Alternator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27360 Coil Assy, Alternator
27365 Plate, Terminal
27370 Holder Assy, Alternator Brush
27370A Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27384 Washer
27387 Insulator, Terminal
27387B Insulator, Alternator Terminal
27388 Cover, Alternator Brush
27389 Insulator, Terminal
27411 Pulley, Alternator
27415 Pulley, Alternator W/Clutch
27443 Cover, Alternator Bearing
27446 Clip, Alternator Cord
27700A Regulator Assy, Generator
29341 Seal, Alternator Oil
G1280 Motor Assy, Hybrid Vehicle Starter Generator
G1284 Stay, Motor Generator
G1285 Cover, Motor Generator
G9118D Label, Power Control Unit Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
