Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

50 part groups · 8 illustrations

Illustrations

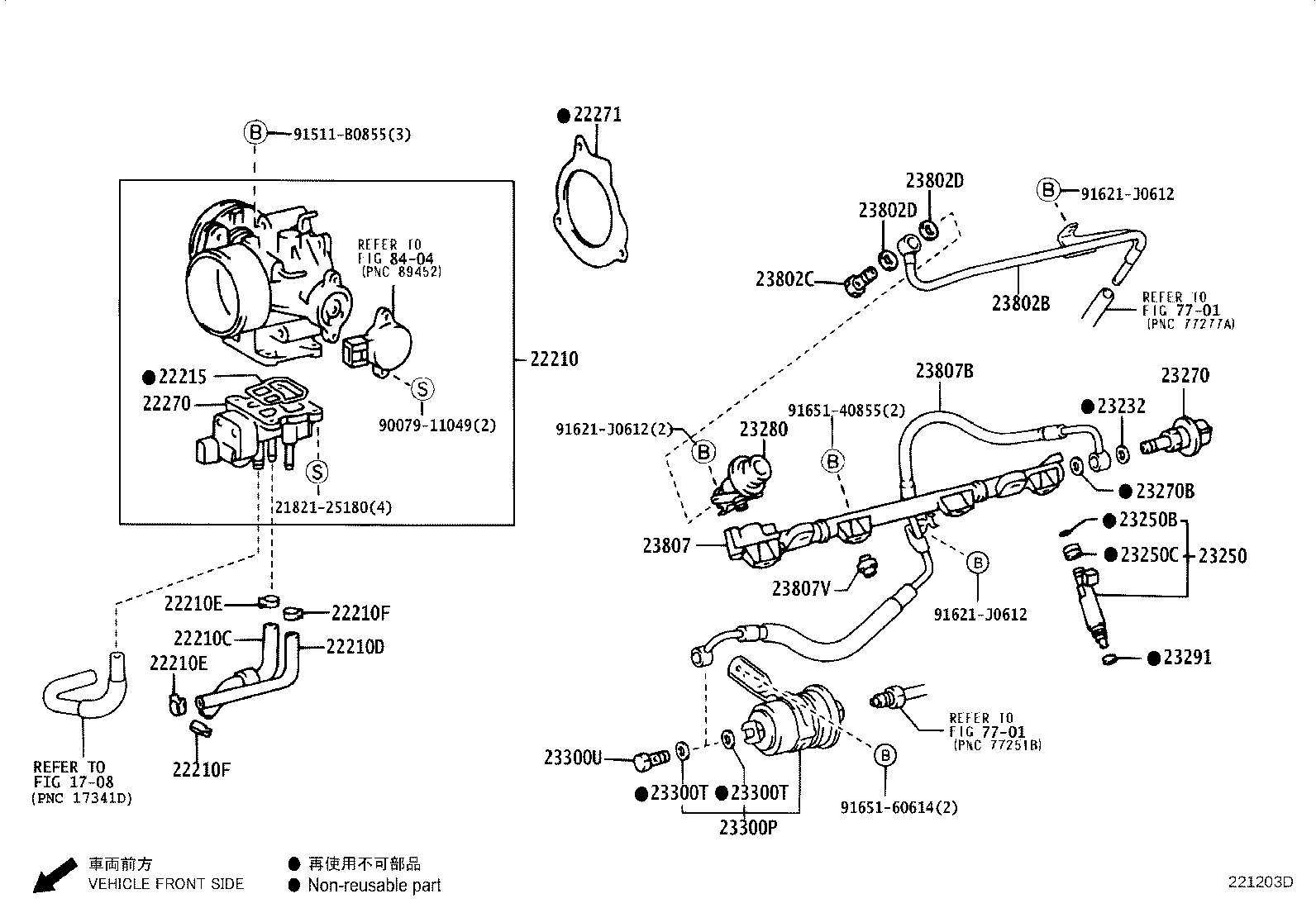

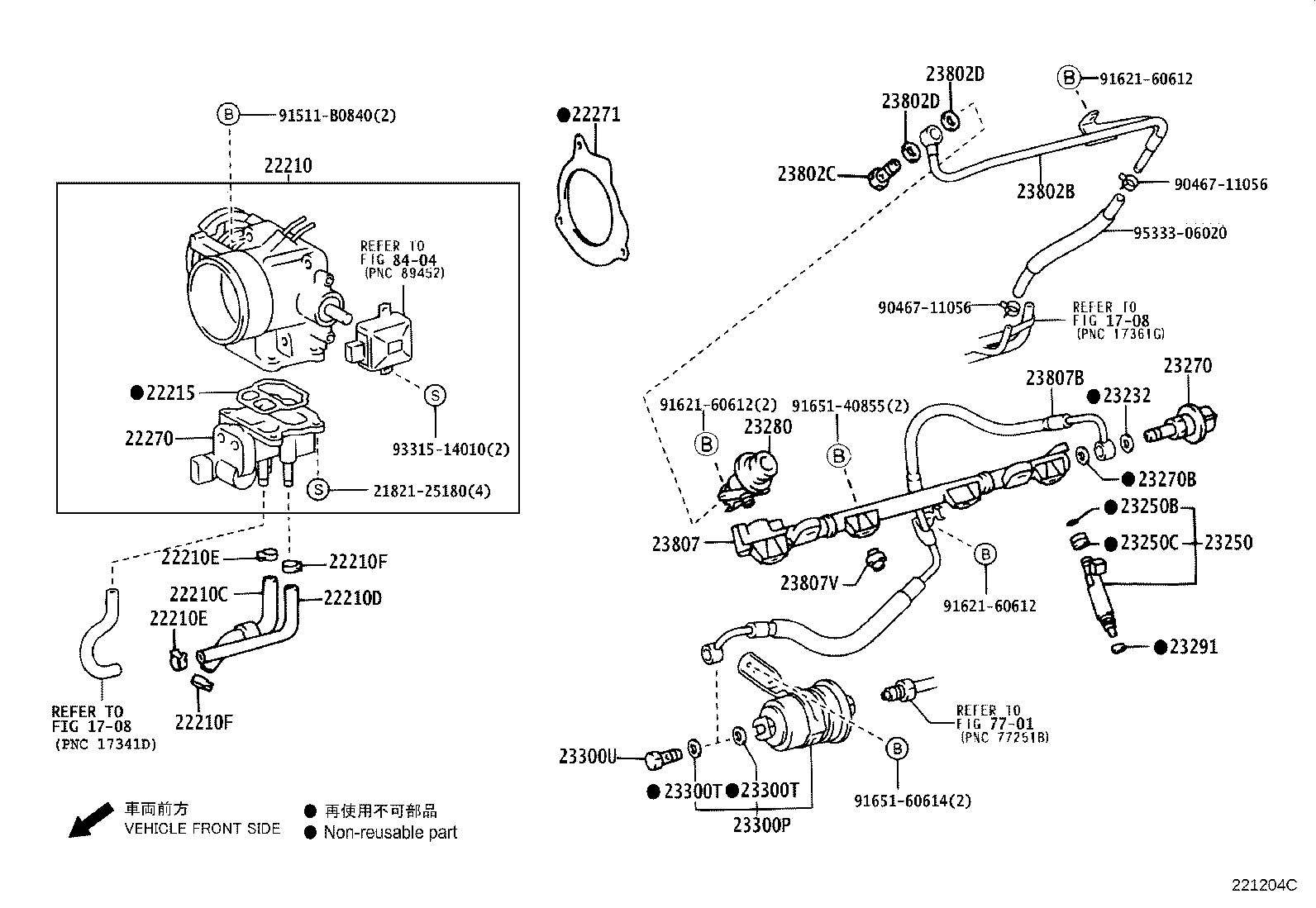

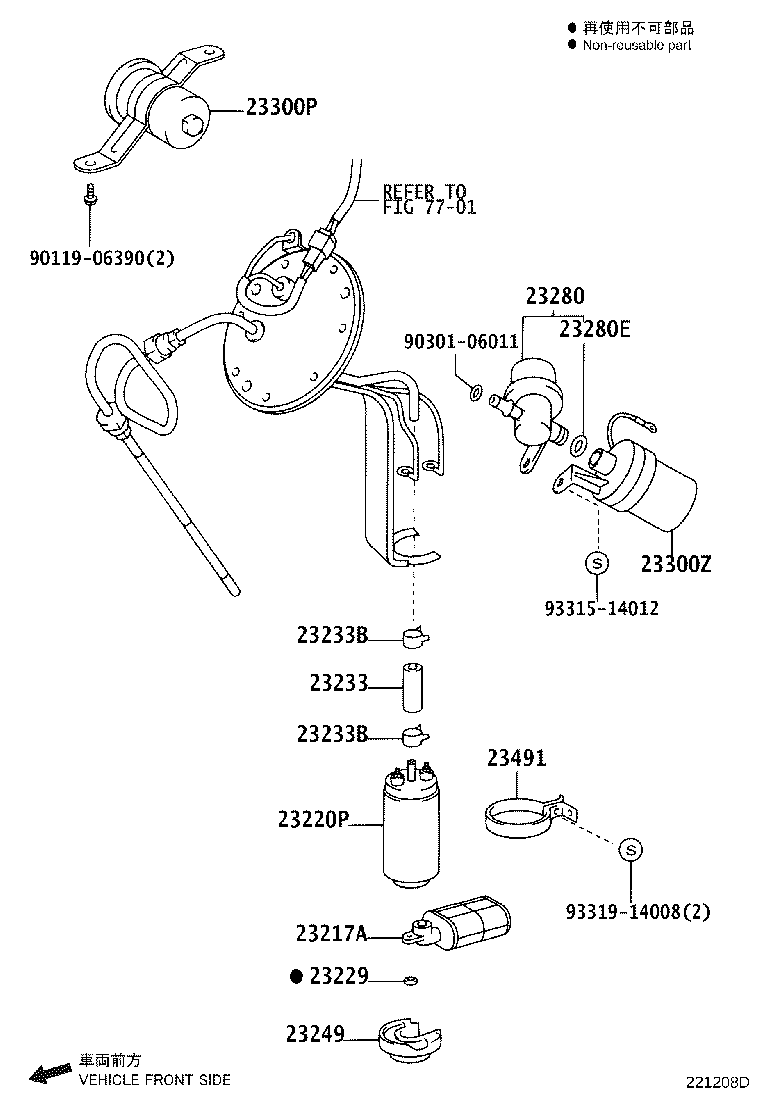

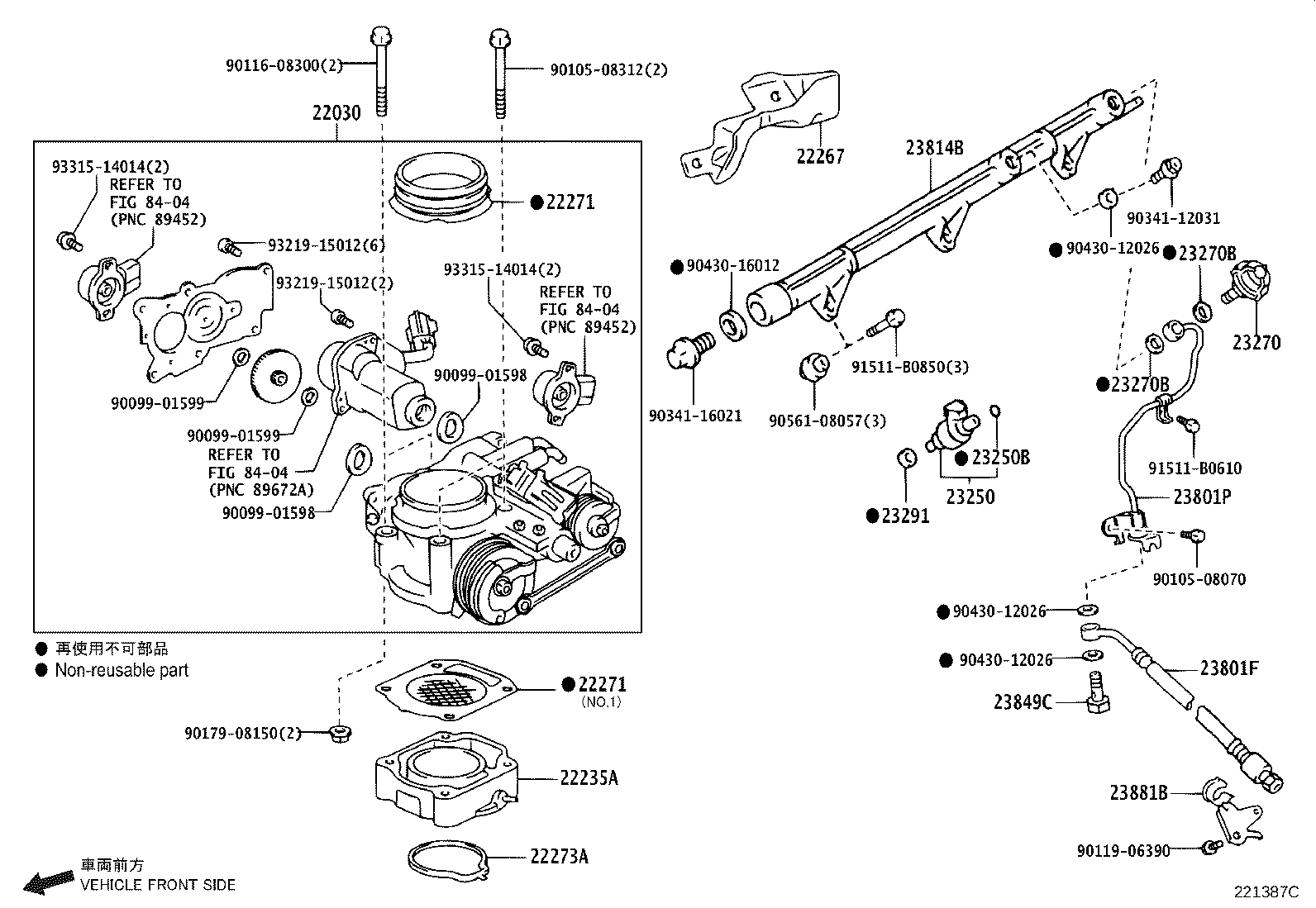

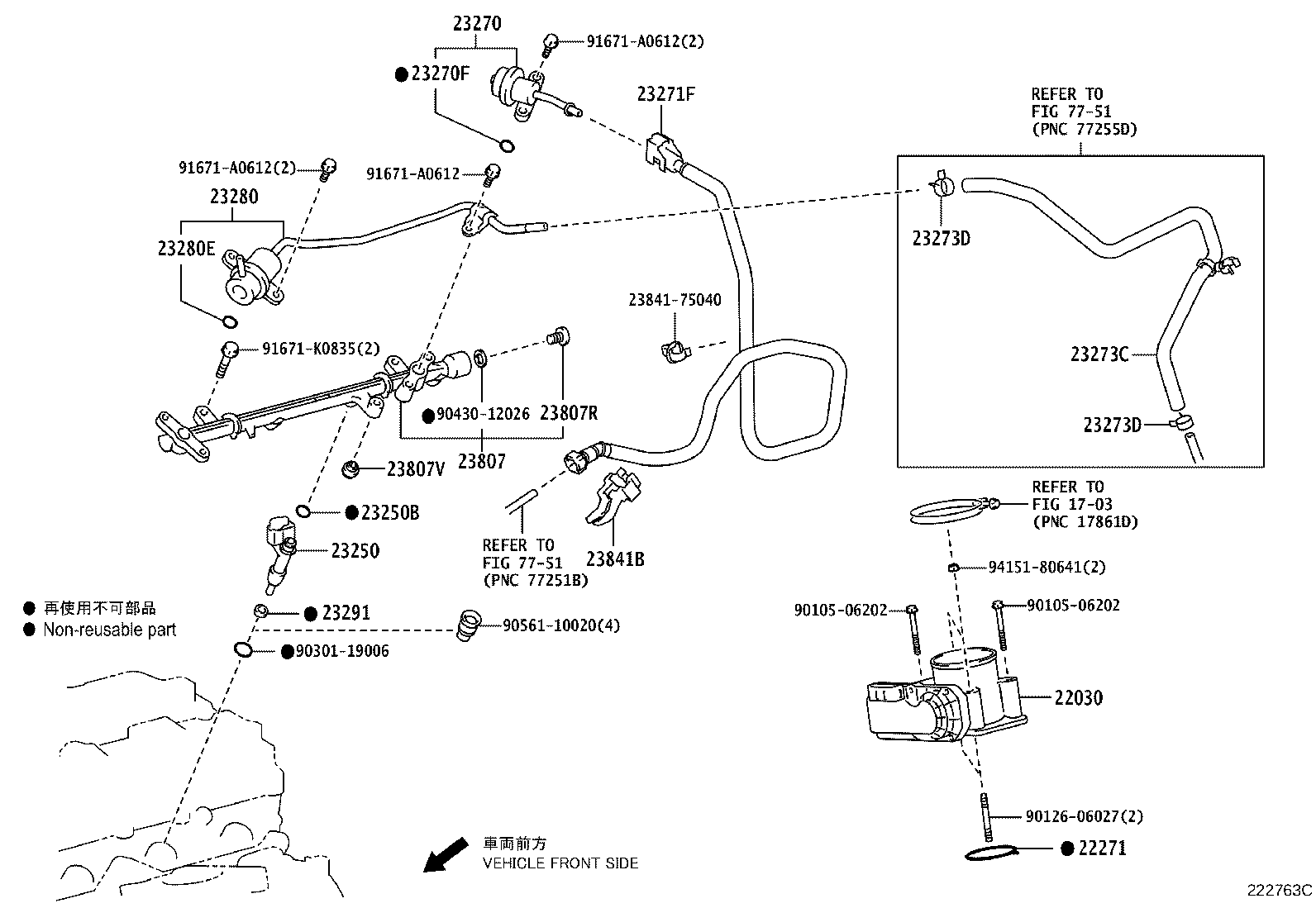

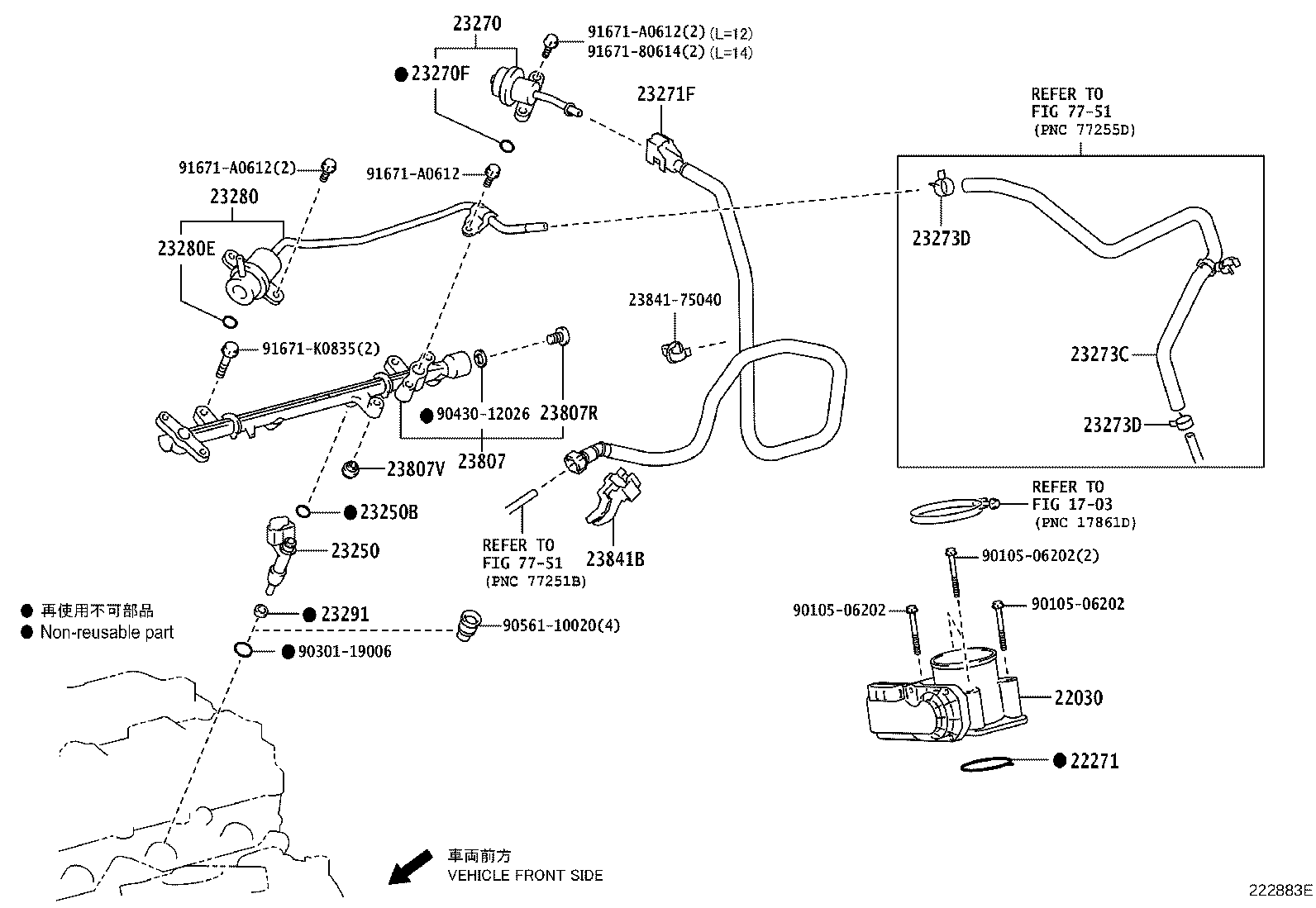

Figure 221207C 221207C 2001-08 → — Figure 221387C 221387C 2002-10 → — Figure 221208D 221208D 2001-08 → — Figure 221204C 221204C 1996-04 → 2001-08 Figure 221203D 221203D 2001-08 → — Figure 223543A 223543A 1996-04 → — Figure 222763C 222763C 2007-09 → 2012-11 Figure 222883E 222883E 2012-11 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210D Hose, Water By-pass, NO.2
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22210F Clamp OR Clip, Hose (FOR WATER BY-PASS HOSE, NO.2)
22215 Gasket, Throttle Body Cover
22235A Inlet, Auxiliary Air
22267 Bracket, Throttle Body
22270 Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
22271 Gasket, Throttle Body
22273A Gasket, Throttle Body, NO.2
22278 Gasket, Idle Speed Control Valve
23217A Filter, Fuel Pump
23220P Pump Assy, Fuel
23229 Clip(FOR FUEL PUMP FILTER)
23232 Gasket(FOR FUEL PUMP HOSE)
23233 Hose, Fuel Pump
23233B Clip(FOR FUEL PUMP HOSE)
23249 Rubber, Cushion(FOR FUEL PUMP)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270B Gasket(FOR PULSATION DAMPER HOSE)
23270F Ring, O(FOR PULSATION DAMPER)
23271F Hose, Fuel
23273C Hose, Fuel, NO.2
23273D Clip(FOR FUEL HOSE NO.2)
23280 Regulator Assy, Fuel Pressure
23280E Ring, O(FOR FUEL PRESSURE REGULATOR)
23291 Insulator, Injector Vibration
23300P Filter, Fuel(FOR EFI)
23300T Gasket(FOR FUEL FILTER)
23300U Bolt, Union(FOR FUEL FILTER)
23300Z Filter, Fuel(FOR FUEL TANK)
23491 Clamp, Fuel Filter Earth
23801F Hose, Fuel, NO.1
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2
23802C Bolt, Union(FOR FUEL PIPE NO.2)
23802D Gasket(FOR FUEL PIPE NO.2)
23807 Pipe Sub-assy, Fuel Delivery
23807B Hose, Fuel Delivery Pipe
23807R Plug, Fuel Delivary Pipe
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23849C Bolt, Union(FOR FUEL PIPE SUPPORT)
23881B Bracket, Fuel Hose
