Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

24 part groups · 10 illustrations

Illustrations

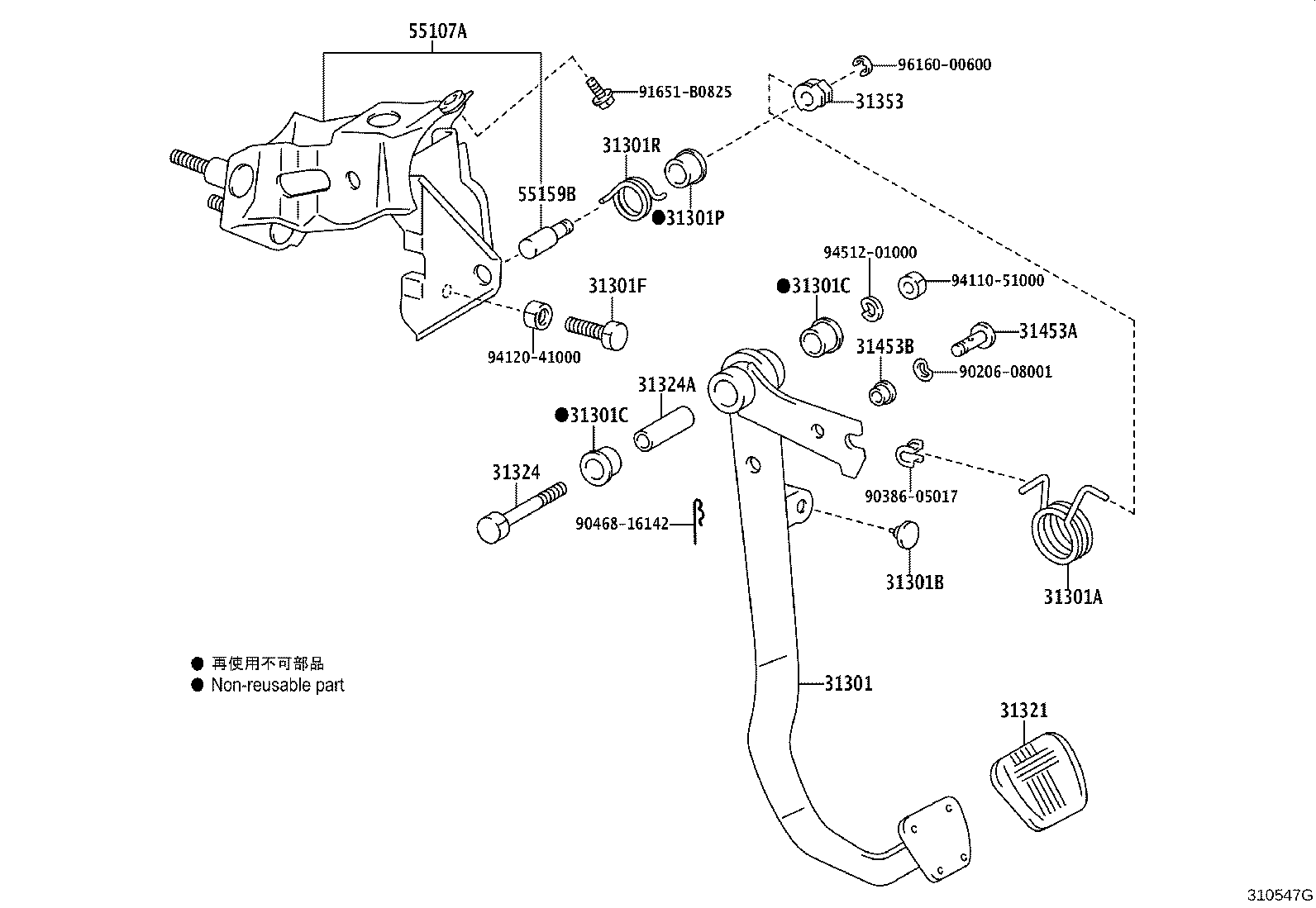

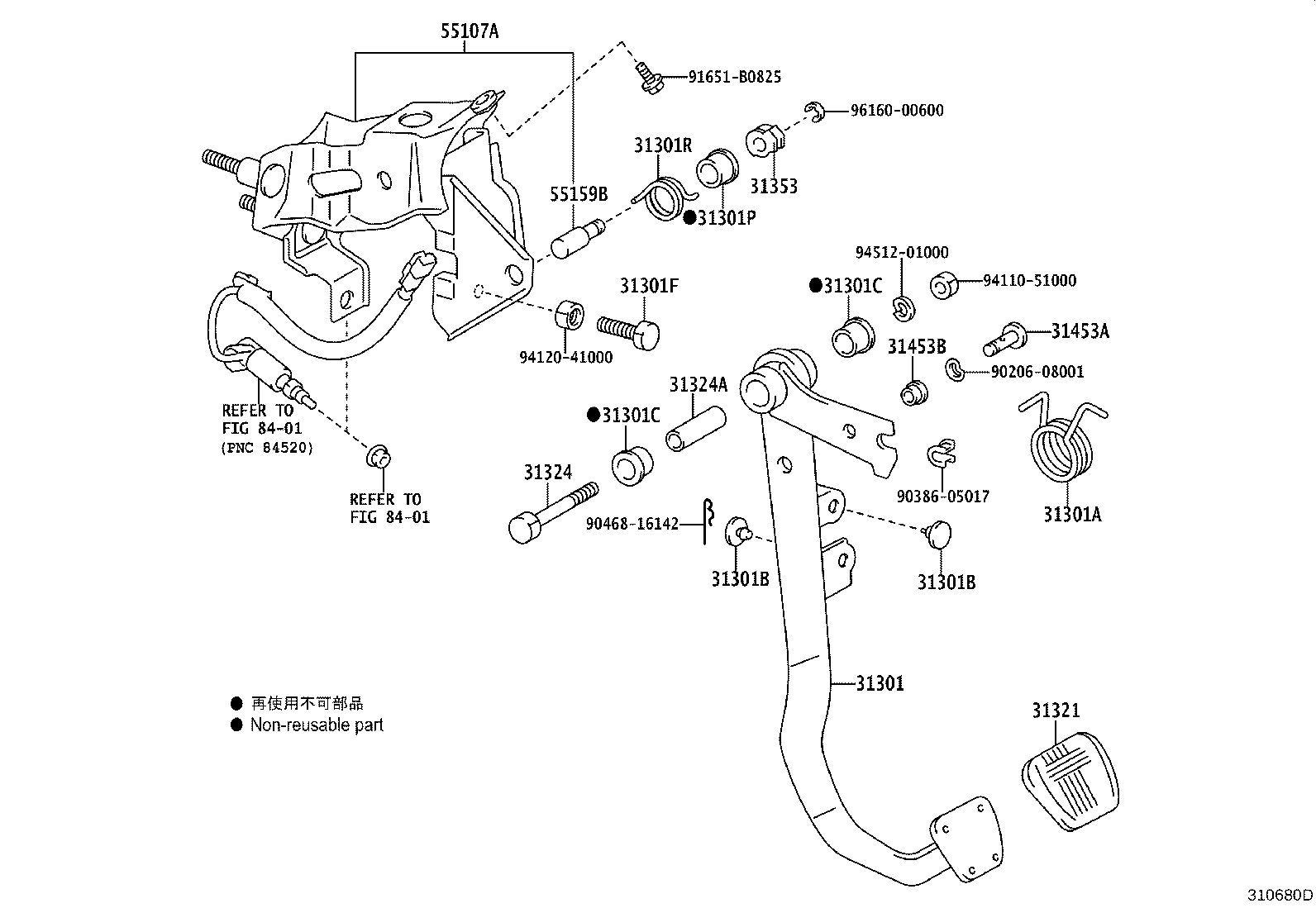

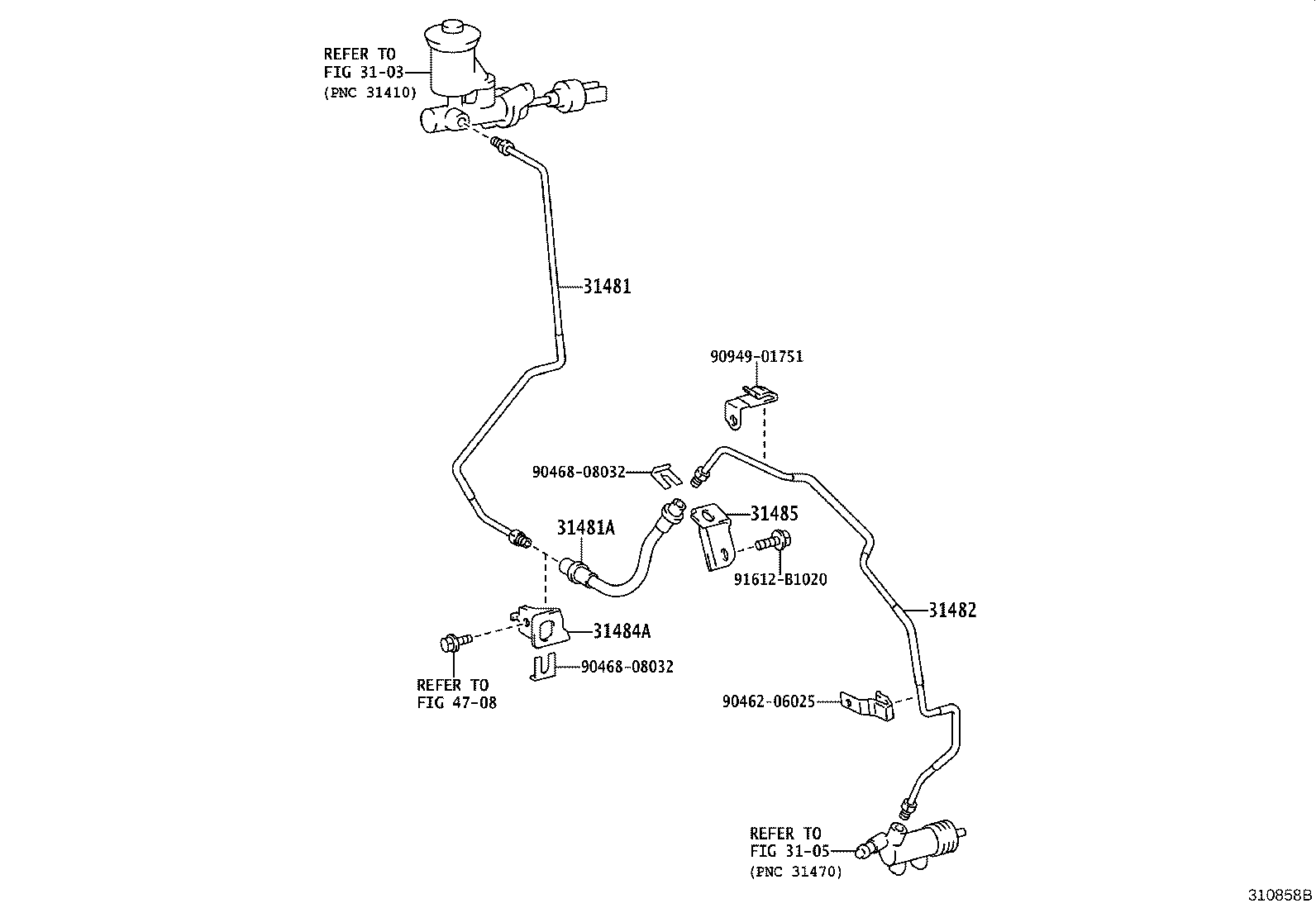

Figure 310546C 310546C 1995-12 → 1997-01 Figure 310547G 310547G 1996-04 → 2000-01 Figure 310547G 310547G 1997-01 → 2000-01 Figure 310547G 310547G 2000-01 → — Figure 310680D 310680D 2000-01 → — Figure 310342C 310342C 1995-12 → — Figure 313255 313255 1996-04 → 1999-08 Figure 313256 313256 1996-04 → 2001-08 Figure 310858B 310858B 2001-08 → — Figure 311982 311982 2007-09 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481D Bolt, Union(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)
31481E Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482B Hose, Clutch, NO.2
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
55159B Pin, Clutch Pedal Turnover Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
