Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

11 part groups · 2 illustrations

Illustrations

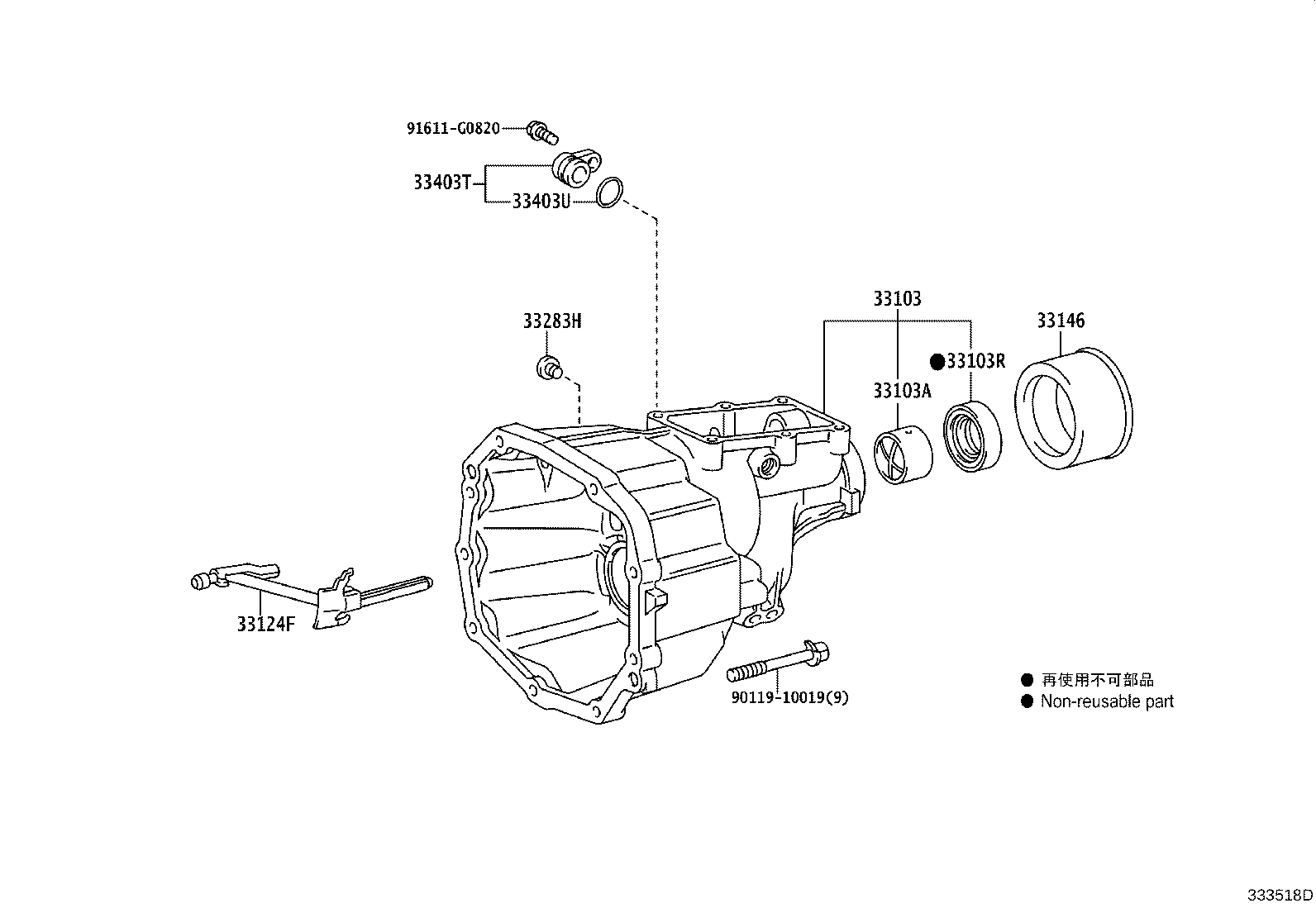

Figure 331092F 331092F 1995-12 → 2007-06 Figure 333518D 333518D 1995-12 → —

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103B Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124A Clamp(FOR TRANSMISSION OIL RECEIVER PIPE)
33124F Pipe, Oil Receiver, NO.1(FOR EXTENSION HOUSING)
33124G Pipe, Oil Receiver, NO.2(FOR EXTENSION HOUSING)
33146 Deflector, Extension Housing Dust(MTM)
33283H Plug, W/Head Straight Screw
33403T Cover Sub-assy, Speedometer Driven Hole
33403U Ring, O(FOR MTM SPEEDOMETER DRIVEN HOLE COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
