Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

28 part groups · 11 illustrations

Illustrations

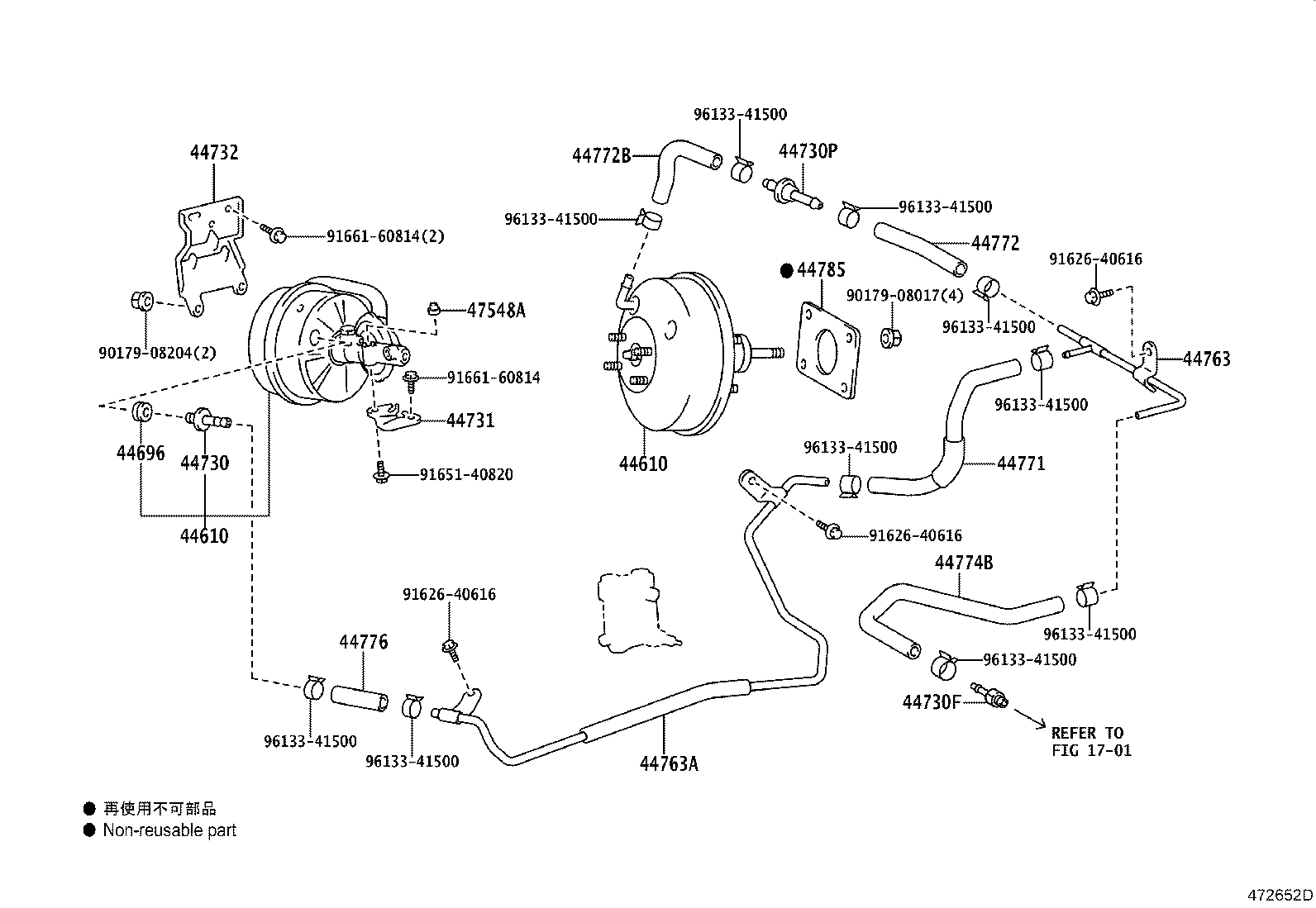

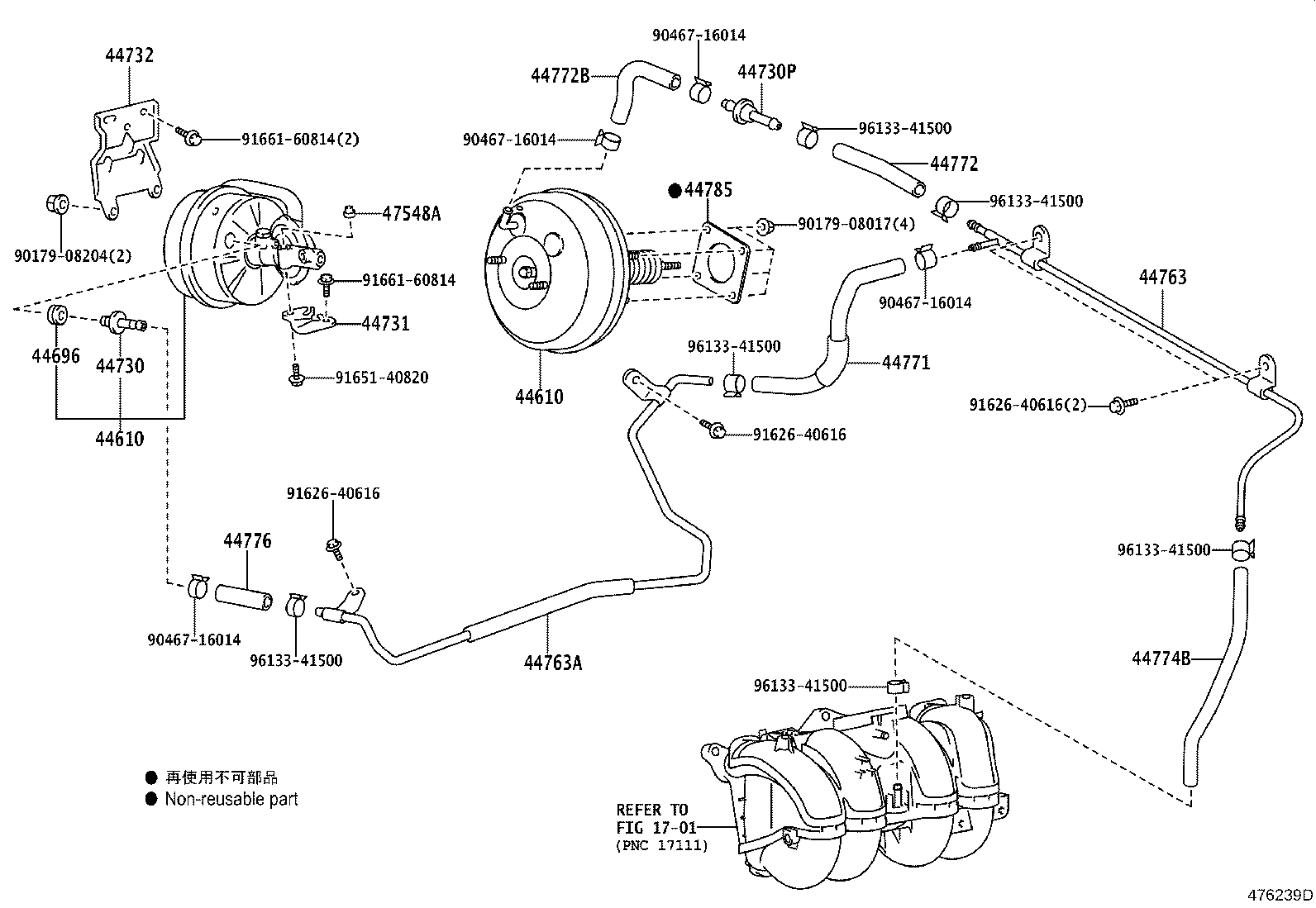

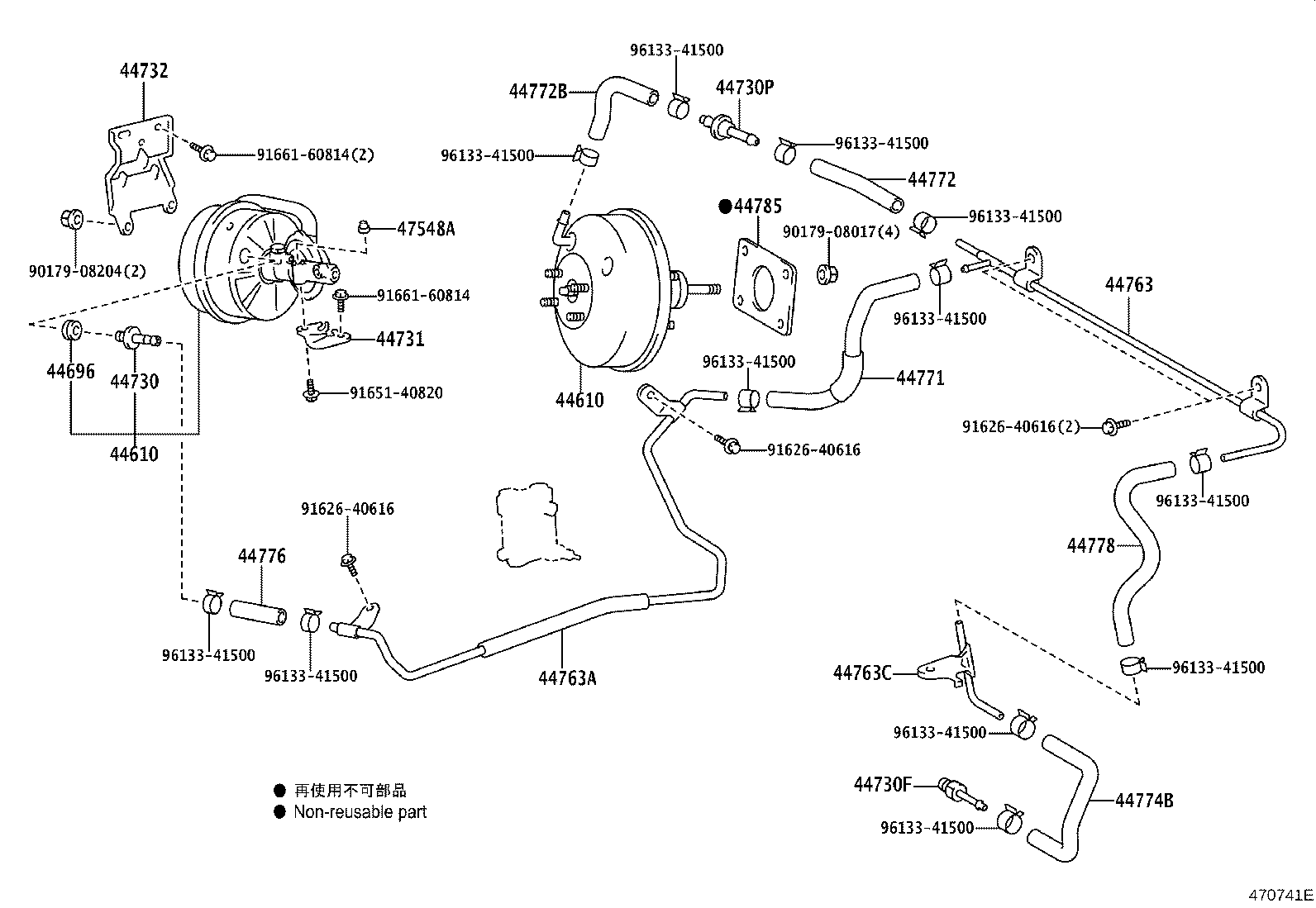

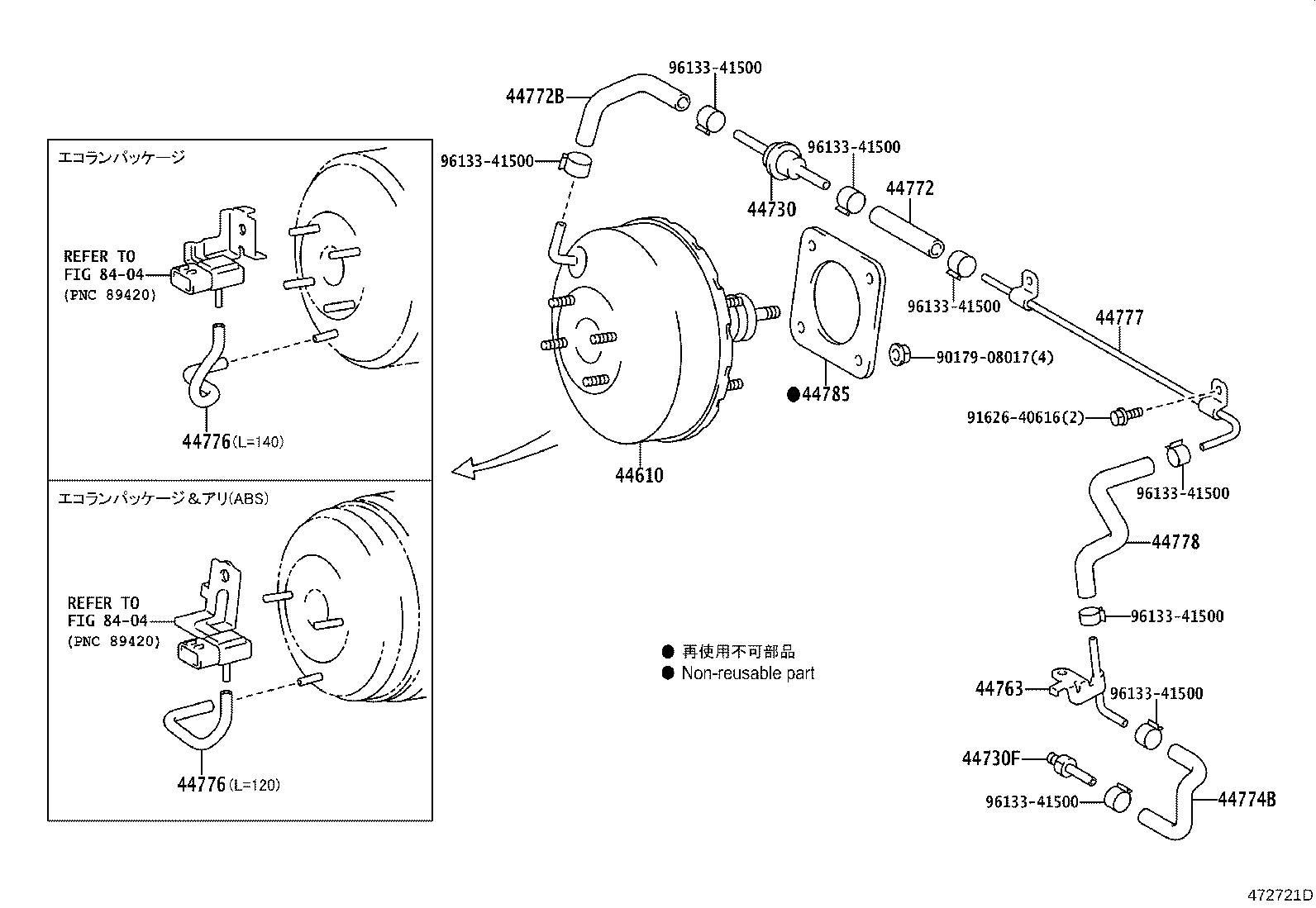

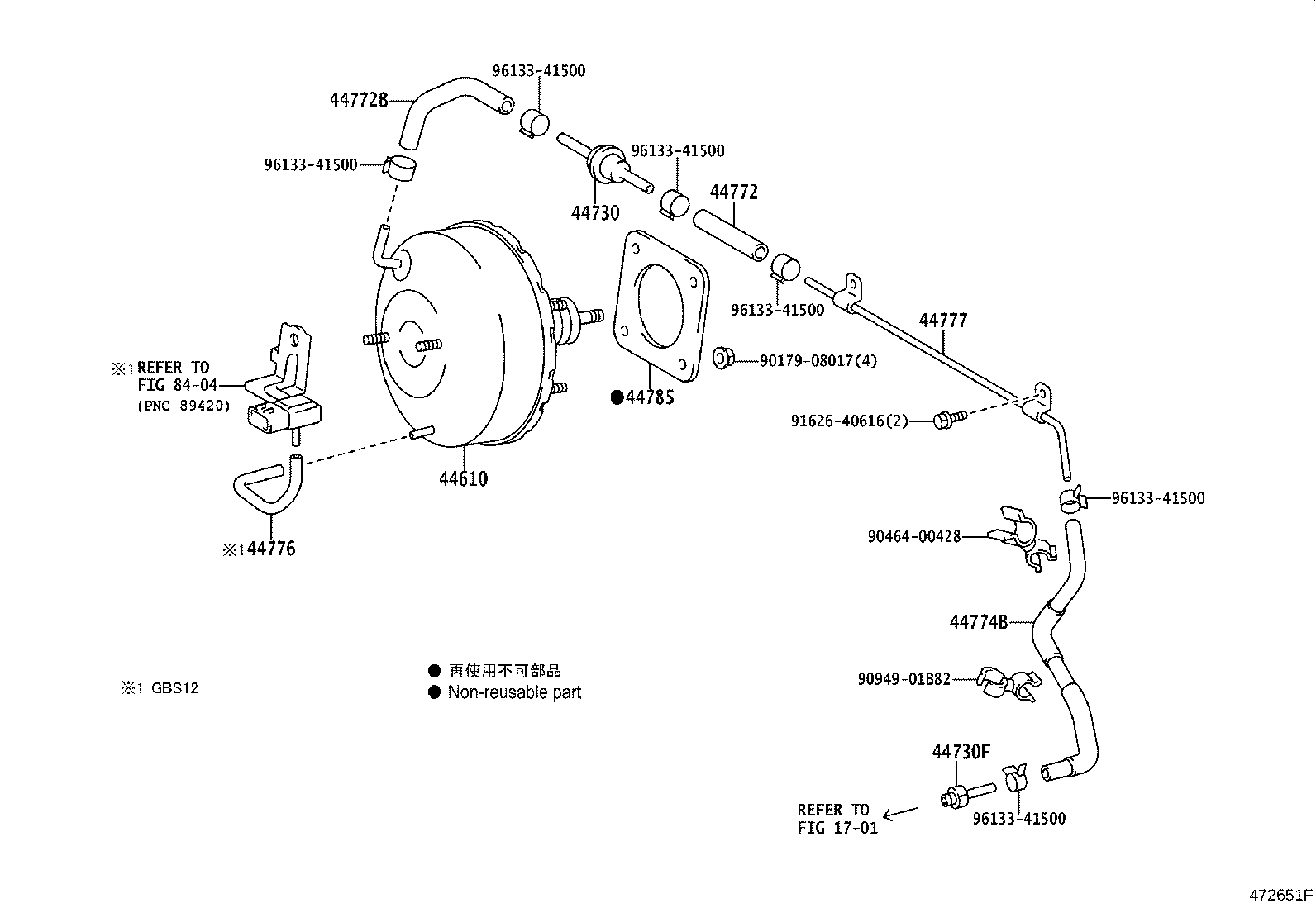

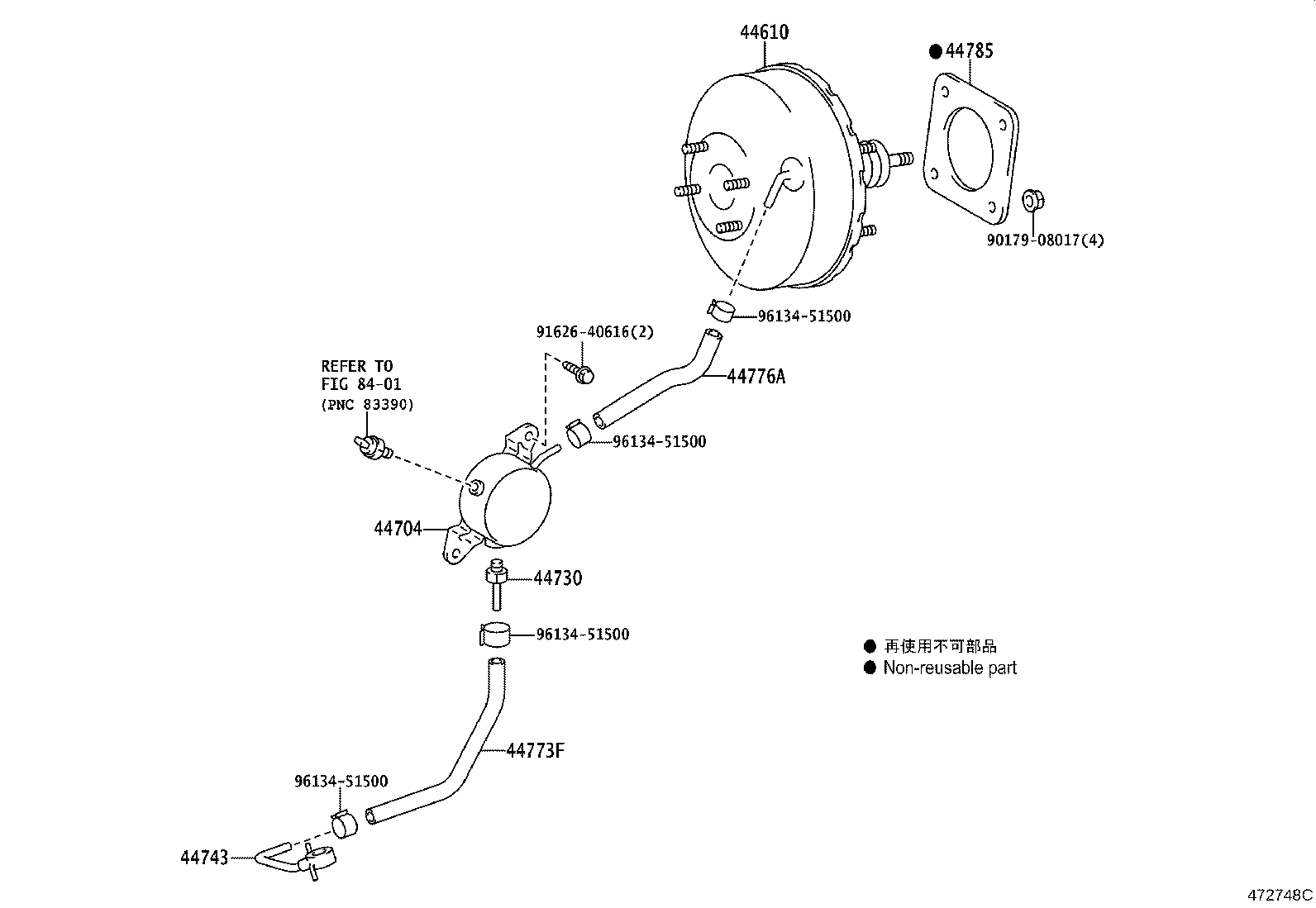

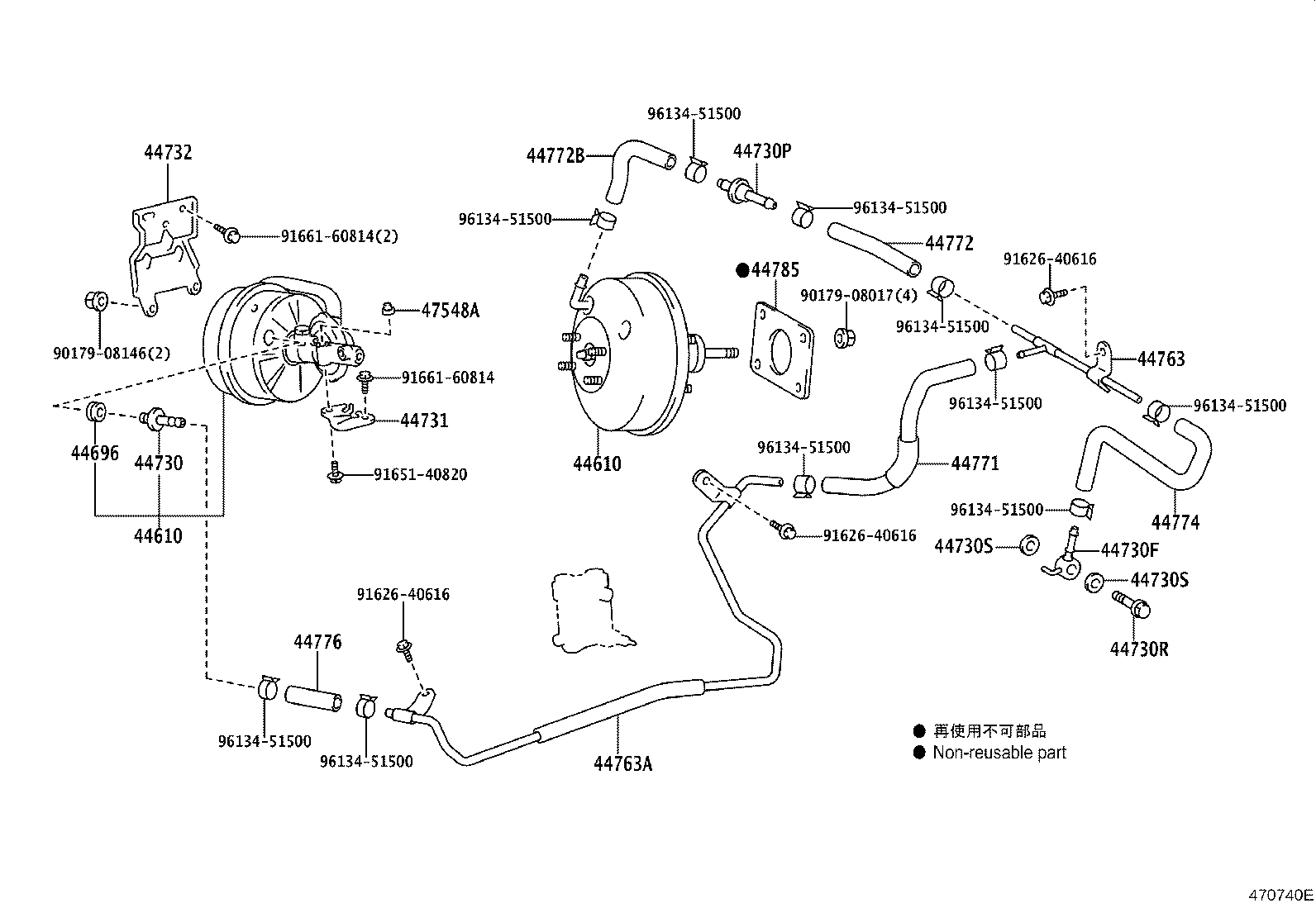

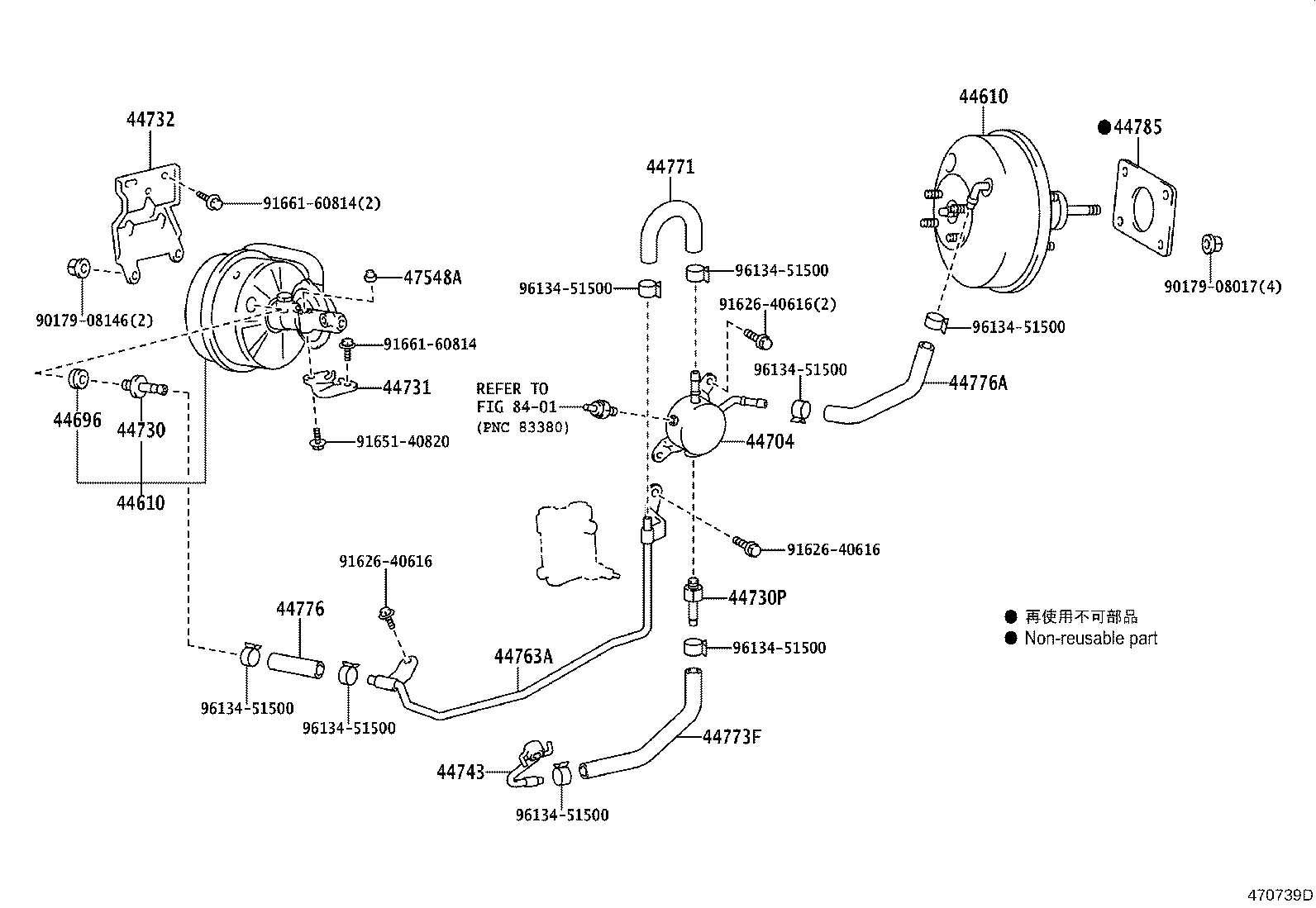

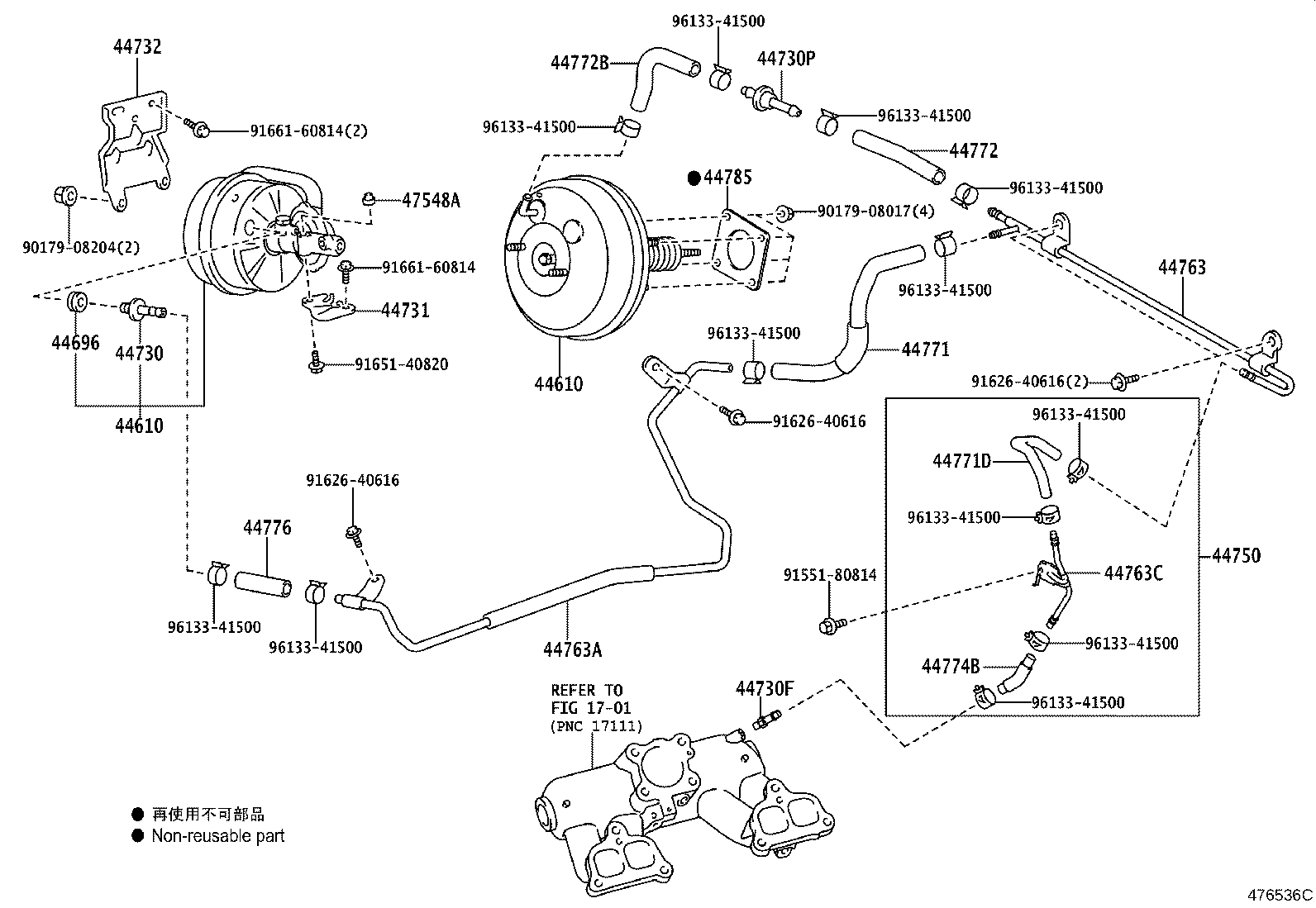

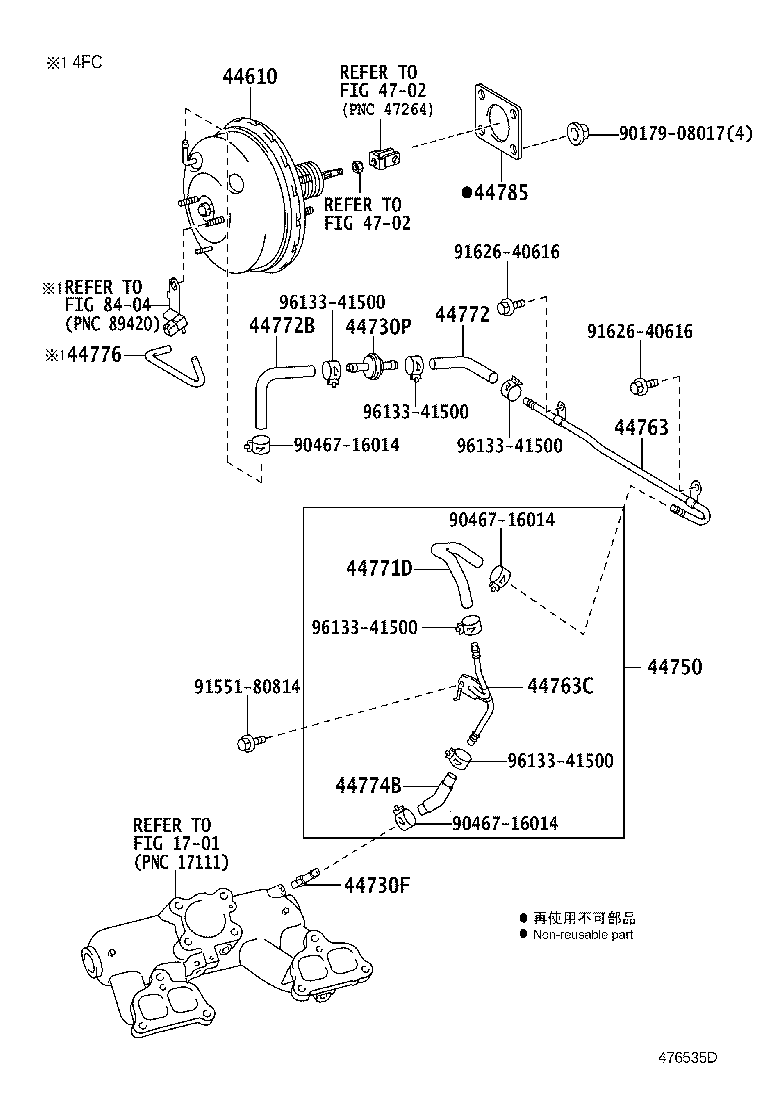

Figure 472370E 472370E 1995-12 → 2002-10 Figure 472721D 472721D 1995-12 → — Figure 472748C 472748C 1995-12 → 1999-08 Figure 470739D 470739D 1996-04 → 1999-08 Figure 470740E 470740E 1996-04 → 2001-08 Figure 472651F 472651F 2001-08 → — Figure 472652D 472652D 2001-08 → 2007-07 Figure 470741E 470741E 1996-04 → — Figure 476239D 476239D 2007-09 → — Figure 476535D 476535D 2008-08 → — Figure 476536C 476536C 2008-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44731 Bracket, Brake Booster, Front
44732 Bracket, Brake Booster, Rear
44743 Union(FOR VACUUM PUMP)
44750 Hose Assy, Vacuum
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44772 Hose, Check Valve TO Connector Tube
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44777 Connector, Vacuum Hose, NO.1
44778 Hose, Connector TO Check Valve
44785 Gasket, Brake Booster
47548A Cap, Bleeder Plug(FOR BRAKE BOOSTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
