Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

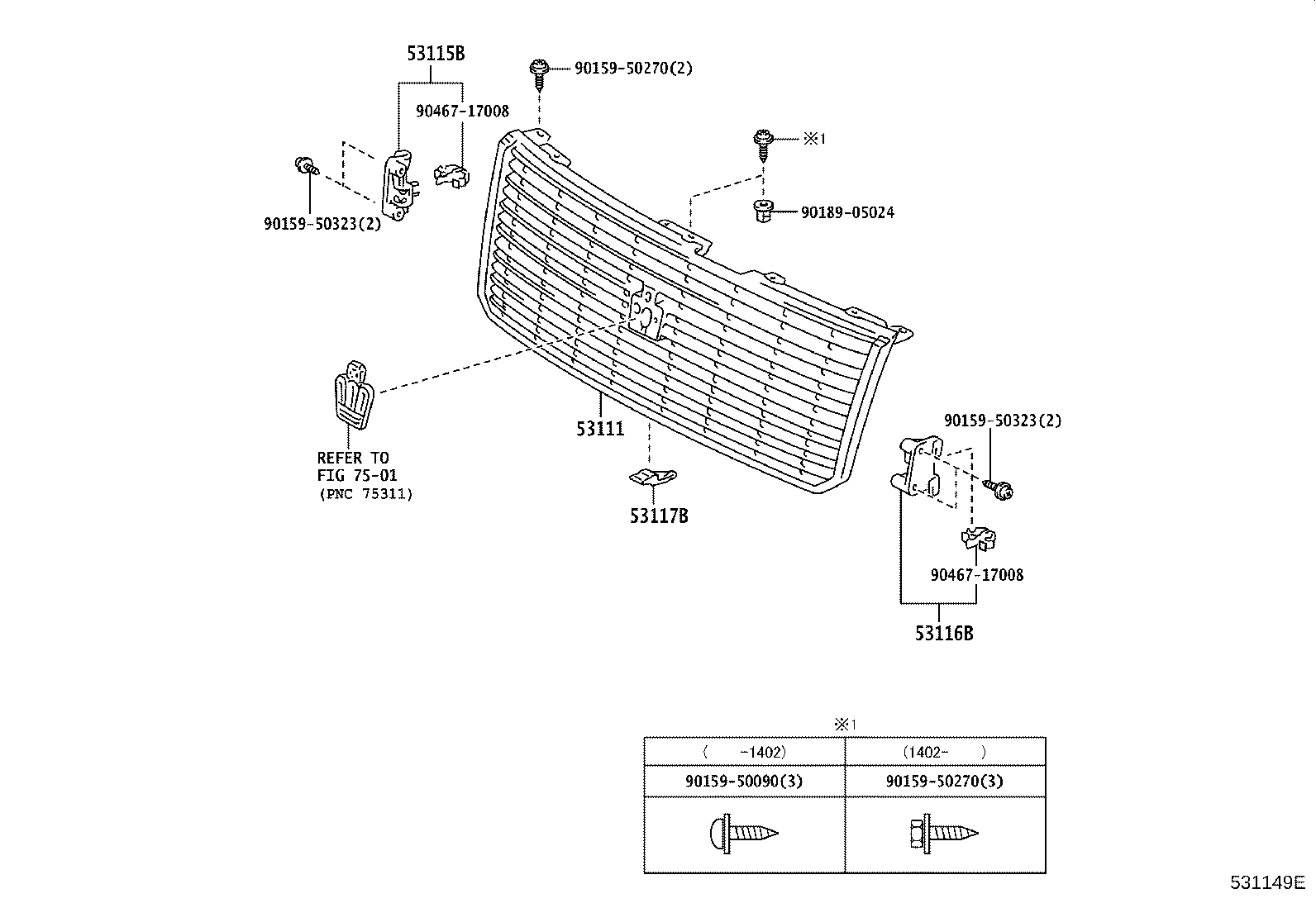

Figure 532841C 532841C 1995-12 → — Figure 531149E 531149E 2001-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53116B Bracket, Radiator Grille, NO.2
53117B Bracket, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
