Toyota Crown Comfort/Sed
1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan
Discontinued model
Data version 2018-07

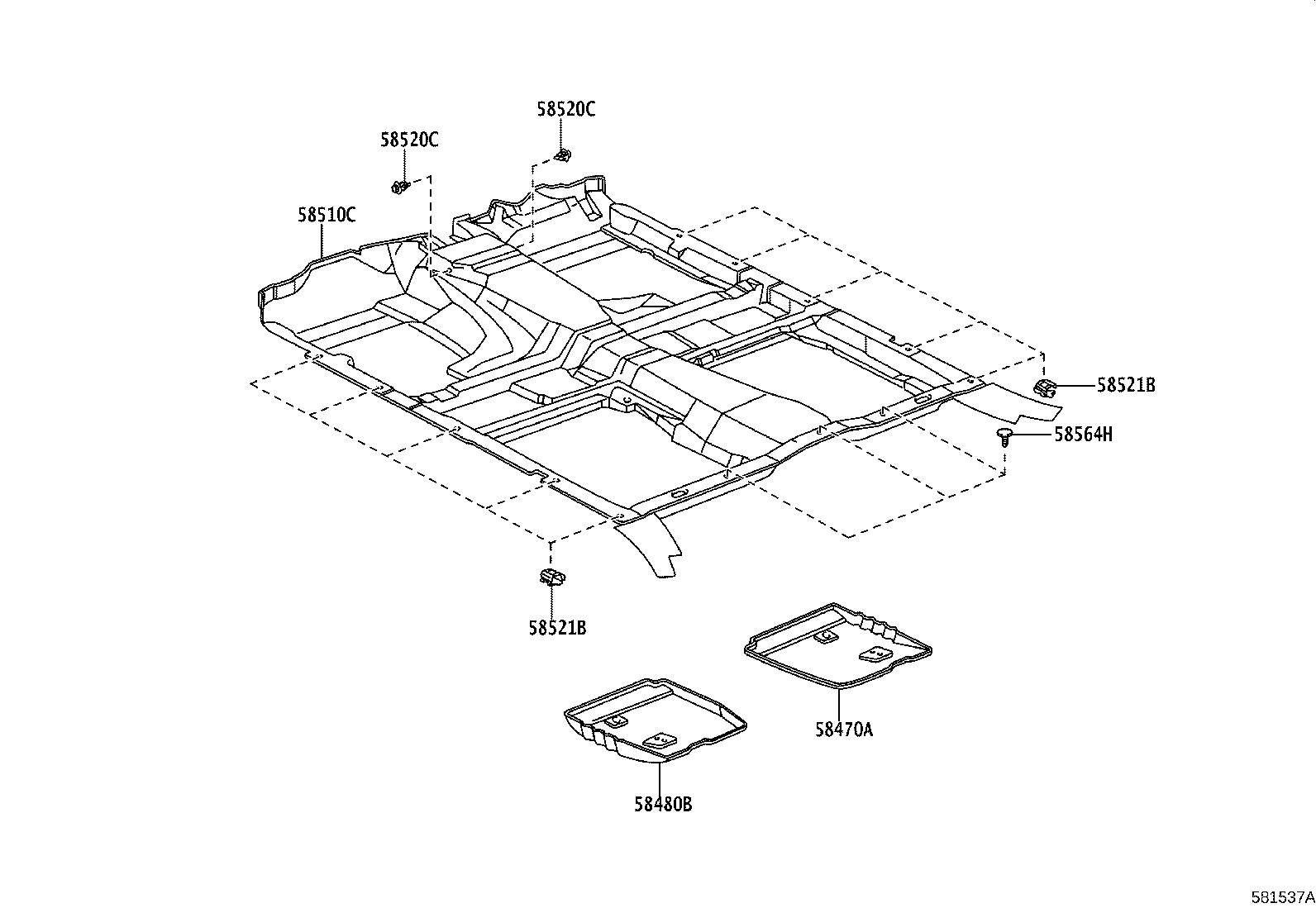

Mat & Carpet
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58470A | Board Assy, Rear Floor, NO.1 |
| 58480B | Board Assy, Rear Floor, NO.2 |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58521F | Hook, Floor Carpet |
| 58540C | Mat Assy, Floor, Rear |
| 58540D | Carpet Assy, Floor, Rear |
| 58563H | Clip(FOR REAR FLOOR MAT) |
| 58564H | Clip(FOR REAR FLOOR CARPET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
