Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

45 part groups · 10 illustrations

Illustrations

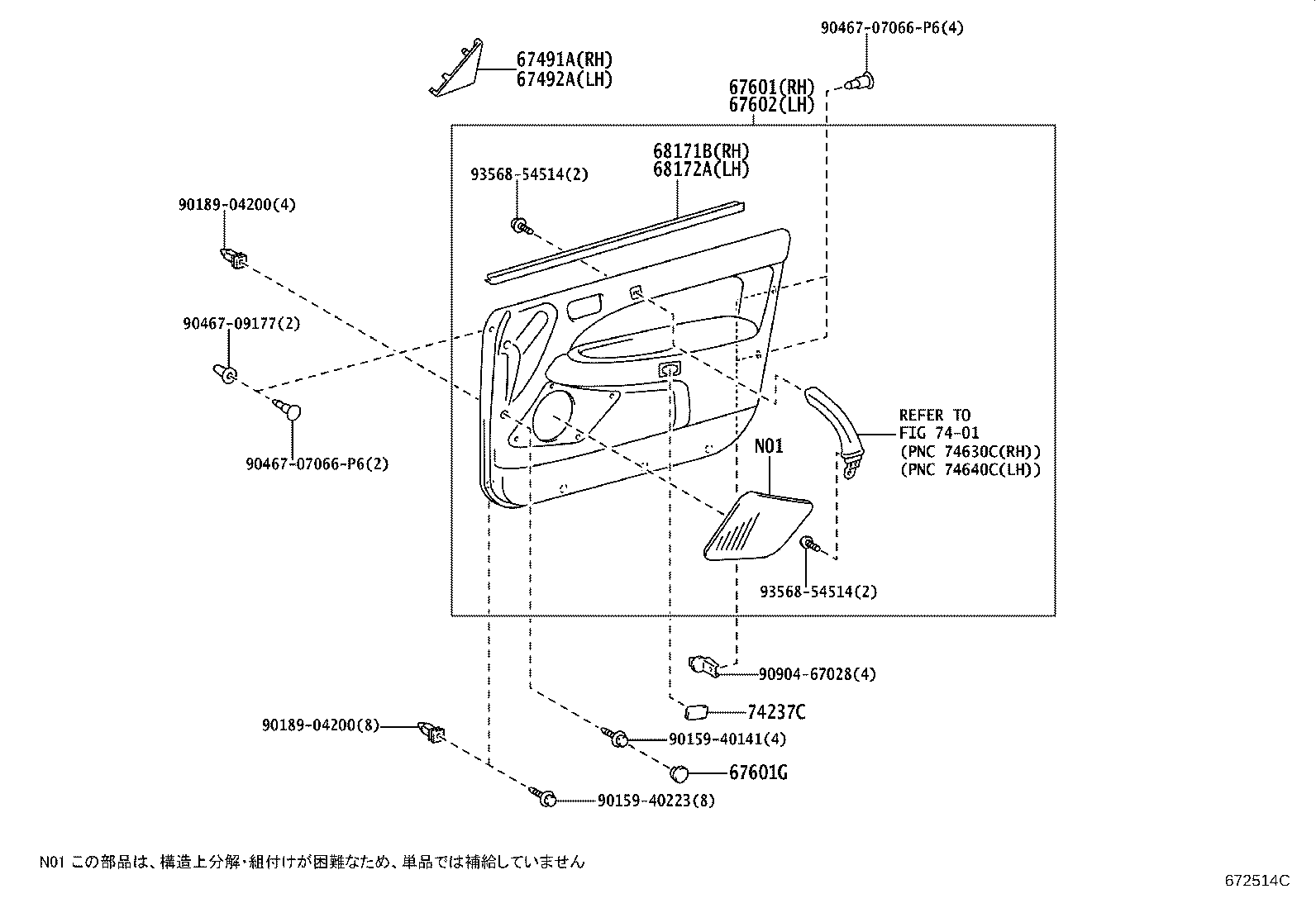

Figure 672495O 672495O 1995-12 → — Figure 672502B 672502B 1995-12 → — Figure 672514C 672514C 2001-08 → — Figure 671444B 671444B 1995-12 → 2001-08 Figure 670955B 670955B 1995-12 → 2001-08 Figure 672497F 672497F 2001-08 → 2007-06 Figure 672497F 672497F 2001-08 → 2007-08 Figure 672497F 672497F 2001-08 → 2008-08 Figure 672497F 672497F 2001-10 → 2002-10 Figure 675402B 675402B 2007-09 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67495A Cover, Front Door Front Lower Frame, Upper RH
67496A Cover, Front Door Front Lower Frame, Upper LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601G Plug, Hole(FOR FRONT DOOR TRIM BOARD)
67601H Retainer, Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67867H Retainer, Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67868L Retainer, Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
67923 Cushion, Front Door Stiffener, NO.1
67924 Cushion, Front Door Stiffener, NO.2
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68610 Check Assy, Front Door
68617 Pin, Front Door Check
68618 Bracket, Front Door Check Arm, RH
68618C Bracket, Front Door Check Arm, LH
68620 Check Assy, Front Door, LH
68621A Cover, Front Door Check, RH
68621D Cover, Front Door Check, LH
74237C Cap, Front Door Armrest Base
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
75927B Tape, Black Out, NO.4 RH
75928B Tape, Black Out, NO.4 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
