Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

30 part groups · 6 illustrations

Illustrations

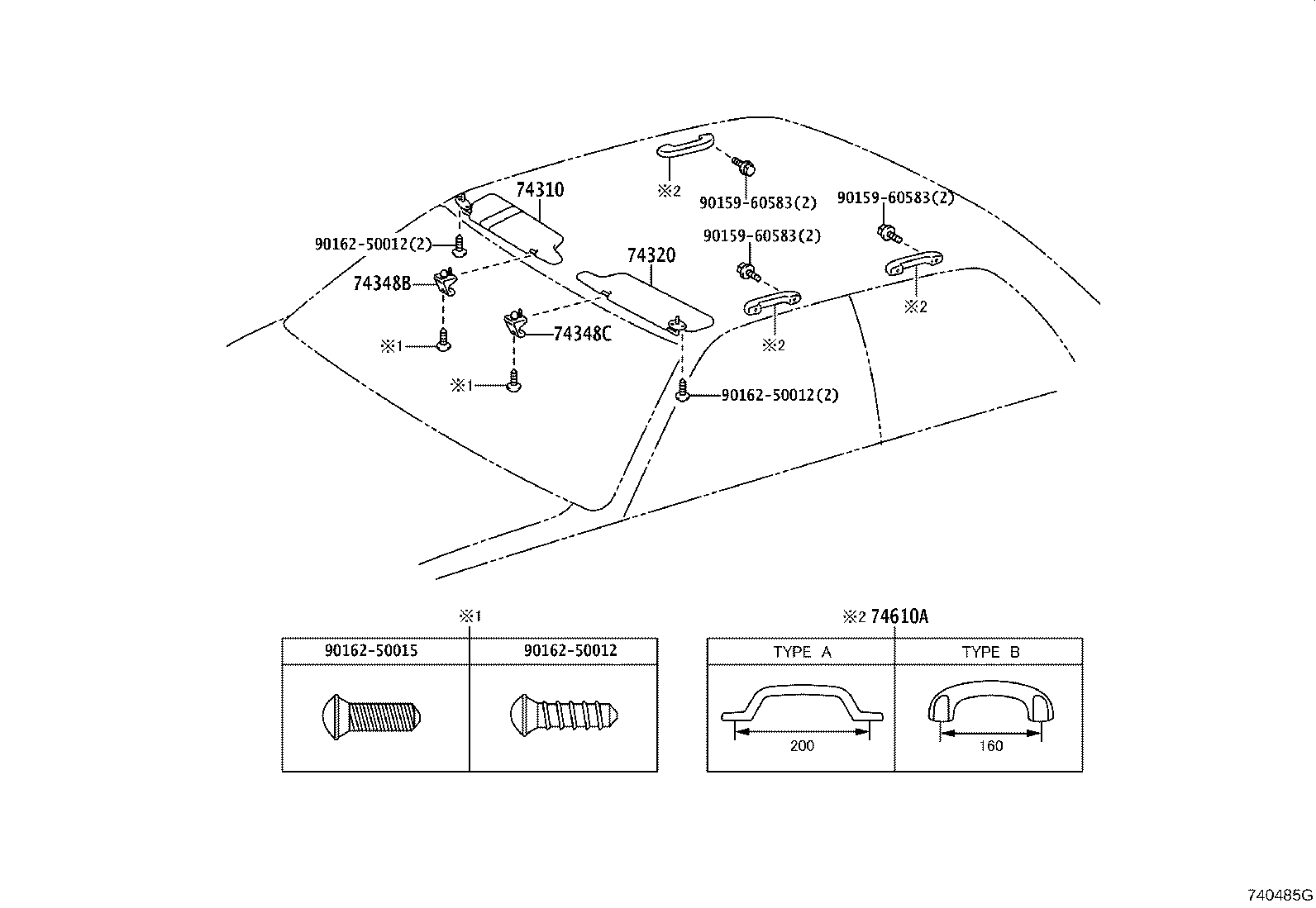

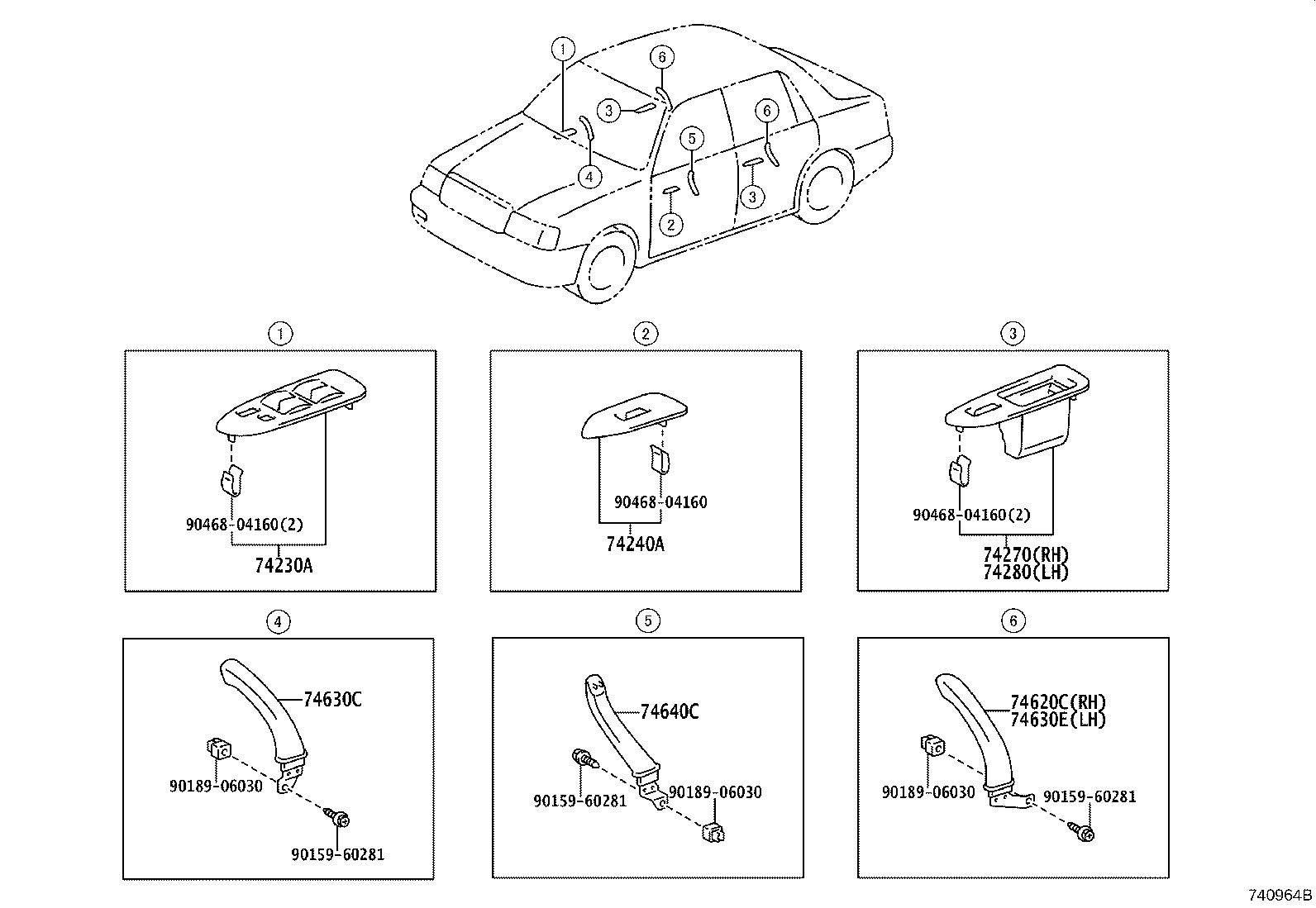

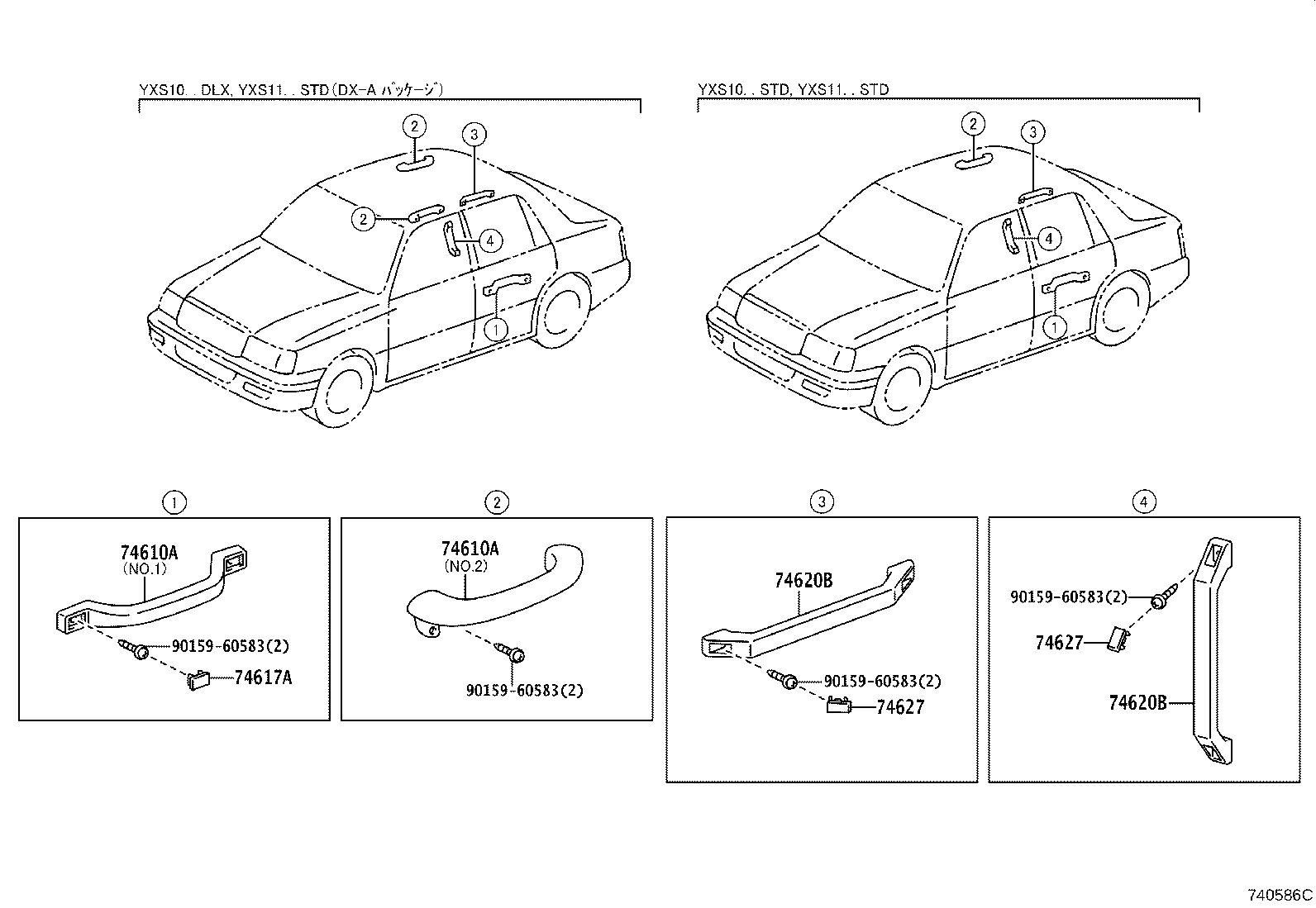

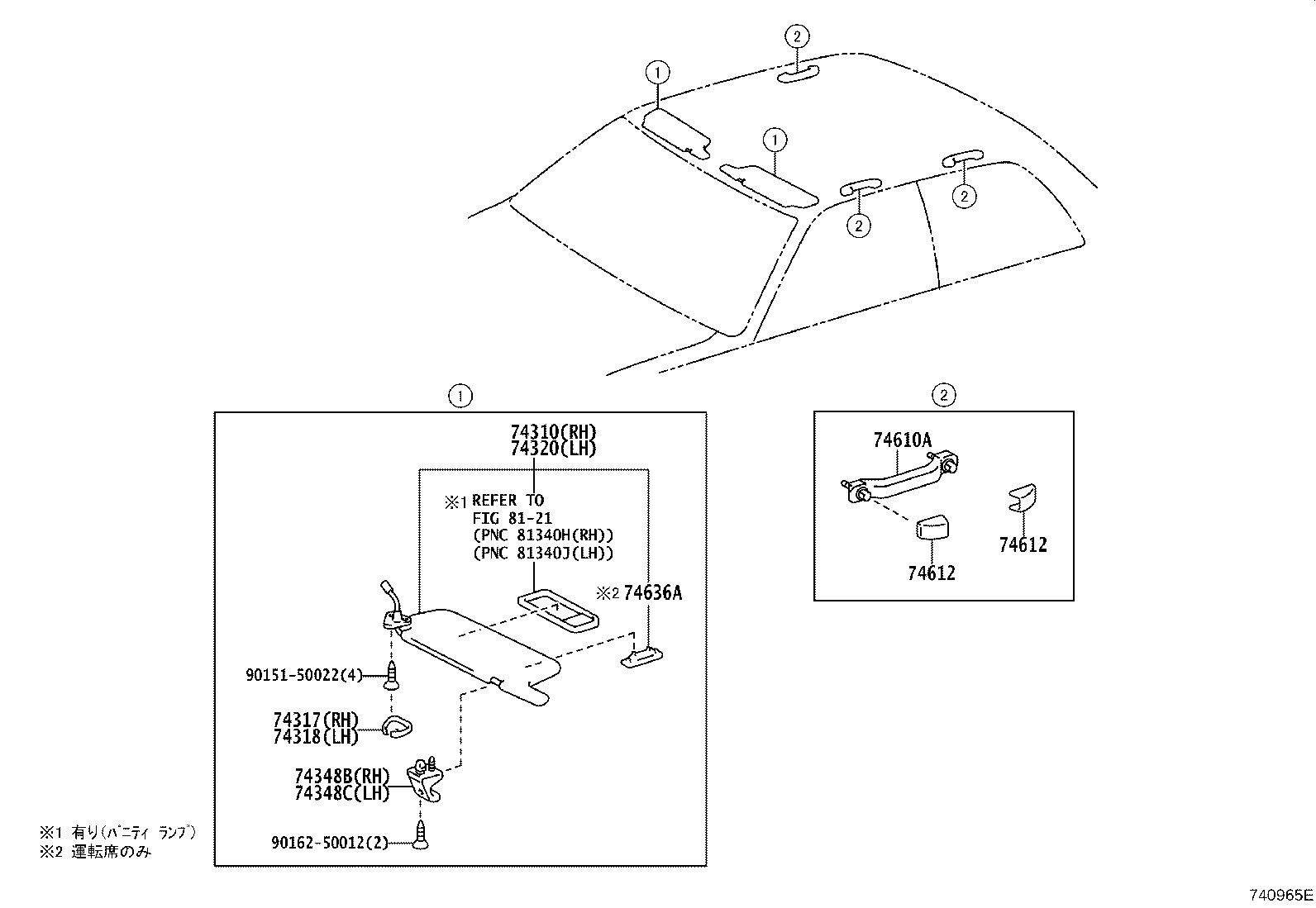

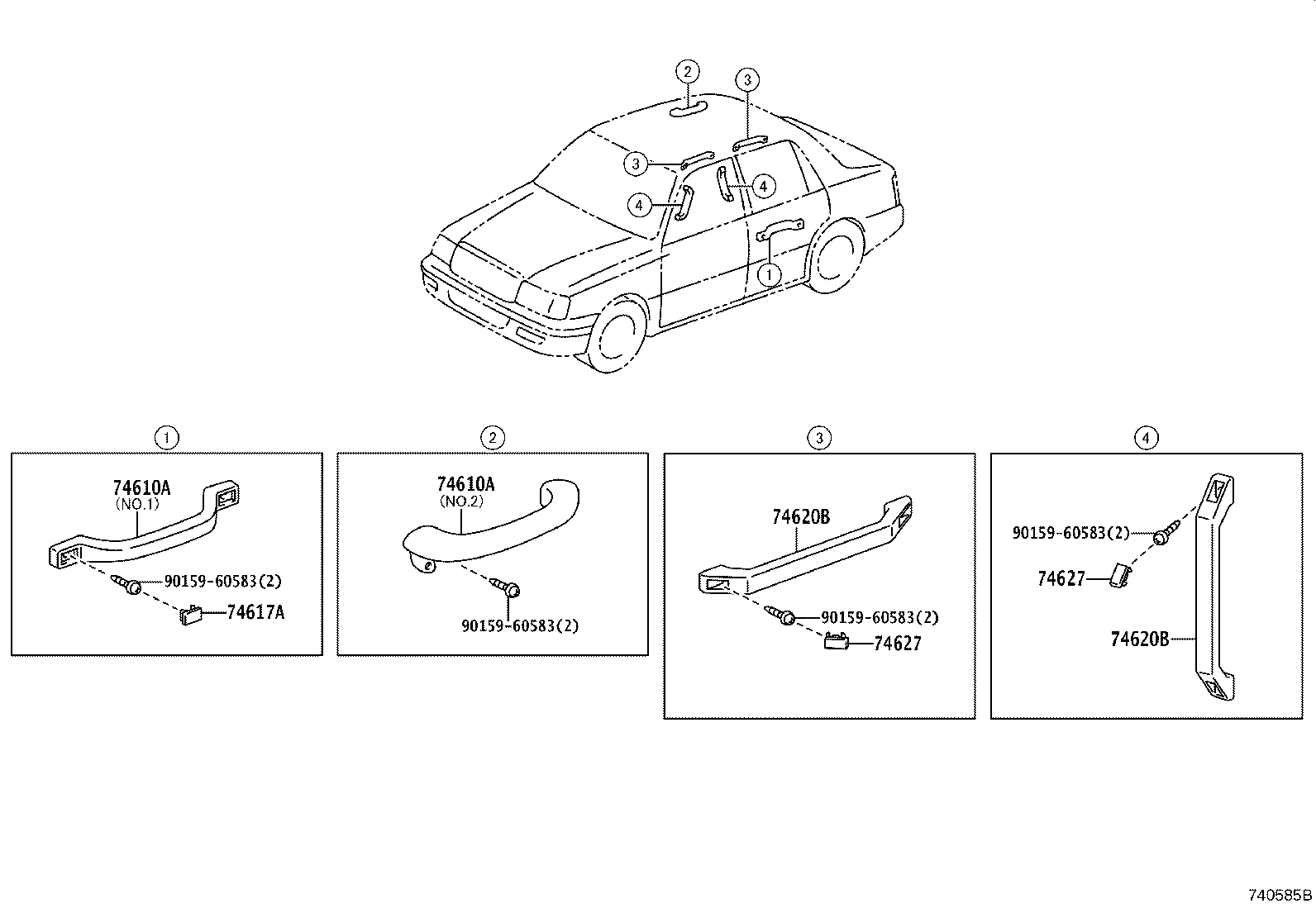

Figure 740583F 740583F 1995-12 → — Figure 740964B 740964B 2001-08 → — Figure 740485G 740485G 1995-12 → — Figure 740965E 740965E 2001-08 → — Figure 740585B 740585B 1998-01 → — Figure 740586C 740586C 1998-01 → —

Part groups

PNCDescription
67231D Support, Front Door Armrest
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74230A Panel Assy, Front Door Armrest Base, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74237B Cap, Door Armrest Base
74240 Armrest Assy, Rear, LH
74240A Panel Assy, Front Door Armrest Base, LH
74270 Panel Assy, Rear Door Armrest Base, RH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74617A Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74620C Grip Assy, Assist, Rear RH
74627 Plug, Rear Assist Grip
74630C Grip Assy, Door Assist, RH
74630E Grip Assy, Assist, Rear LH
74636A Bezel, Card Holder
74640C Grip Assy, Door Assist, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
