Toyota Crown Comfort/Sed
1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan
Discontinued model
Data version 2018-07

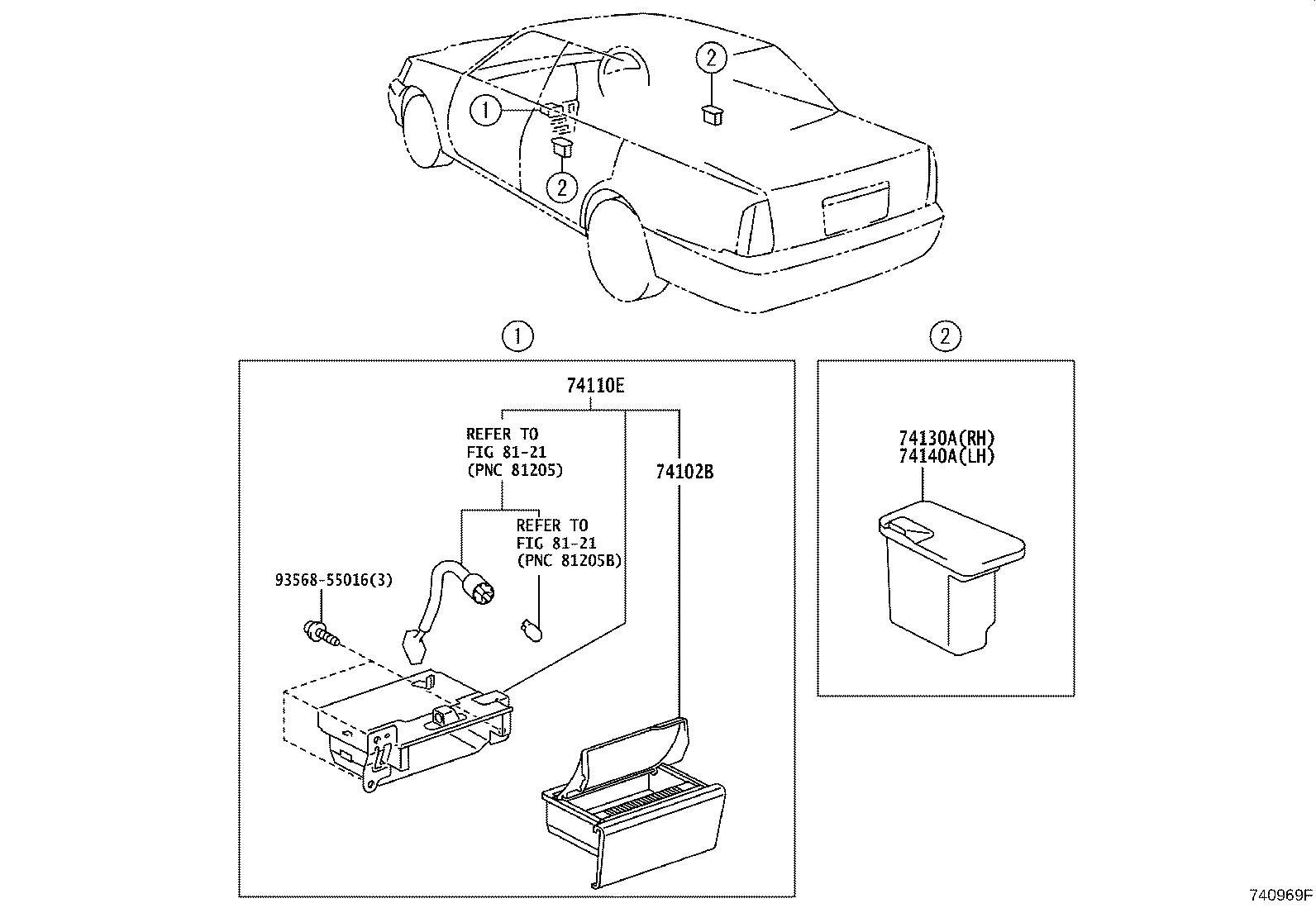

Ash Receptacle
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74102B | Box Sub-assy, Front Ash Receptacle |
| 74104A | Retainer Sub-assy, Front Ash Receptacle |
| 74110E | Receptacle Assy, Front Ash |
| 74130 | Receptacle Assy, Rear Ash |
| 74130A | Receptacle Assy, Rear Ash, RH |
| 74135A | Retainer, Rear Ash Receptacle, NO.1 |
| 74140A | Receptacle Assy, Rear Ash, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
