Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

149 part groups · 22 illustrations

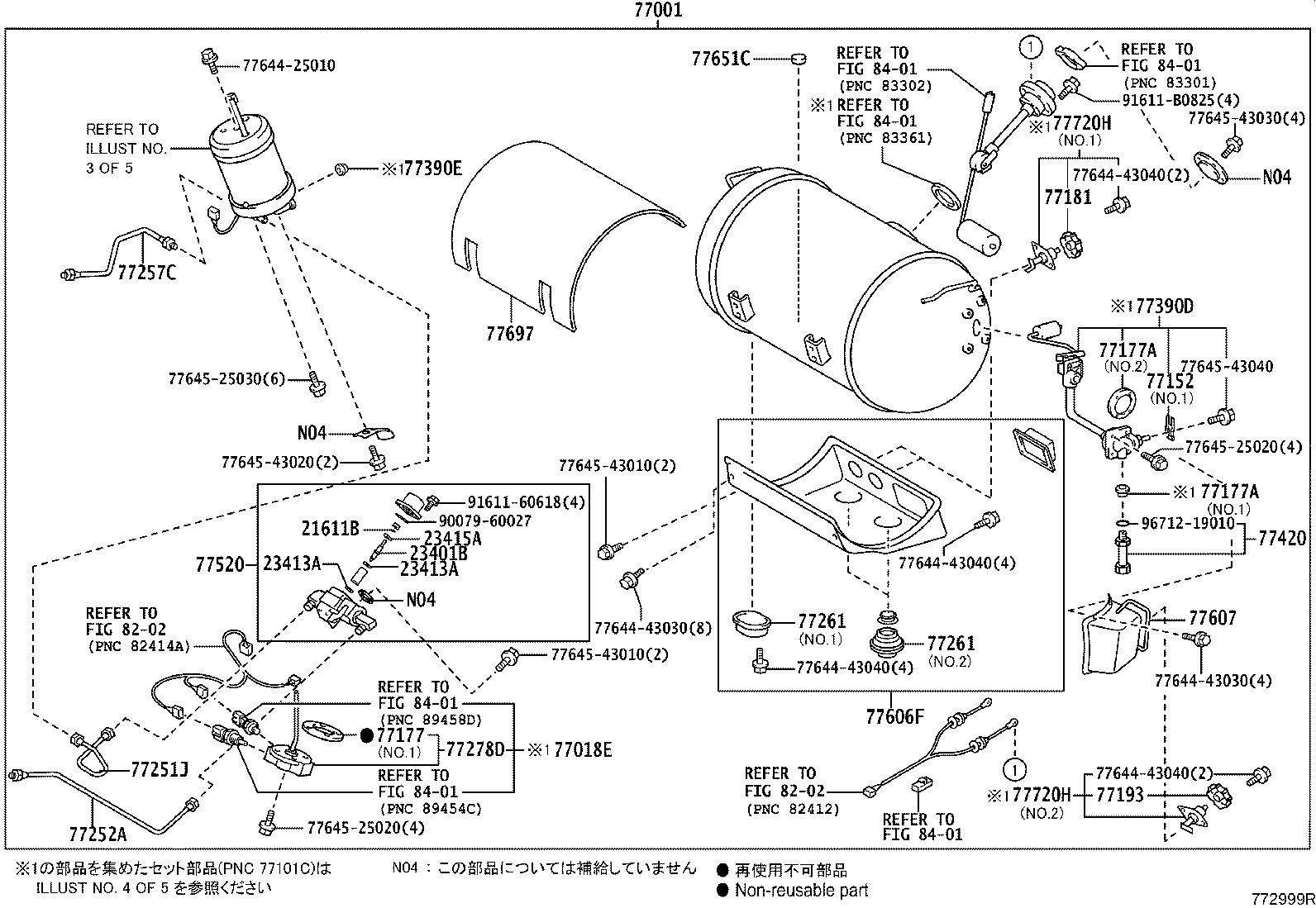

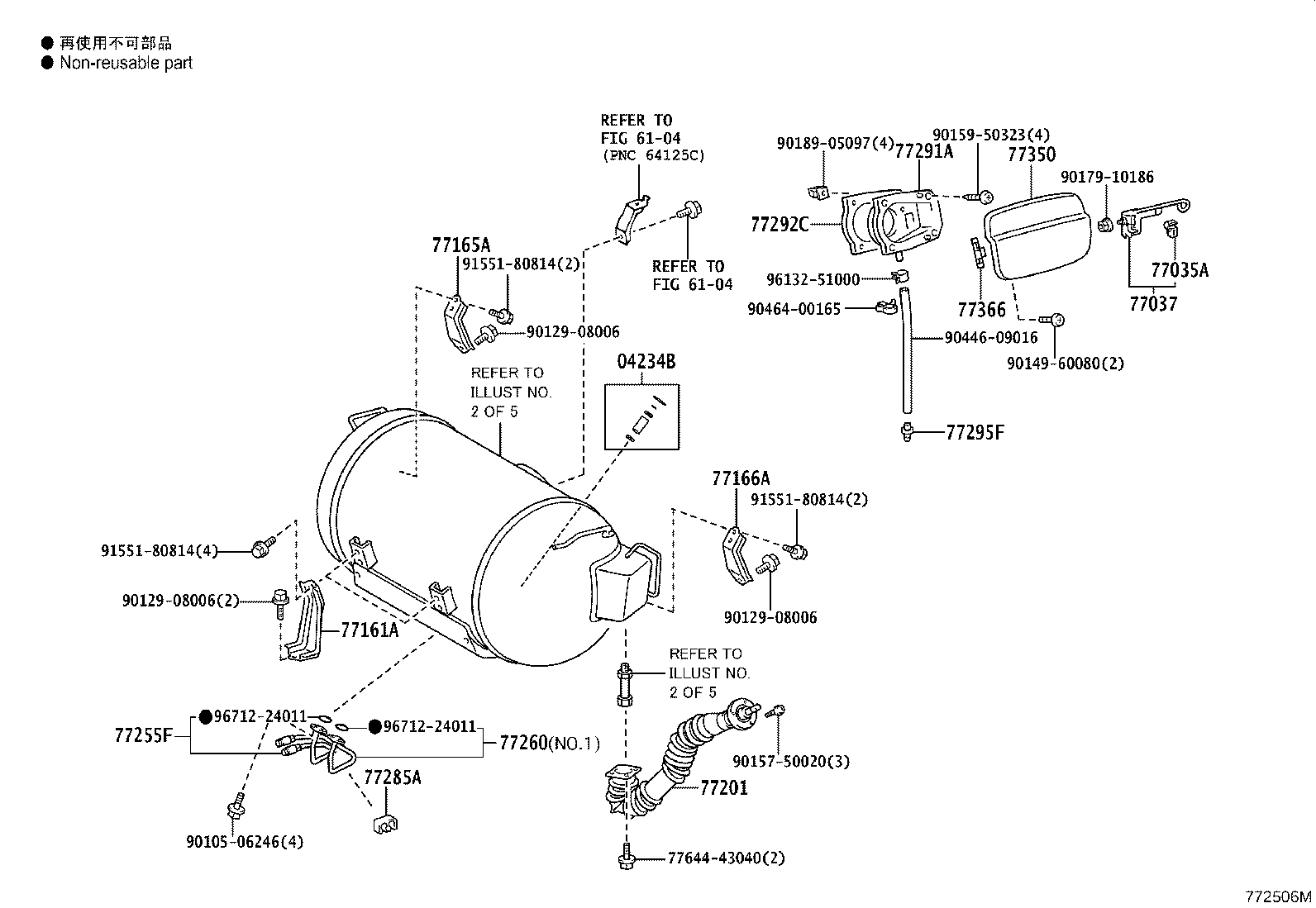

Illustrations

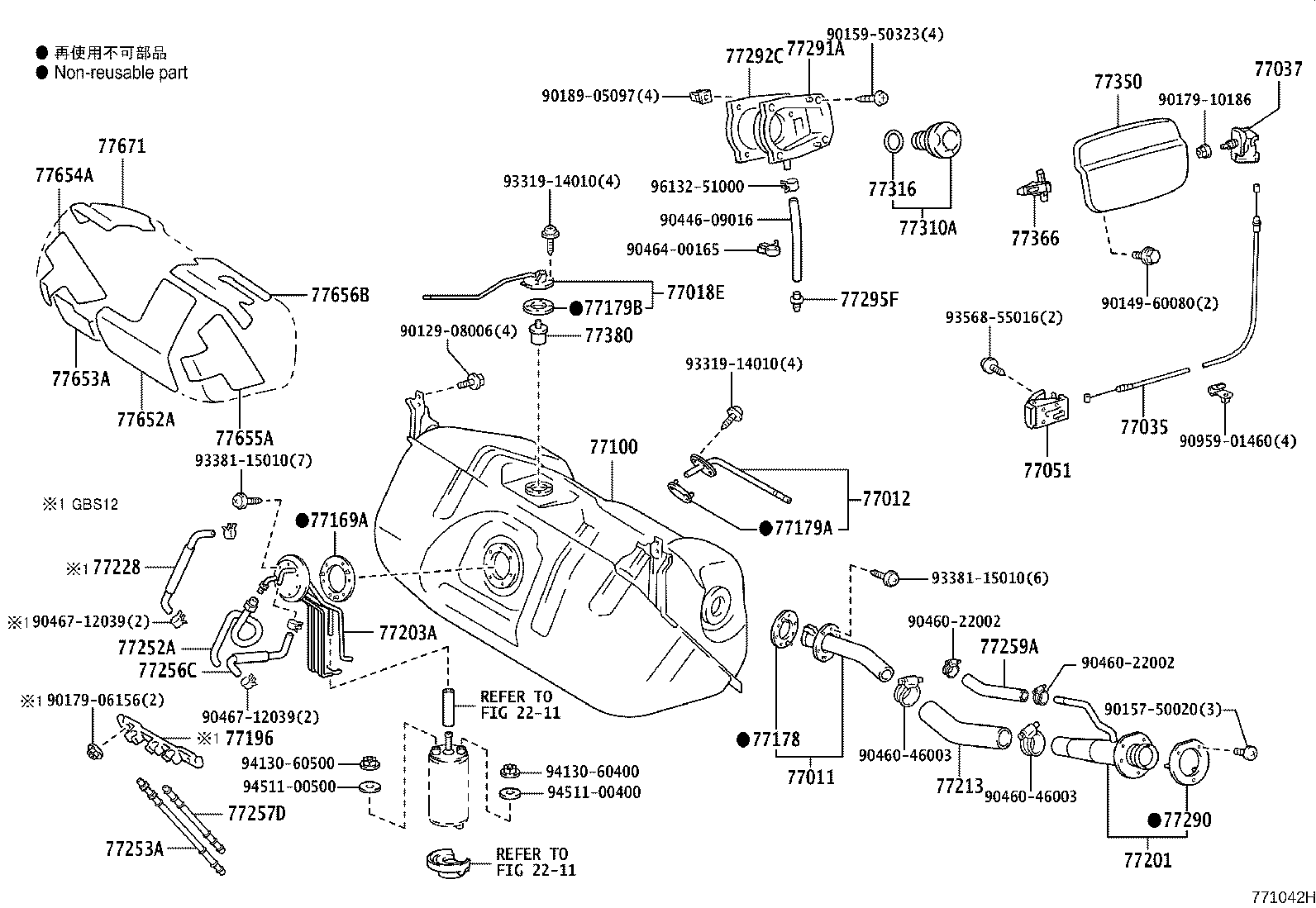

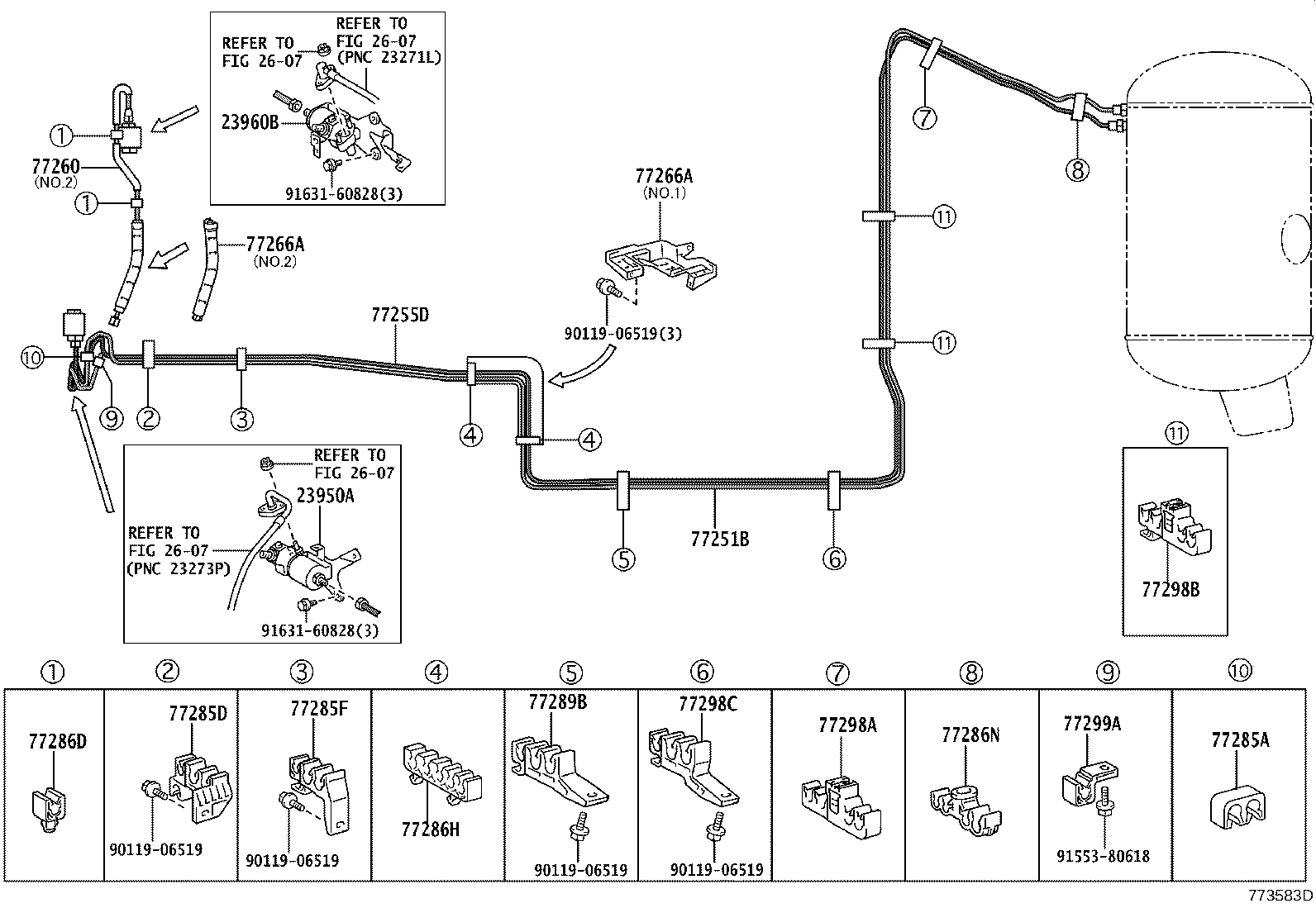

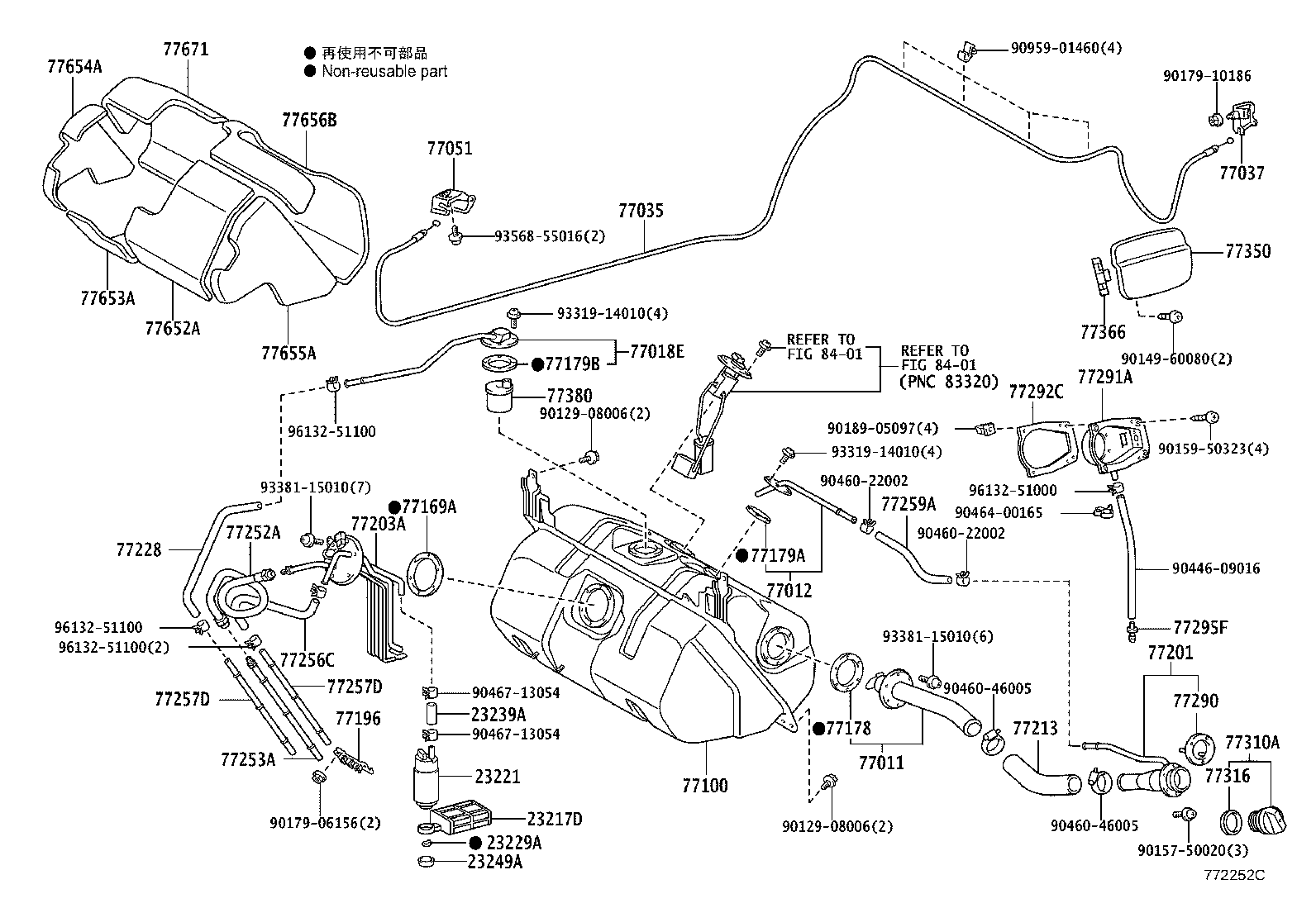

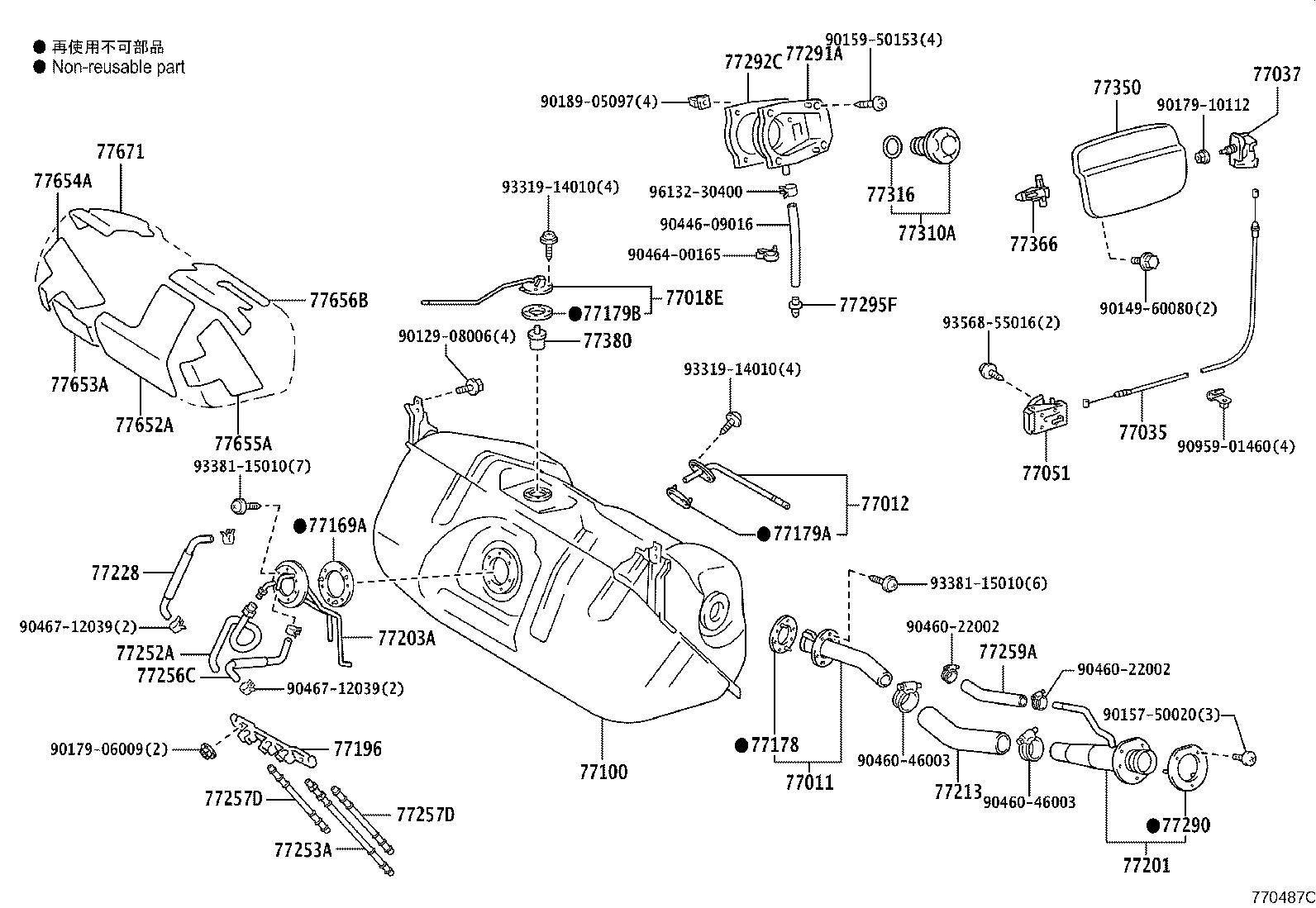

770491L 1995-12 → —

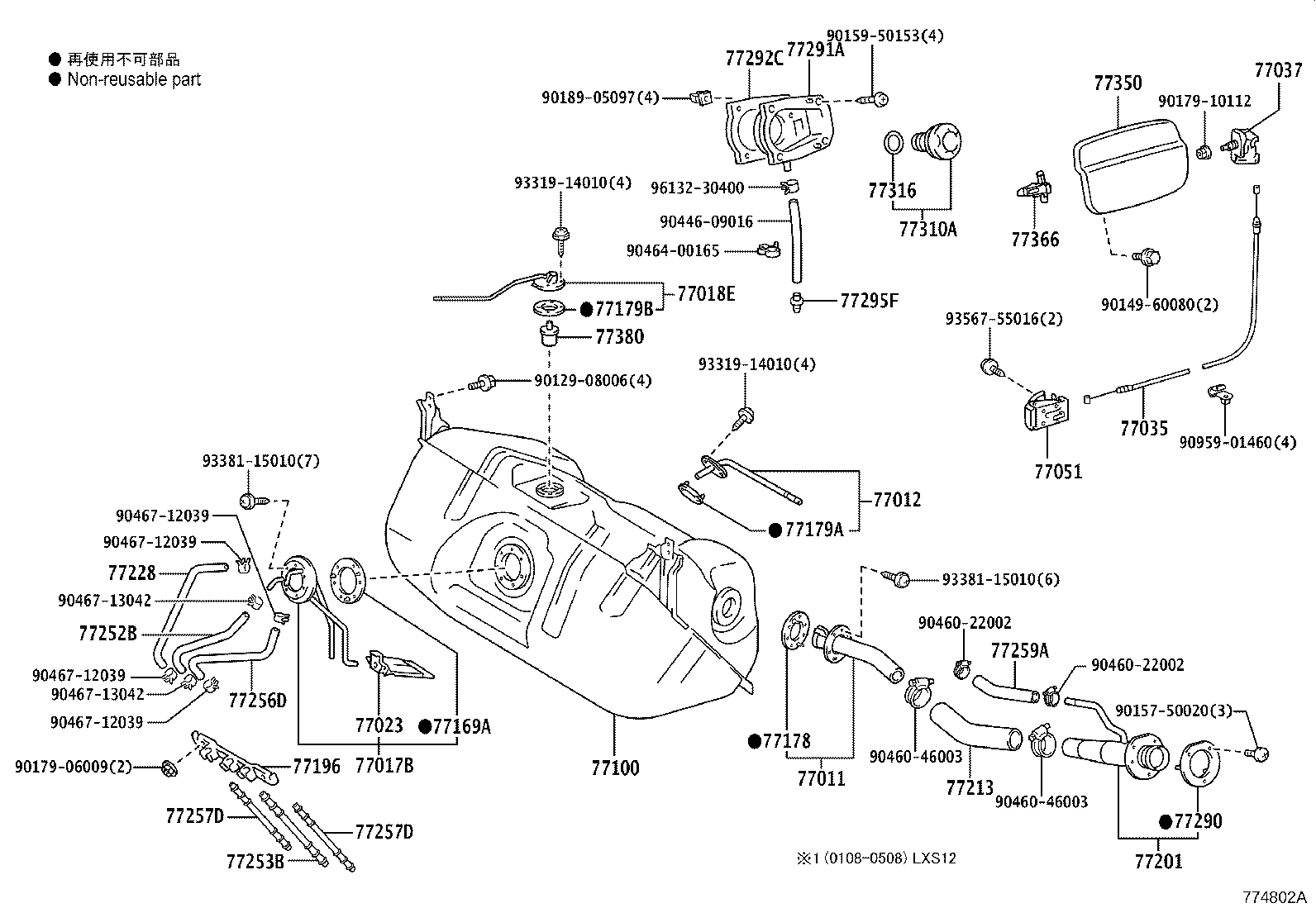

774802A 1995-12 → 1999-08

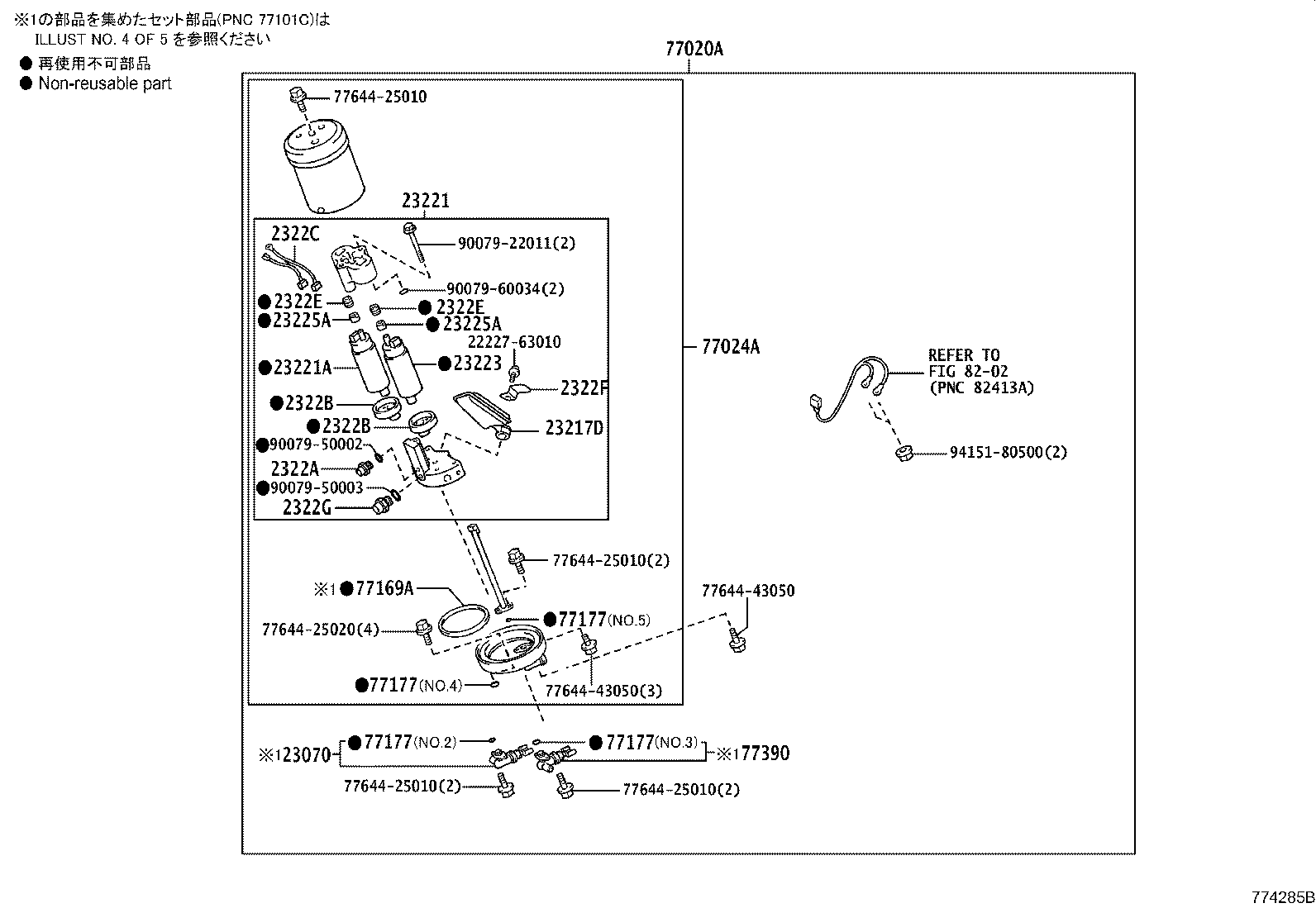

774285B 2008-08 → 2010-03

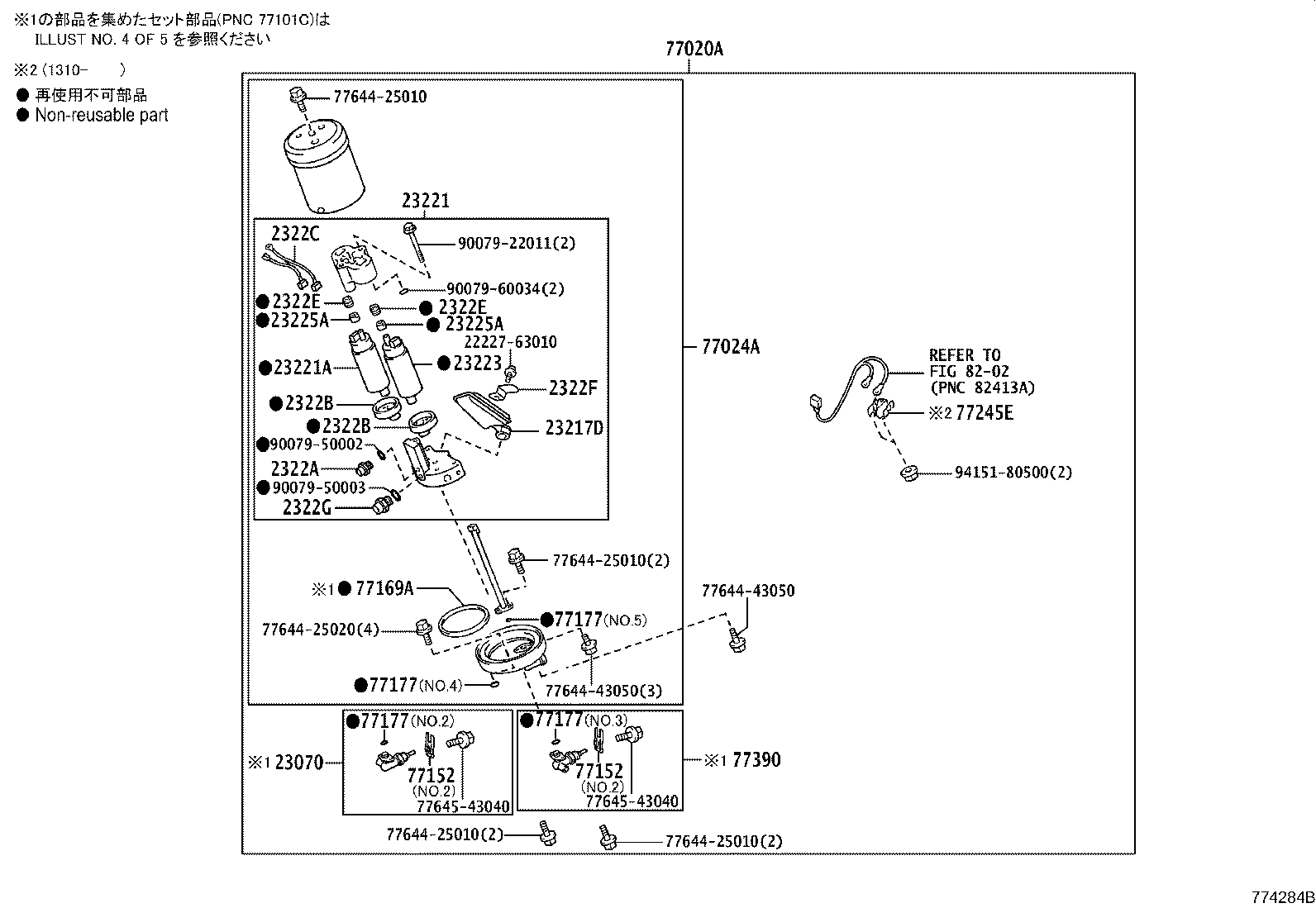

774284B 2010-03 → —

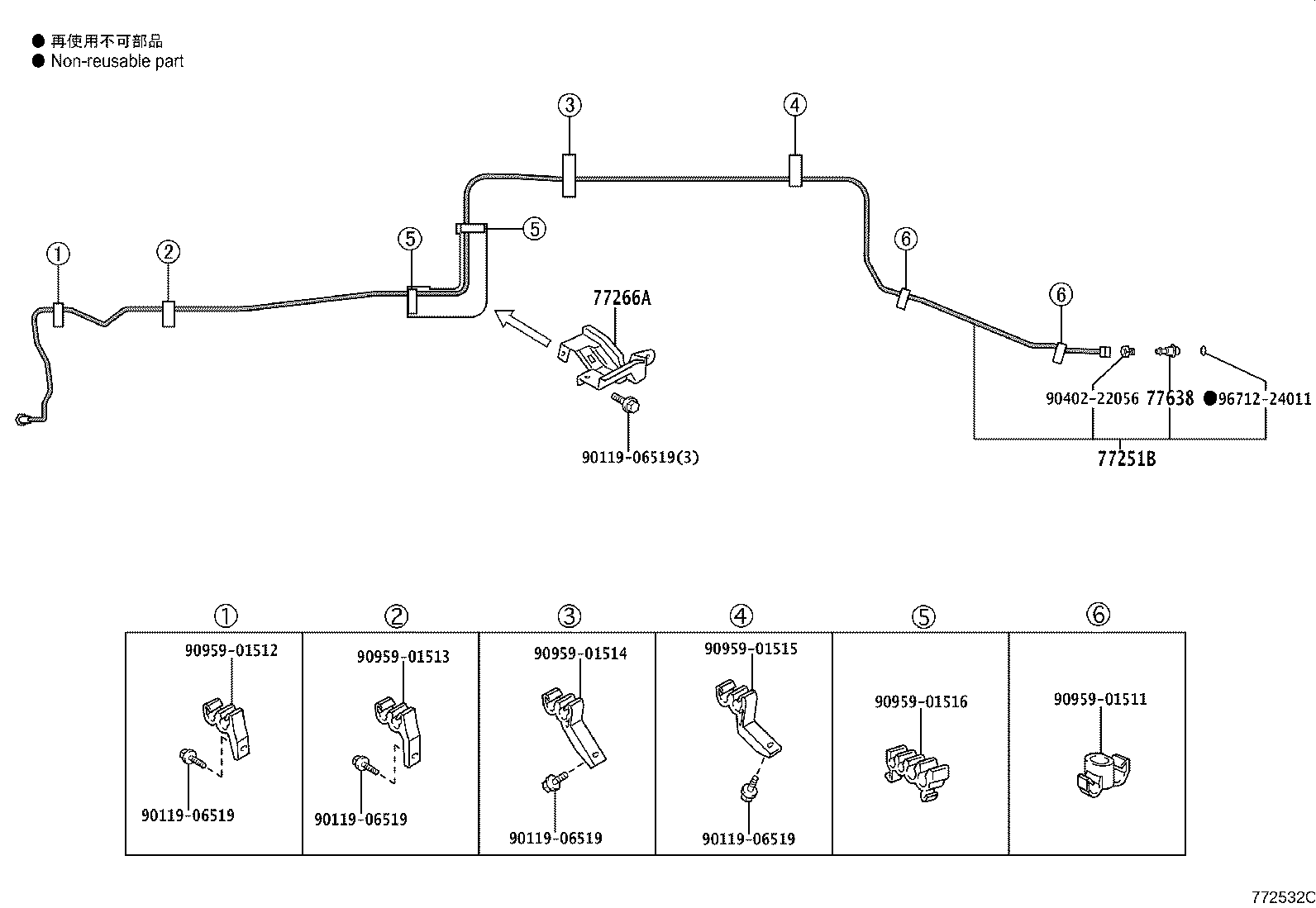

772532C 1995-12 → —

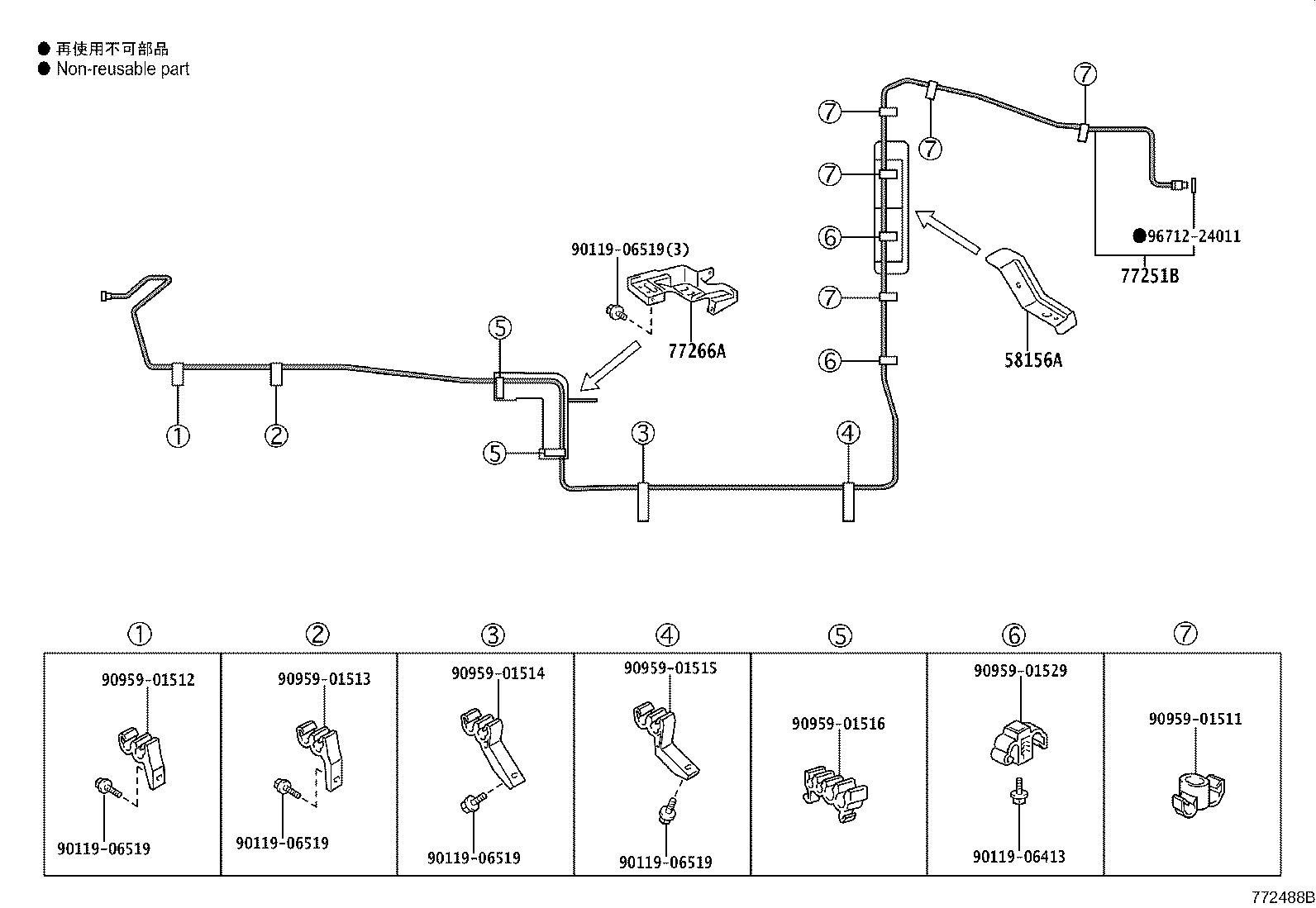

772488B 1995-12 → —

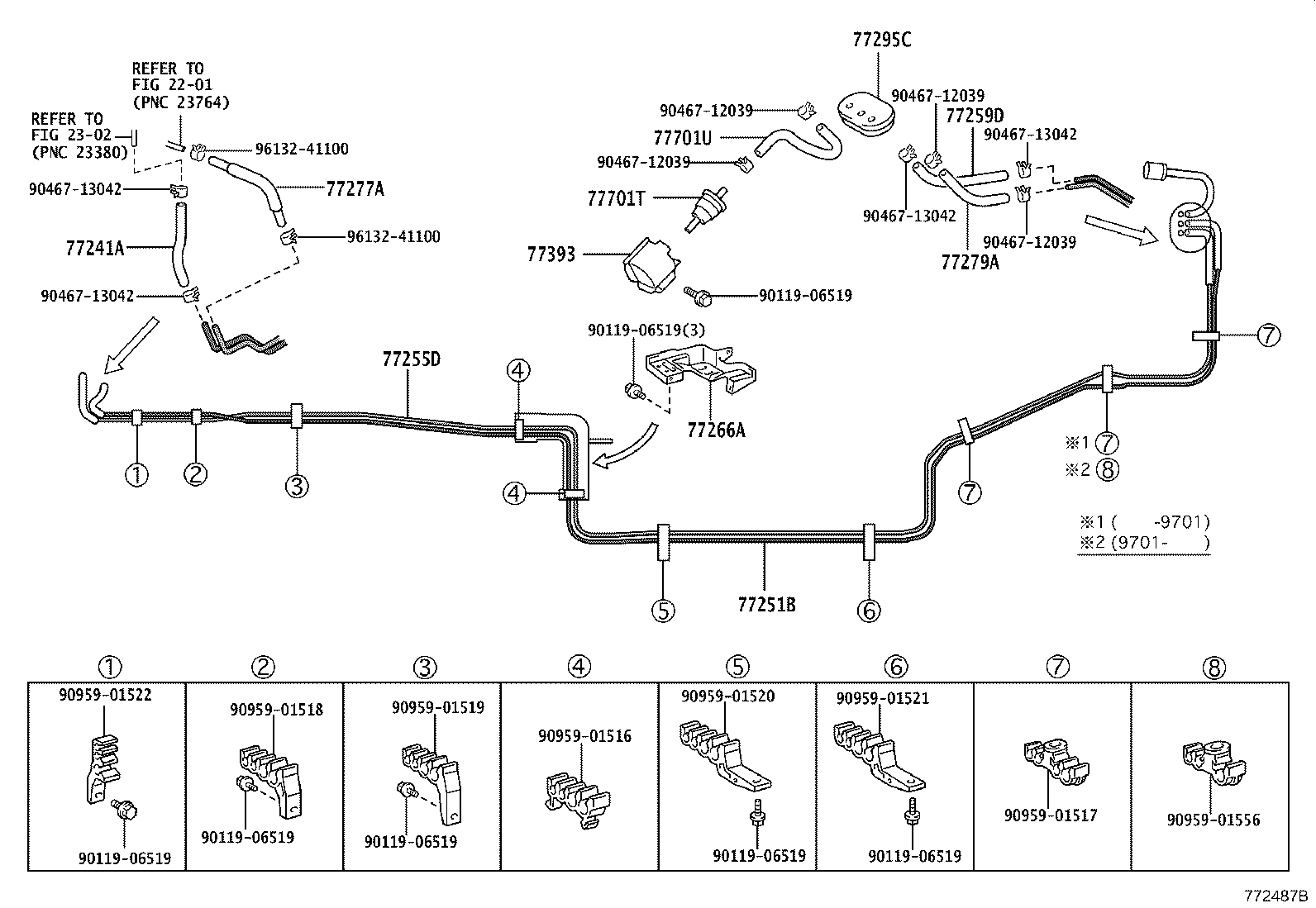

772487B 1995-12 → 1999-08

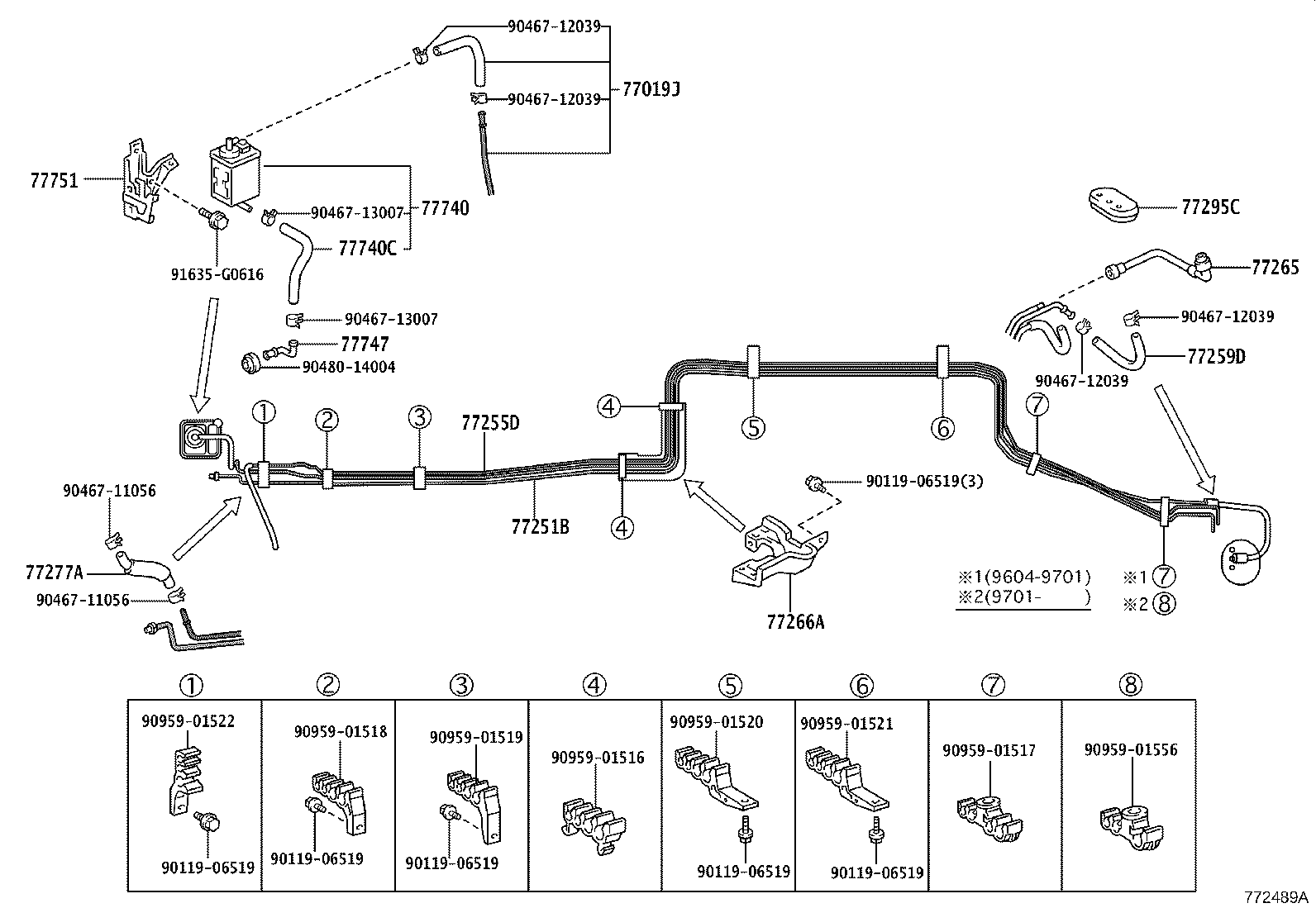

772489A 1995-12 → 2001-08

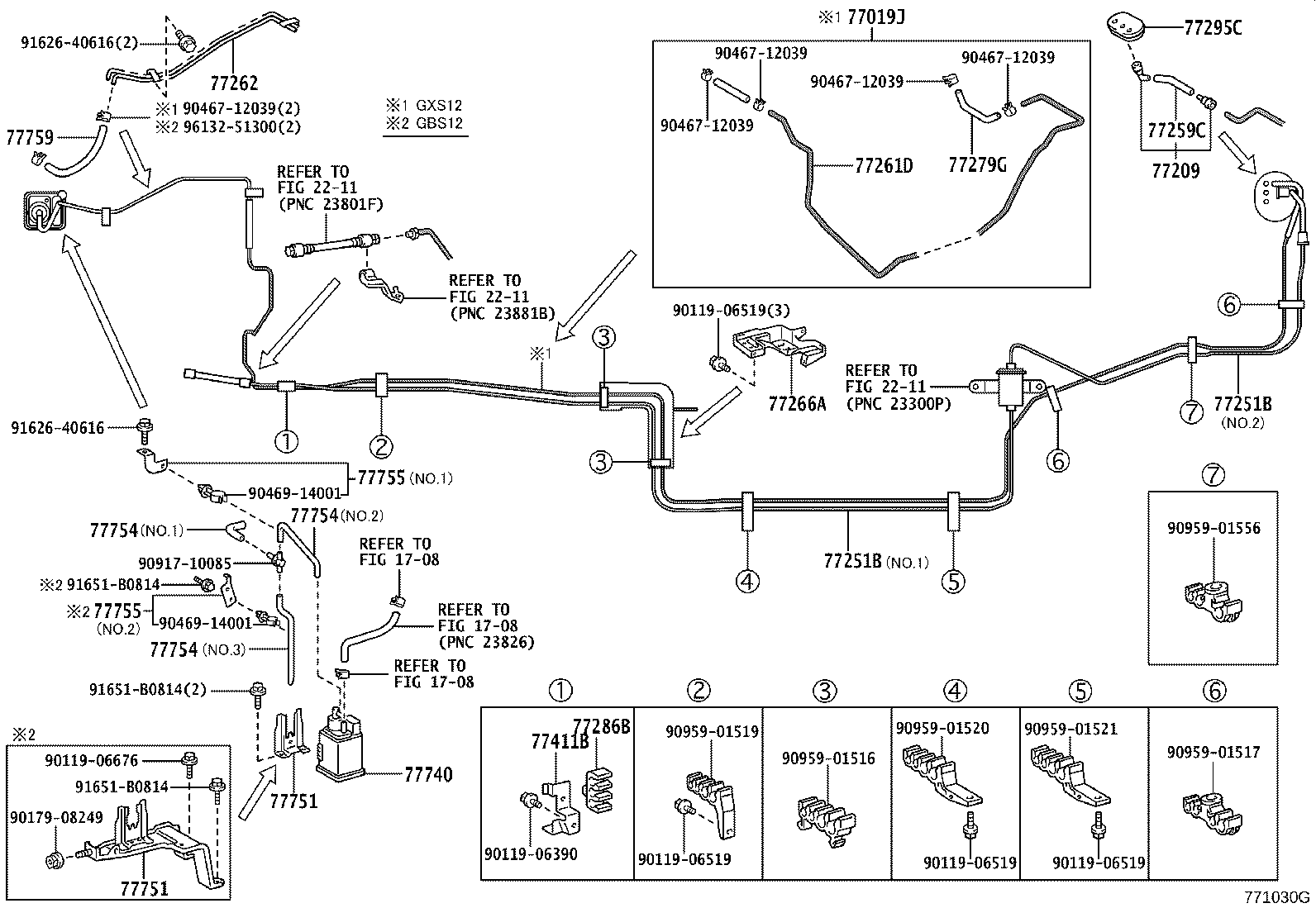

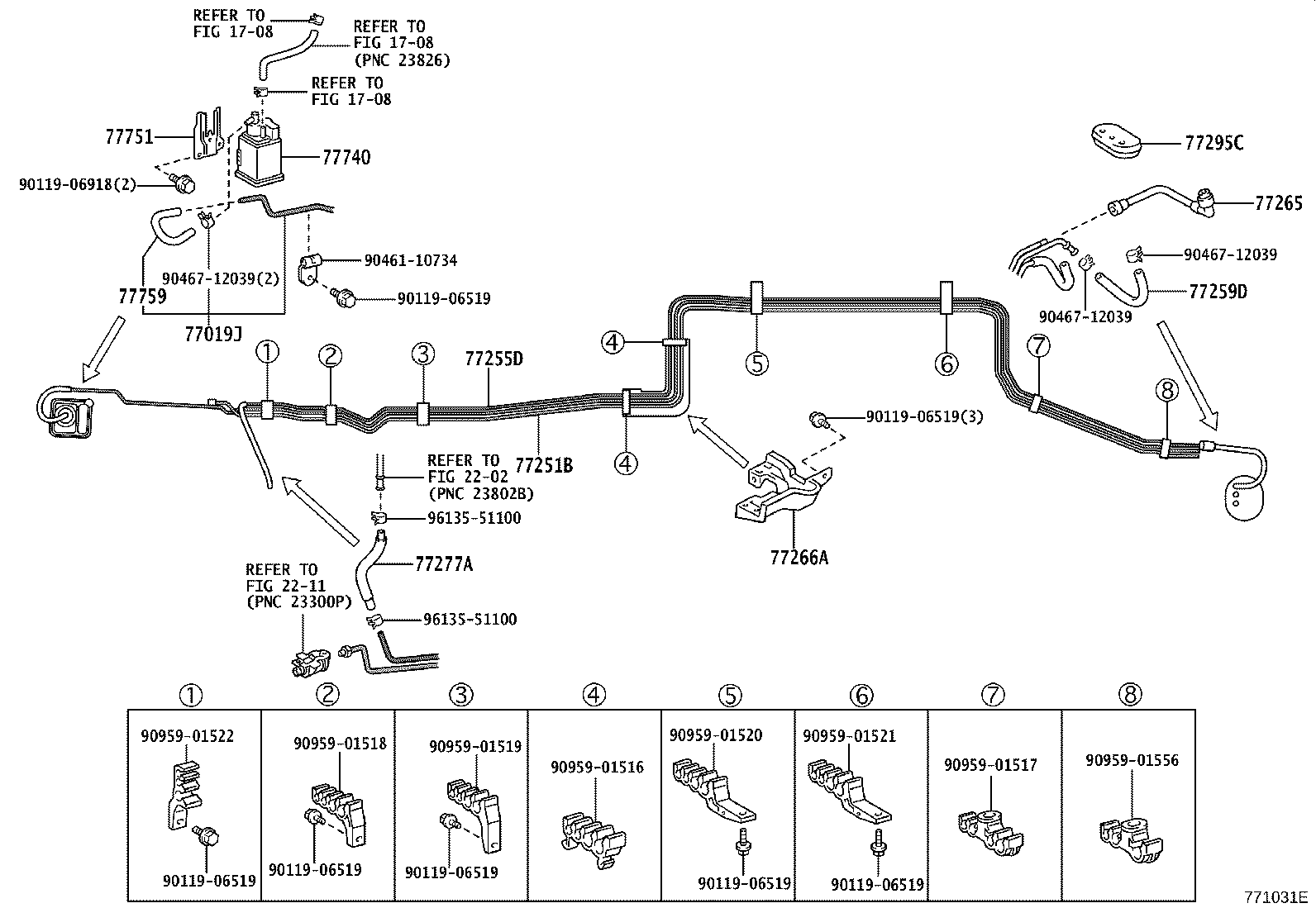

771030G 2001-08 → —

771031E 2001-08 → —

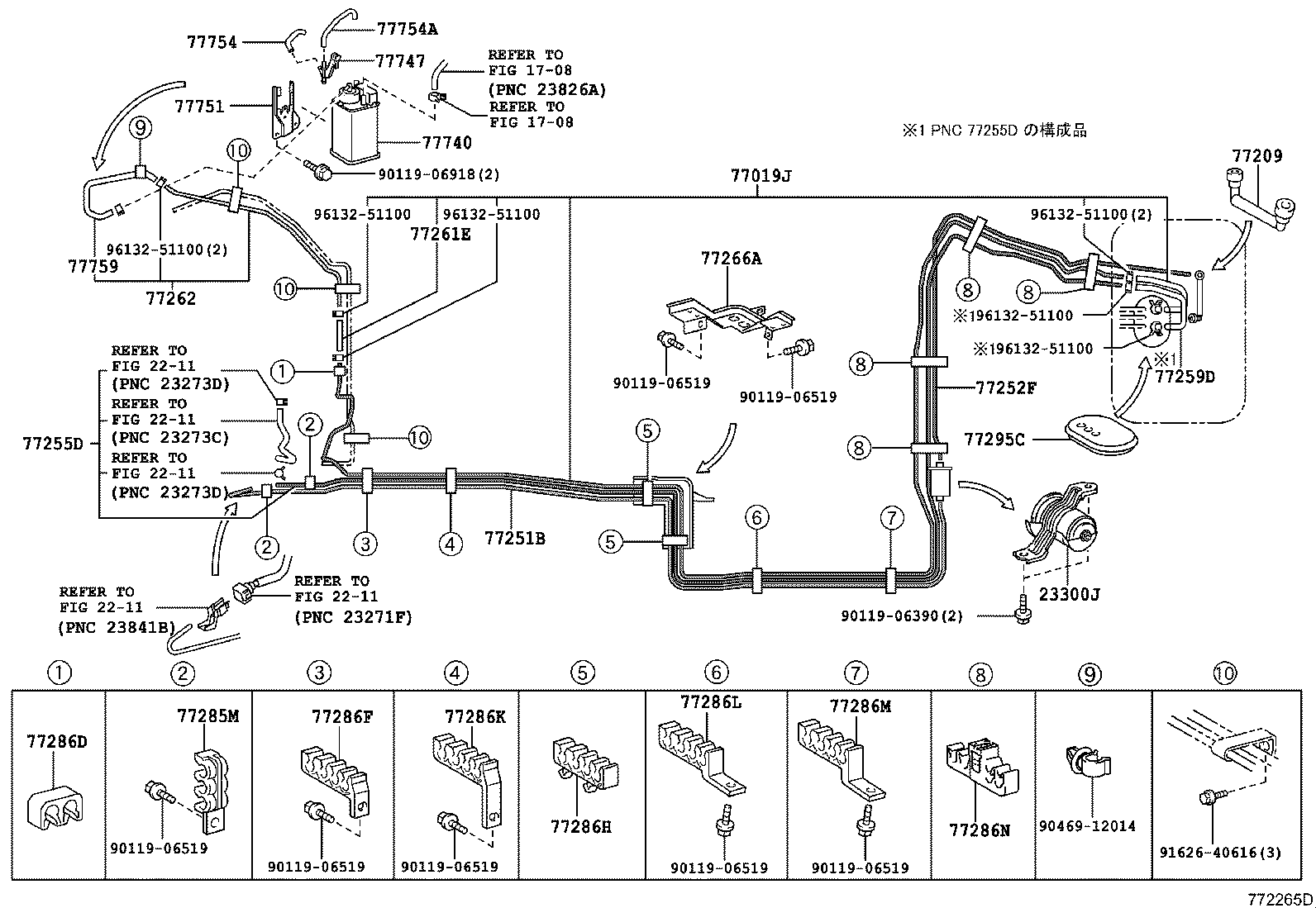

772265D 2007-09 → 2013-10

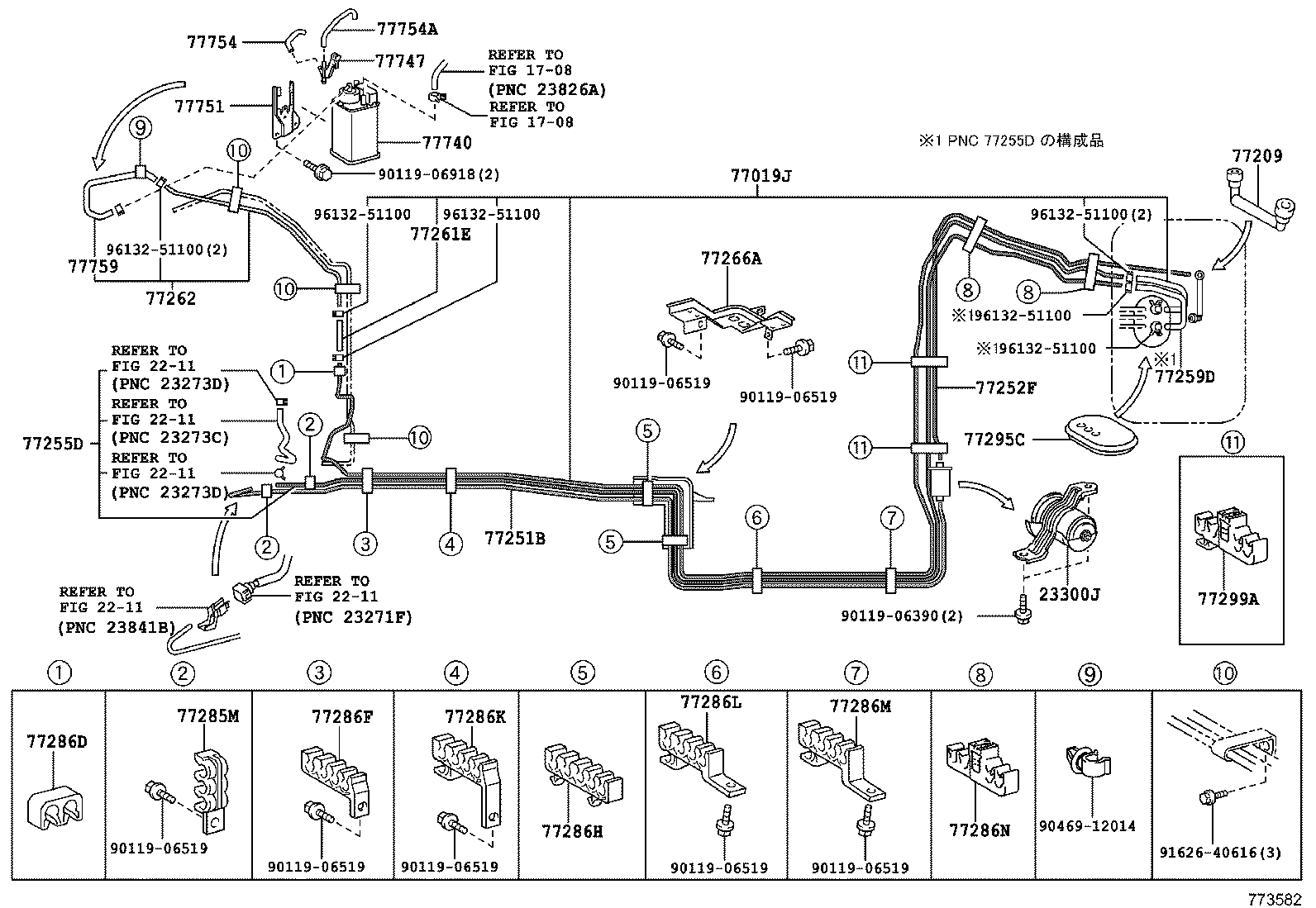

773582 2013-10 → —

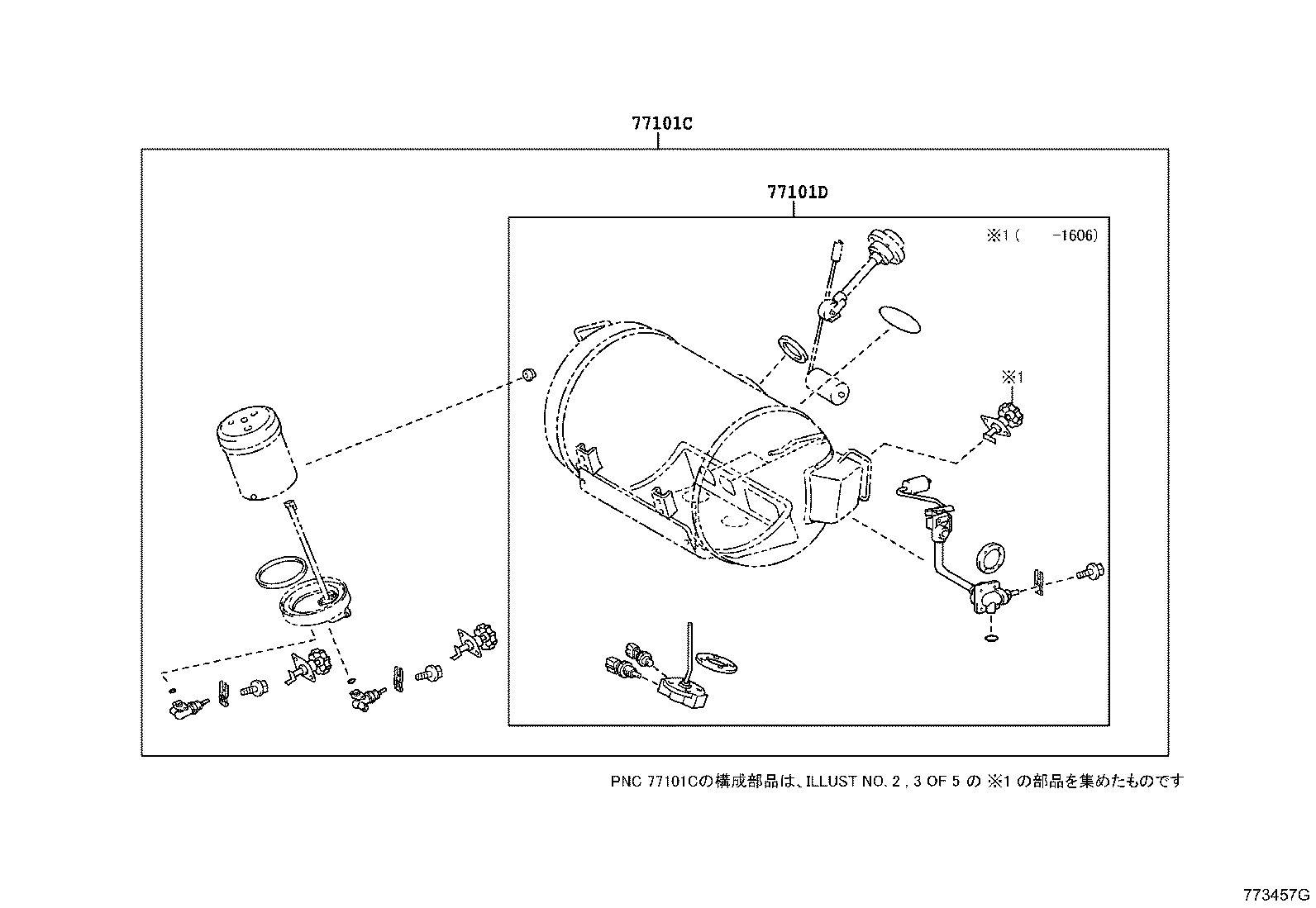

773457G 2008-08 → —

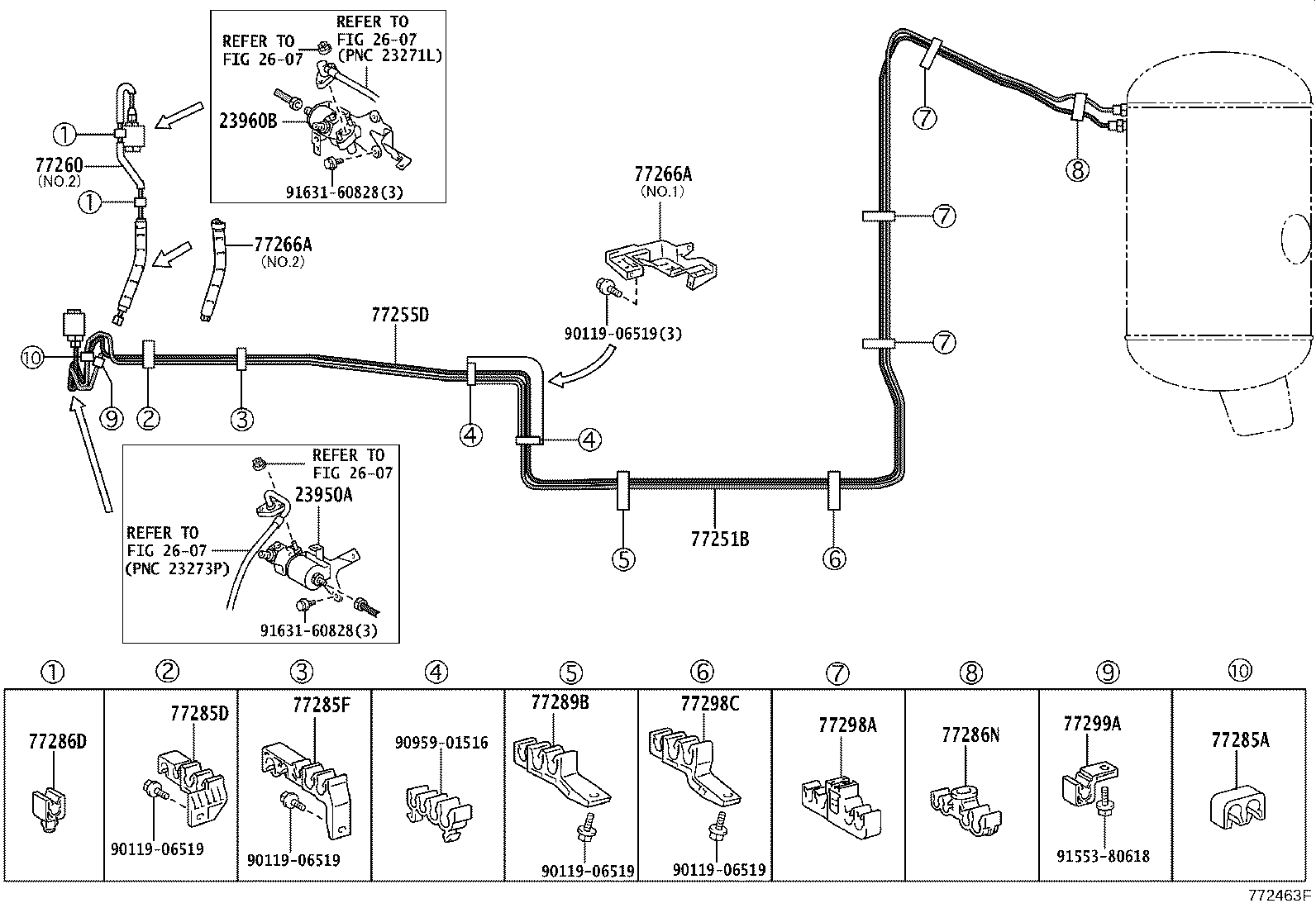

772463F 2008-08 → 2013-10

773583D 2013-10 → —

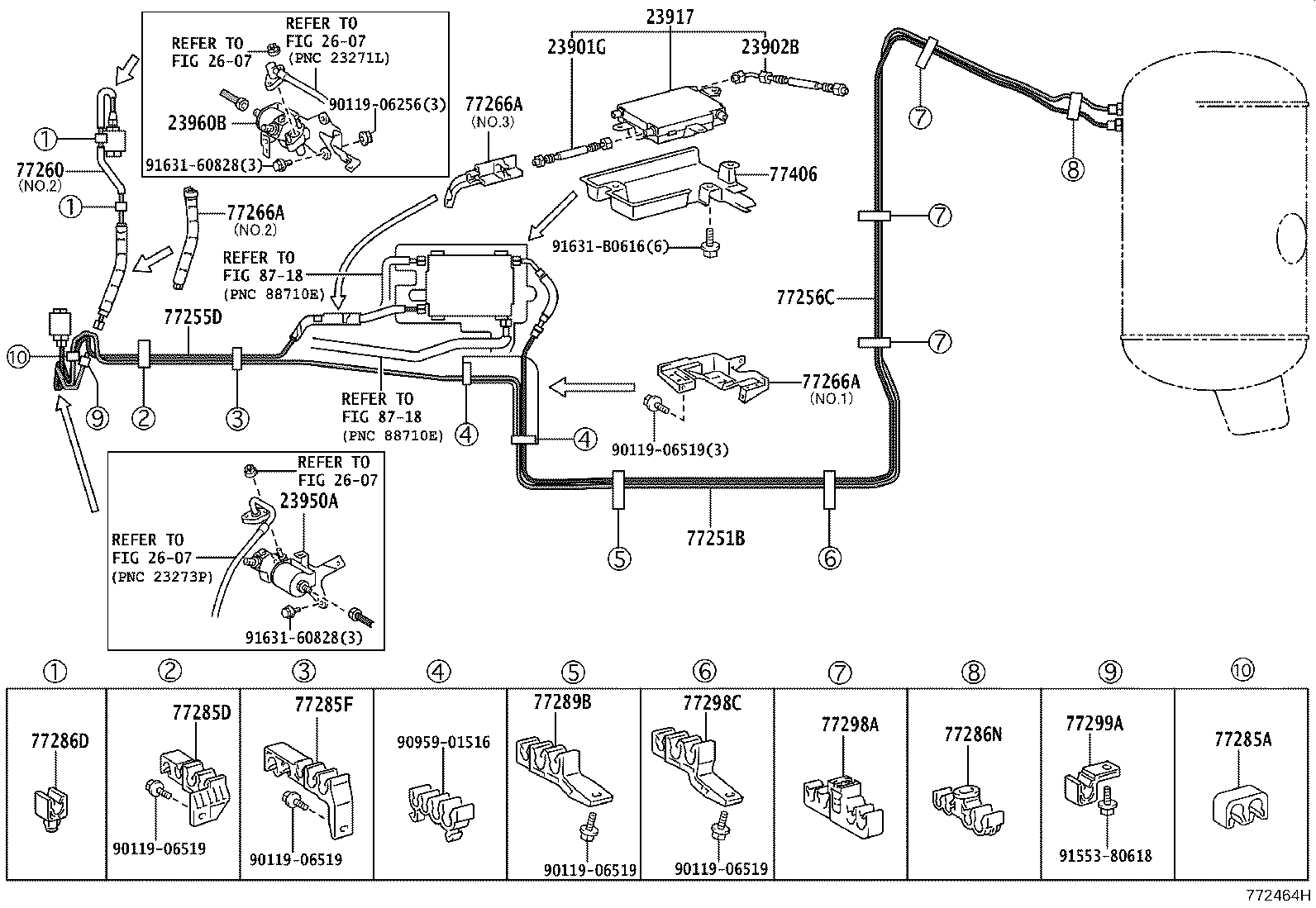

772464H 2008-08 → 2013-10

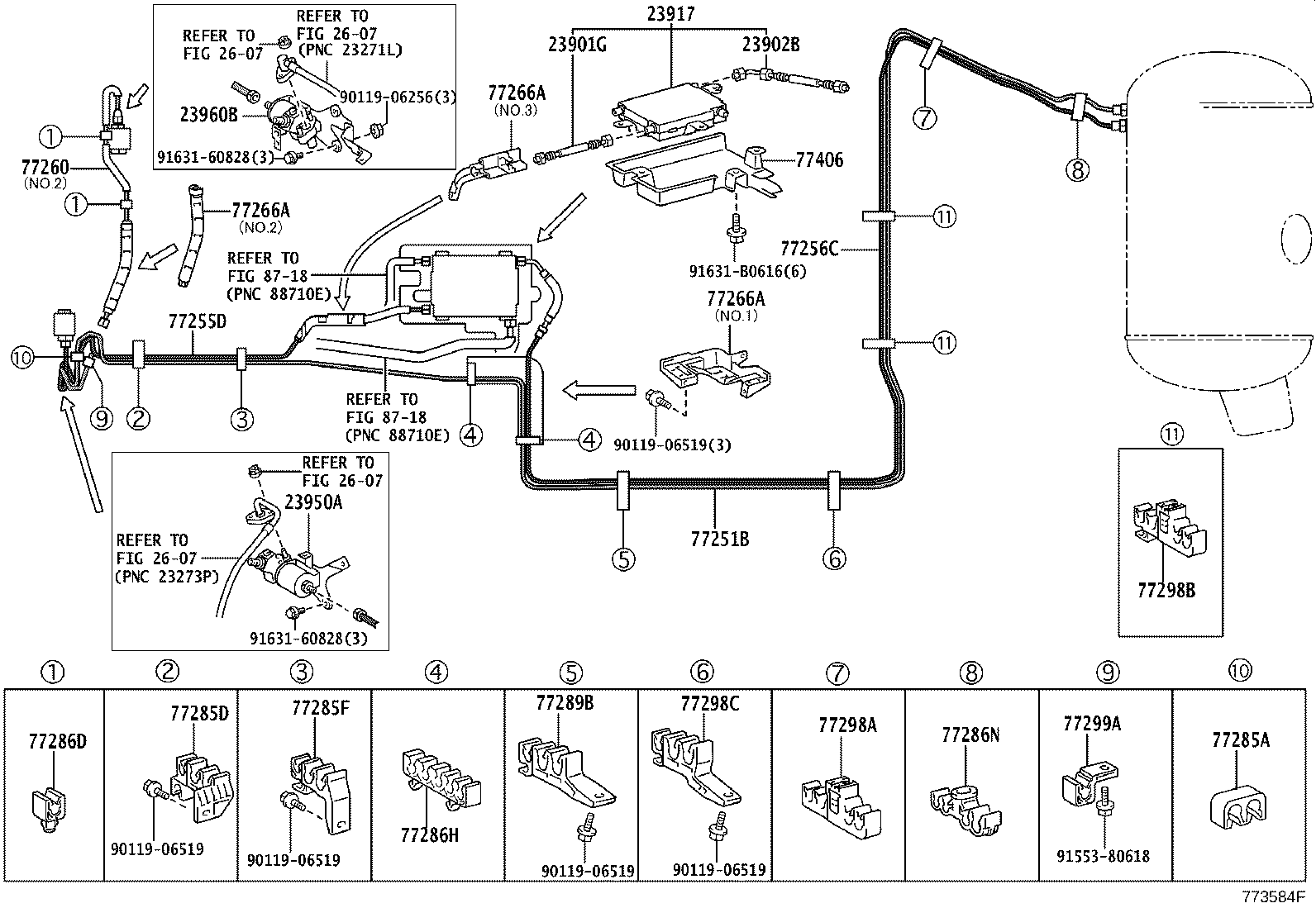

773584F 2013-10 → —

Part groups

PNC	Description
04234B	Element Kit, Lpg Filter
21611B	Gasket, Main Jet
23070	Valve Assy, Fuel Main
23217D	Filter, Fuel Pump
23221	Pump, Fuel
23221A	Pump, Fuel, NO.1
23223	Pump, Fuel, NO.2
23225A	Spacer, Fuel Pump
23229A	Clip(FOR FUEL PUMP FILTER)
2322A	Valve, Fuel Pump Relief
2322B	Rubber, Fuel Pump Cushion
2322C	Harness, Fuel Pump Wire
2322E	Seal, Fuel Pump
2322F	Support, Fuel Pump Filter
2322G	Valve, Fuel Pump Cut
23239A	Hose
23249A	Rubber, Cushion(FOR FUEL PUMP)
23300J	Filter Assy, Fuel
23401B	Bolt
23413A	Gasket(FOR LPG FILTER)
23415A	Plate
23901G	Tube Sub-assy, Fuel
23902B	Tube Sub-assy, Fuel, NO.2
23917	Cooler, Fuel
23950A	Valve Assy, Solenoid
23960B	Valve Assy, Solenoid Lpg
58156A	Insulator, Front Floor Heat, NO.4
77001	Tank Assy, Fuel (LPG)
77011	Pipe Sub-assy, Fuel Tank Filler, Lower
77012	Tube Sub-assy, Fuel Tank Breather
77017B	Tube Sub-assy, Fuel Tank Vent
77018E	Tube Sub-assy, Fuel Tank Evaporation Vent
77019J	Tube Sub-assy, Fuel Tank TO Canister
77020A	Tube Assy, Fuel Suction W/Pump & Gage
77023	Filter Sub-assy, Fuel Suction Tube
77024A	Plate Sub-assy, Fuel Suction
77035	Cable Sub-assy, Fuel Lid Lock Control
77035A	Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037	Lock Sub-assy, Fuel Filler Opening Lid
77051	Lever Sub-assy, Fuel Lid Open
77100	Tank Assy, Fuel
77101C	Maintenance Set, Lpg(FULL)
77101D	Maintenance Set, Lpg(HALF)
77152	Joint, Fuel Tank Valve, Inner
77161A	Bracket, Fuel Tank Mounting, Front
77165A	Bracket, Fuel Tank Mounting, Rear NO.2 RH
77166A	Bracket, Fuel Tank Mounting, Rear NO.2 LH
77169A	Gasket, Fuel Suction Tube Set
77177	Gasket, Check Valve
77177A	Gasket, Check Valve
77178	Gasket, Fuel Tank Filler Pipe, Lower
77179A	Gasket, Fuel Tank Breather Tube
77179B	Gasket, Fuel Tank Evaporation Vent Tube
77181	Valve, Fuel Tank Filler Check
77193	Valve, Fuel Liquid Vapor Separator
77196	Clamp, Evaporation Vent Tube, NO.1
77197B	Cover, Auxiliary Fuel Tank Carrier
77201	Pipe Sub-assy, Fuel Tank Inlet
77203A	Tube Sub-assy, Fuel Suction
77209	Connector Sub-assy, Fuel Tube
77213	Hose, Fuel Tank Sub Inlet
77228	Tube, Fuel Tank Evaporation Vent, NO.2
77241A	Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77245E	Cap, Fuel Suction
77251B	Tube, Fuel Main
77251J	Tube, Fuel Main, NO.1
77252A	Tube, Fuel Main, NO.2
77252B	Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE)
77252F	Tube, Fuel Main, Rear
77253A	Tube, Fuel Main, NO.3
77253B	Hose, Fuel, NO.1(FOR FUEL MAIN NO.3 TUBE)
77255D	Tube, Fuel Return
77255F	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C	Tube, Fuel Return, NO.2
77256D	Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77257C	Tube, Fuel Return, NO.3
77257D	Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE)
77259A	Hose, Fuel(FOR BREATHER TUBE)
77259C	Hose, Fuel
77259D	Hose, Fuel, NO.1
77260	Hose Assy, Fuel Main
77261	Tube Sub-assy, Fuel Emission
77261D	Tube, Fuel Tank TO Canister
77261E	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77262	Tube, Fuel Emission, NO.2
77265	Connector, Fuel Main Tube
77266A	Protector, Fuel Tube, NO.1
77277A	Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77278D	Valve, Check W/Bracket
77279A	Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.3)
77279G	Hose, Fuel, NO.2
77285A	Support, Fuel Return And Main Tube
77285D	Clamp, Fuel Tube, NO.1
77285F	Clamp, Fuel Tube, NO.1
77285M	Clamp, Fuel Tube, NO.1
77286B	Clamp, Fuel Tube W/Grommet, NO.2
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77286H	Clamp, Fuel Tube, NO.3
77286K	Clamp, Fuel Tube, NO.2
77286L	Clamp, Fuel Tube, NO.5
77286M	Clamp, Fuel Tube, NO.6
77286N	Clamp, Fuel Tube, NO.7
77289B	Clamp, Fuel Tube, NO.3
77290	Shield Assy, Fuel Tank Filler Pipe
77291A	Shield, Fuel Tank Filler Pipe
77292C	Shield, Fuel Tank Filler Pipe, NO.2
77295C	Grommet, Fuel Tube
77295F	Grommet, Fuel Hose
77298A	Clamp, Fuel Tube, NO.4
77298B	Clamp, Fuel Tube, NO.4
77298C	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77380	Valve Assy, Fuel Cut Off
77390	Valve Assy, Fuel Tank Inlet
77390D	Valve Assy, Fuel Tank Over Fill Check
77390E	Valve, Fuel(FOR LPG)
77393	Protector, Check Valve
77406	Protector Sub-assy, Fuel Tube
77411B	Support, Fuel Tube Grommet, NO.1
77420	Valve Assy, Fuel Cut Off, NO.2
77520	Valve Assy, Solenoid Lpg Emergency
77606F	Case Sub-assy, Fuel Tank Cover Vent
77607	Case Sub-assy, Fuel Tank Cover Vent, LH
77614C	Seal, Fuel Tank Cover
77638	Sleeve, Tank Valve Joint
77651C	Shim, Fuel Tank
77652A	Cushion, Fuel Tank, NO.2
77653A	Cushion, Fuel Tank, NO.3
77654A	Cushion, Fuel Tank, NO.4
77655A	Cushion, Fuel Tank, NO.5
77656B	Cushion, Fuel Tank, NO.6
77671	Cushion, Fuel Tank TO Cover
77697	Insulator, Fuel Tank Heat, NO.1
77701T	Valve, Check (FOR MAIN FUEL TANK)
77701U	Hose, Fuel (FOR CHECK VALVE)
77720H	Valve Assy, Fuel Outlet
77740	Canister Assy, Charcoal
77740C	Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77747	Pipe, Charcoal Canister, NO.1
77751	Bracket, Charcoal Canister Base
77754	Hose, Charcoal Canister Outlet, NO.1
77754A	Hose, Charcoal Canister Outlet, NO.2
77755	Bracket, Charcoal Canister Outlet Hose
77759	Hose, Charcoal Canister

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
