Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 7 illustrations

Illustrations

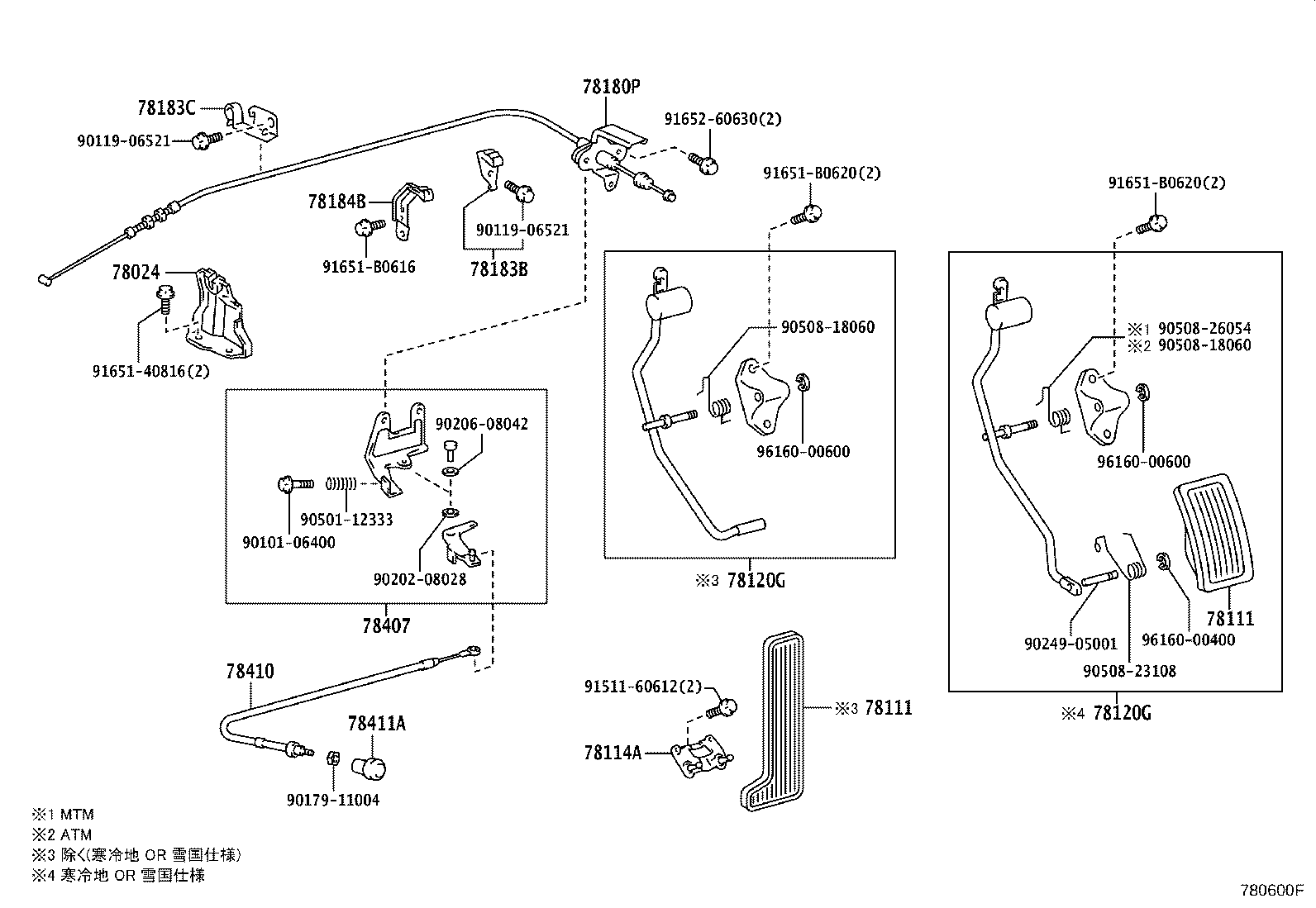

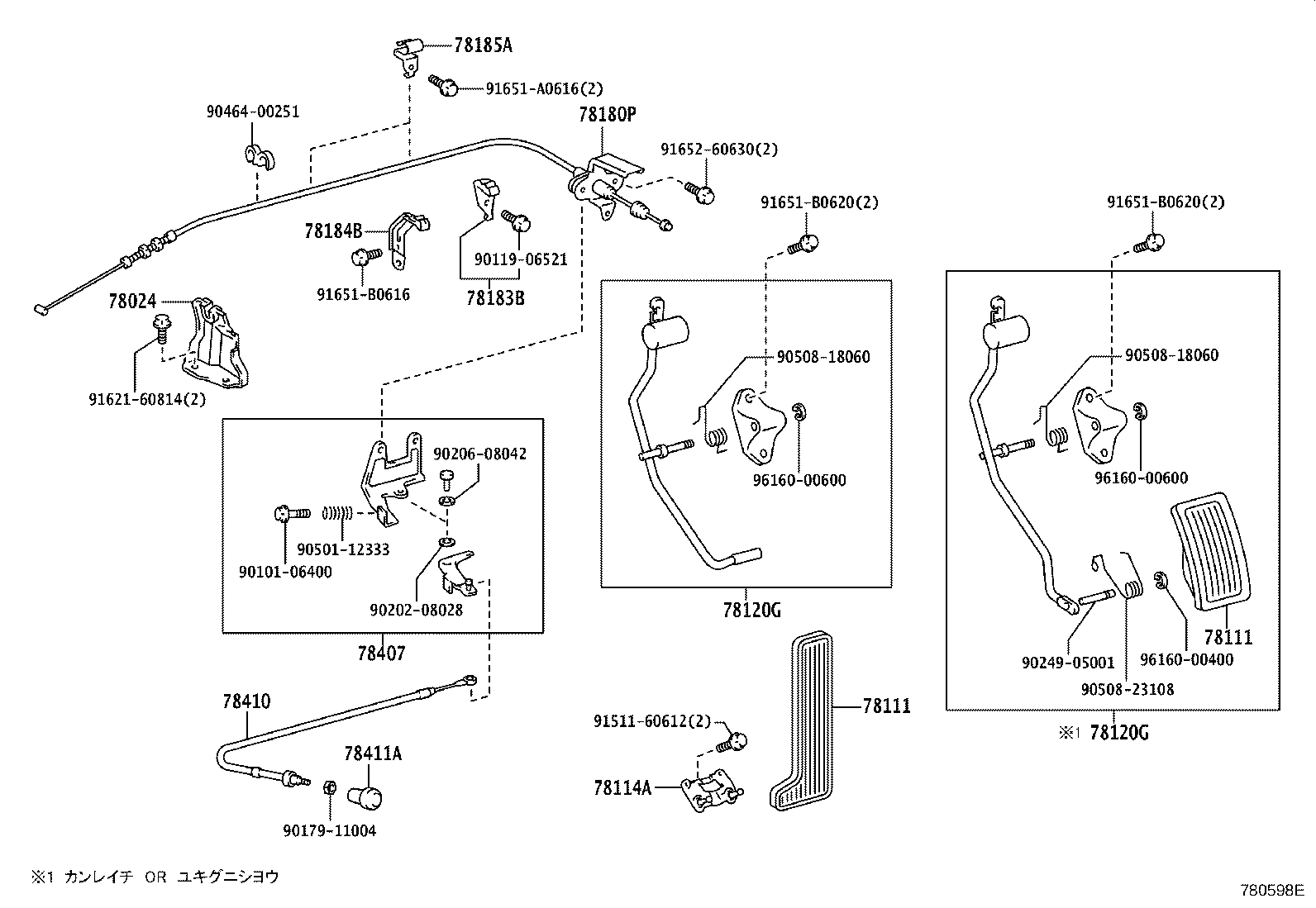

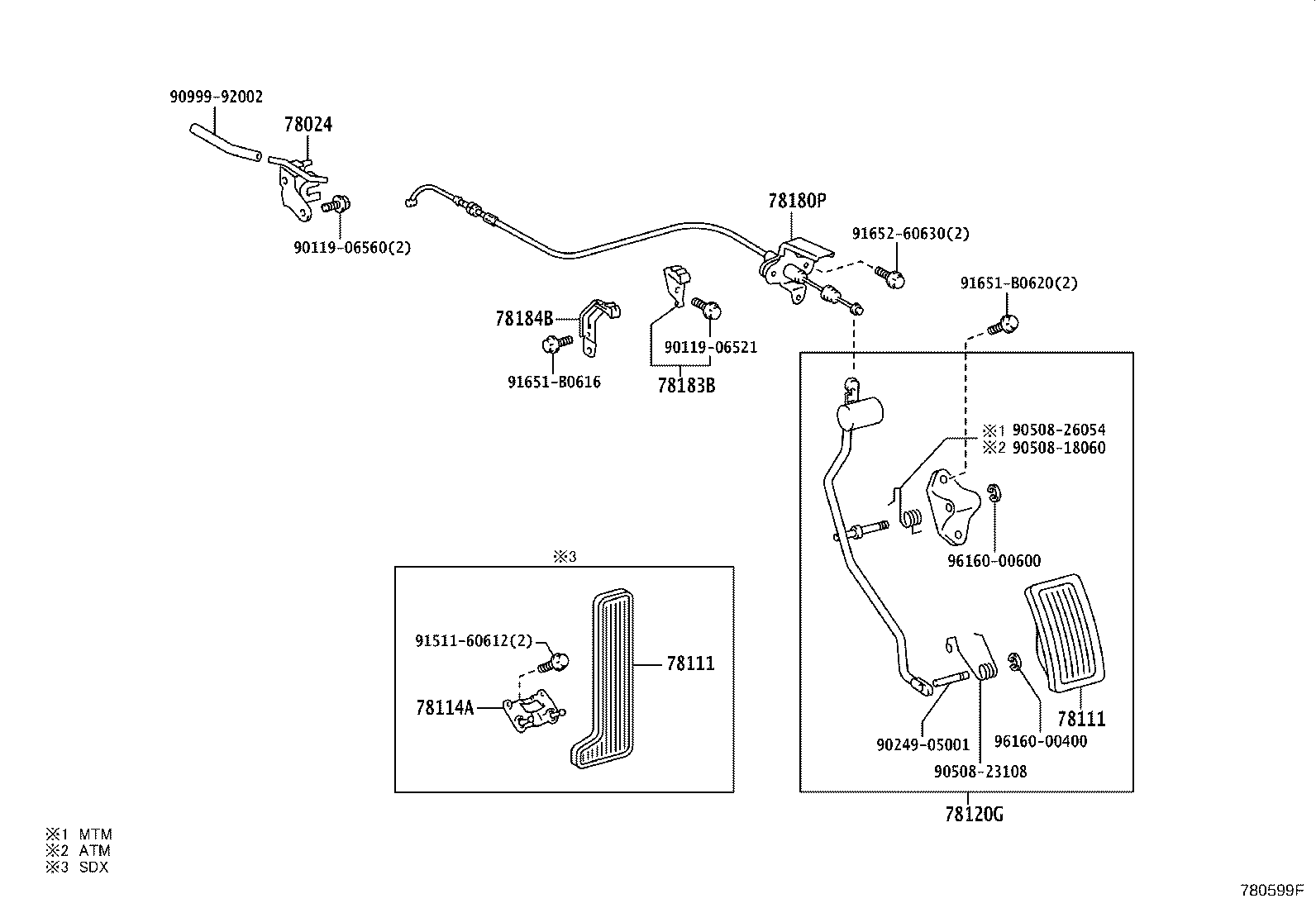

Figure 780286F 780286F 1995-12 → 2001-08 Figure 780598E 780598E 2001-08 → — Figure 780599F 780599F 2001-08 → — Figure 780600F 780600F 2001-08 → — Figure 781193 781193 2007-09 → — Figure 781192A 781192A 2007-09 → — Figure 781233A 781233A 2008-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78111 Pedal, Accelerator
78114A Bracket, Accelerator Pedal Support
78118B Stopper, Accelerator Pedal
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78407 Arm Sub-assy, Throttle Control
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
