Toyota Crown Comfort/Sed
1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan
Discontinued model
Data version 2018-07

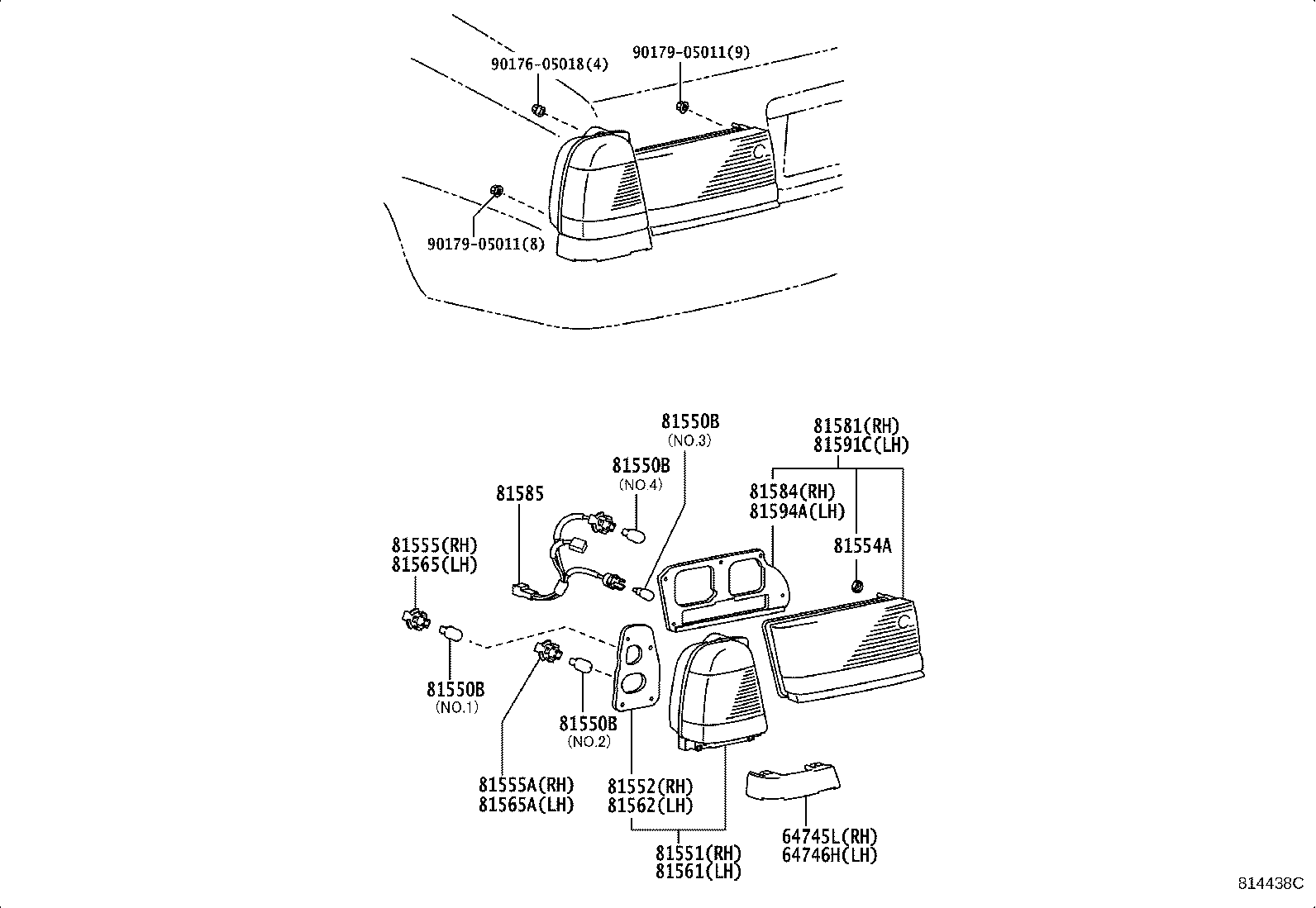

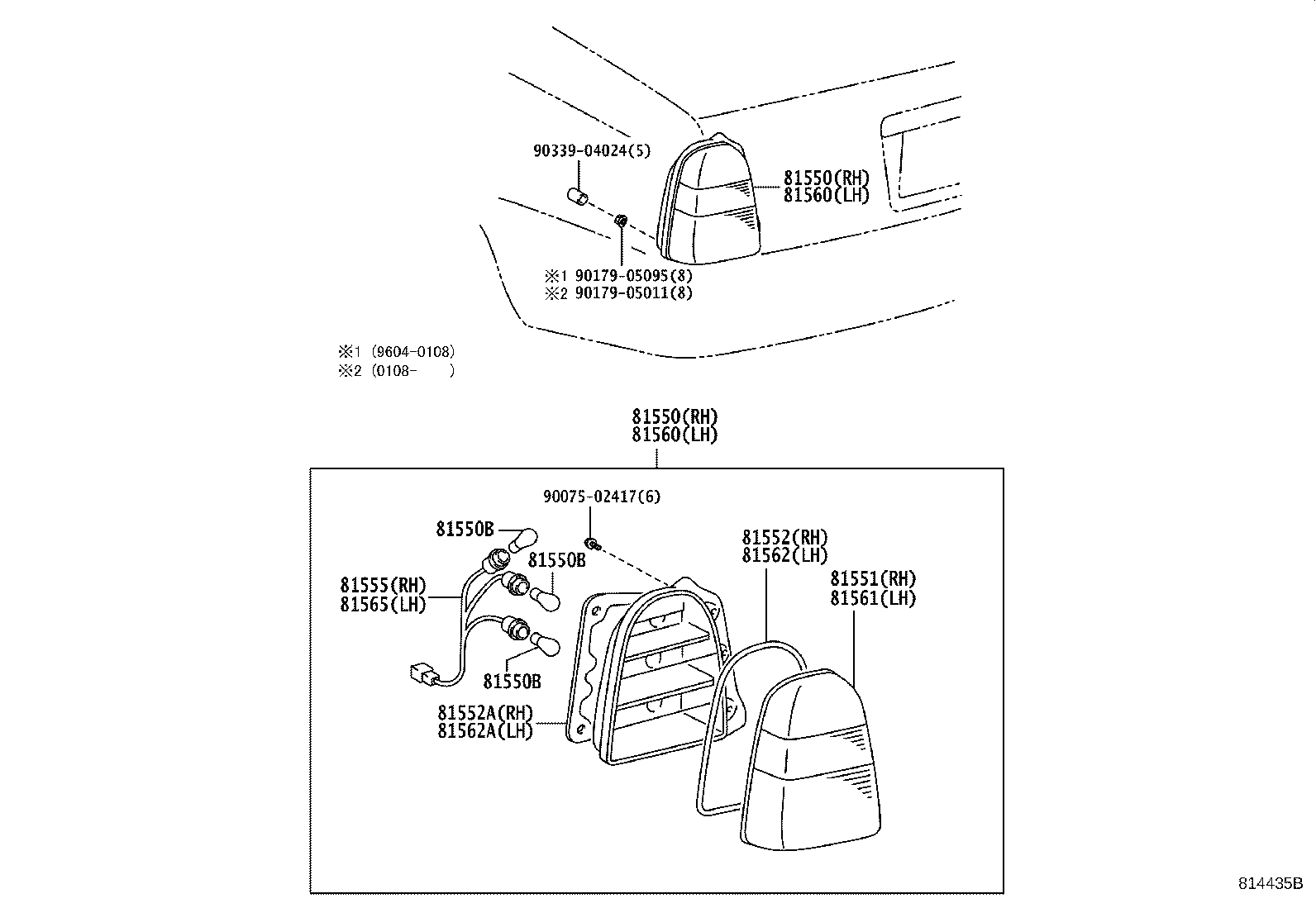

Rear Combination Lamp
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64745L | Cover, Rear Combination Lamp Service, RH |
| 64746H | Cover, Rear Combination Lamp Service, LH |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81554A | Gasket, Rear Combination Lamp Body, NO.1 RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555A | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565A | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81581 | Lens, Rear Lamp |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591C | Lens, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
