Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

52 part groups · 22 illustrations

Illustrations

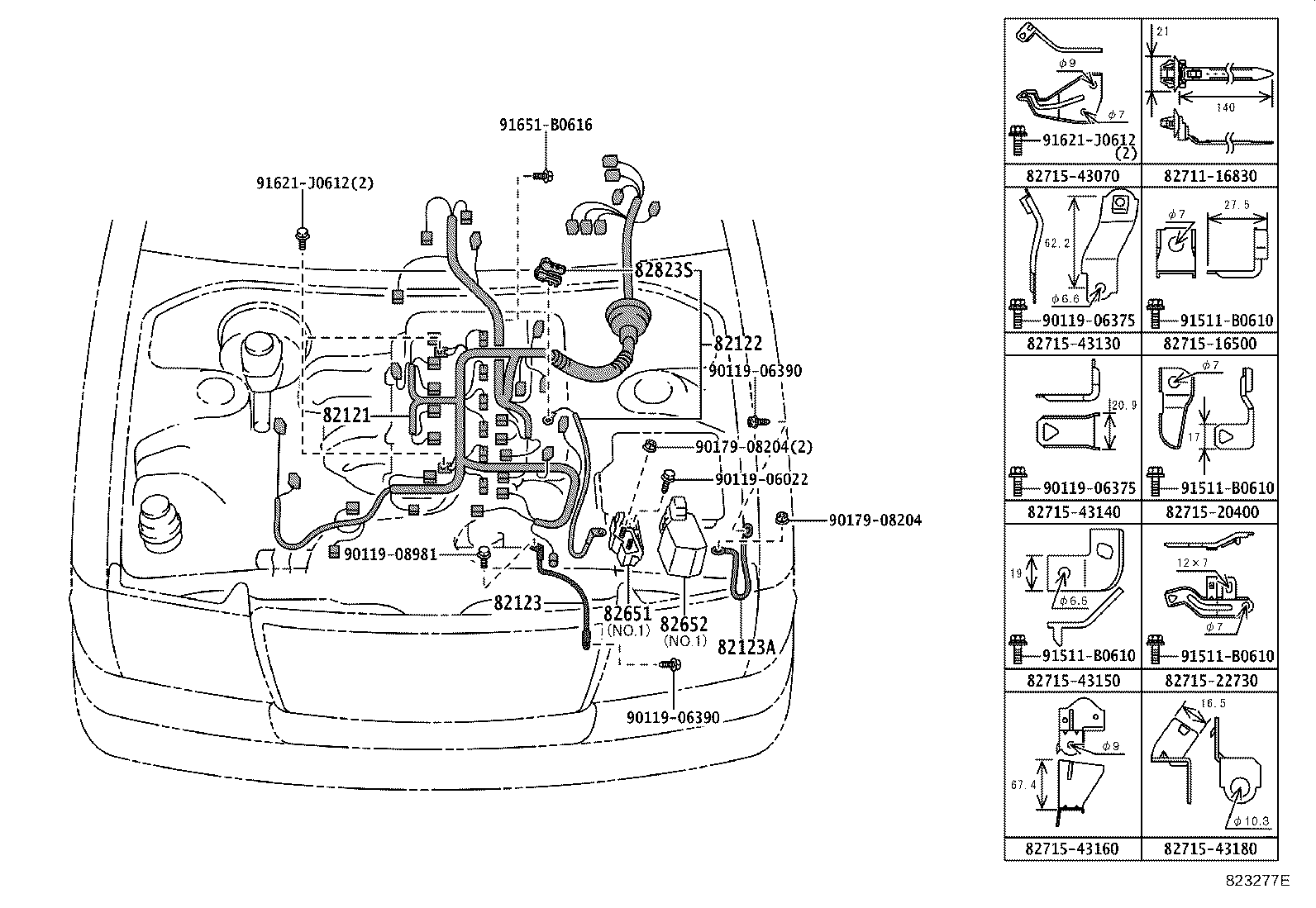

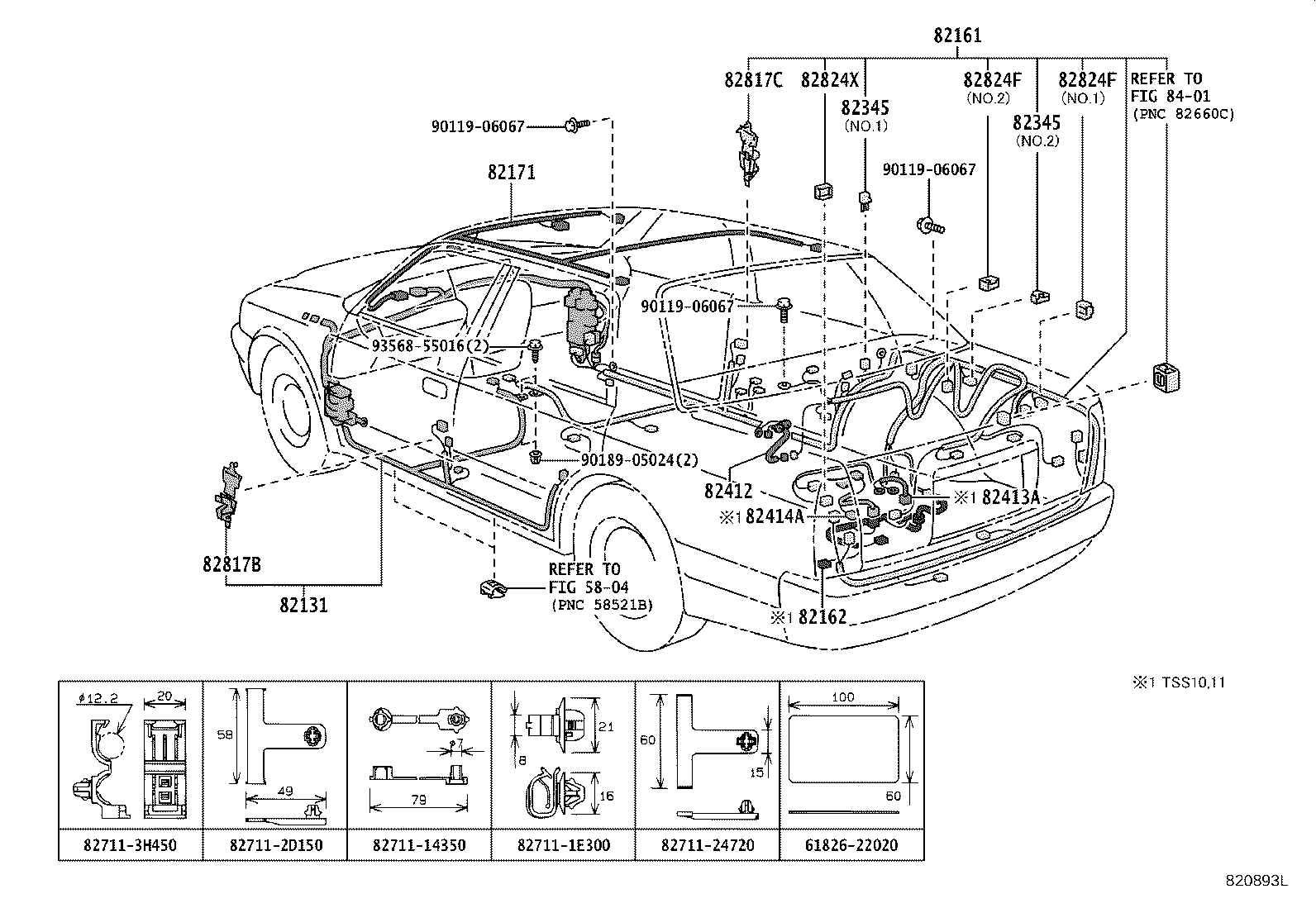

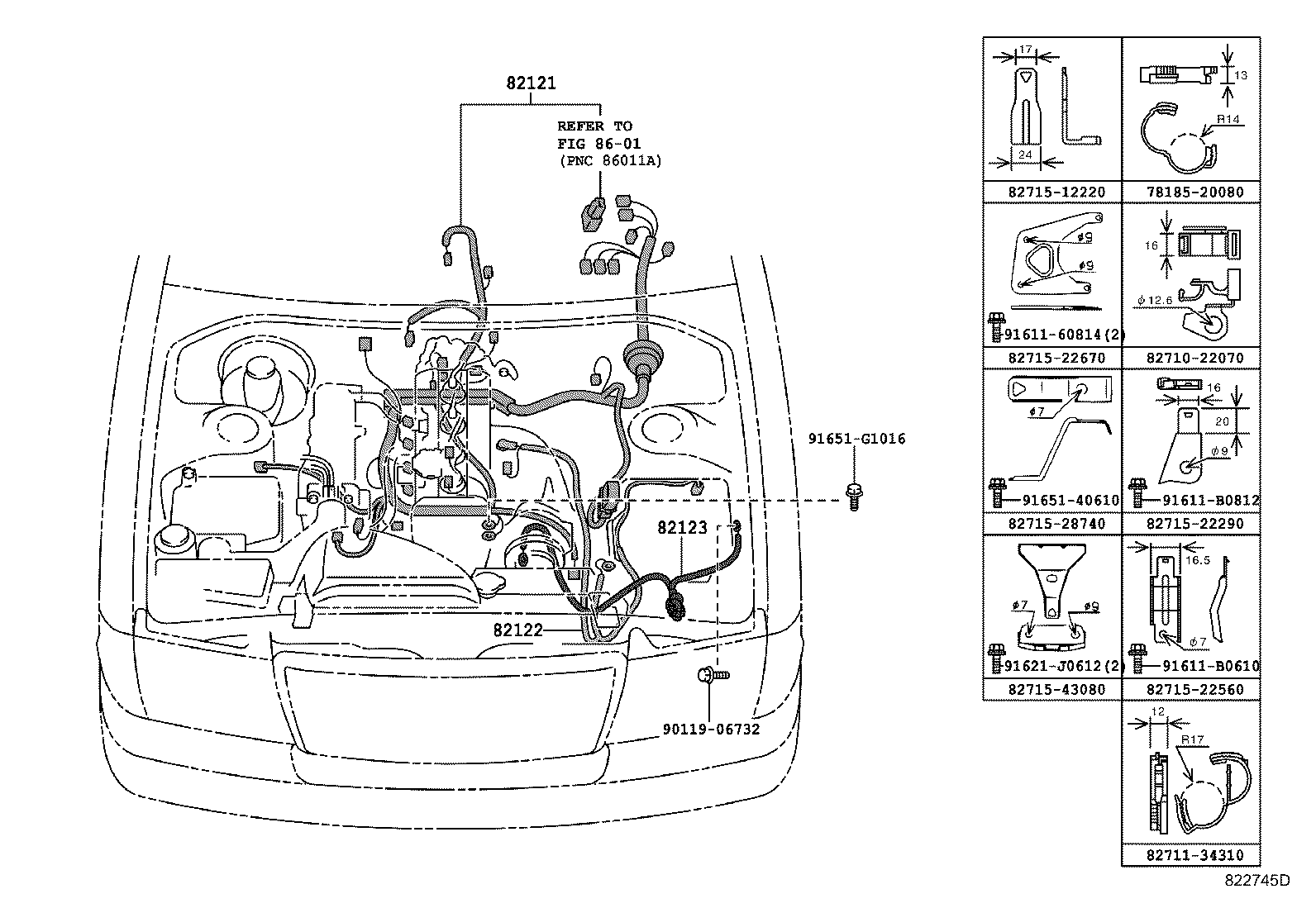

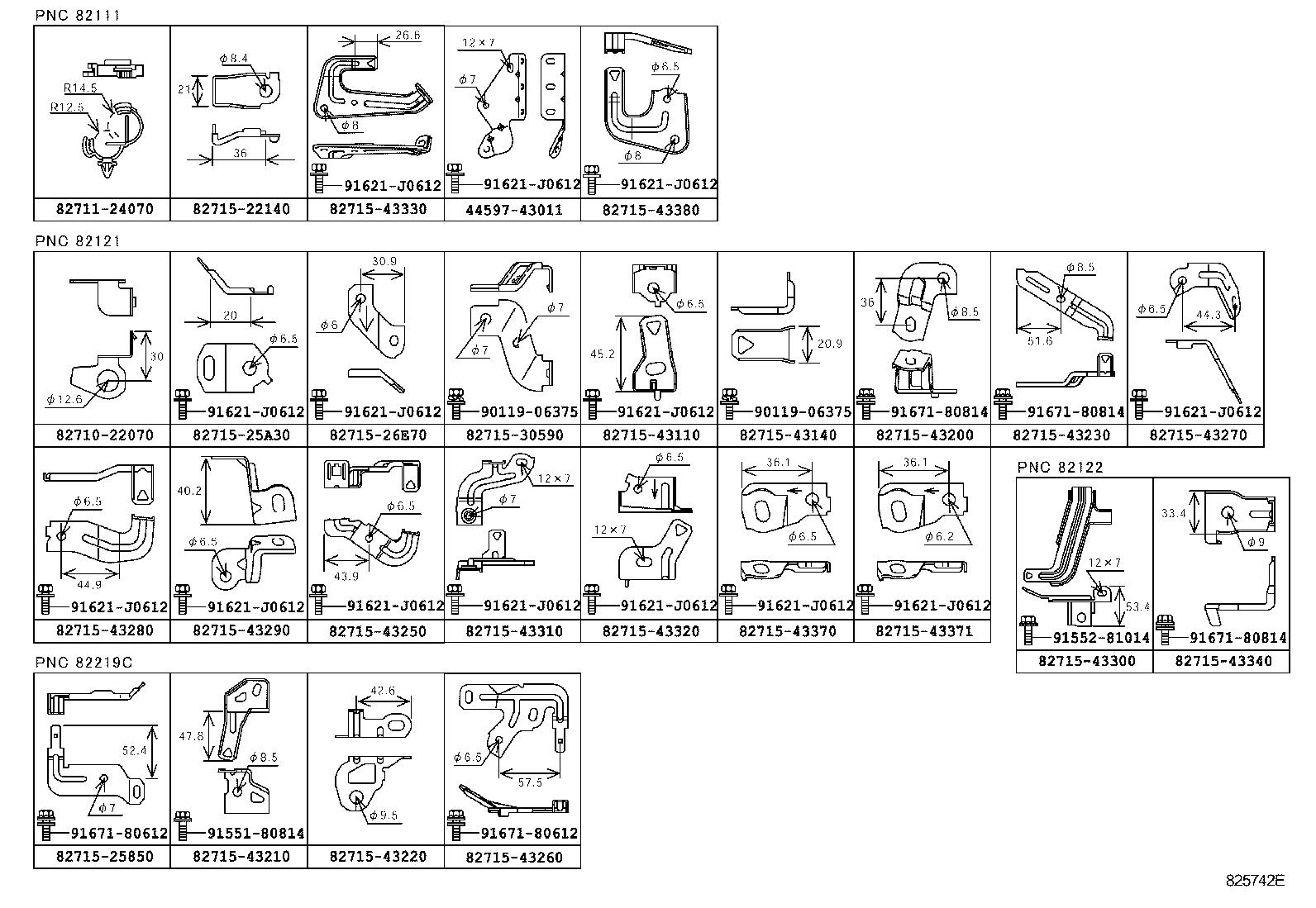

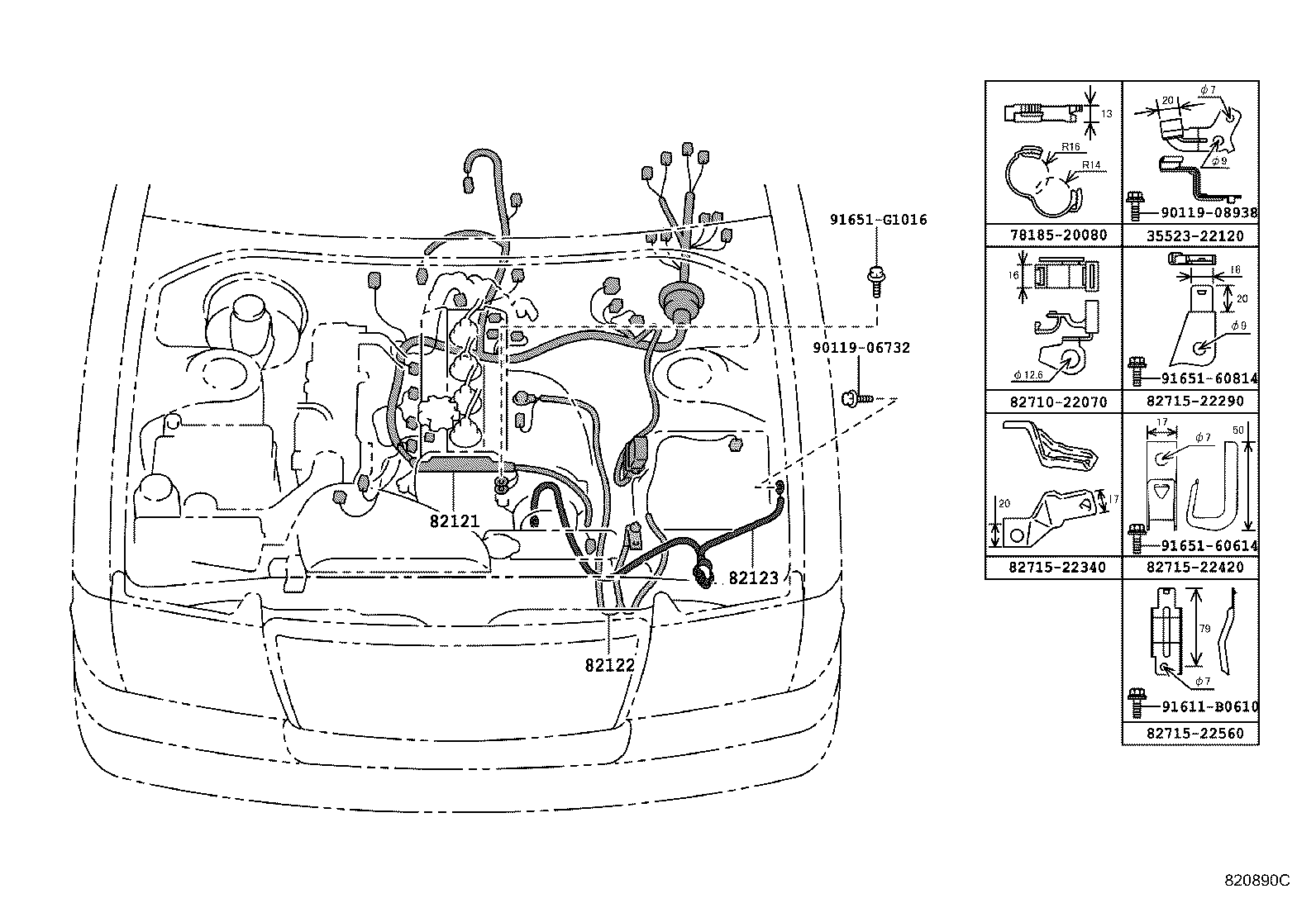

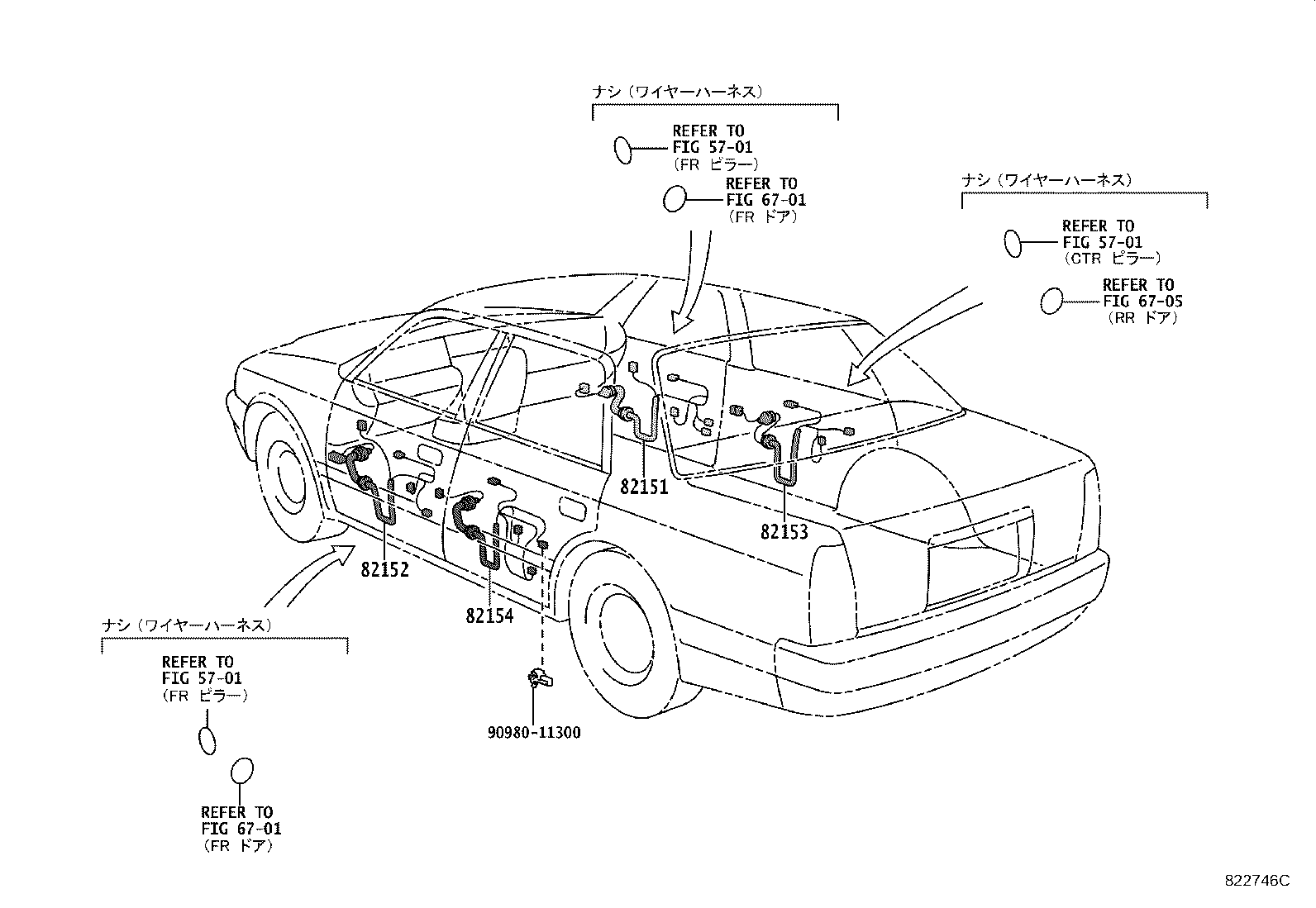

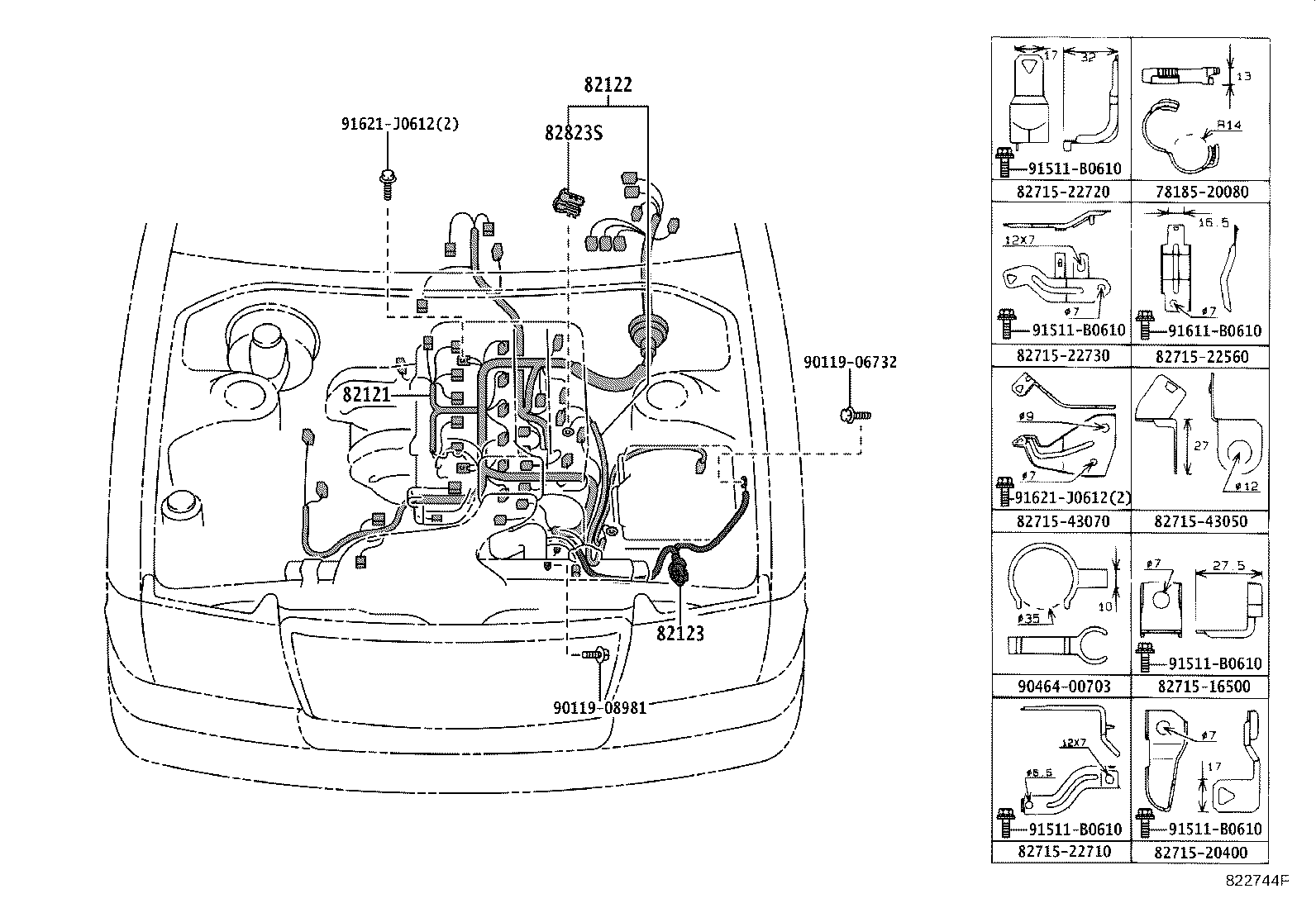

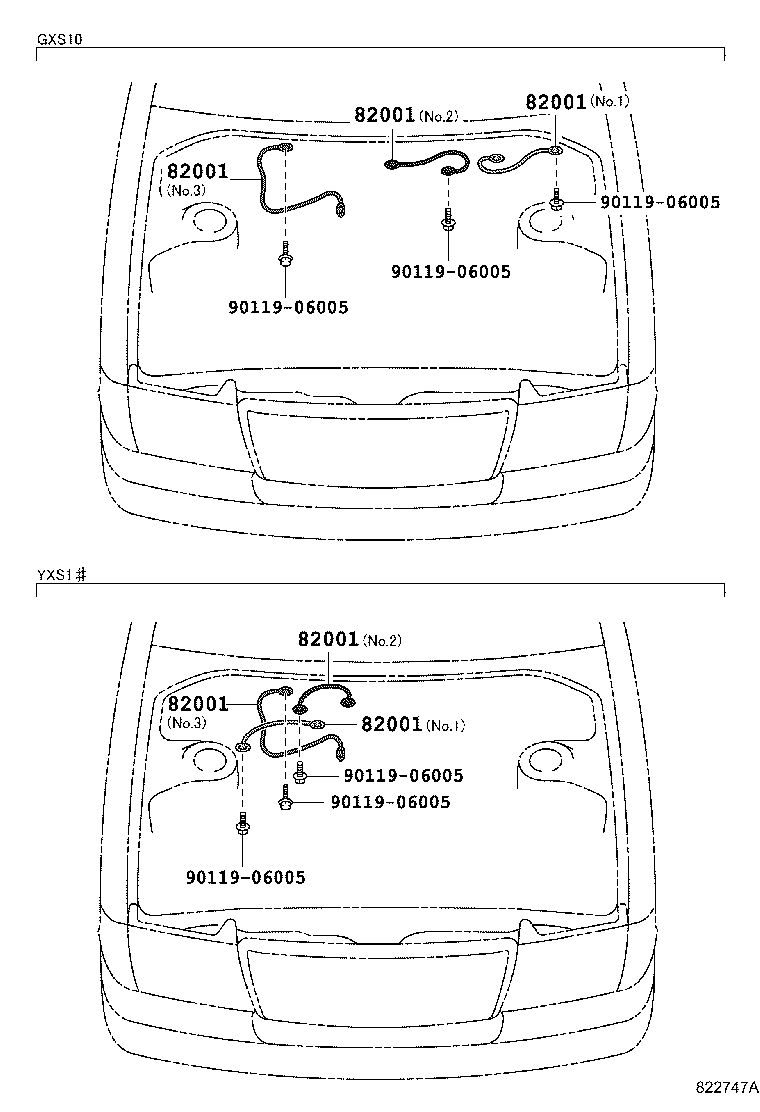

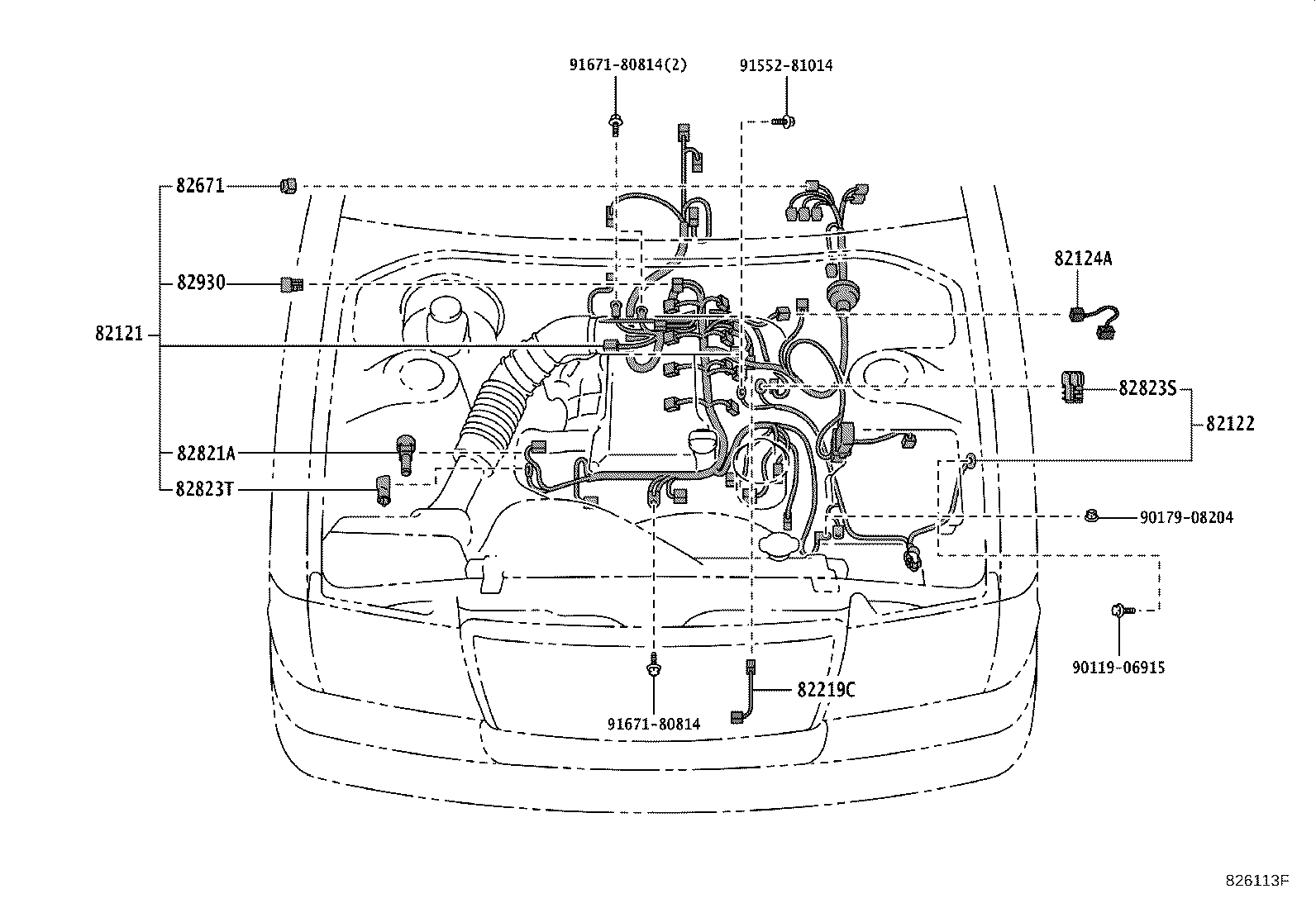

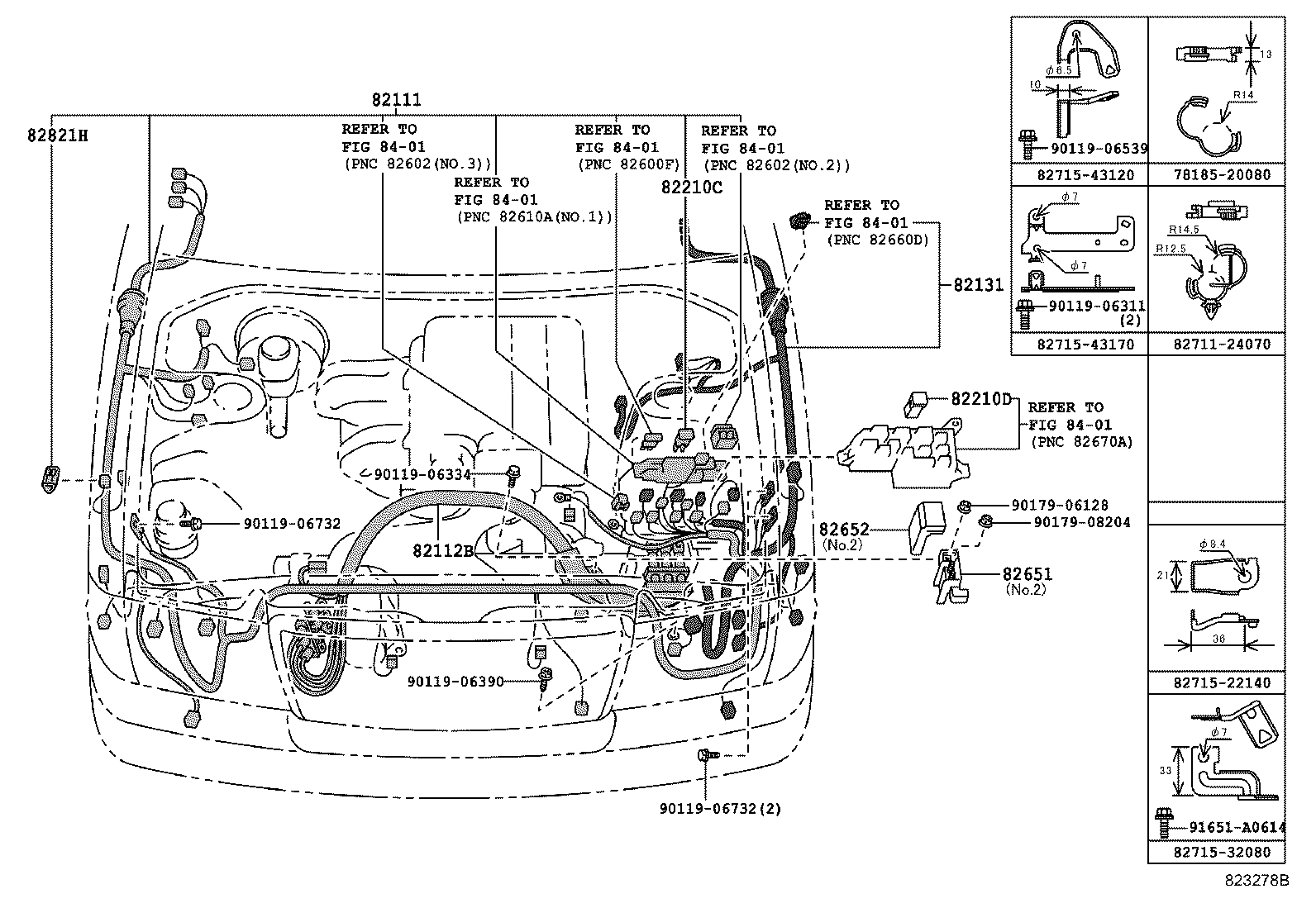

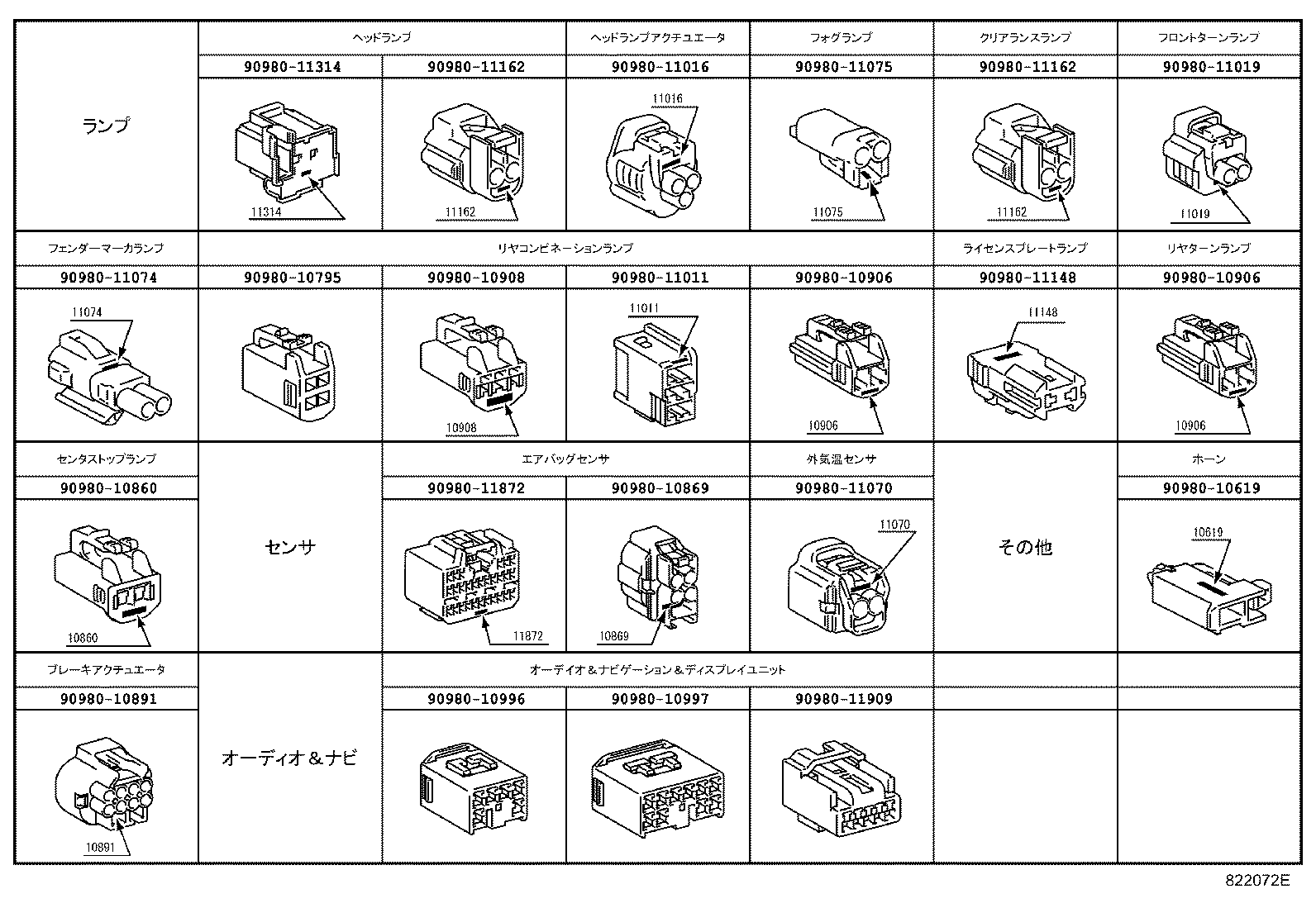

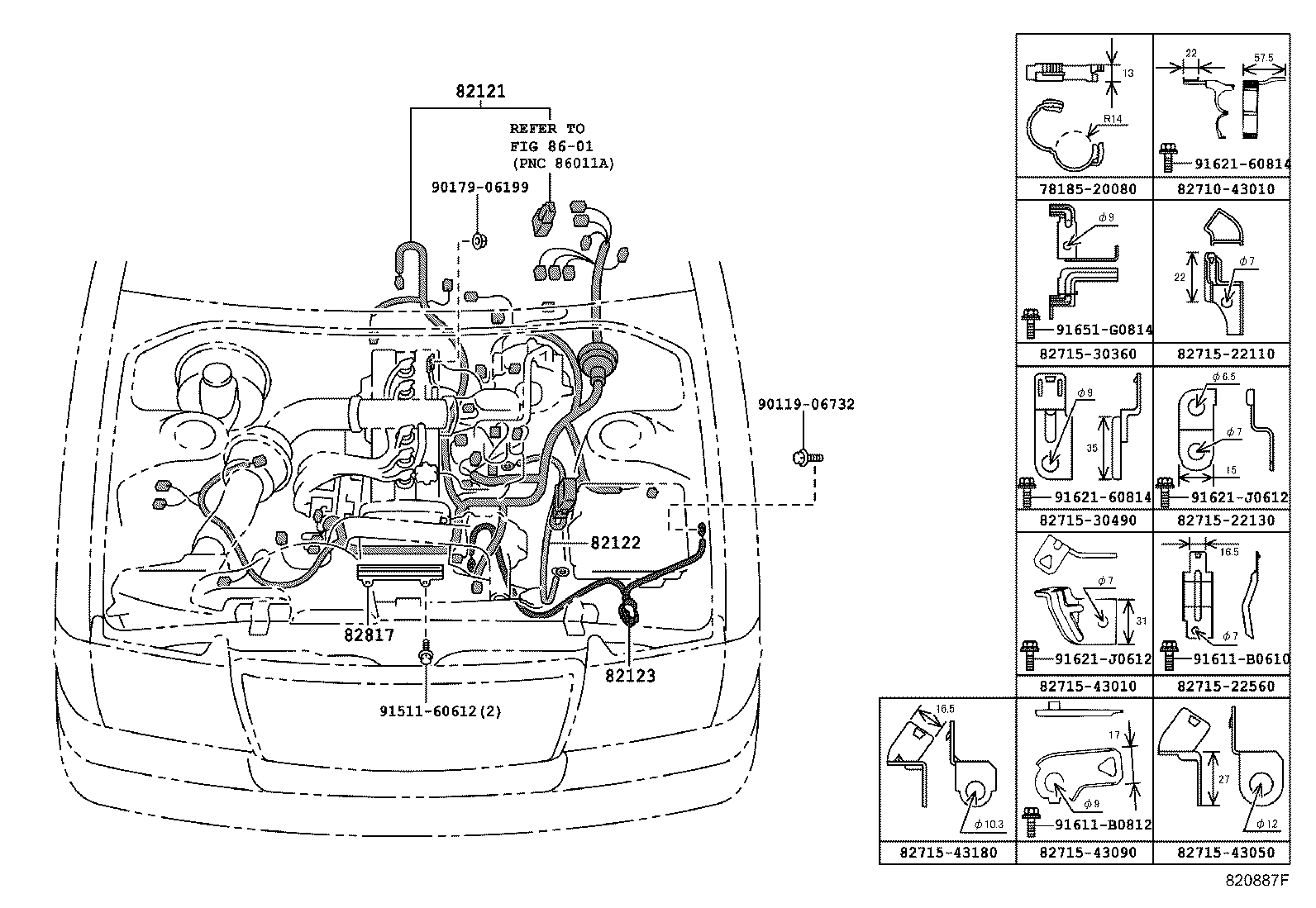

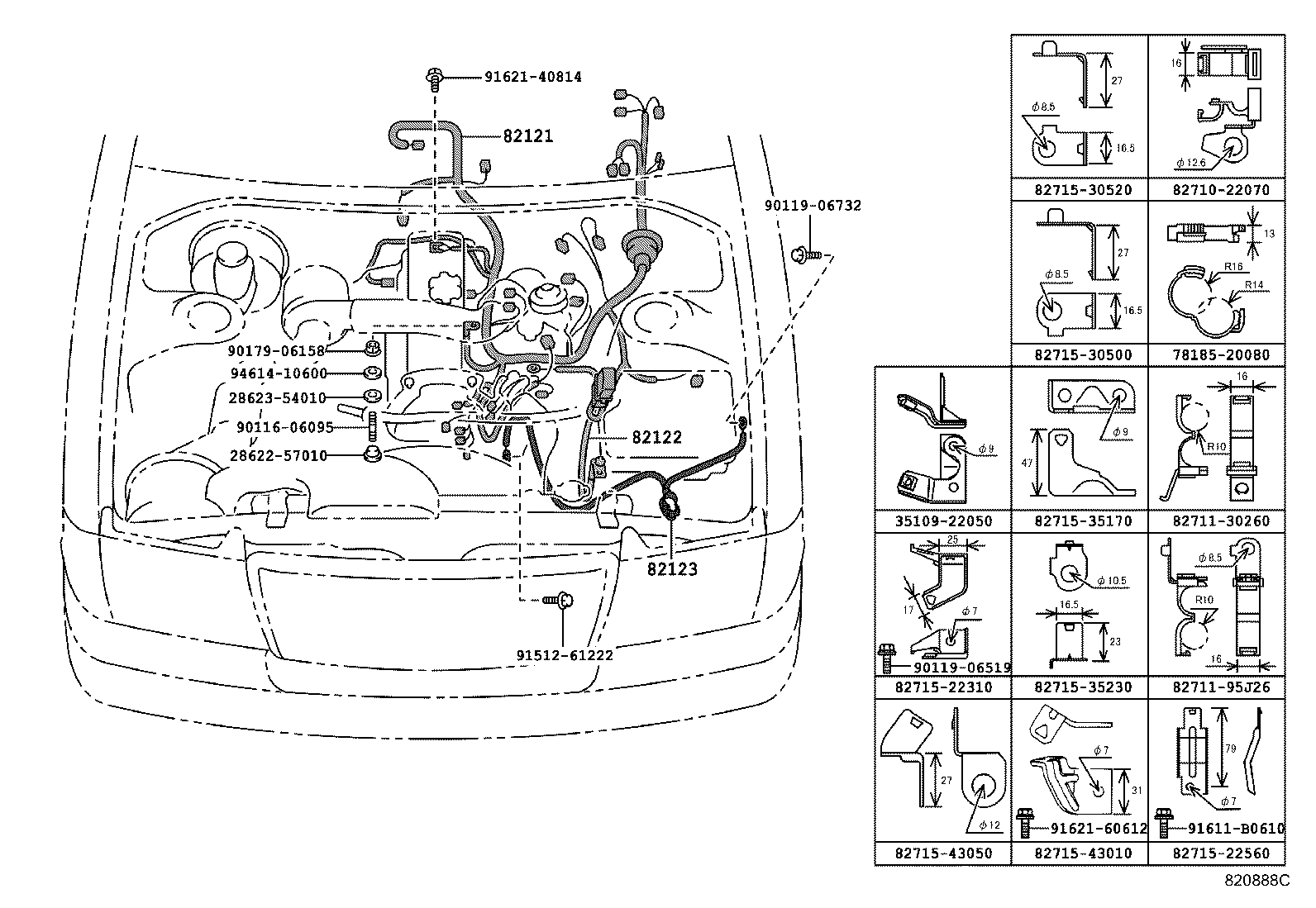

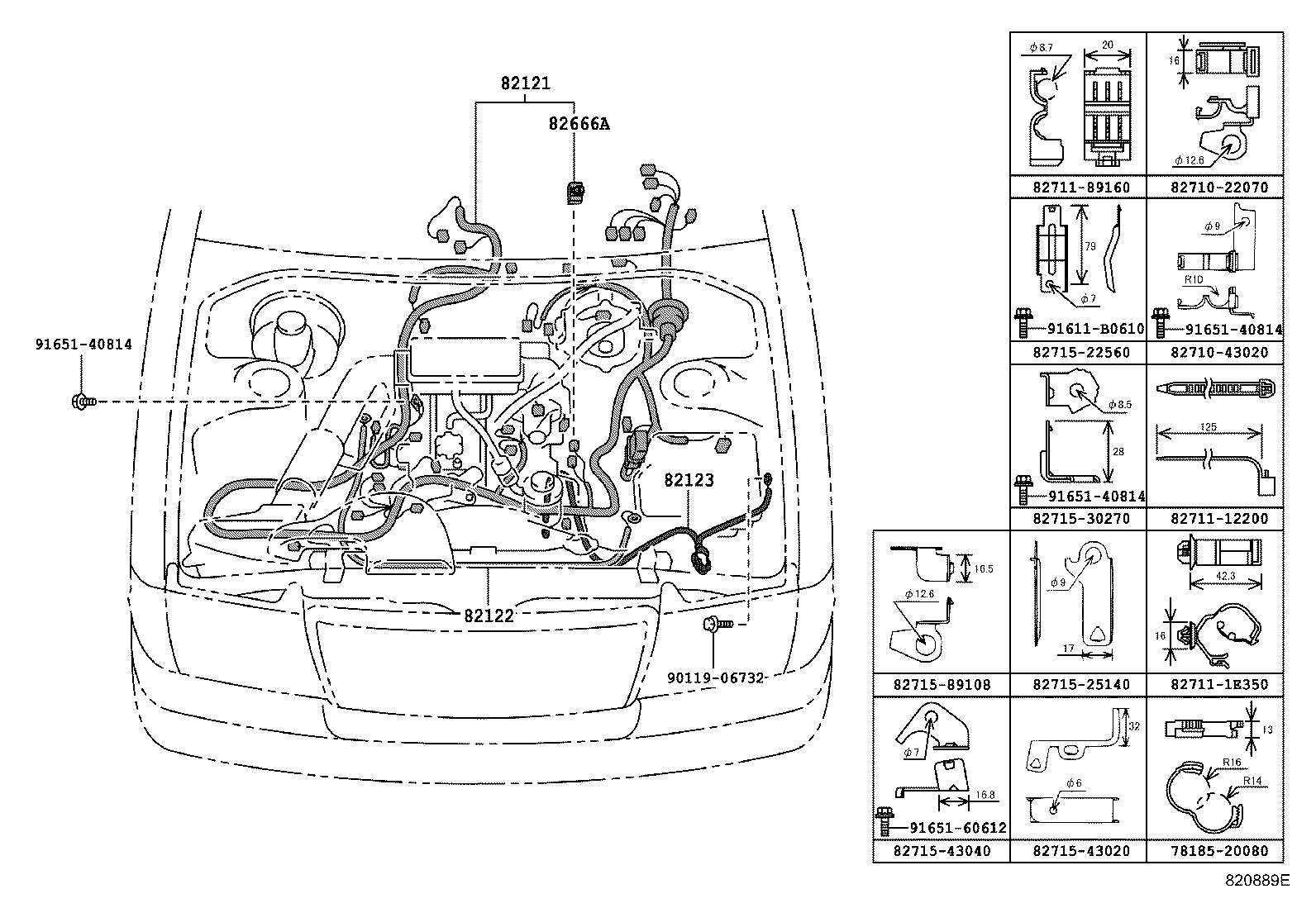

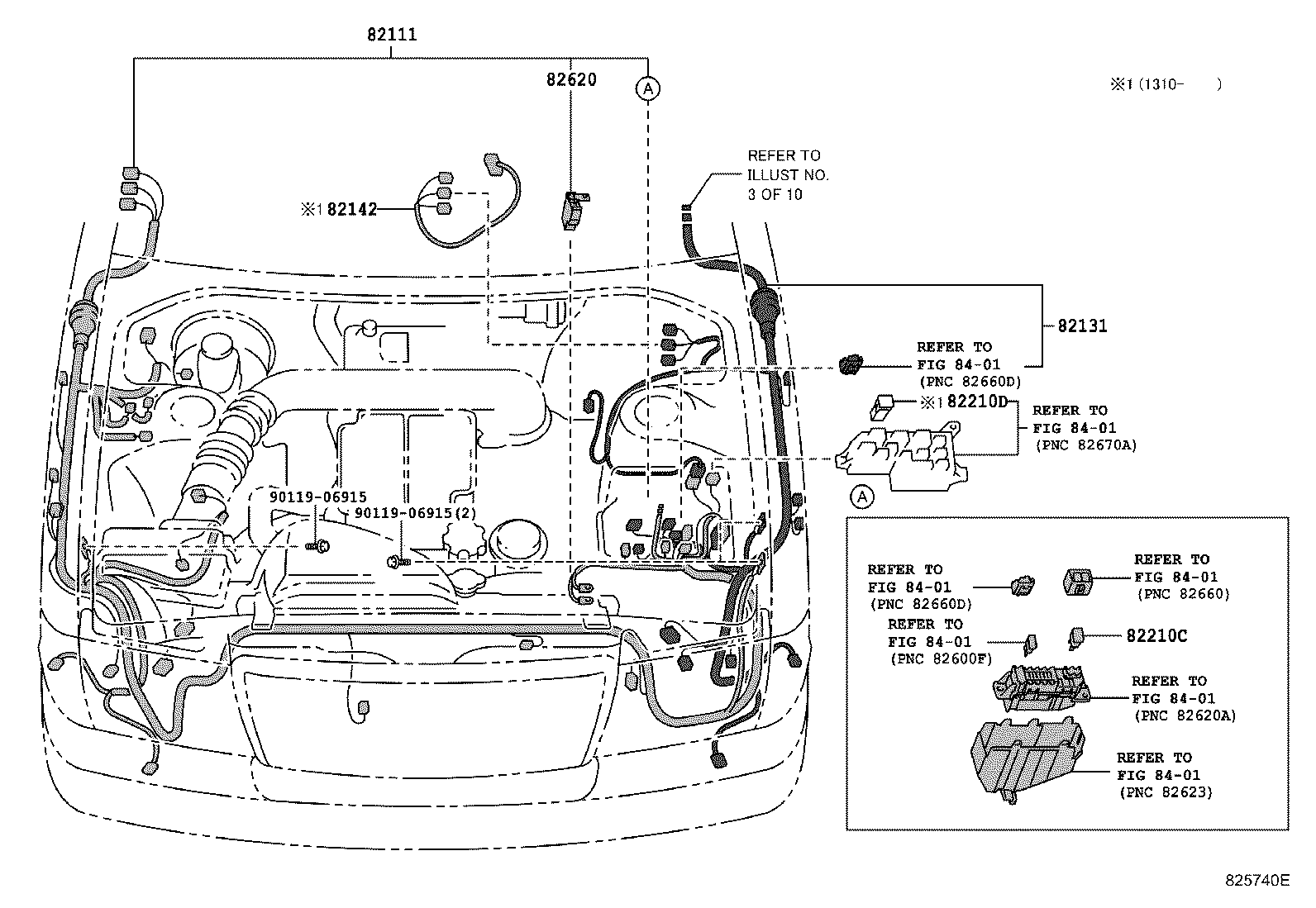

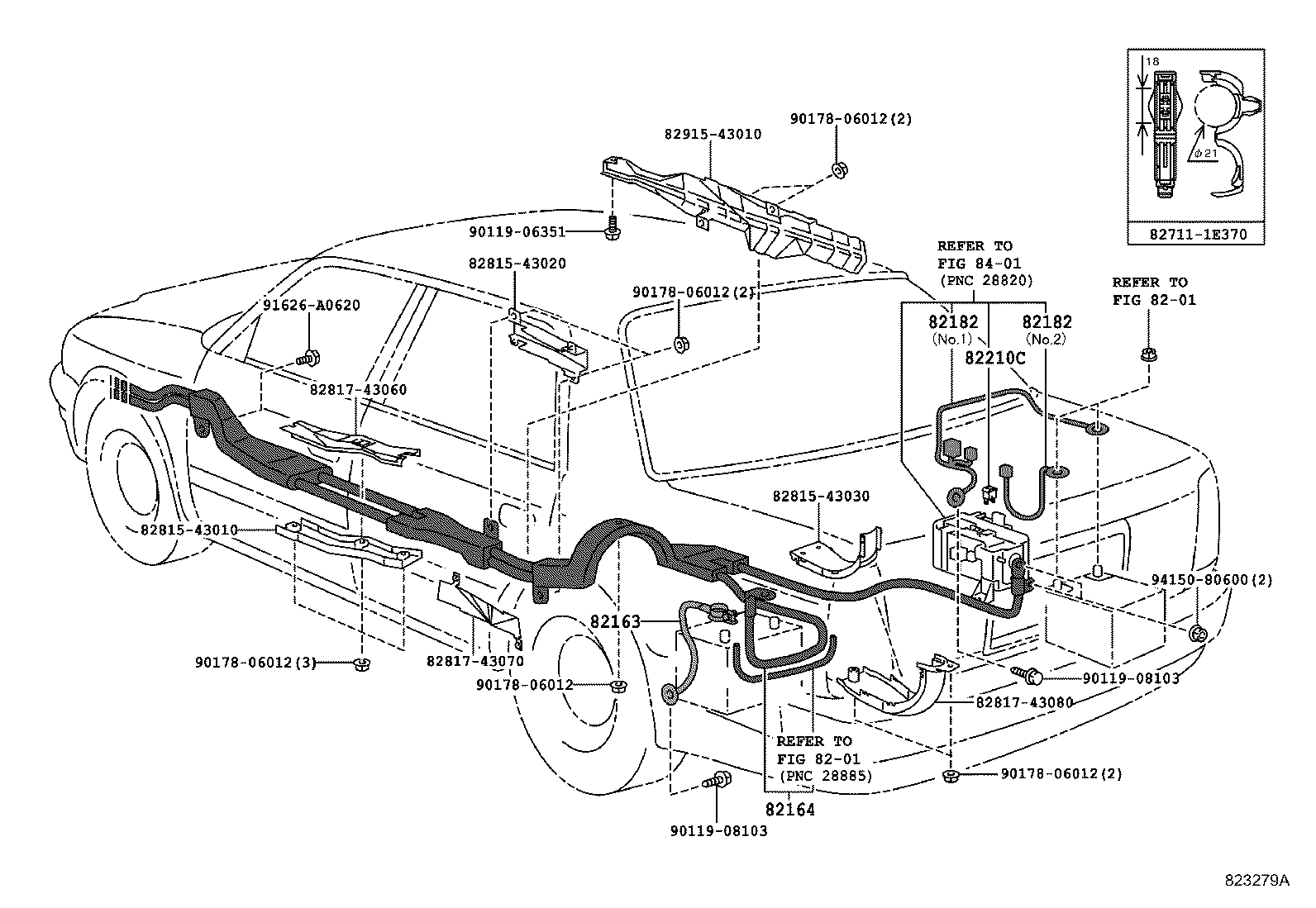

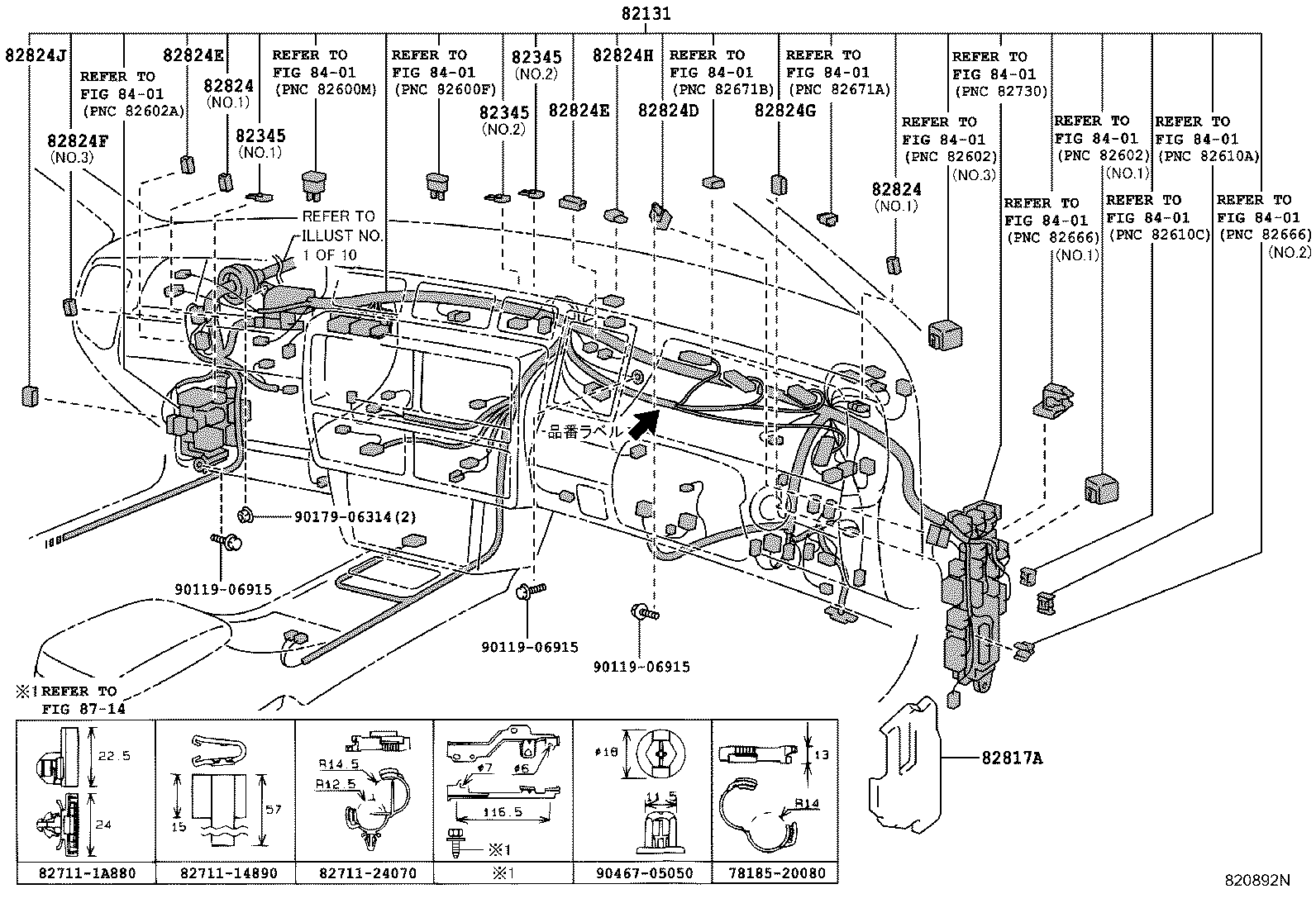

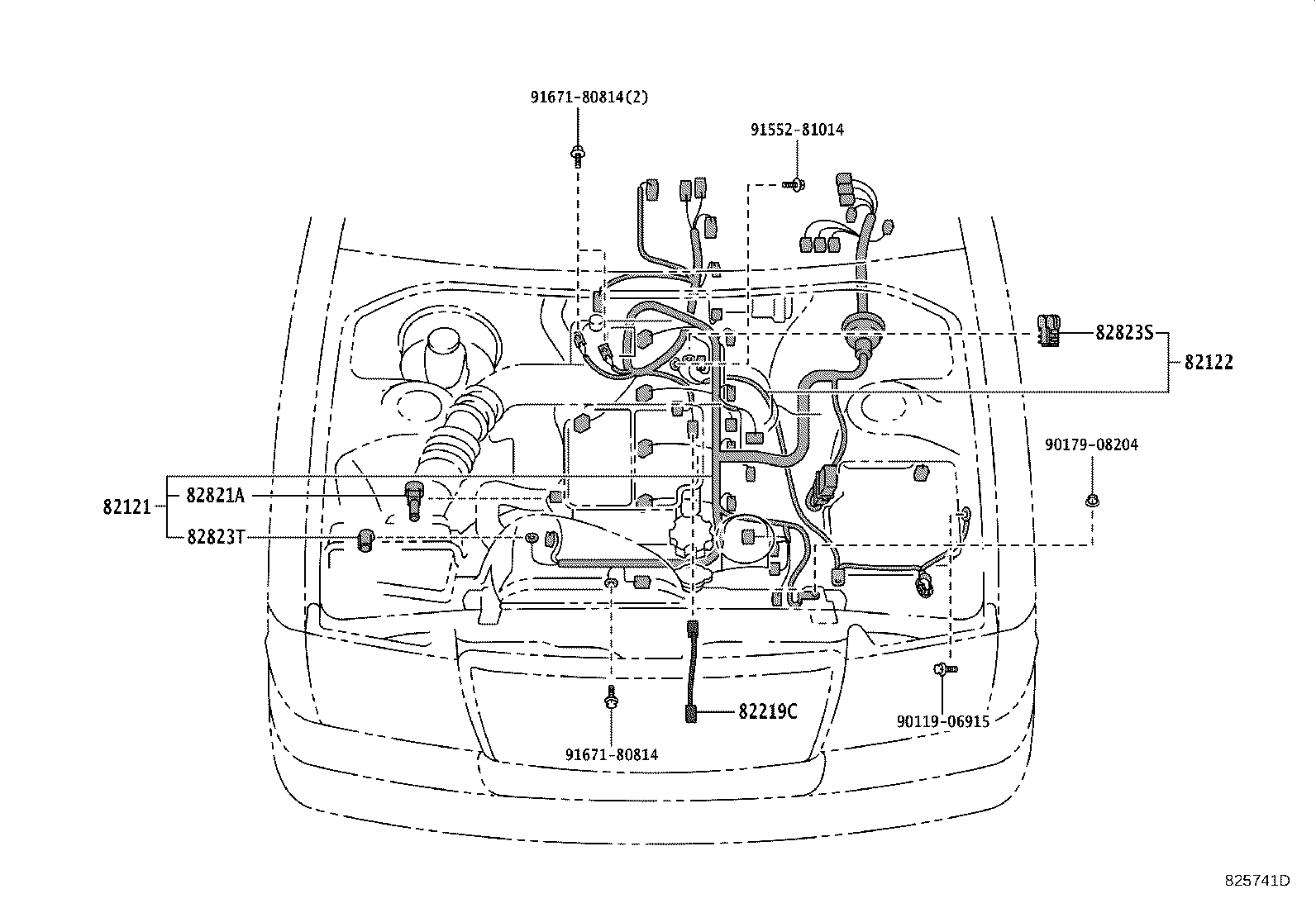

Figure 820891M 820891M 1995-12 → — Figure 823278B 823278B 2002-10 → — Figure 825740E 825740E 2007-09 → — Figure 820887F 820887F 1995-12 → — Figure 820888C 820888C 1995-12 → 1999-08 Figure 820889E 820889E 1995-12 → — Figure 820890C 820890C 1996-04 → 2001-08 Figure 822744F 822744F 2001-08 → — Figure 822745D 822745D 2001-08 → — Figure 823277E 823277E 2002-10 → — Figure 825741D 825741D 2007-09 → — Figure 826113F 826113F 2008-08 → — Figure 820892N 820892N 1995-12 → — Figure 822746C 822746C 1995-12 → — Figure 820893L 820893L 1995-12 → — Figure 823279A 823279A 2002-10 → — Figure 825742E 825742E 2007-09 → — Figure 822747A 822747A 1995-12 → — Figure 822748E 822748E 1996-04 → — Figure 825743A 825743A 2007-09 → — Figure 823280 823280 1995-12 → — Figure 822072E 822072E 1995-12 → —

Part groups

PNCDescription

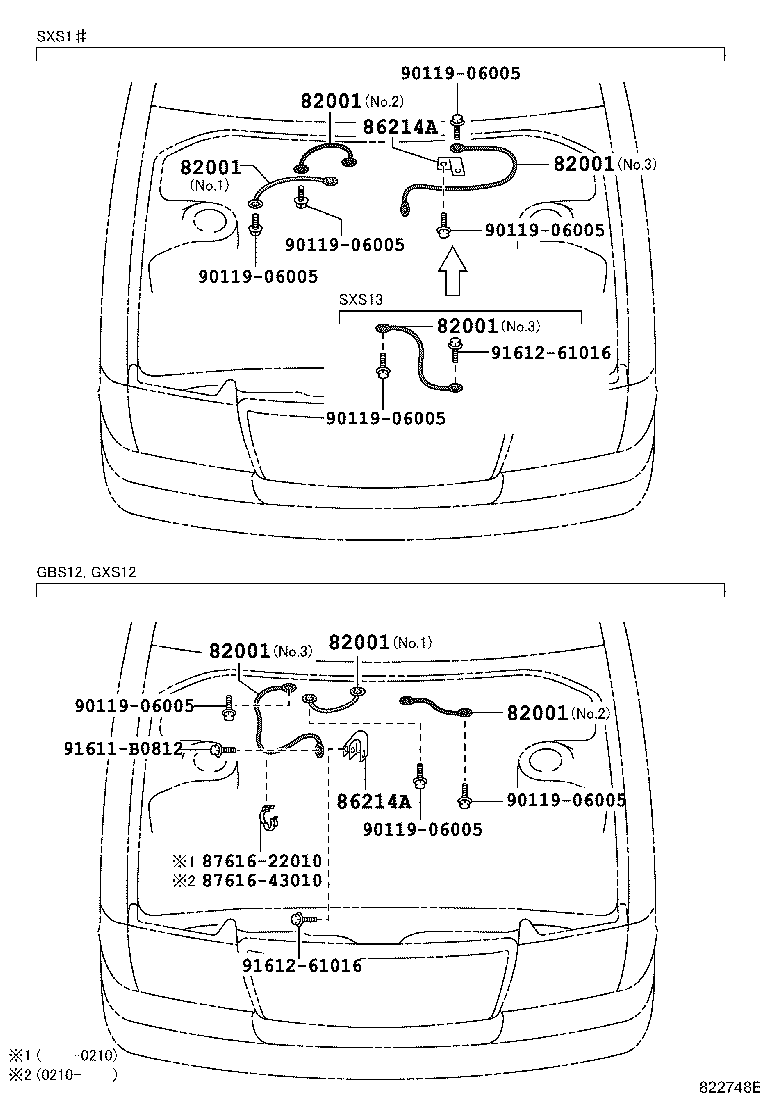

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82112B Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82123A Wire, Engine, NO.3
82124A Wire, Engine, NO.5
82131 Wire, Cowl
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82210C Fusible Link
82210D Fusible Link
82219C Wire, Sensor
82345 Diode
82412 Wire, Fuel Gage
82413A Wire, Fuel Tank
82414A Wire, Fuel Tank, NO.2
82620 Block Assy, Fusible Link
82651 Block, Terminal
82652 Cover, Terminal Block
82666A Holder, Connector NO.2
82671 Block, Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824X Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
86214A Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
