Toyota Crown Comfort/Sed
1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan
Discontinued model
Data version 2018-07
Overdrive & Electronic Controlled Transmission
9 part groups · 3 illustrations

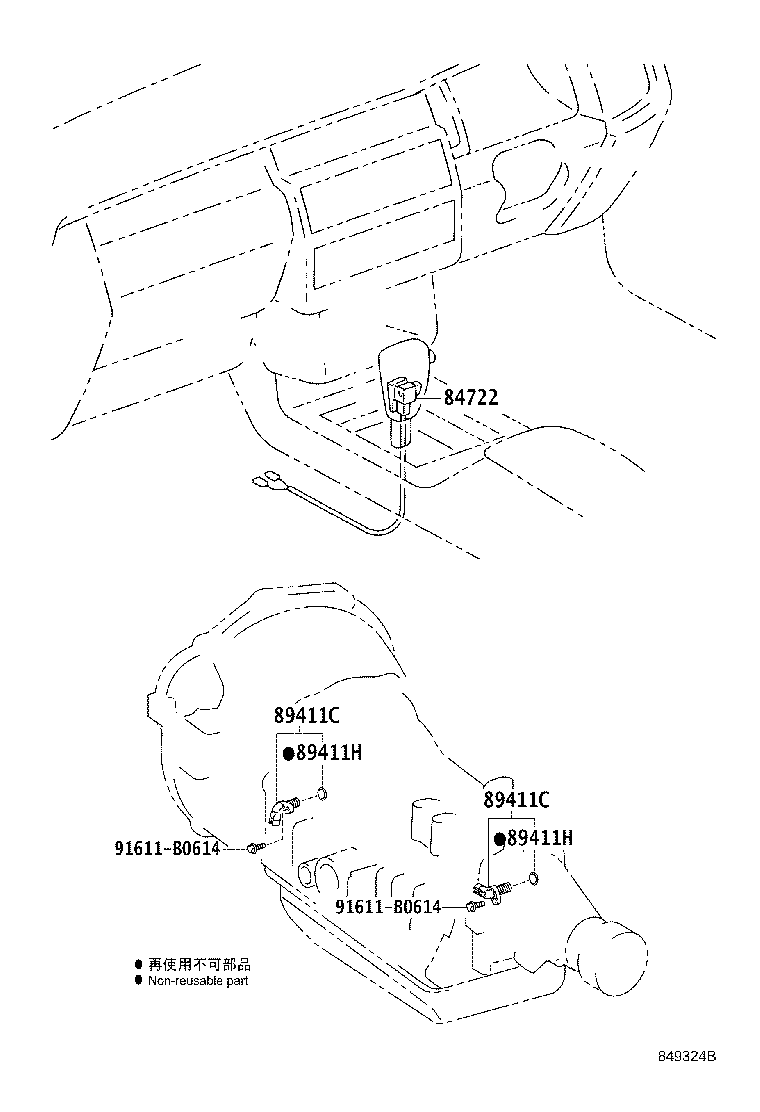

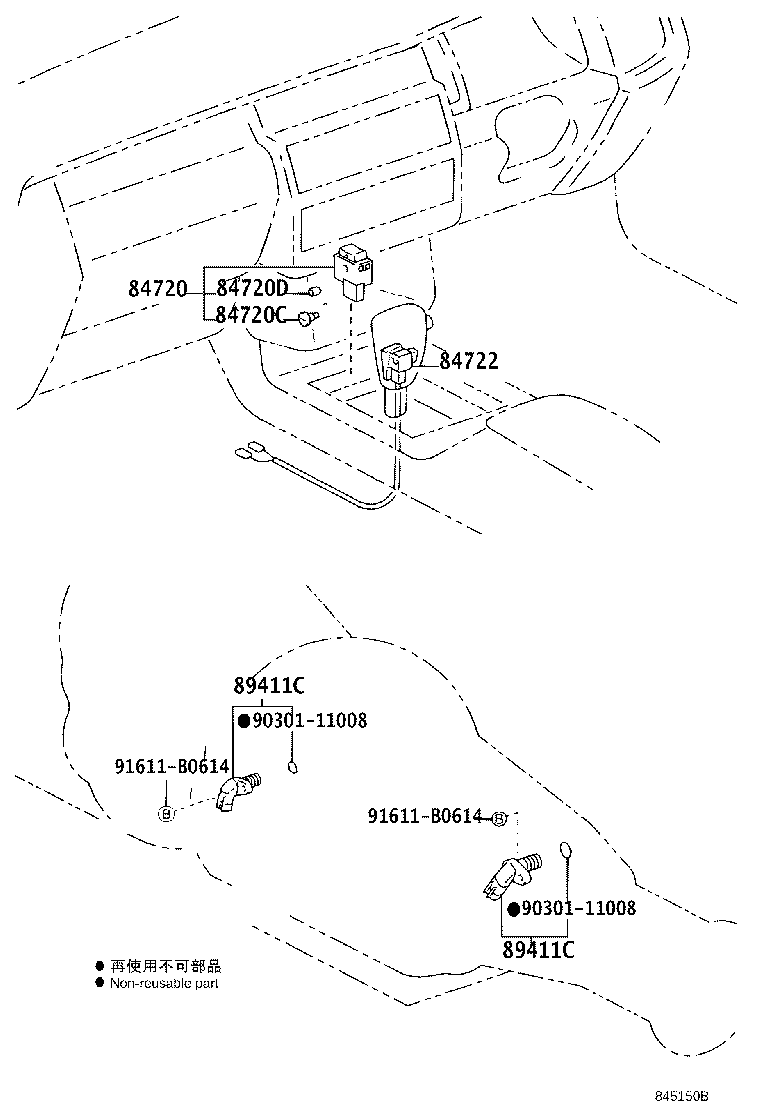

Part groups
| PNC | Description |
|---|---|
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84720D | Cap, Pattern Select Switch |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89411H | Ring, O |
| 89413B | Sensor, Transmission Revolution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
