Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

20 part groups · 2 illustrations

Illustrations

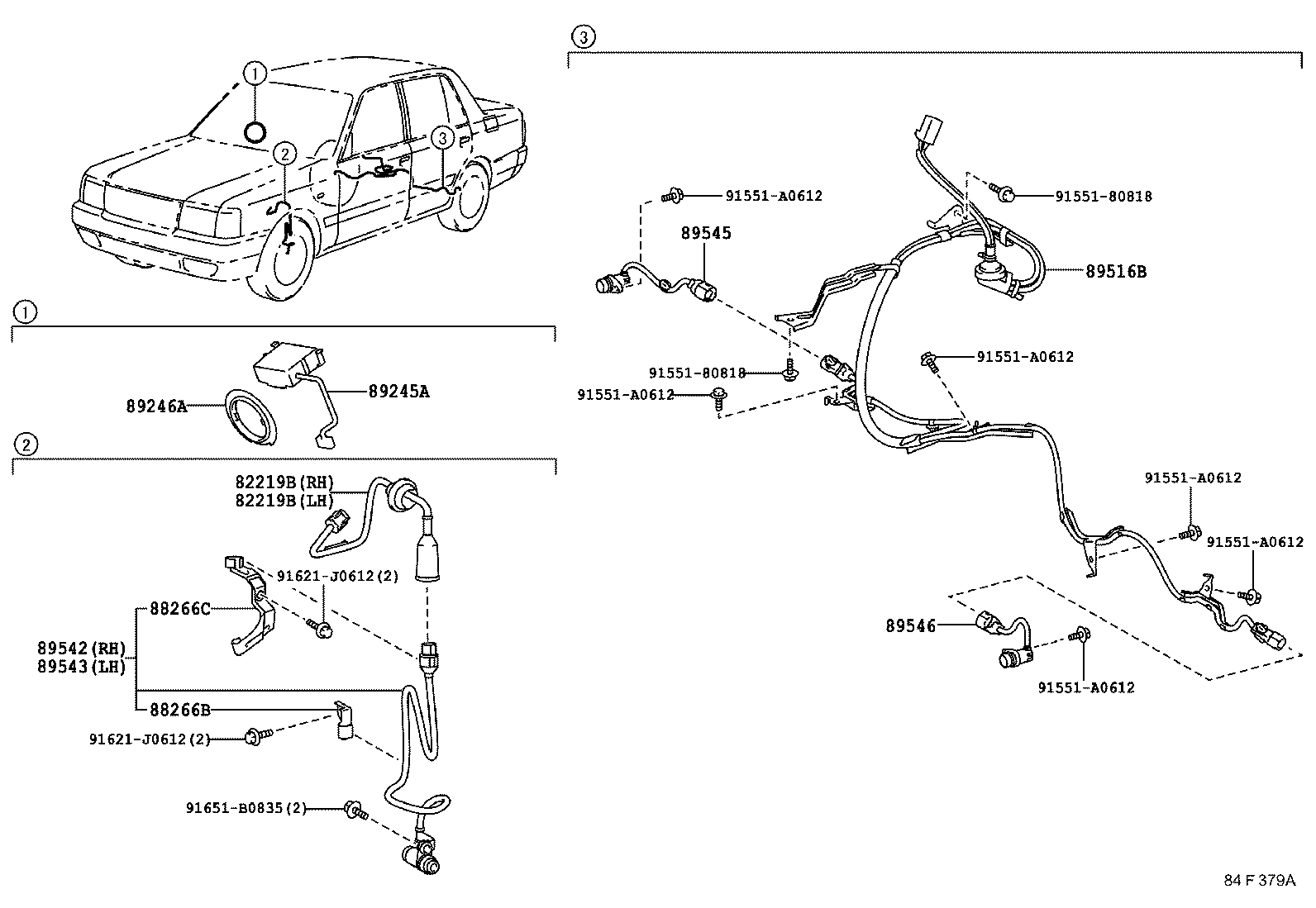

Figure 841208H 841208H 1997-01 → 2013-10 Figure 84F379A 84F379A 2013-10 → —

Part groups

PNCDescription
82219B Wire, Sensor
85999M Bracket, Relay
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88266B Clamp, Skid Control Sensor, NO.1
88266C Clamp, Skid Control Sensor, NO.2
88267 Bracket, Skid Control Computer, NO.1
88268 Bracket, Skid Control Computer, NO.2
89245A Sensor, Steering
89246A Disc, Sensor Steering
89516B Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89541 Computer, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89633A Relay, Traction Control OR Vsc
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
