Toyota Crown Comfort/Sed
1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan
Discontinued model
Data version 2018-07

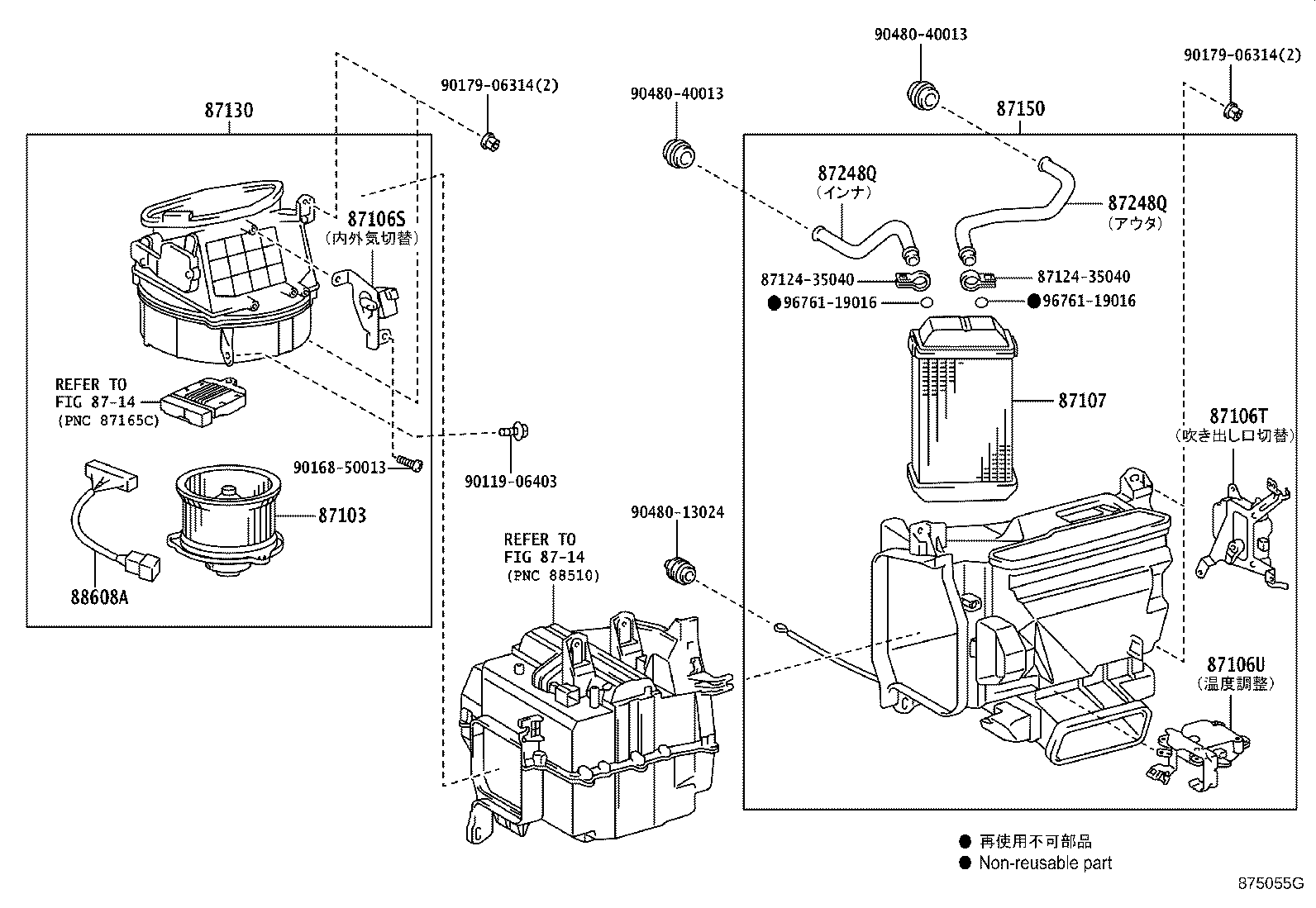

Heating & Air Conditioning - Heater Unit & Blower
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106S | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87106T | Servo Sub-assy, Damper(FOR MODE) |
| 87106U | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87201D | Duct Sub-assy, Air |
| 87248Q | Pipe, Front Heater Radiator Water |
| 88608A | Harness Sub-assy, Wiring Air Conditioner, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
