Toyota Crown Comfort/Sed

1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

19 part groups · 9 illustrations

Illustrations

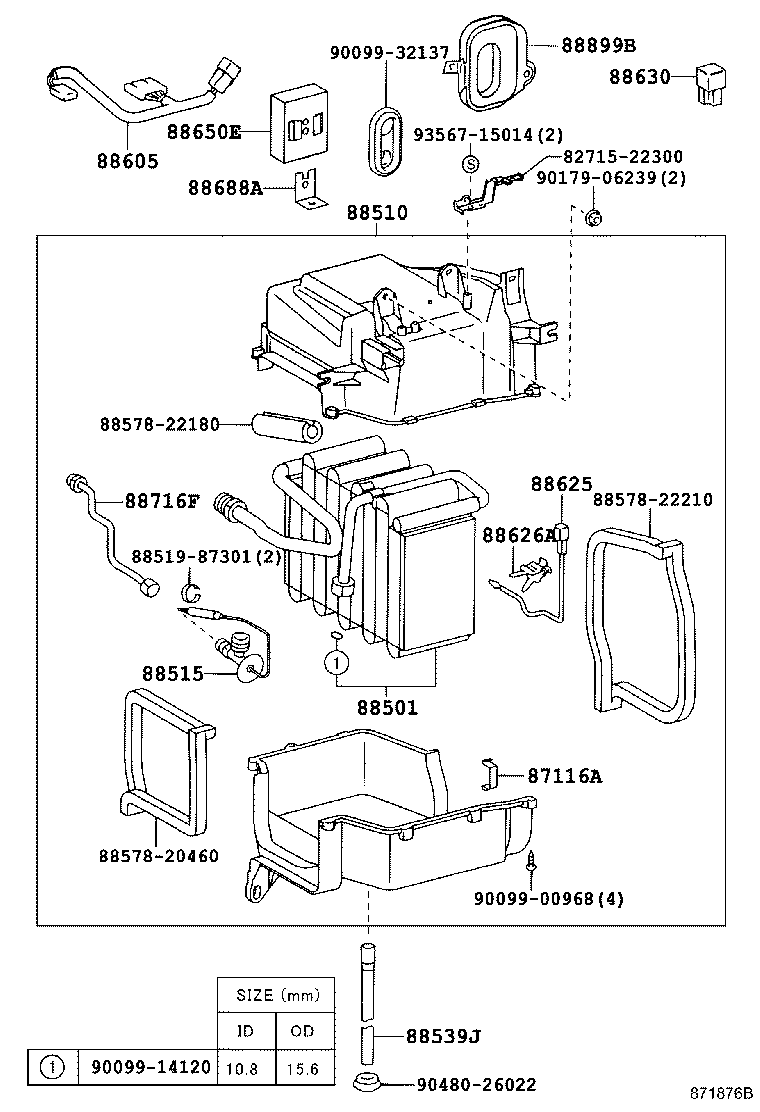

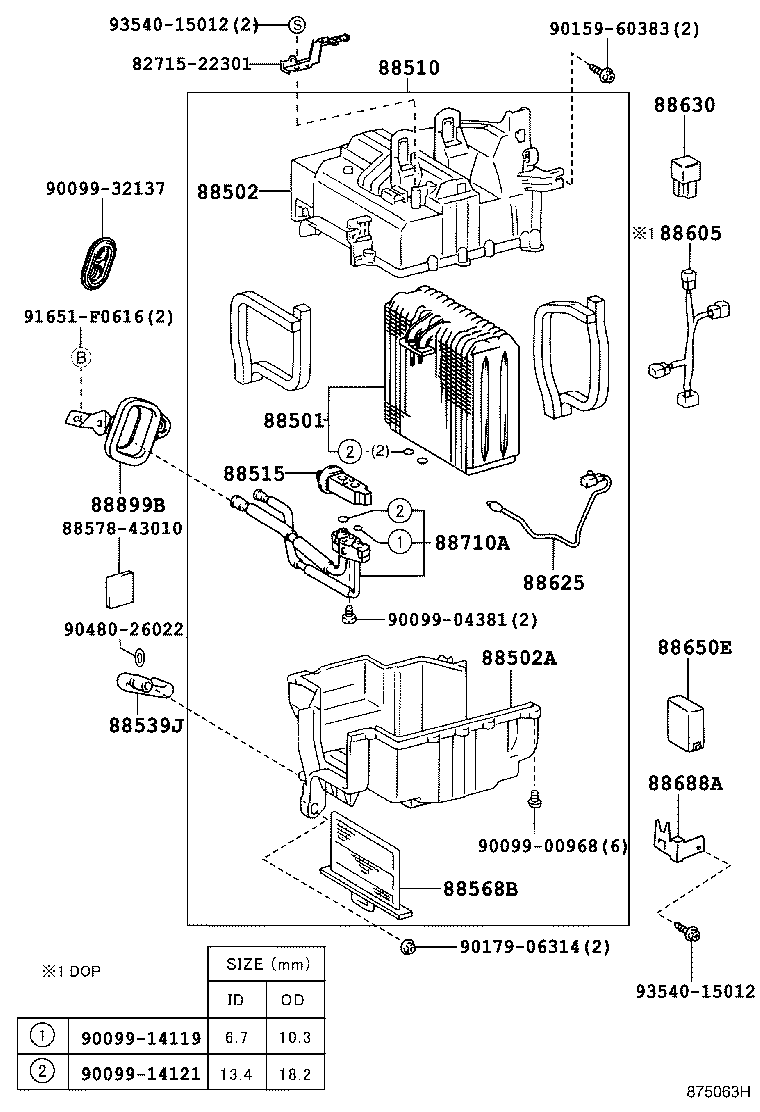

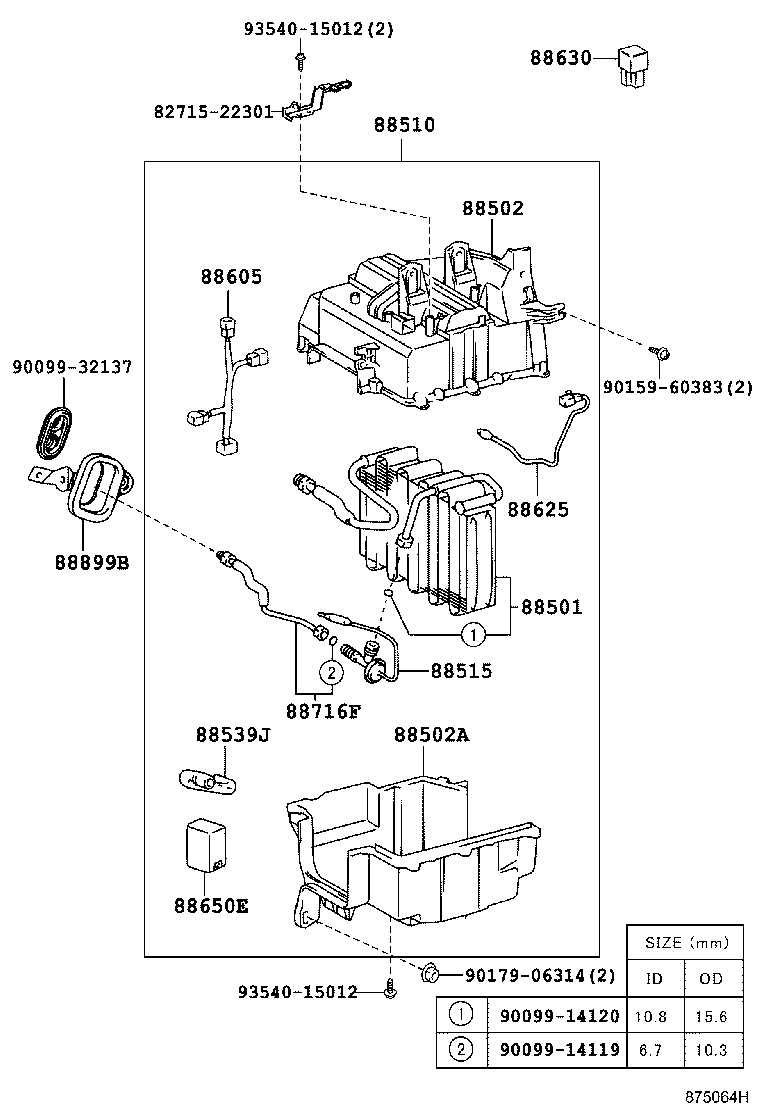

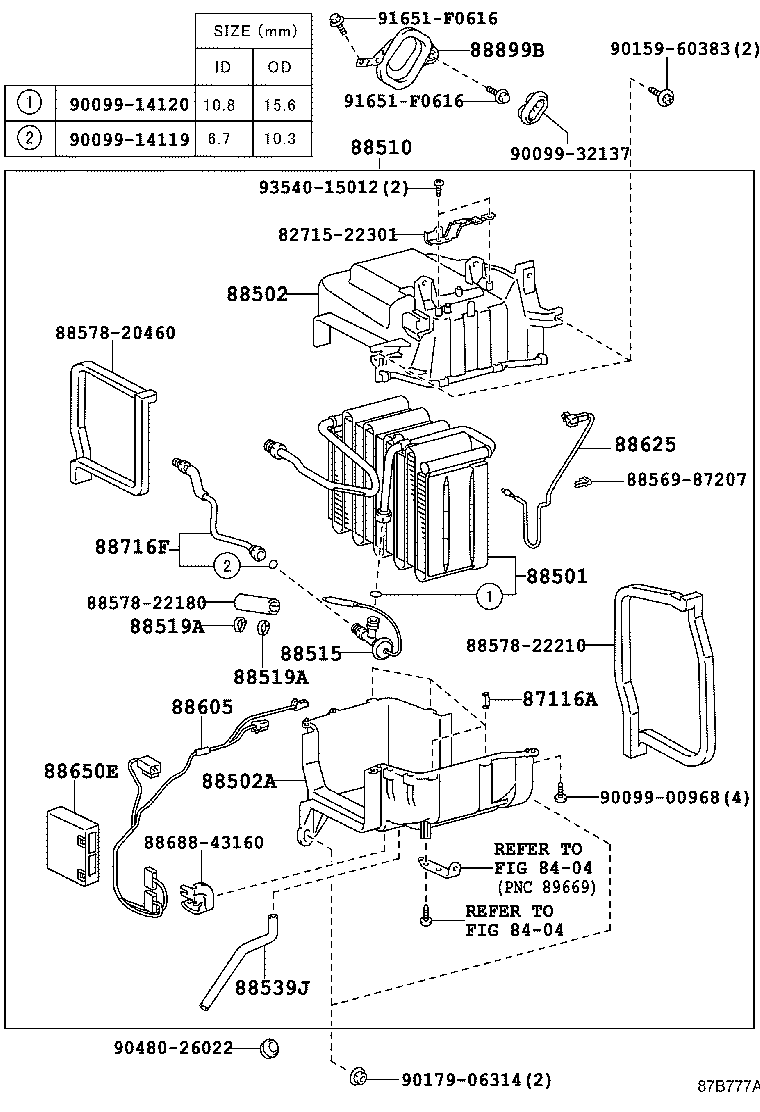

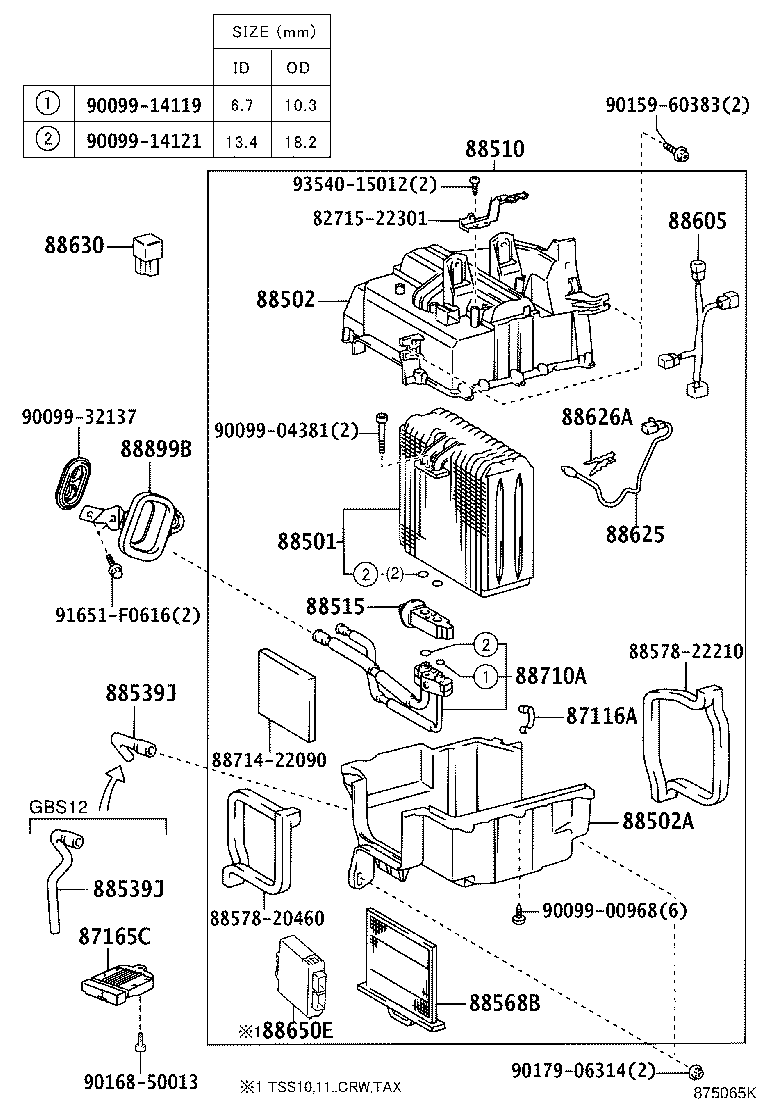

Figure 871654F 871654F 1995-12 → 2001-08 Figure 871876B 871876B 1996-04 → 2001-08 Figure 875063H 875063H 2001-08 → — Figure 875064H 875064H 2001-08 → — Figure 875064H 875064H 2007-09 → — Figure 875064H 875064H 2008-08 → — Figure 875065K 875065K 2001-08 → — Figure 875065K 875065K 2008-08 → — Figure 87B777A 87B777A 2009-08 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88519A Holder, Remote Bulb, Parts
88539J Hose, Drain Cooler
88568B Filter, Air
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88650E Amplifier Assy, Air Conditioner, NO.1
88688A Bracket, Cooler Stabilizer Amplifier
88710A Tube Assy, Air Conditioner
88716F Pipe, Cooler Refrigerant Liquid, F
88899B Cover, Cooler Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
