Heating & Air Conditioning - Water Piping

14 part groups · 8 illustrations

Illustrations

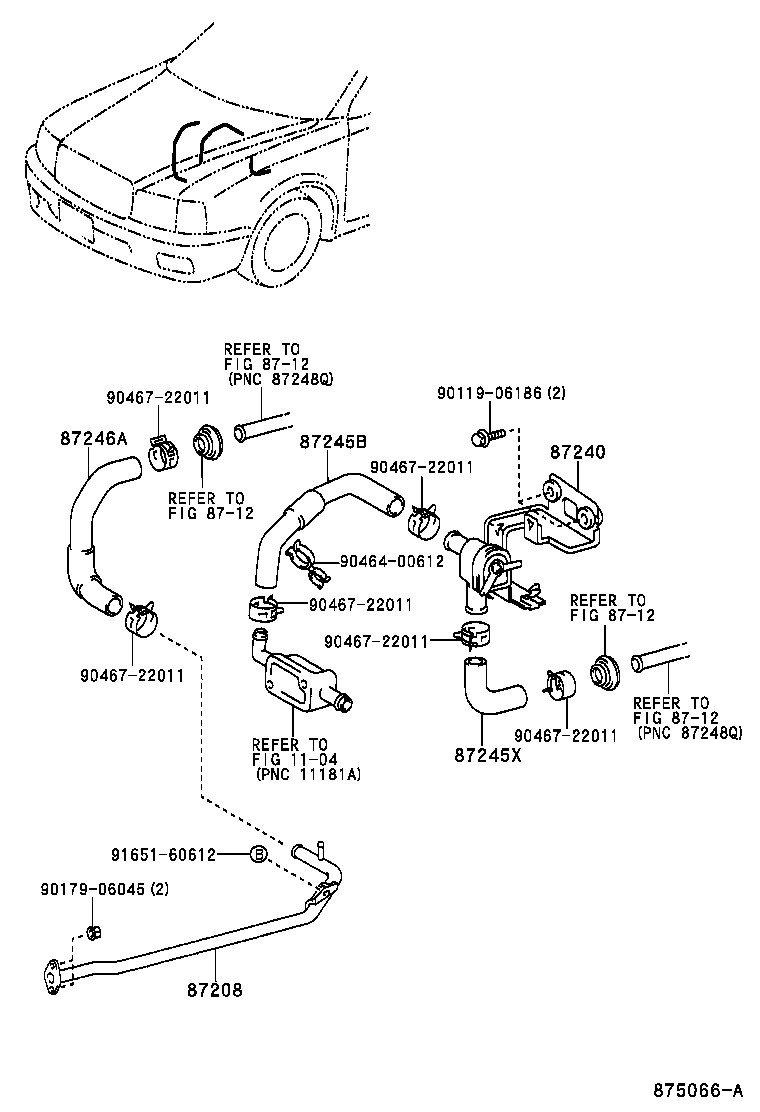

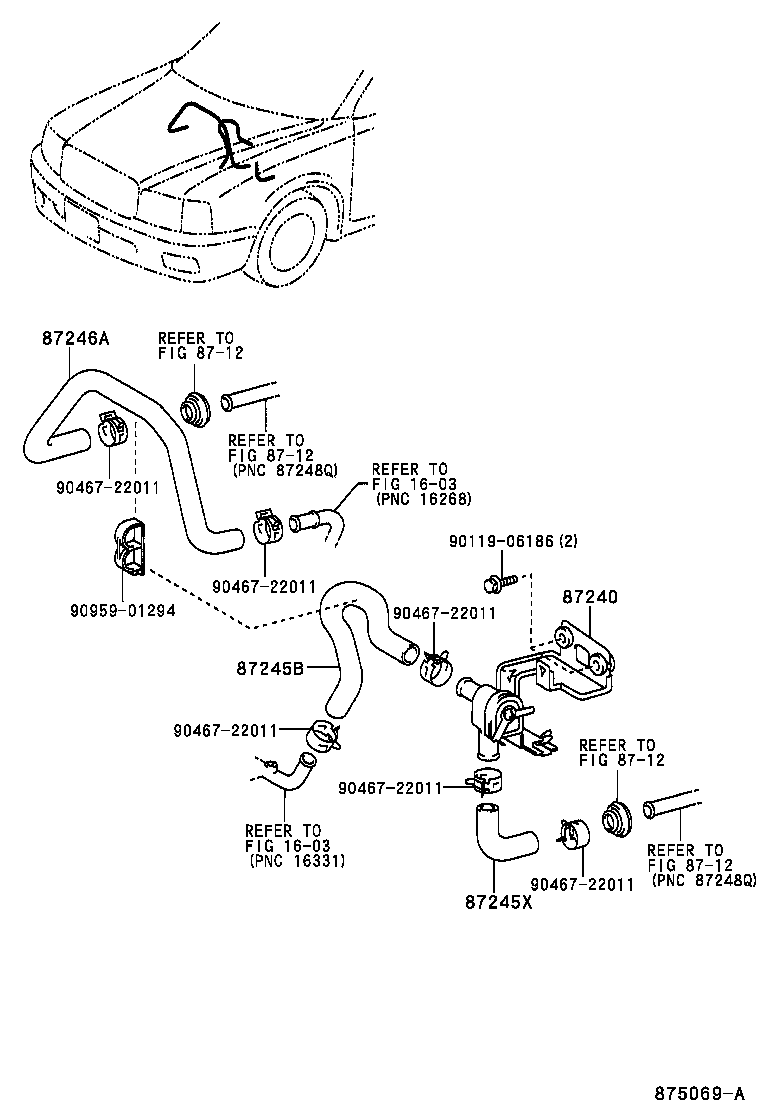

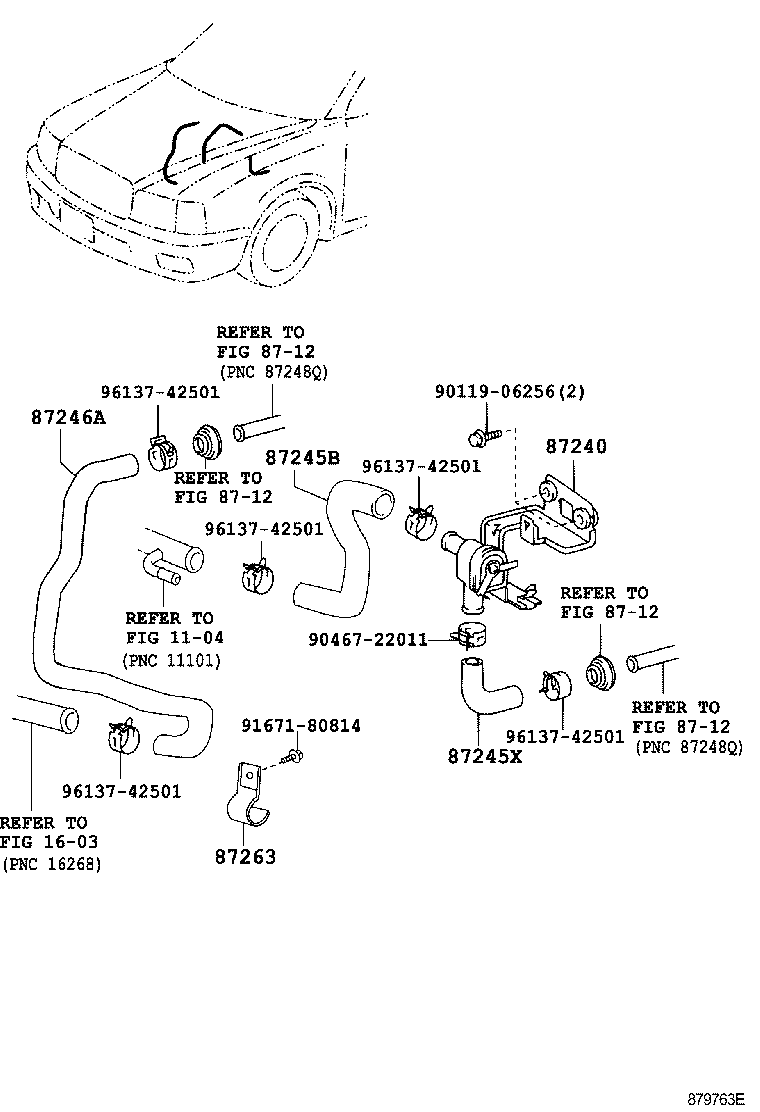

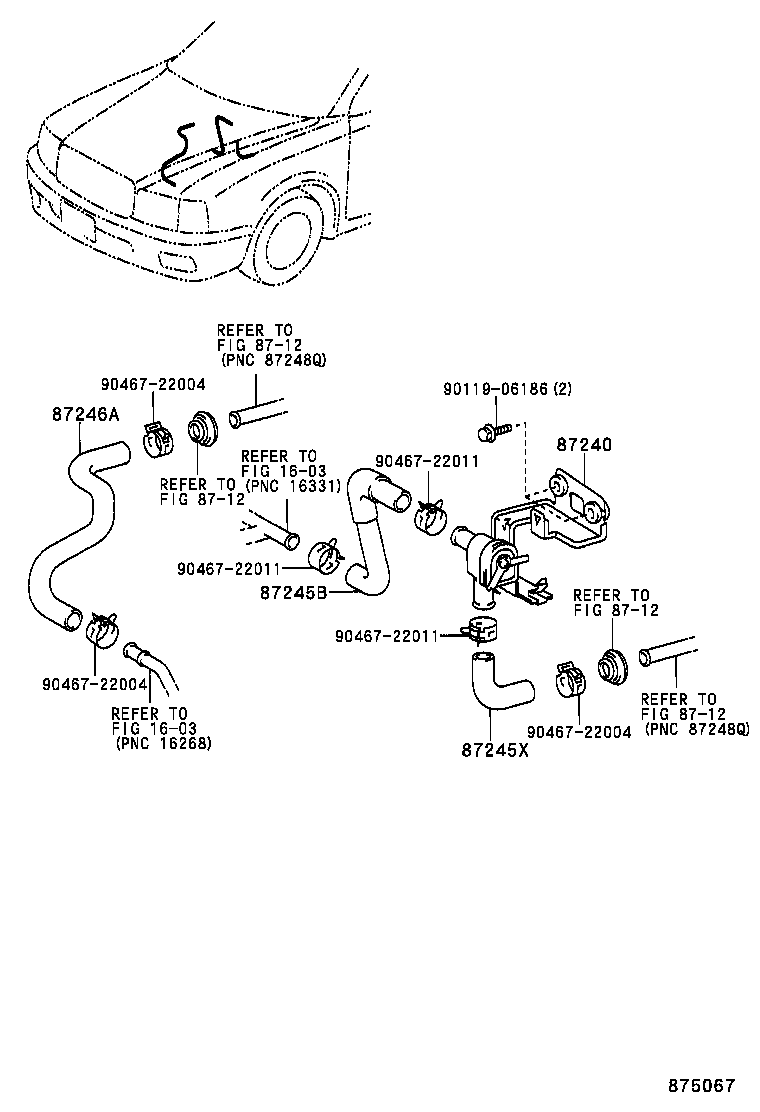

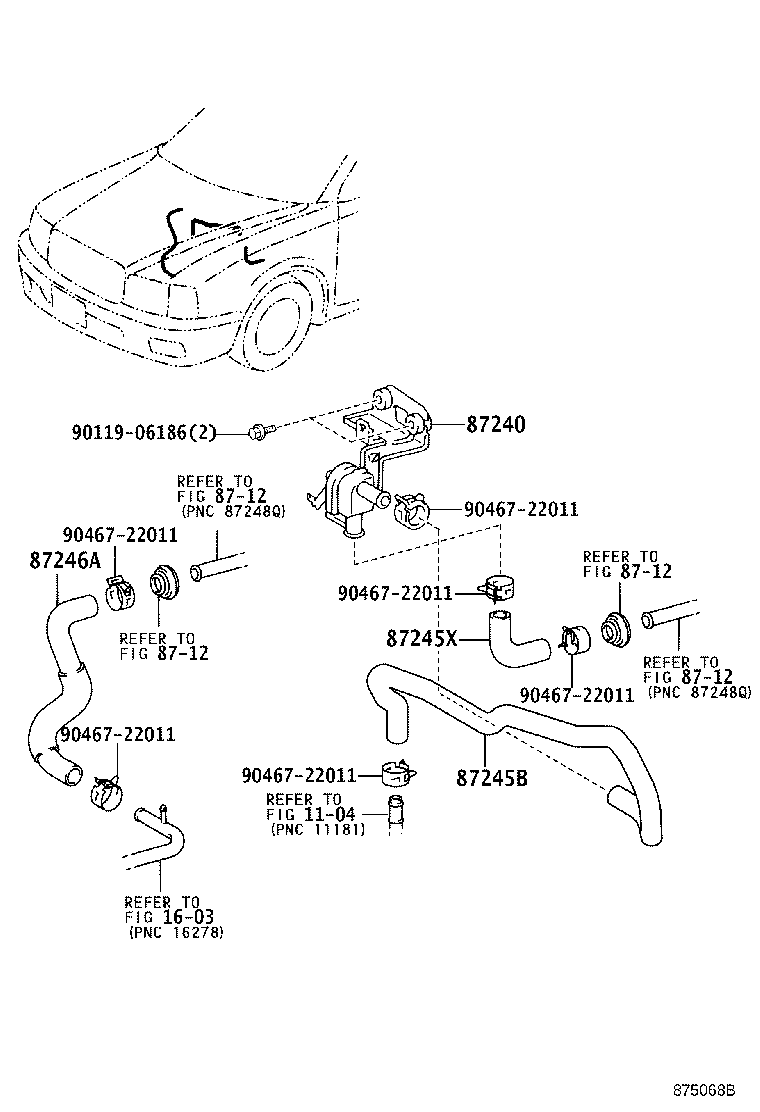

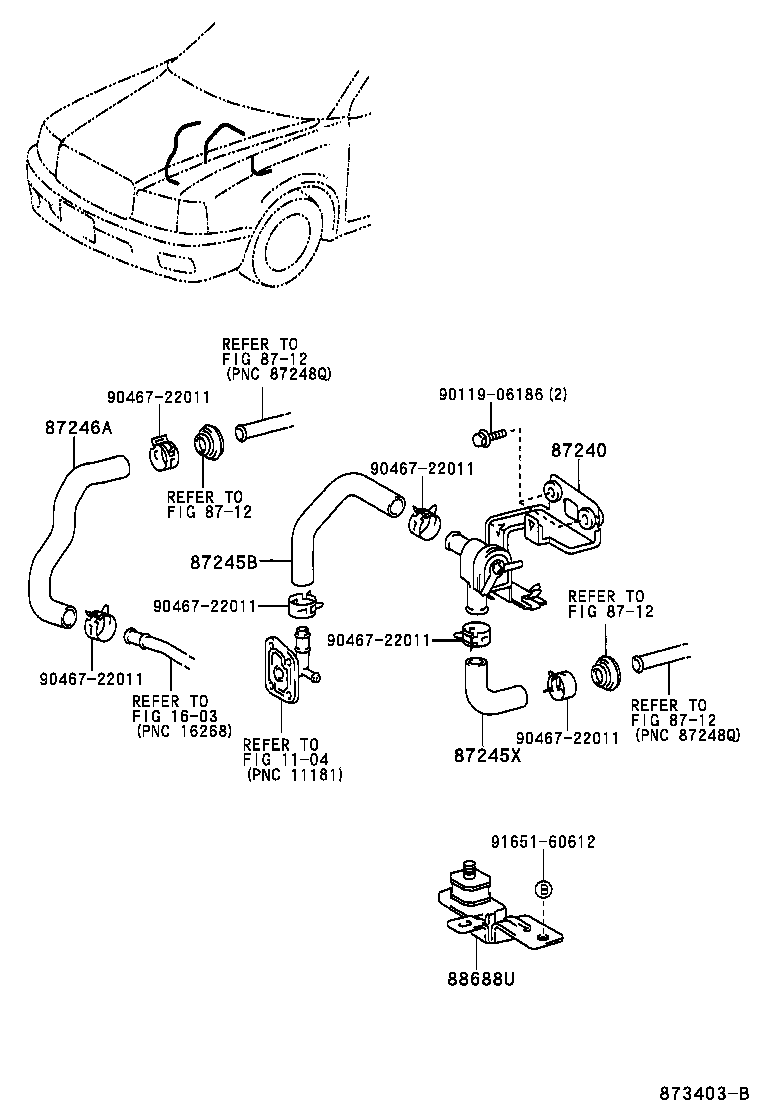

Figure 871643C 871643C 1995-12 → 1999-08 Figure 875067 875067 1996-04 → 2001-08 Figure 875066A 875066A 1995-12 → — Figure 873403B 873403B 1995-12 → — Figure 875068B 875068B 2001-08 → — Figure 875068B 875068B 2002-10 → — Figure 875069A 875069A 2001-08 → — Figure 879763E 879763E 2007-09 → —

Part groups

PNCDescription
87124 Clamp, Heater
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87240 Valve Assy, Heater Water
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87263 Bracket, Heater Water Pipe, NO.1
88688U Bracket (FOR HEATER WATER VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
