Toyota Crown Comfort/Sed
1995-12 → 2018-01 · chassis GXS1#,LXS11,SXS1#,YXS1#,GBS12,TSS1# · catalogue 333110 · Japan
Discontinued model
Data version 2018-07
Air Purifier OR Ion Generator
12 part groups · 3 illustrations
Part groups

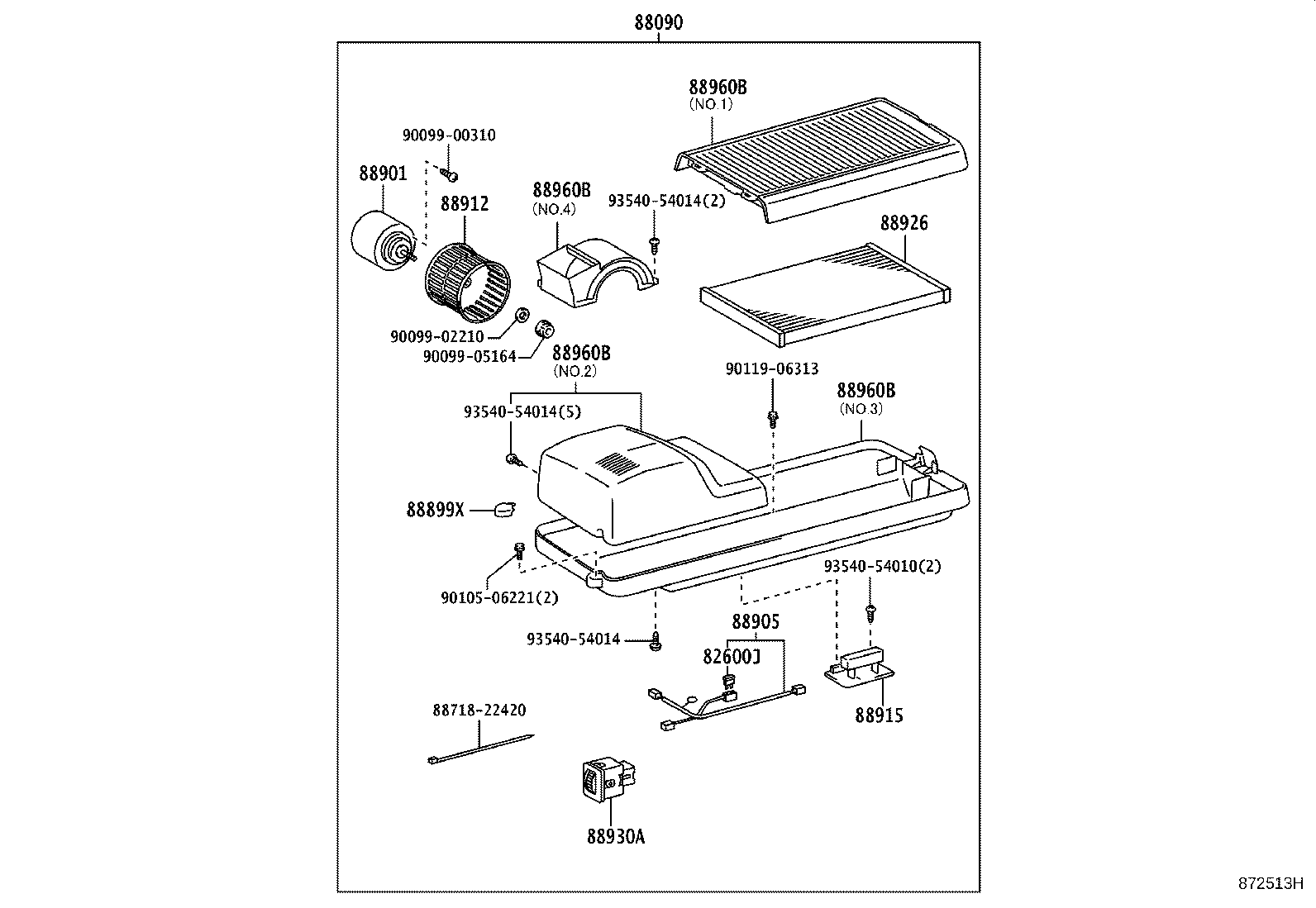

| PNC | Description |
|---|---|
| 82600J | Fuse, Air Purifier |
| 88051A | Generator Sub-assy,Ion |
| 88090 | Air Purifier & Accessory Assy |
| 88899X | Plate, Air Purifier Cover |
| 88901 | Motor Sub-assy, Air Purifier |
| 88905 | Wire Sub-assy, Air Purifier, NO.1 |
| 88912 | Fan, Air Purifier |
| 88915 | Resistor, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88930A | Switch Assy, Air Purifier |
| 88960B | Resistor Assy, Air Purifire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
