Toyota Jpn Taxi

2017-10 → present · chassis NTP10 · catalogue 333120 · Japan

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 2 illustrations

Illustrations

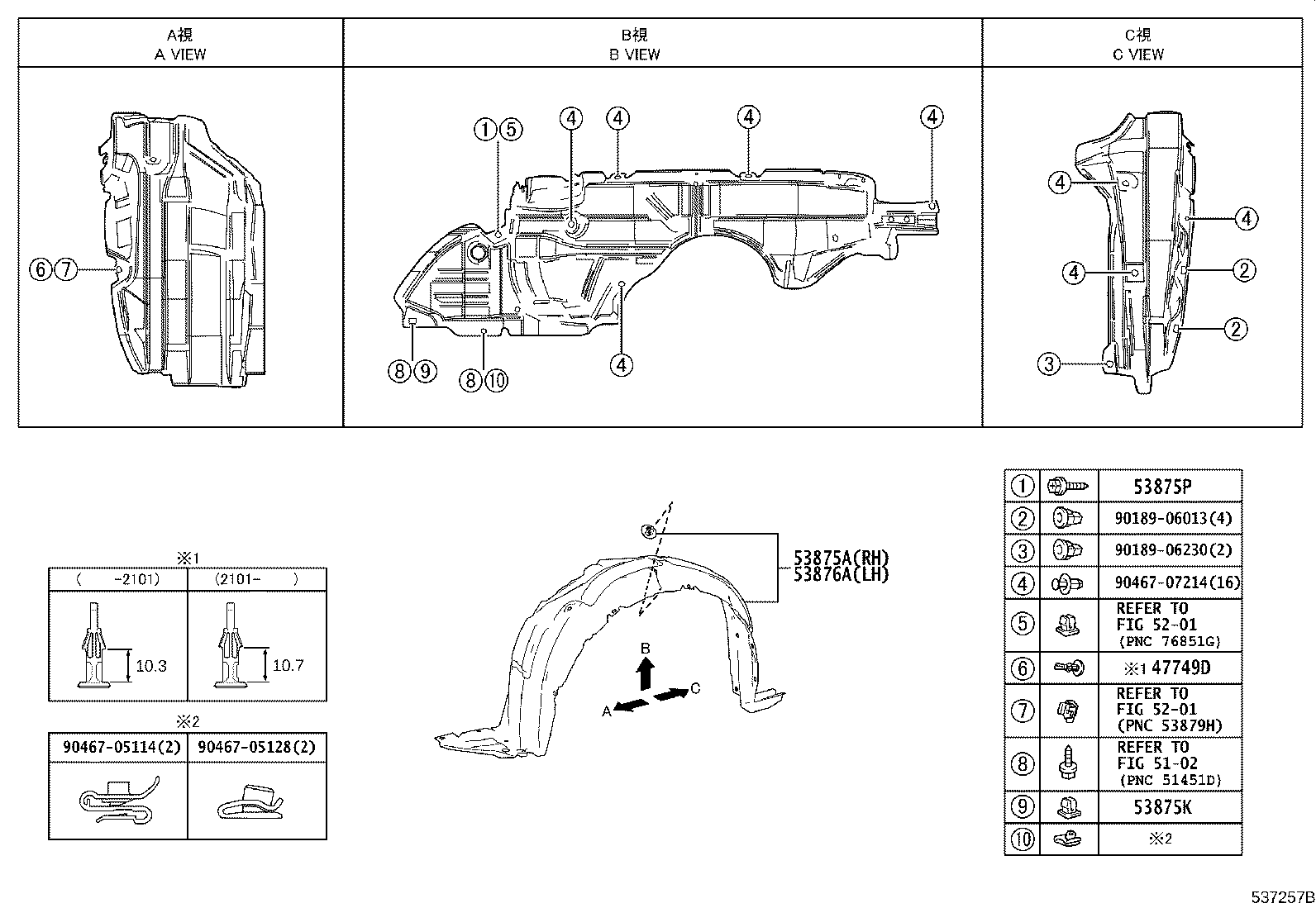

Figure 537256 537256 2017-10 → — Figure 537257B 537257B 2017-10 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53301 Hood Sub-assy
53336A Bracket, Hood Stay
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875K Grommet, Screw
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
