Toyota Jpn Taxi
2017-10 → present · chassis NTP10 · catalogue 333120 · Japan
Supported model
Data version 2019-01

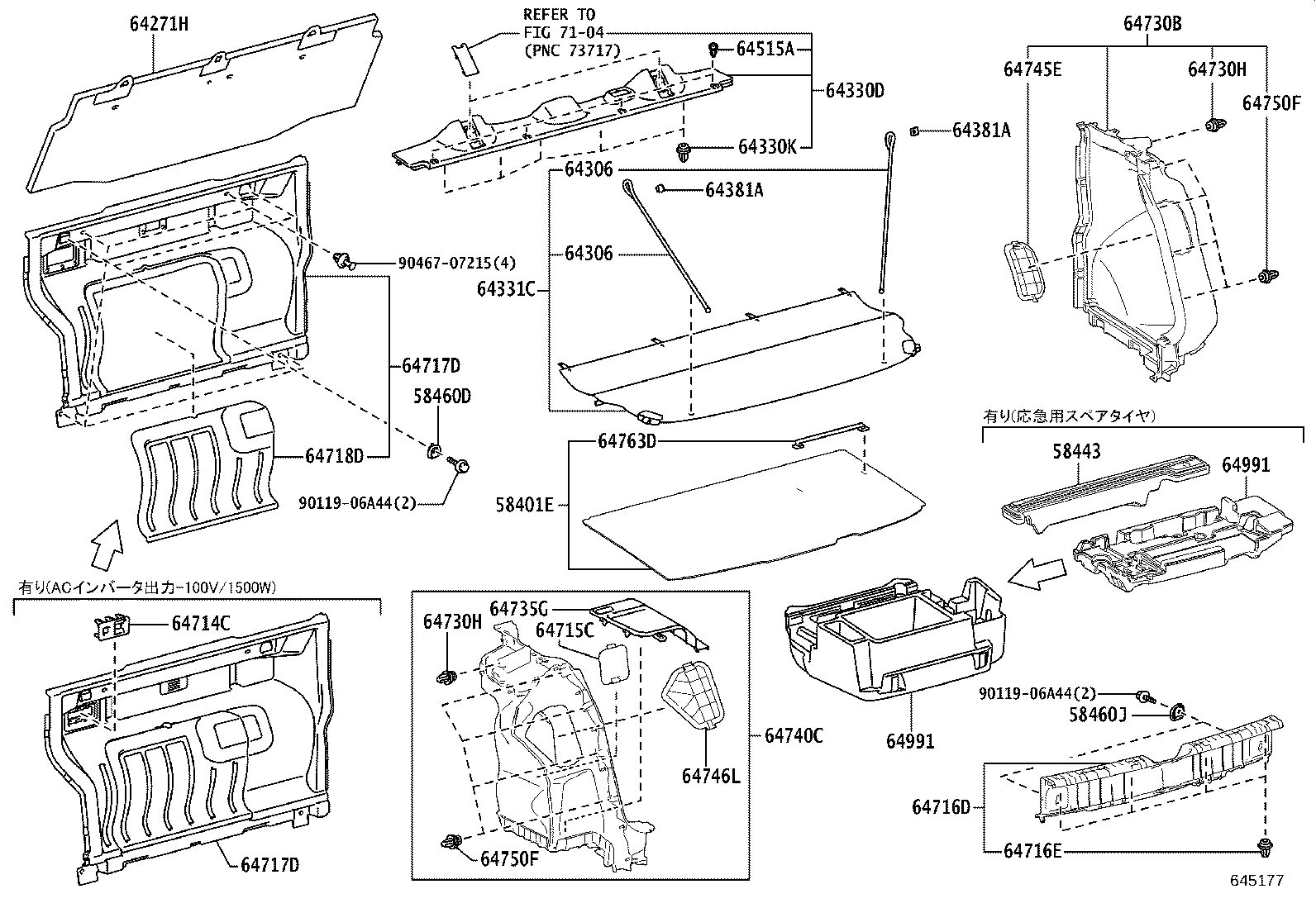

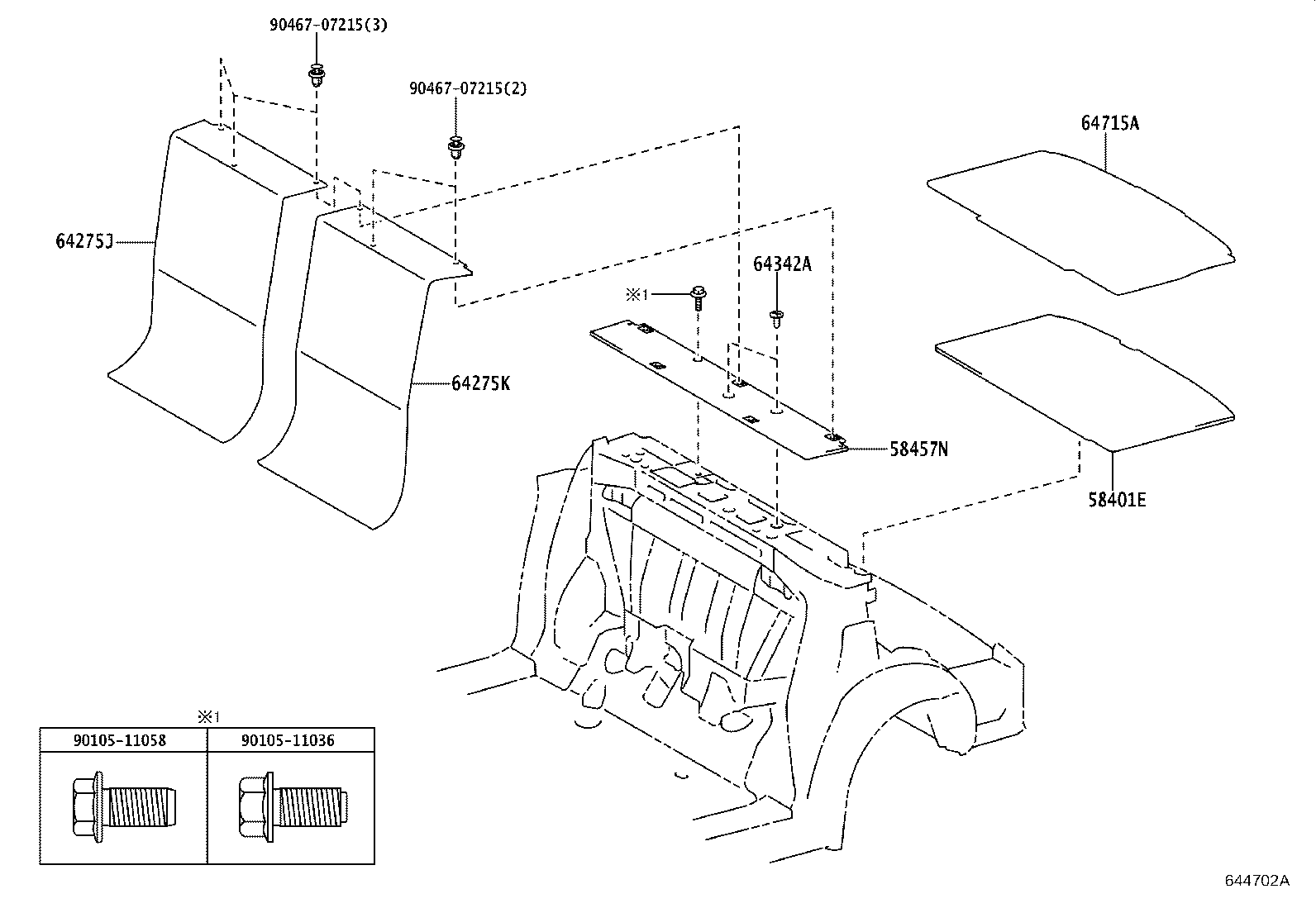

Deck Board & Deck Trim Cover
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401E | Board Sub-assy, Deck |
| 58443 | Cushion, Deck Board, NO.1 |
| 58457N | Panel, Rear Floor Board, NO.3 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58460J | Striker Assy, Luggage Hold Belt |
| 64271H | Trim, Room Partition |
| 64275J | Cover, Room Partition, NO.1 |
| 64275K | Cover, Room Partition, NO.2 |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64330K | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64331C | Board, Package Tray Trim |
| 64342A | Clip |
| 64381A | Hanger, Package Tray Trim |
| 64515A | Holder, Luggage Compartment Door Hook |
| 64714C | Cover, Deck Side Trim, RH |
| 64715A | Carpet, Deck Trim |
| 64715C | Cover, Deck Side Trim, LH |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64717D | Cover, Package Tray Trim, Front |
| 64718D | Cover, Deck Trim Service Hole |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64735G | Cover, Deck Trim Side Service Hole, LH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745E | Cover, Rear Combination Lamp Service |
| 64746L | Cover, Rear Combination Lamp Service, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64763D | Stopper, Tool Cover |
| 64991 | Box, Deck Floor, Front |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 75277 | Band, Tool, NO.1 |
| 75277A | Band, Tool, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
