Toyota Jpn Taxi
2017-10 → present · chassis NTP10 · catalogue 333120 · Japan
Supported model
Data version 2019-01

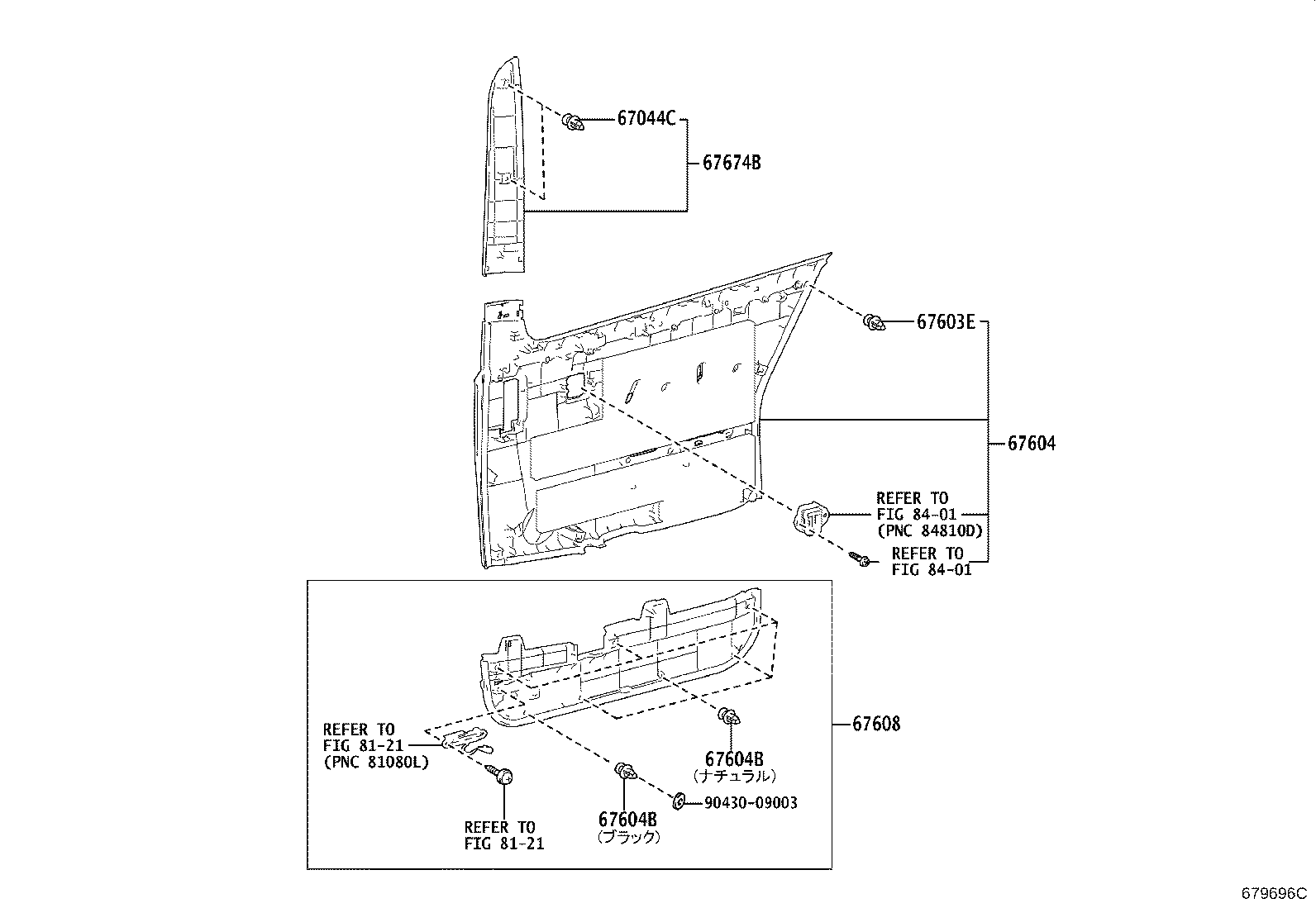

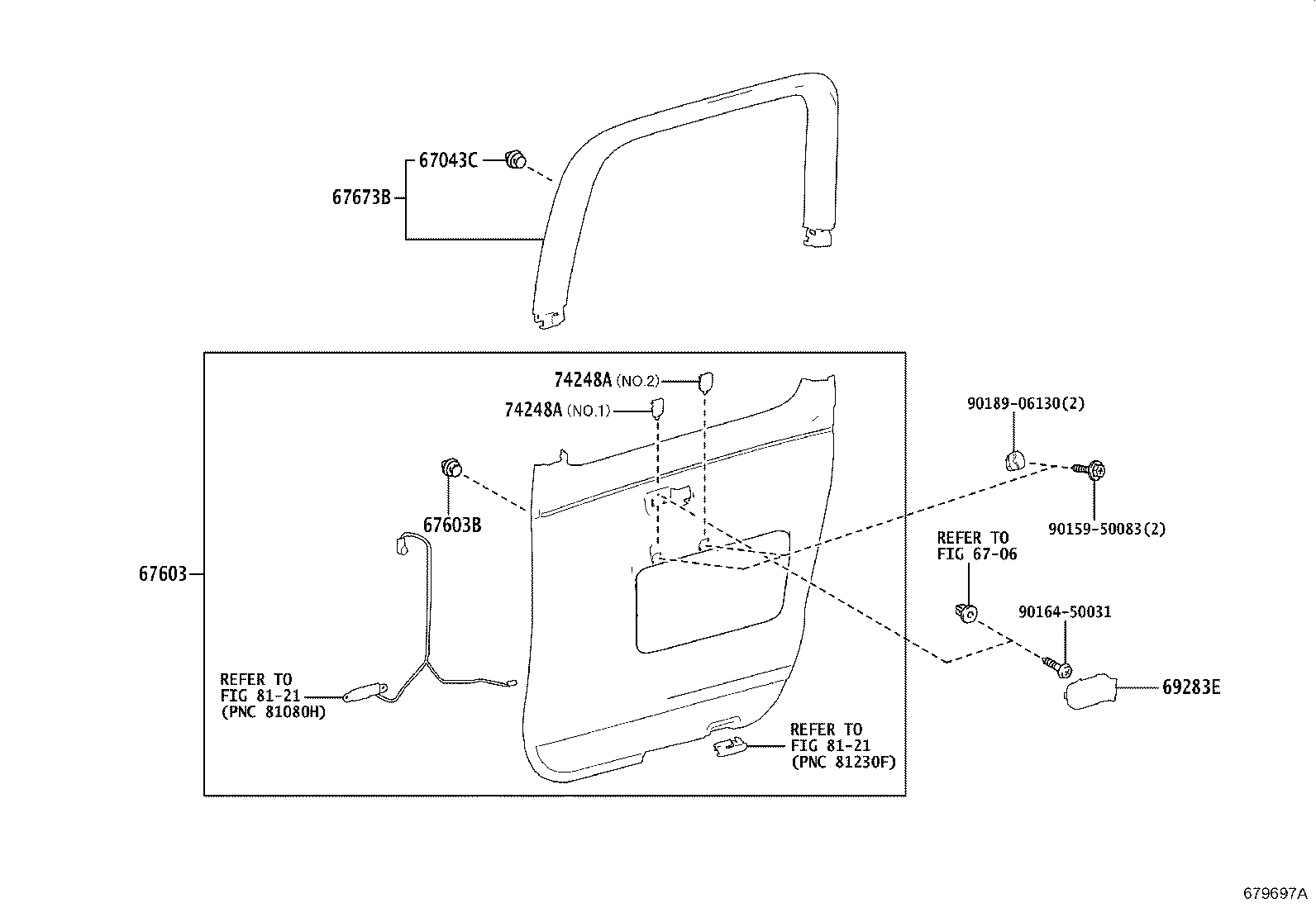

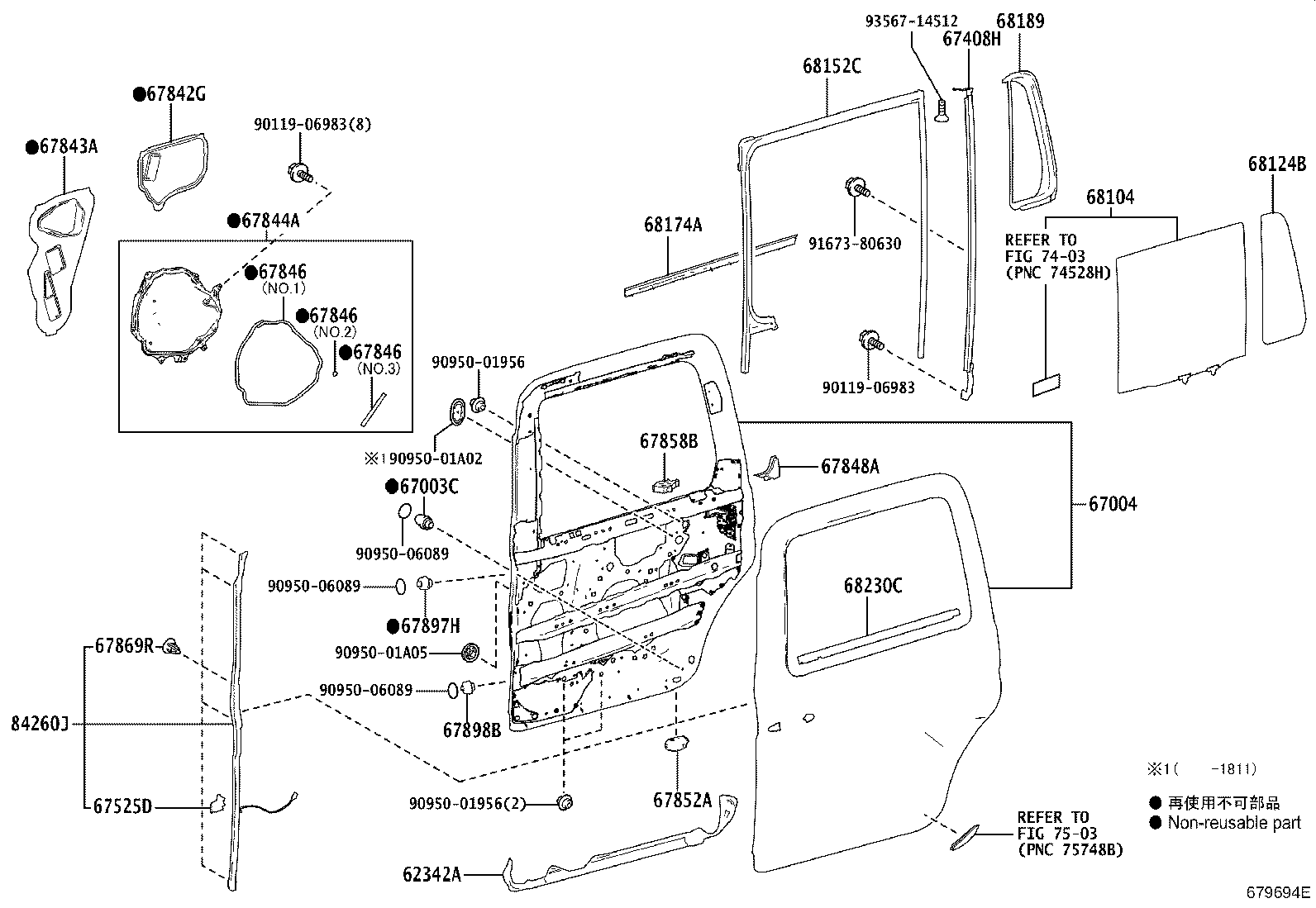

Rear Door Panel & Glass
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62267B | Dam, Side Window Adhesive |
| 62342A | Weatherstrip, Slide Door, LH |
| 62367B | Clip, Door Window Glass, Rear RH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67043C | Clip, Rear Door Window Frame, RH |
| 67044C | Clip, Rear Door Window Frame, LH |
| 67408H | Bar Sub-assy, Slide Door Window Division, LH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604B | Clip(FOR SLIDE DOOR TRIM BOARD) |
| 67608 | Board Sub-assy, Slide Door Trim, LH |
| 67673B | Garnish, Rear Door Frame, RH |
| 67674B | Garnish, Rear Door Frame, LH |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842G | Cover, Slide Door Service Hole, LH |
| 67843A | Cover, Rear Door Service Hole, NO.2 |
| 67844A | Cover, Rear Door Service Hole, NO.2 LH |
| 67846 | Seal, Rear Door Service Hole |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67869R | Clip(FOR POWER SLIDE DOOR SENSOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67897H | Cushion, Rear Door |
| 67898B | Cushion, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68152C | Run, Rear Door Glass, LH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 68630 | Check Assy, Rear Door |
| 69283E | Plug, Rear Door Inside Handle Bezel, RH |
| 74248A | Plug, Rear Door Armrest, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
