Toyota Jpn Taxi

2017-10 → present · chassis NTP10 · catalogue 333120 · Japan

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

25 part groups · 3 illustrations

Illustrations

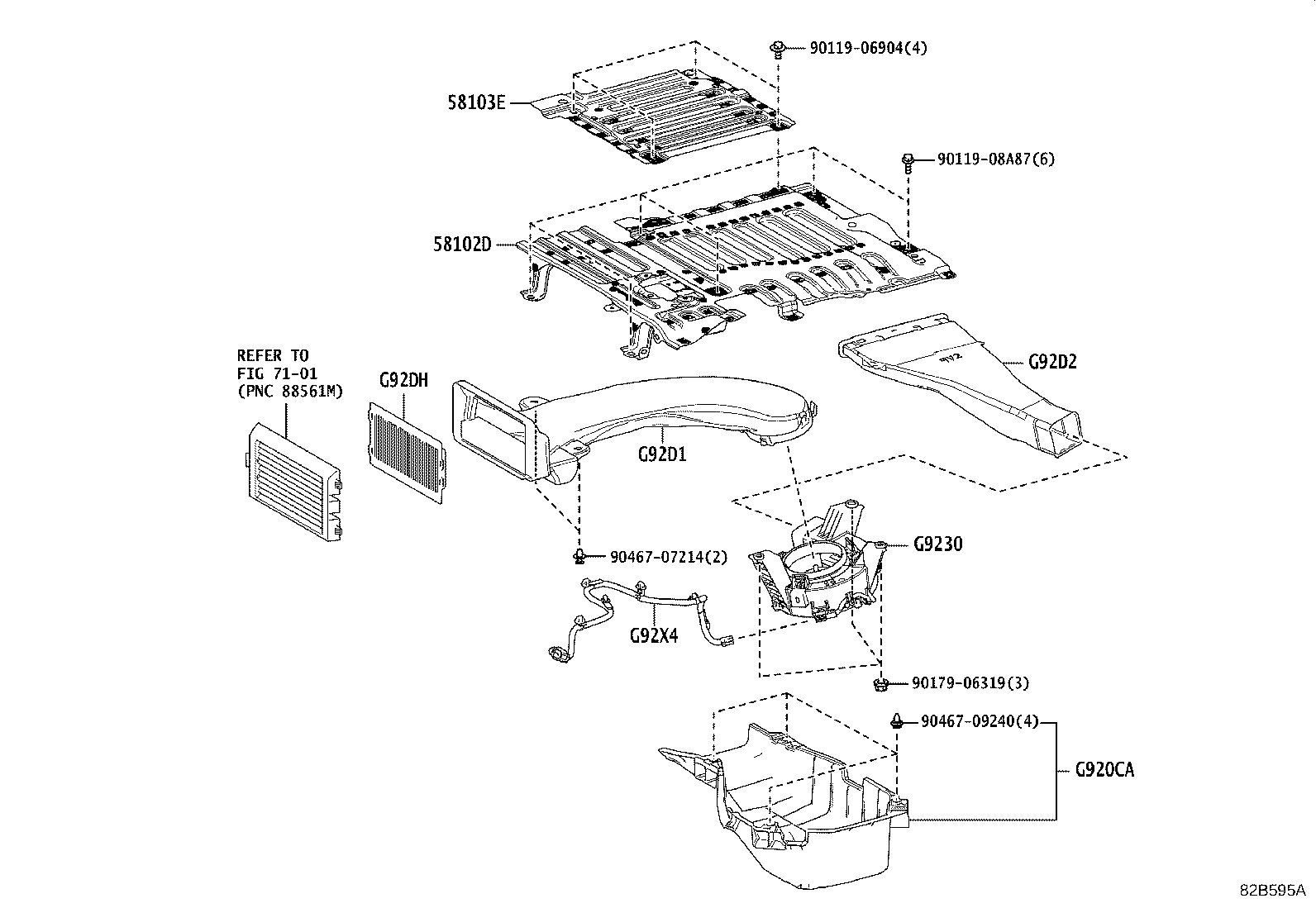

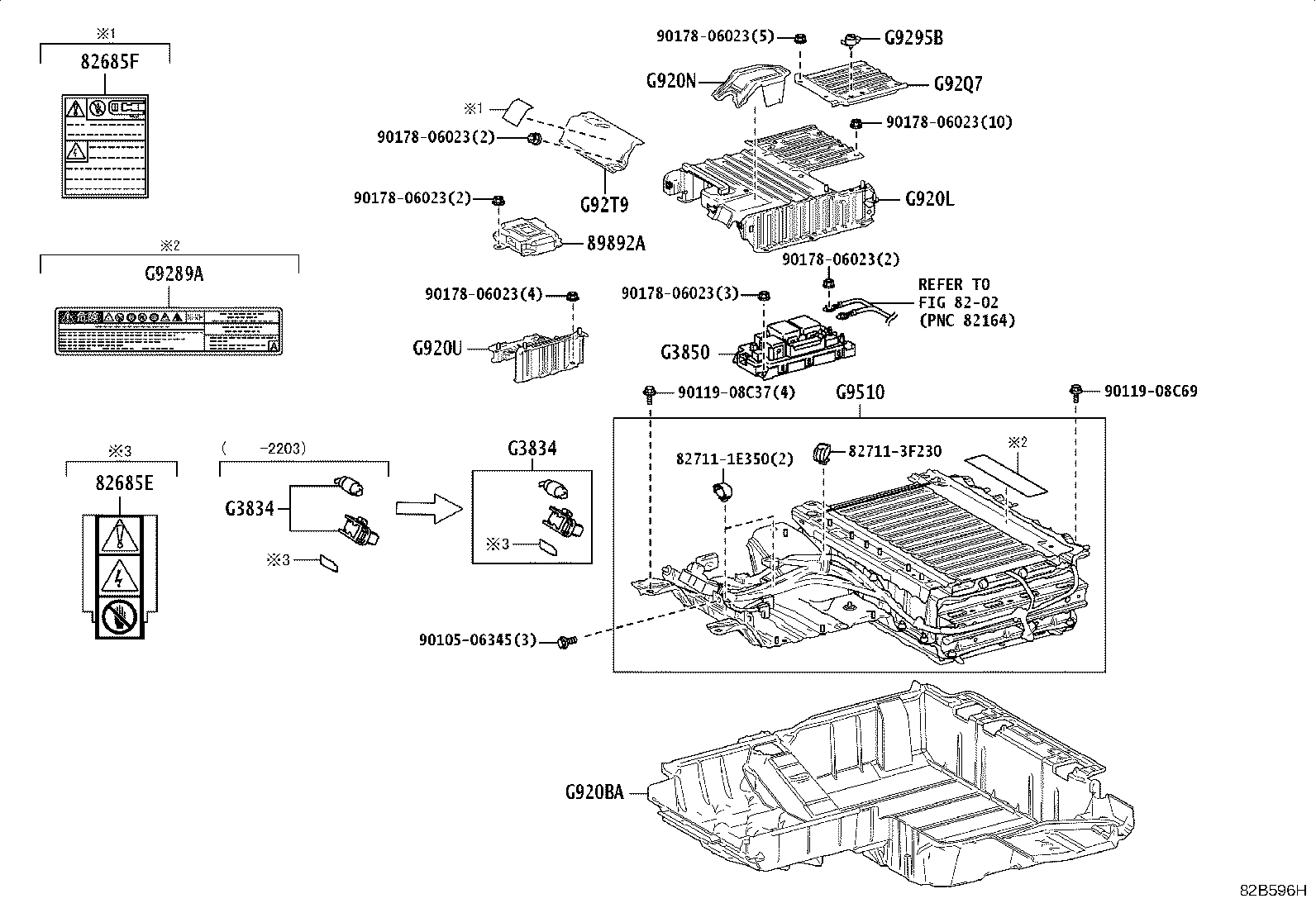

Figure 82B594C 82B594C 2017-10 → — Figure 82B595A 82B595A 2017-10 → — Figure 82B596H 82B596H 2017-10 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28885B Hose, Battery
58102D Panel Sub-assy, Front Floor, LH
58103E Reinforcement Sub-assy, Front Floor, Front
82685E Plate, Service Plug Caution
82685F Main Battery Caution Plate, NO.1
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G3850 Box Assy, Traction Battery Device, NO.1
G920BA Tray Sub-assy, HV Battery, NO.1
G920CA Tray Sub-assy, HV Battery, NO.2
G920L Cover Sub-assy, Hybrid Battery, Upper NO.1
G920N Cover Sub-assy, HV Battery, Upper NO.2
G920U Bracket Sub-assy, HV Battery Carrier, NO.4
G9230 Blower Assy, Battery Cooling
G9289A Label, Battery Caution
G9295B Striker, Battery Cover Lock
G92D1 Duct, Hybrid Battery Intake, NO.1
G92D2 Duct, Hybrid Battery Intake, NO.2
G92DH Filter, HV Battery Intake, NO.1
G92Q7 Panel, HV Battery Shield, NO.5
G92T9 Cover, Hybrid Battery Service Plug
G92X4 Wire, HV Battery Pack, NO.4
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
