Toyota Jpn Taxi

2017-10 → present · chassis NTP10 · catalogue 333120 · Japan

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

50 part groups · 11 illustrations

Illustrations

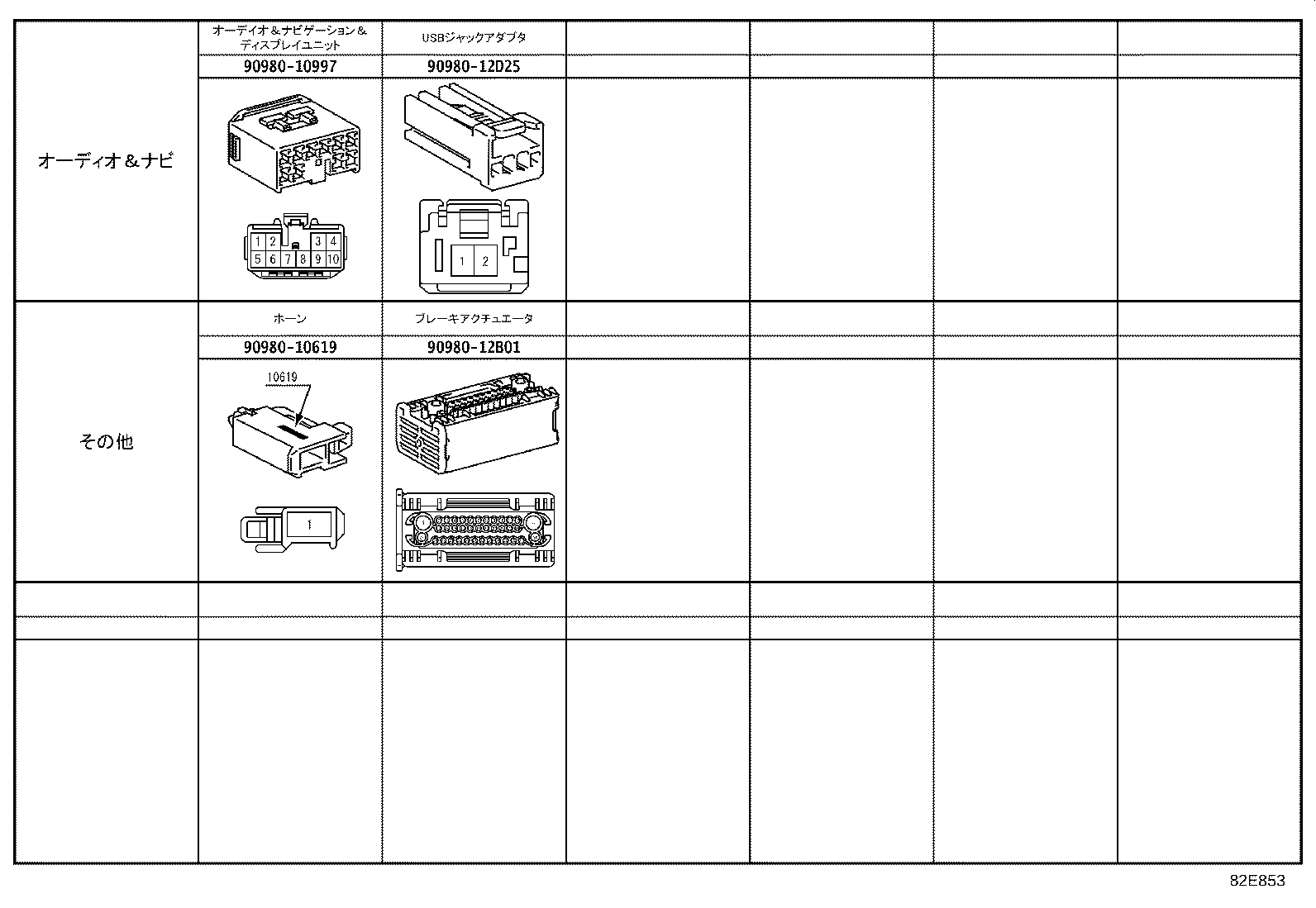

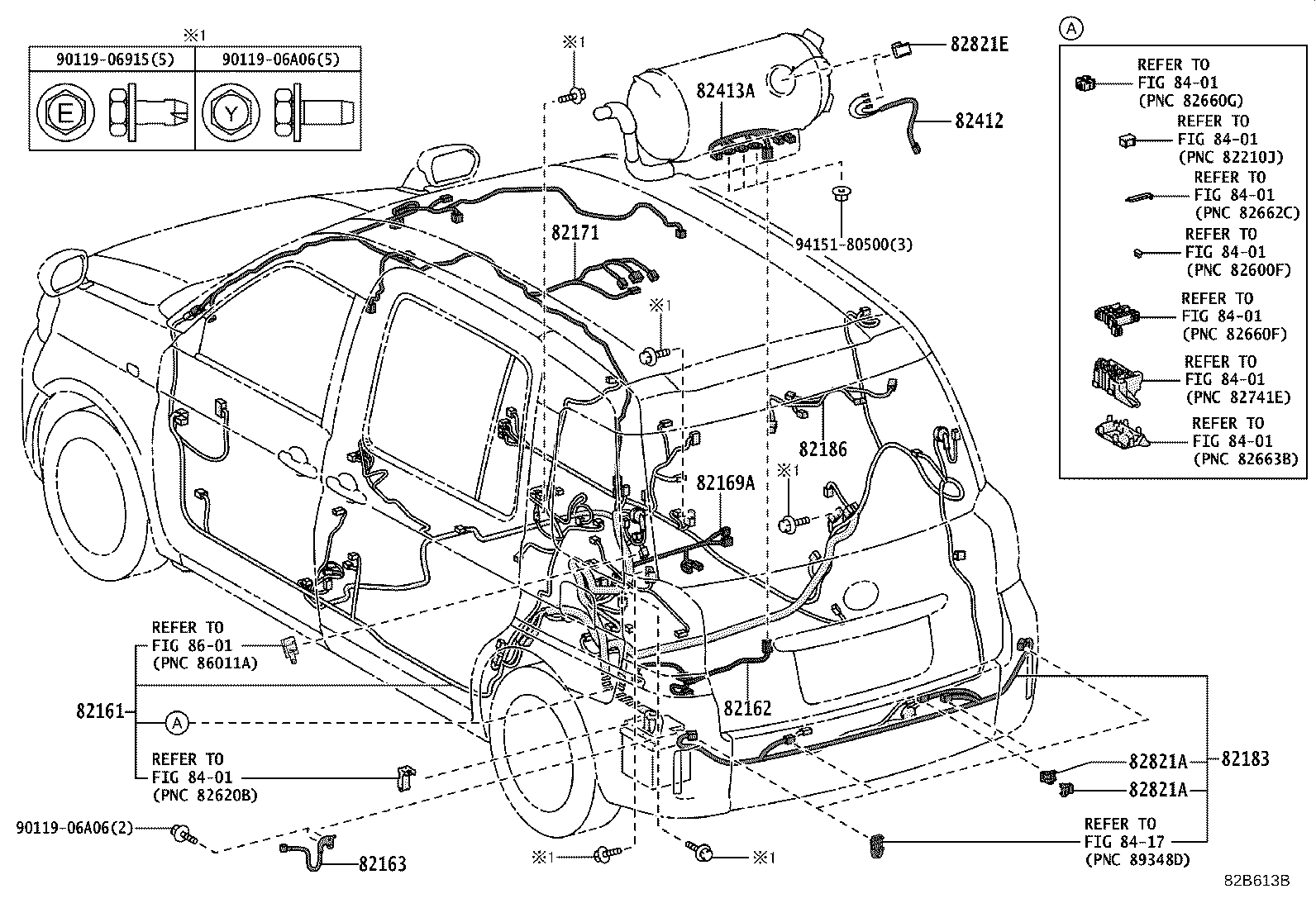

Figure 82B609D 82B609D 2017-10 → — Figure 82H5T7 82H5T7 2017-10 → — Figure 82B610 82B610 2017-10 → — Figure 82B611 82B611 2017-10 → — Figure 82B612 82B612 2017-10 → — Figure 82B613B 82B613B 2017-10 → — Figure 82B614A 82B614A 2017-10 → — Figure 82B615 82B615 2017-10 → — Figure 82B616 82B616 2017-10 → — Figure 82B660C 82B660C 2017-10 → — Figure 82E853 82E853 2017-10 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4

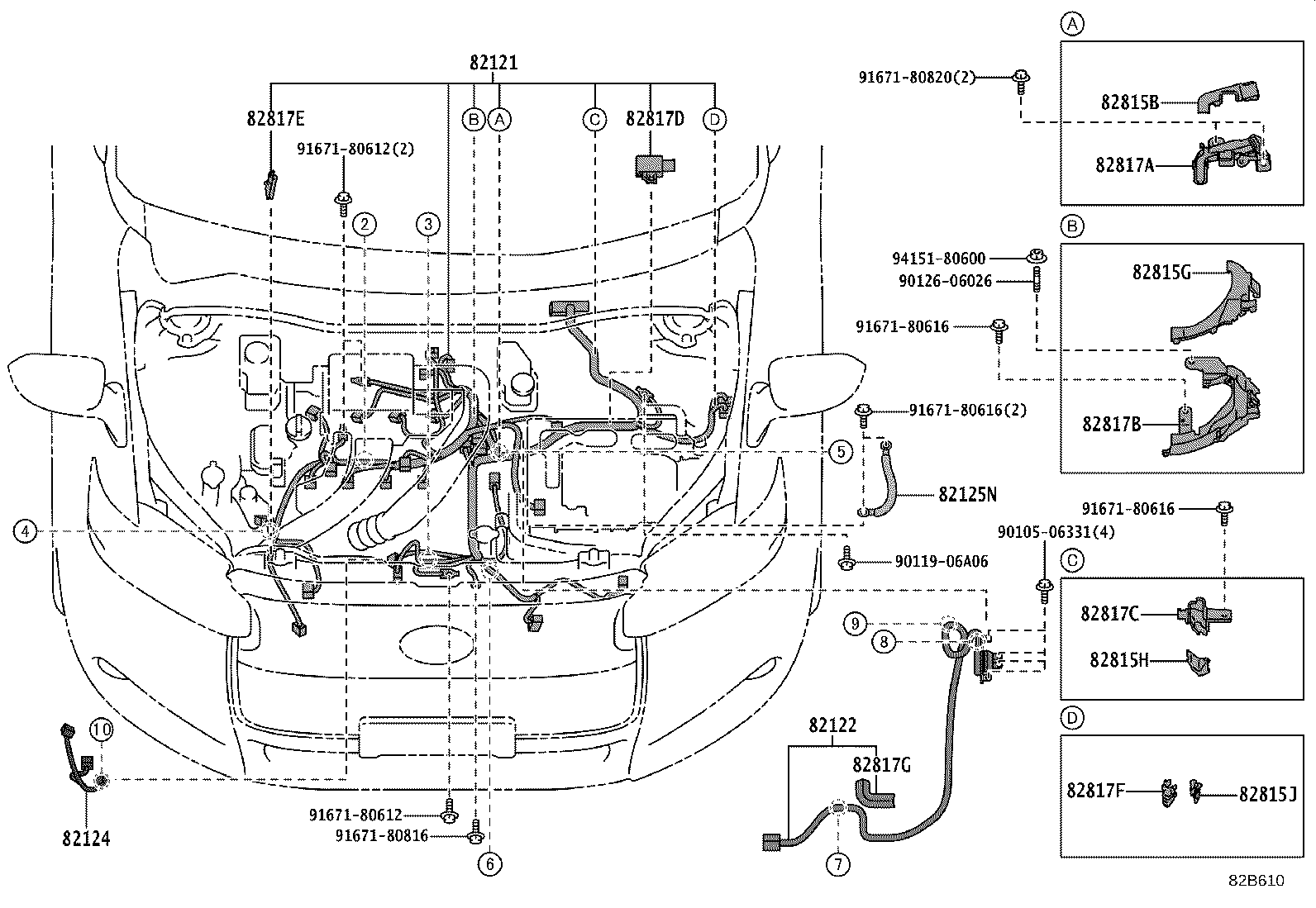

82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5

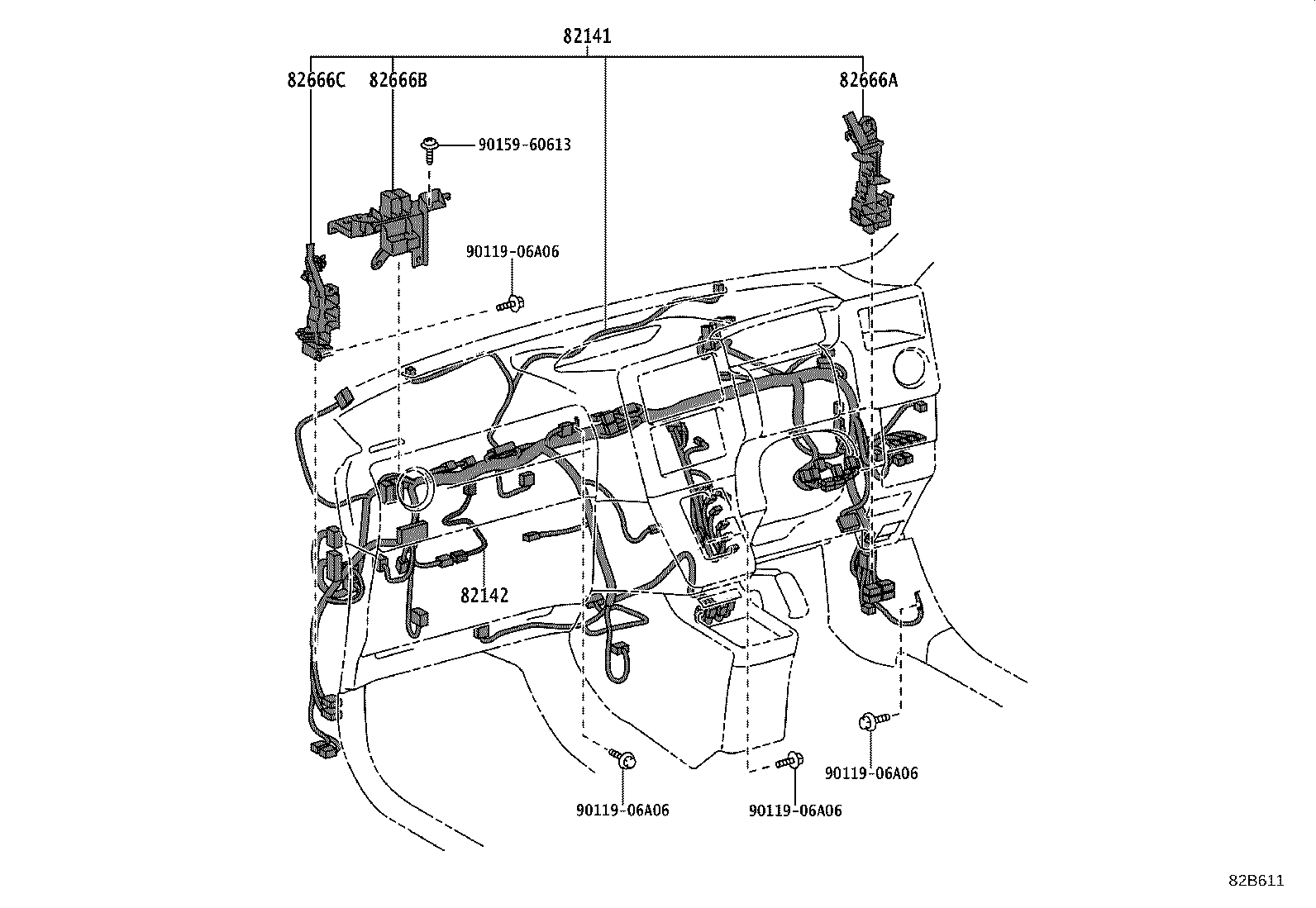

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

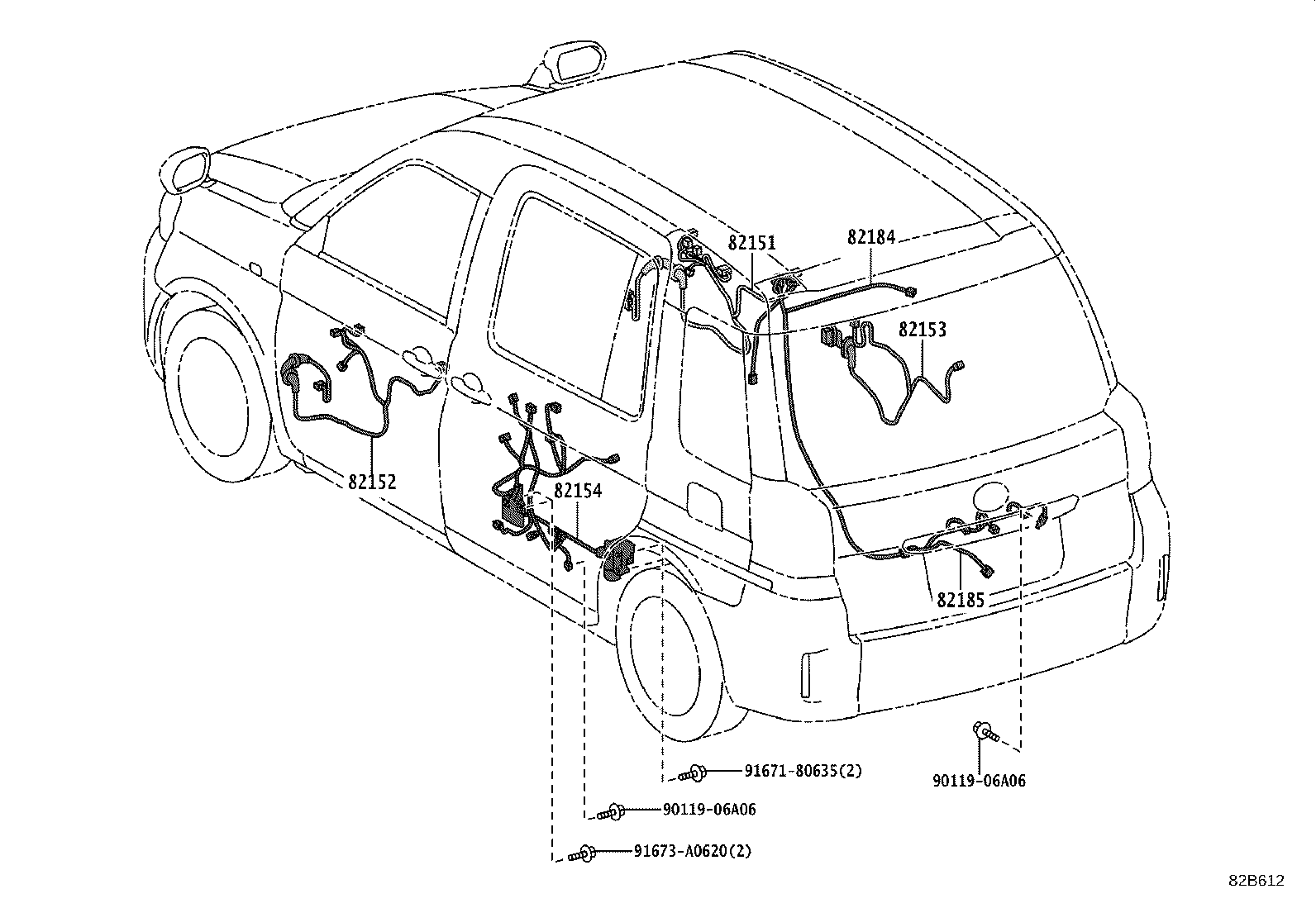

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3

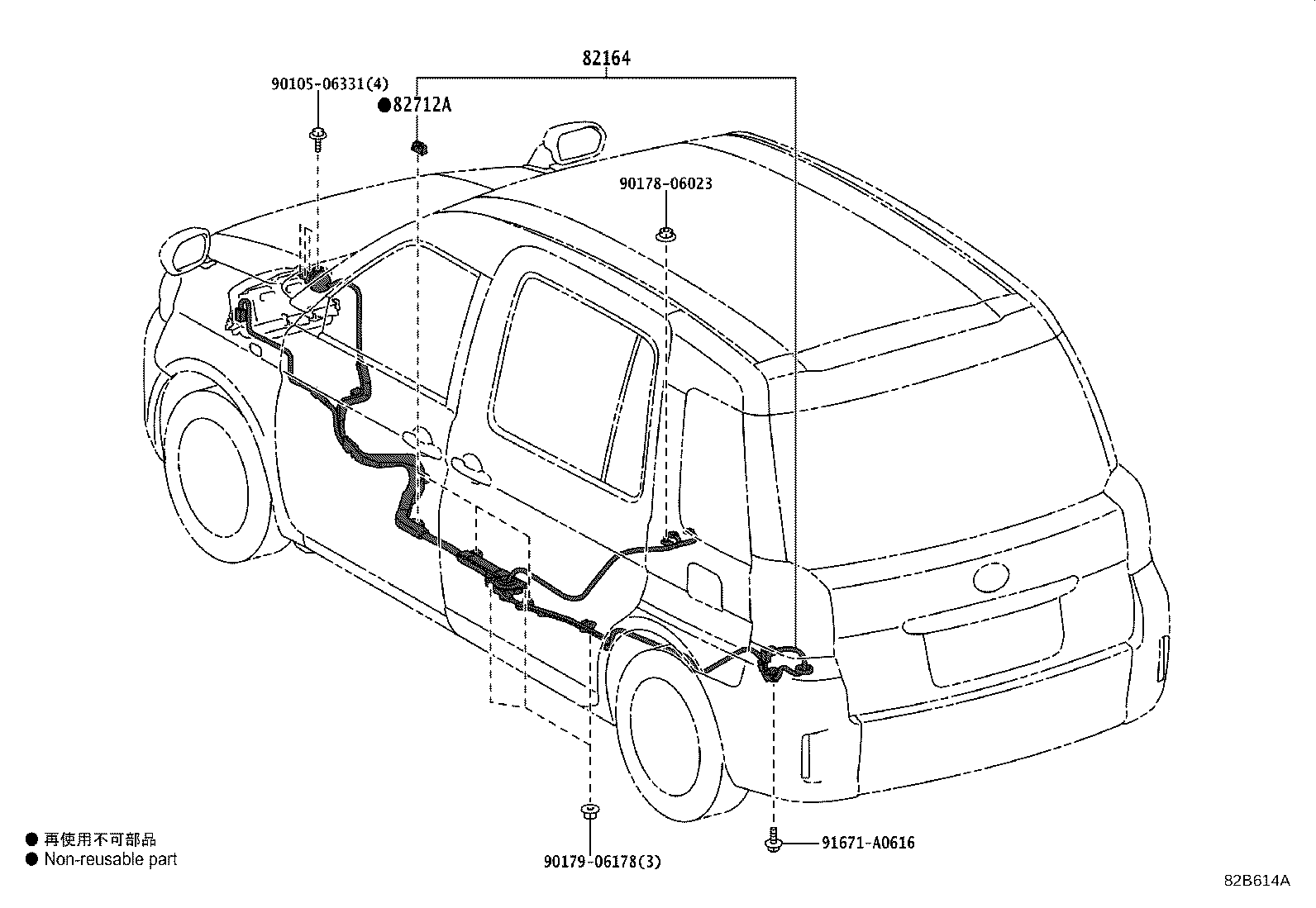

82164 Wire, Frame
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1

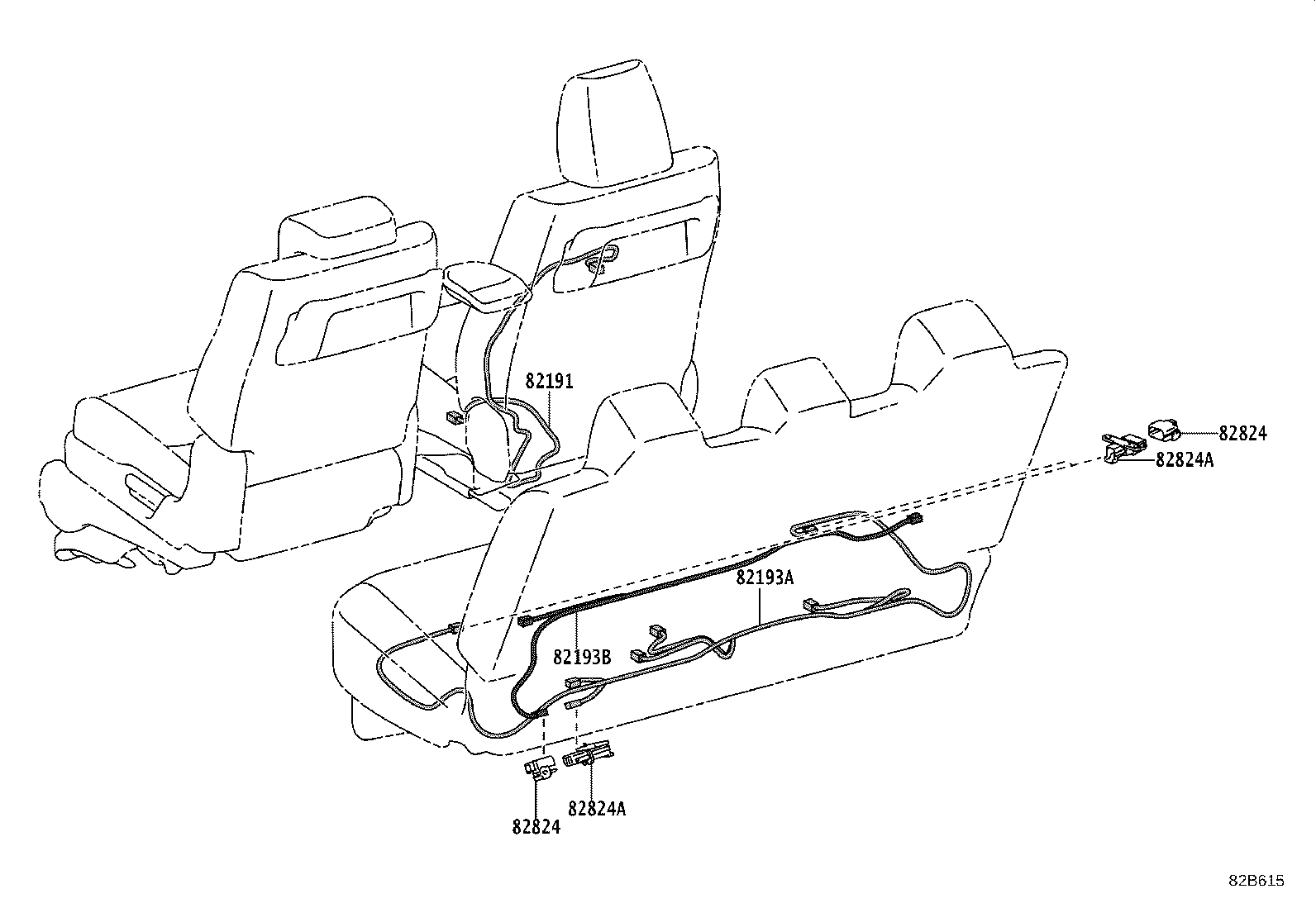

82191 Wire, Front Seat, RH
82193A Wire, Rear Seat, NO.1
82193B Wire, Rear Seat, NO.2
82412 Wire, Fuel Gage
82413A Wire, Fuel Tank
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82712A Support, Wiring Harness
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6

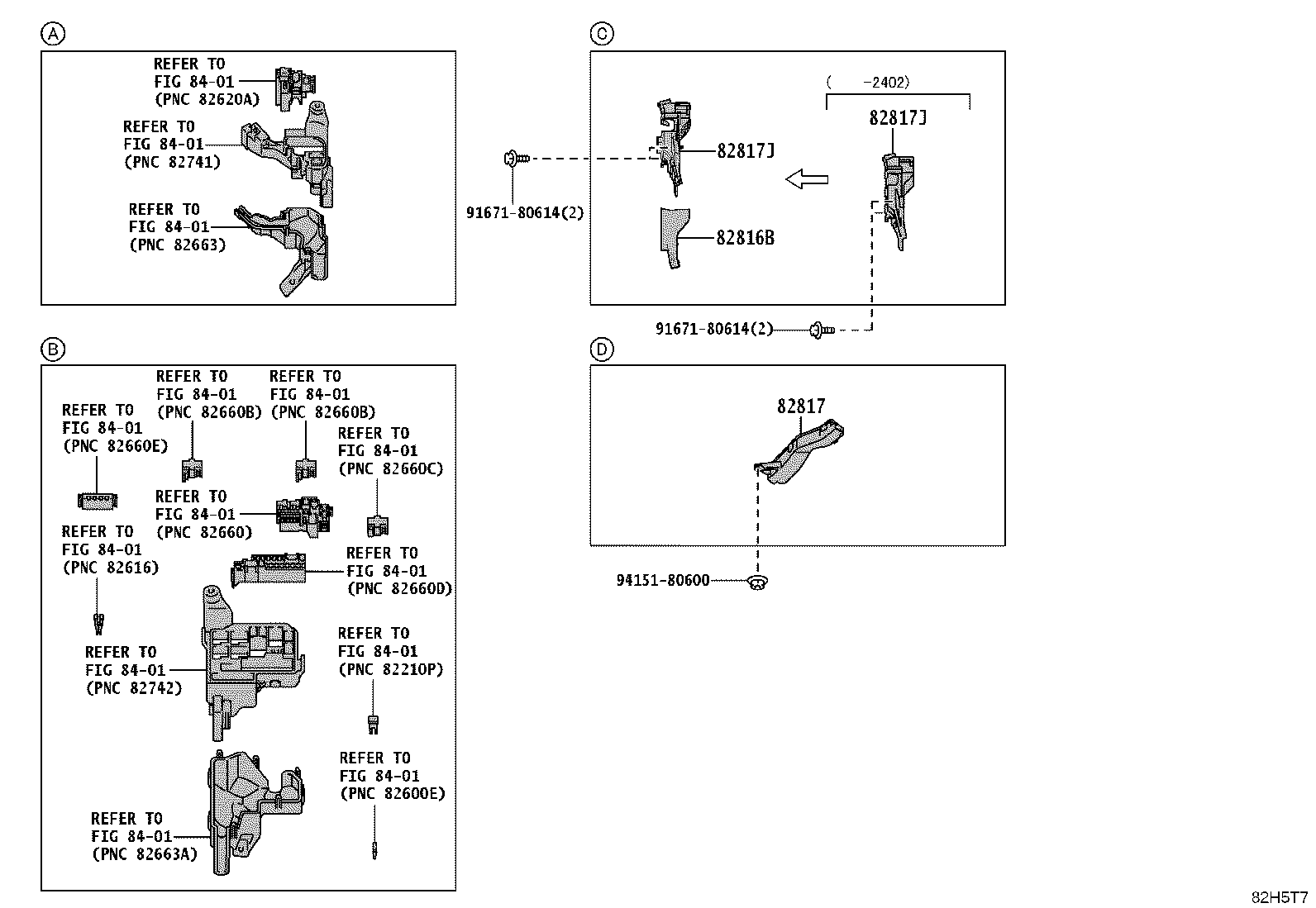

82815J Cover, Wiring Harness Protector, NO.7
82816B Cover, Wiring Harness Protector, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82821E Cover, Connector

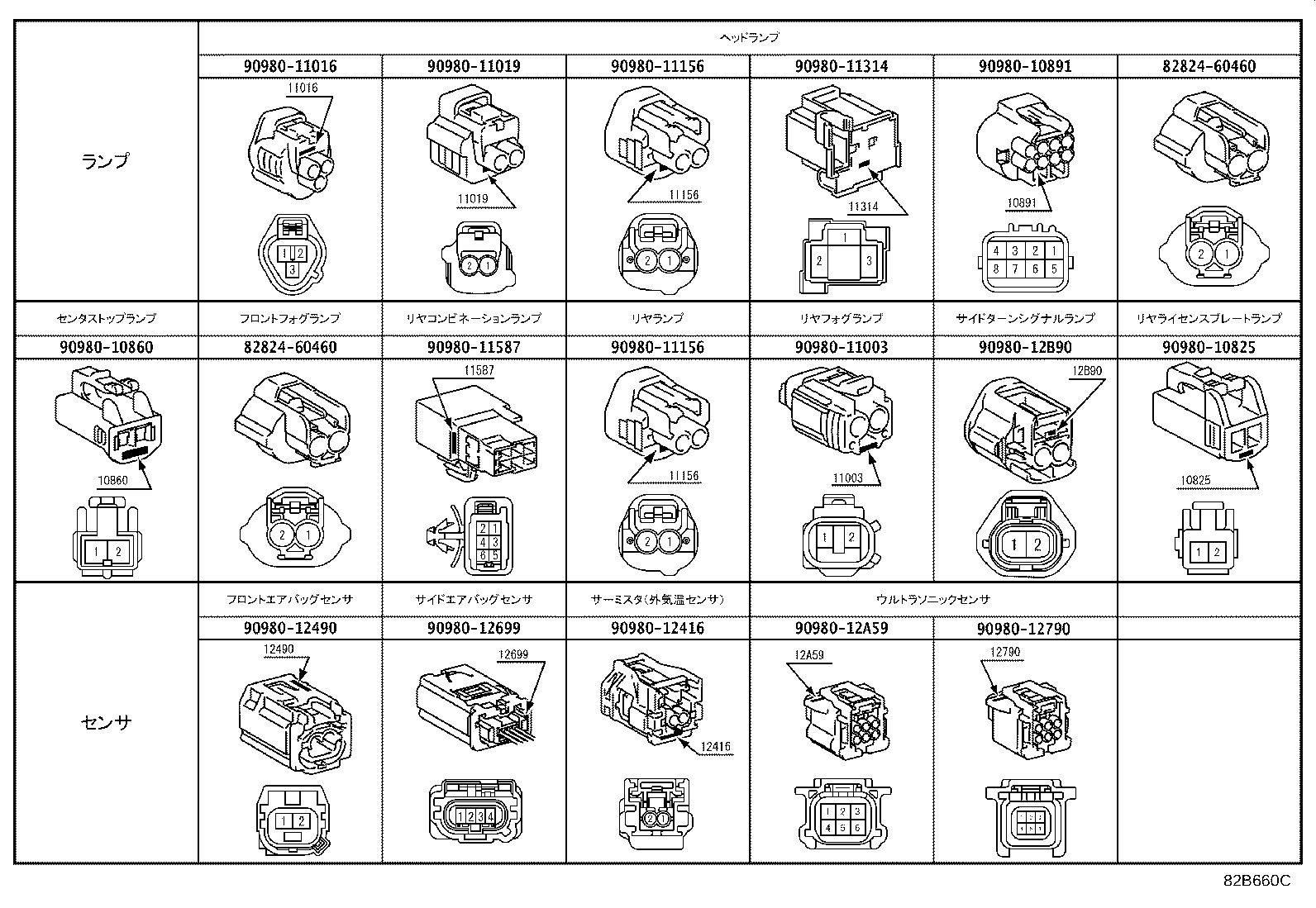

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
