Toyota Lexus GS450H
2006-02 → 2011-12 · chassis GWS191 · catalogue 334110 · Japan
Supported model
Data version 2012-01

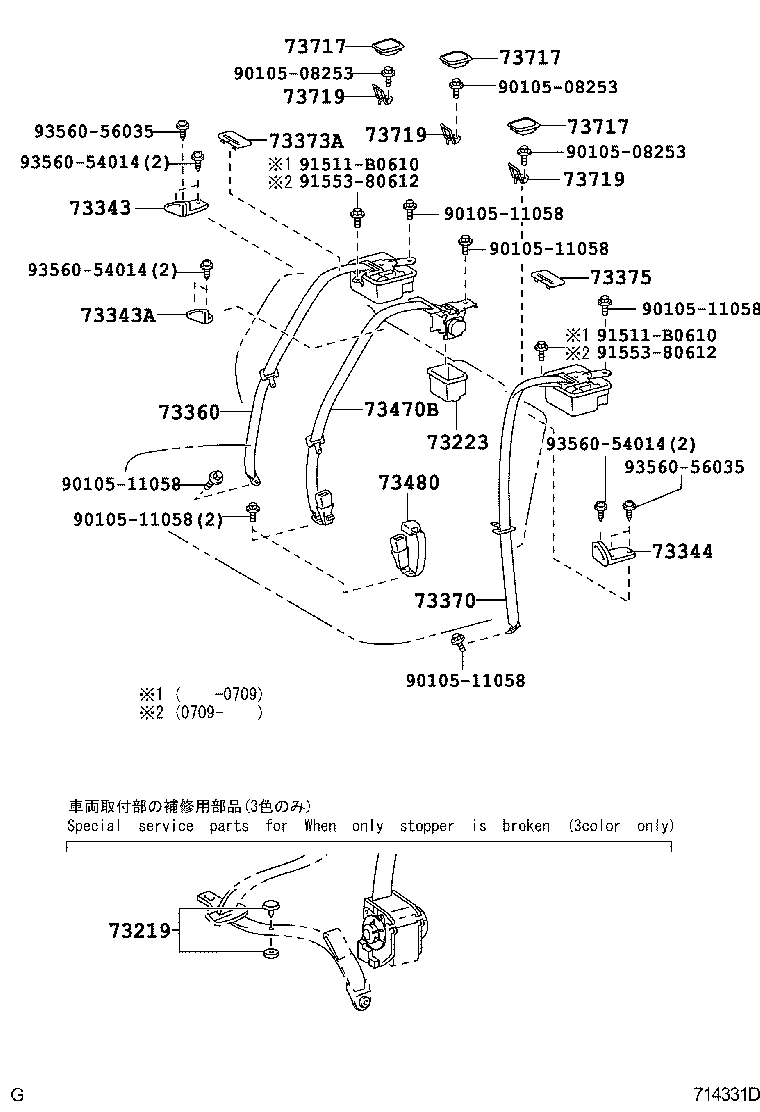

Seat Belt & Child Restraint Seat
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73173 | Cover, Front Seat Belt Hole, RH |
| 73174 | Cover, Front Seat Belt Hole, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223 | Cover, Seat Belt Retractor |
| 73223D | Cover, Front Seat Belt Retractor, RH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73343 | Guide, Rear Seat Shoulder Belt, RH |
| 73343A | Guide, Rear Seat Shoulder Belt, RH |
| 73344 | Guide, Rear Seat Shoulder Belt, LH |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73373A | Cover, Rear Seat Shoulder Belt, RH |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |

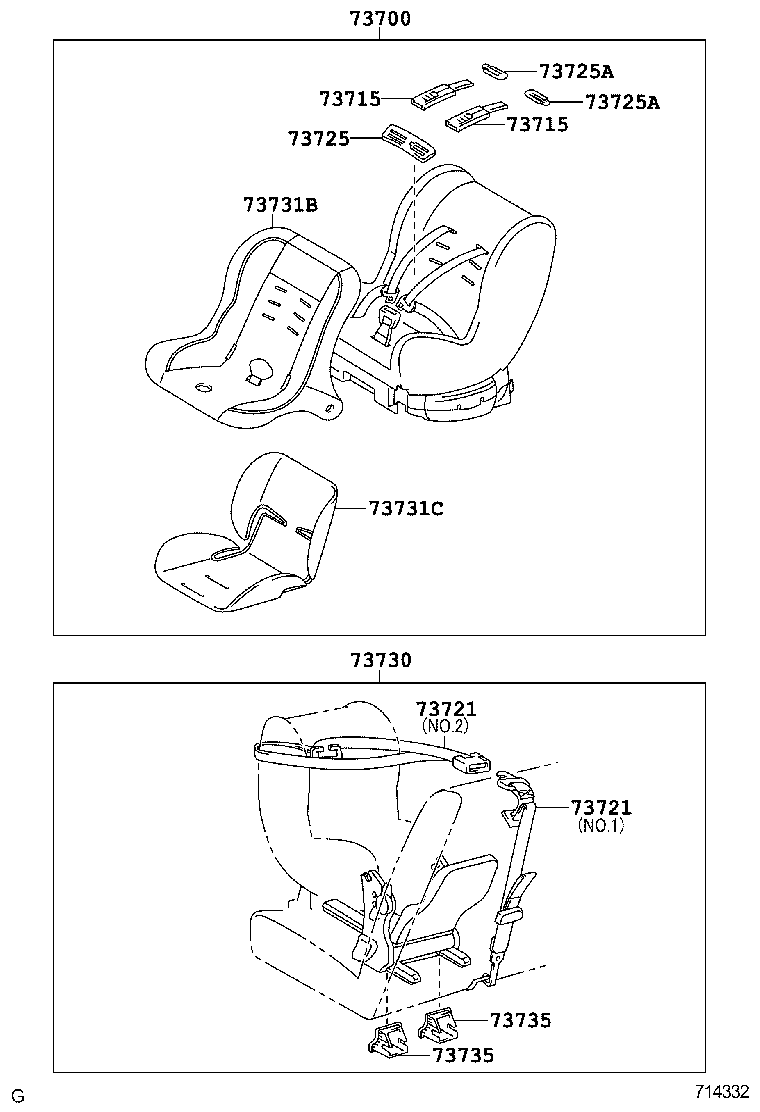

| 73700 | Seat Assy, Child Restraint |
| 73715 | Protector, Child Restraint Seat Belt |
| 73717 | Cover, Child Restraint Seat Tether Anchor |
| 73719 | Bracket, Child Restraint Seat Tether Anchor |
| 73721 | Belt, Child Restraint Seat |
| 73725 | Clip, Child Restraint Seat Belt |
| 73725A | Clip, Child Restraint Seat Belt |
| 73730 | Base Assy, Child Restraint Seat |
| 73731B | Cover, Child Restraint Seat, NO.1 |
| 73731C | Cover, Child Restraint Seat, NO.2 |
| 73735 | Cup, Child Restraint Seat Guide |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
