Toyota Lexus GS450H
2006-02 → 2011-12 · chassis GWS191 · catalogue 334110 · Japan
Supported model
Data version 2012-01

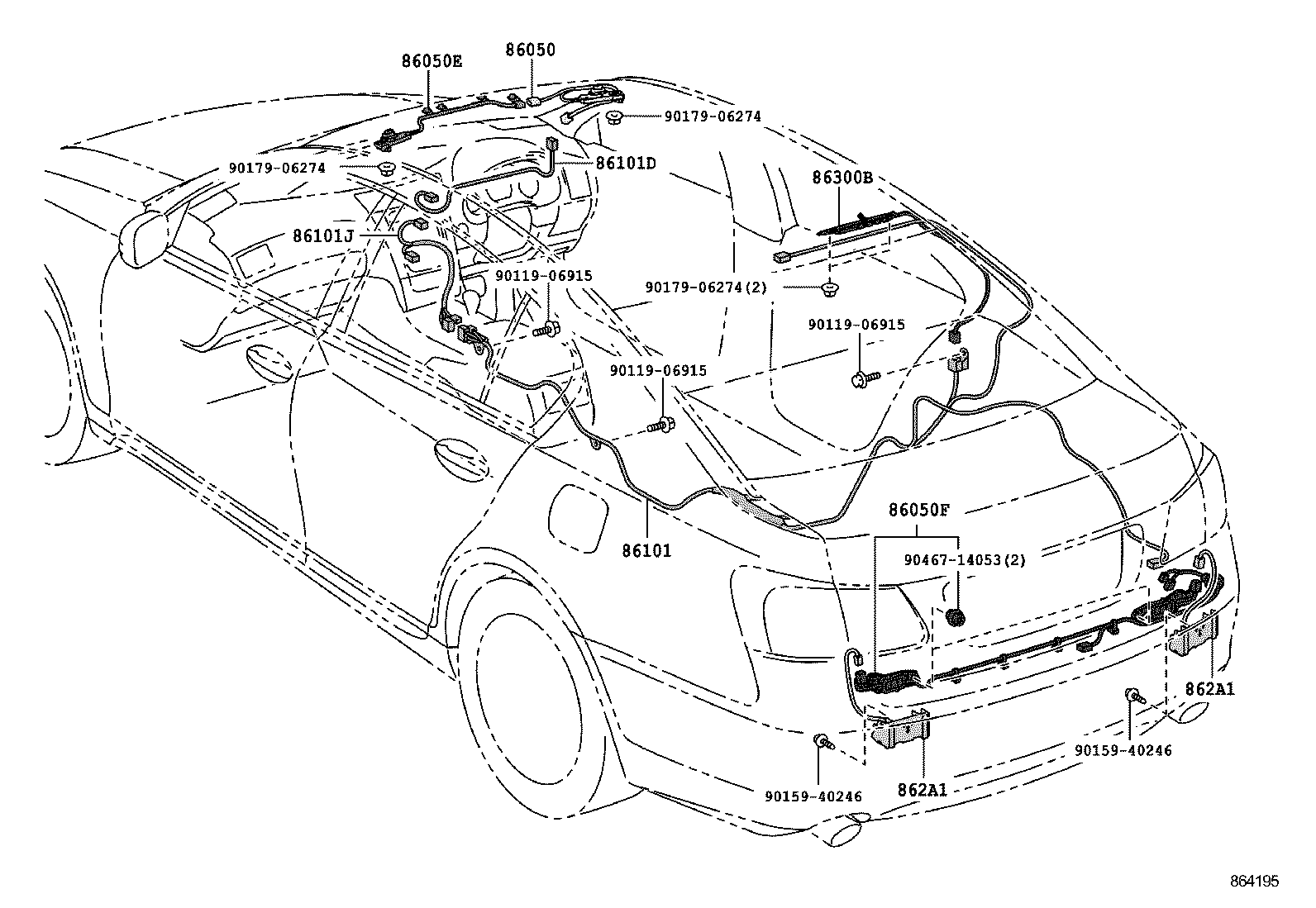

Antenna
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050 | Antenna Assy, Television |
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86251B | Wiring,Amplifier |
| 862A1 | Antenna, Digital Terevision, NO.1 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300G | Antenna Assy, Television Amplifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
