Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

12 part groups · 2 illustrations

Illustrations

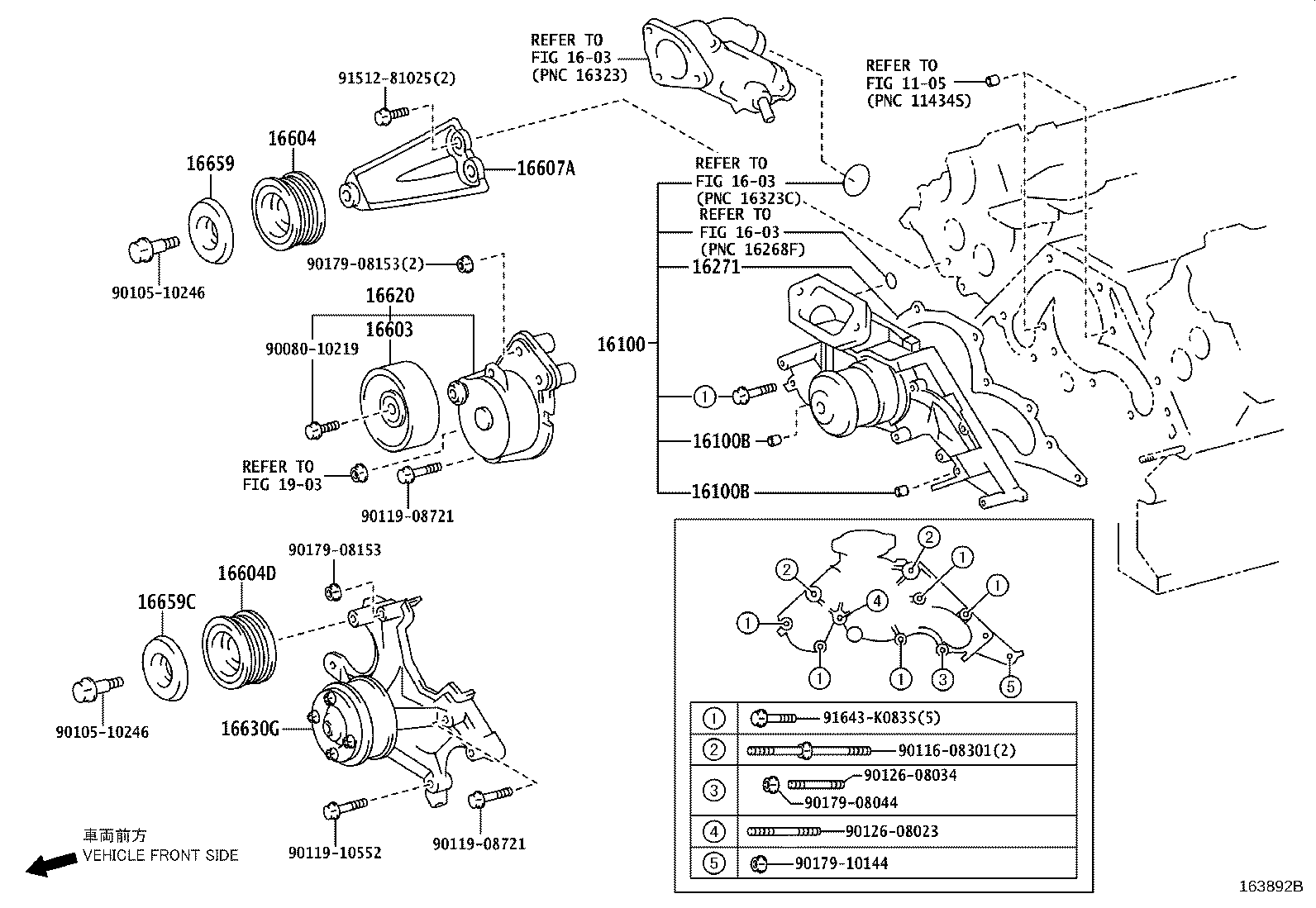

Figure 163891C 163891C 2009-03 → — Figure 163892B 163892B 2009-03 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16173 Pulley, Water Pump
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16604D Pulley Sub-assy, Idler, NO.3
16607A Bracket Sub-assy, Idler Pulley, NO.1
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16659 Plate, Idler Pulley Cover, NO.2
16659C Plate, Idler Pulley Cover, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
