Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01

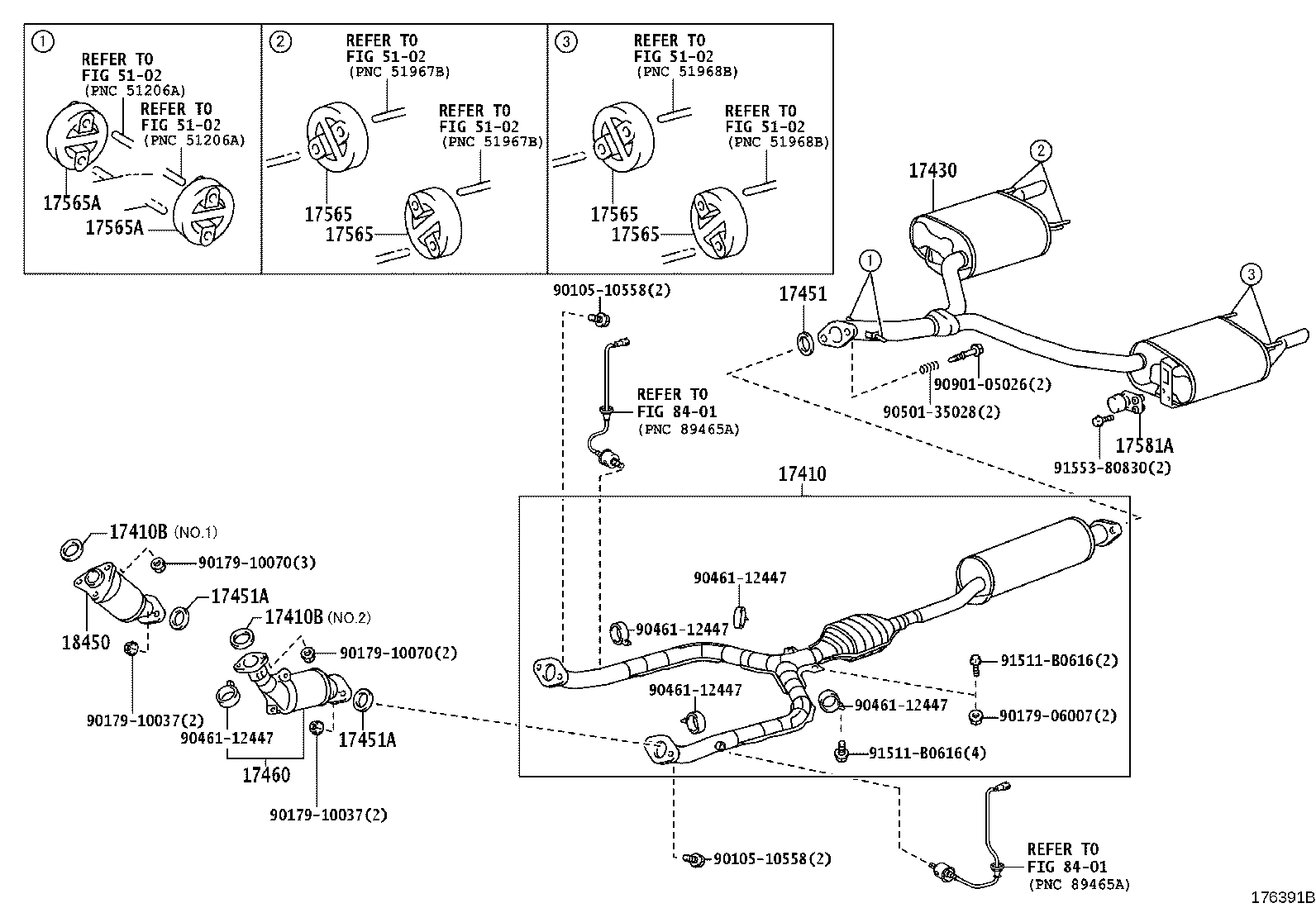

Exhaust Pipe
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17460 | Converter Assy, Catalytic W/Pipe |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17581A | Damper, Exhaust Pipe |
| 18450 | Converter Assy, Monolithic |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
