Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01

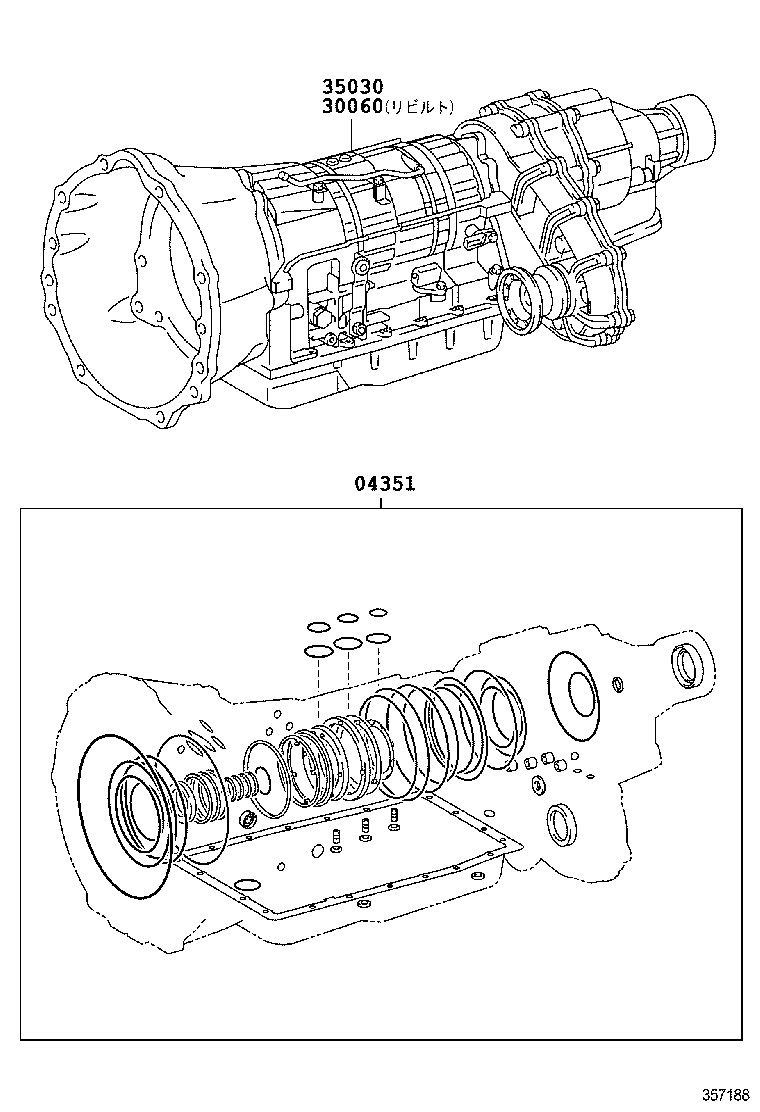

Transaxle OR Transmission Assy & Gasket Kit (ATM)
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04351 | Gasket Kit, Automatic Transmission Overhaul |
| 30030 | Transmission Assy, Rebuilt |
| 30060 | Transmission Assy, W/Transfer, Rebuilt |
| 35000 | Transmission Assy, Automatic |
| 35030 | Transmission Assy, Automatic W/Transfer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
