Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 3 illustrations

Illustrations

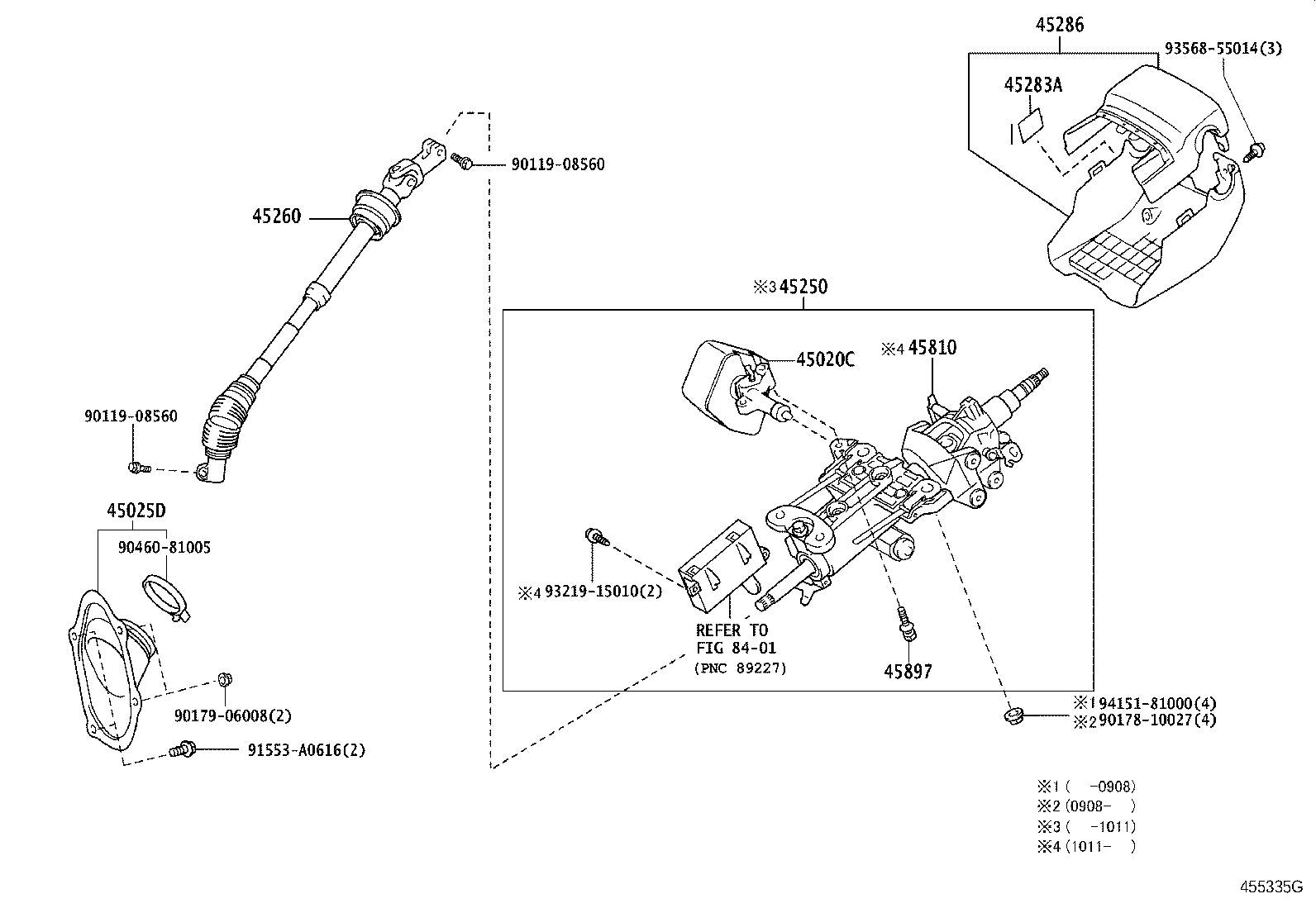

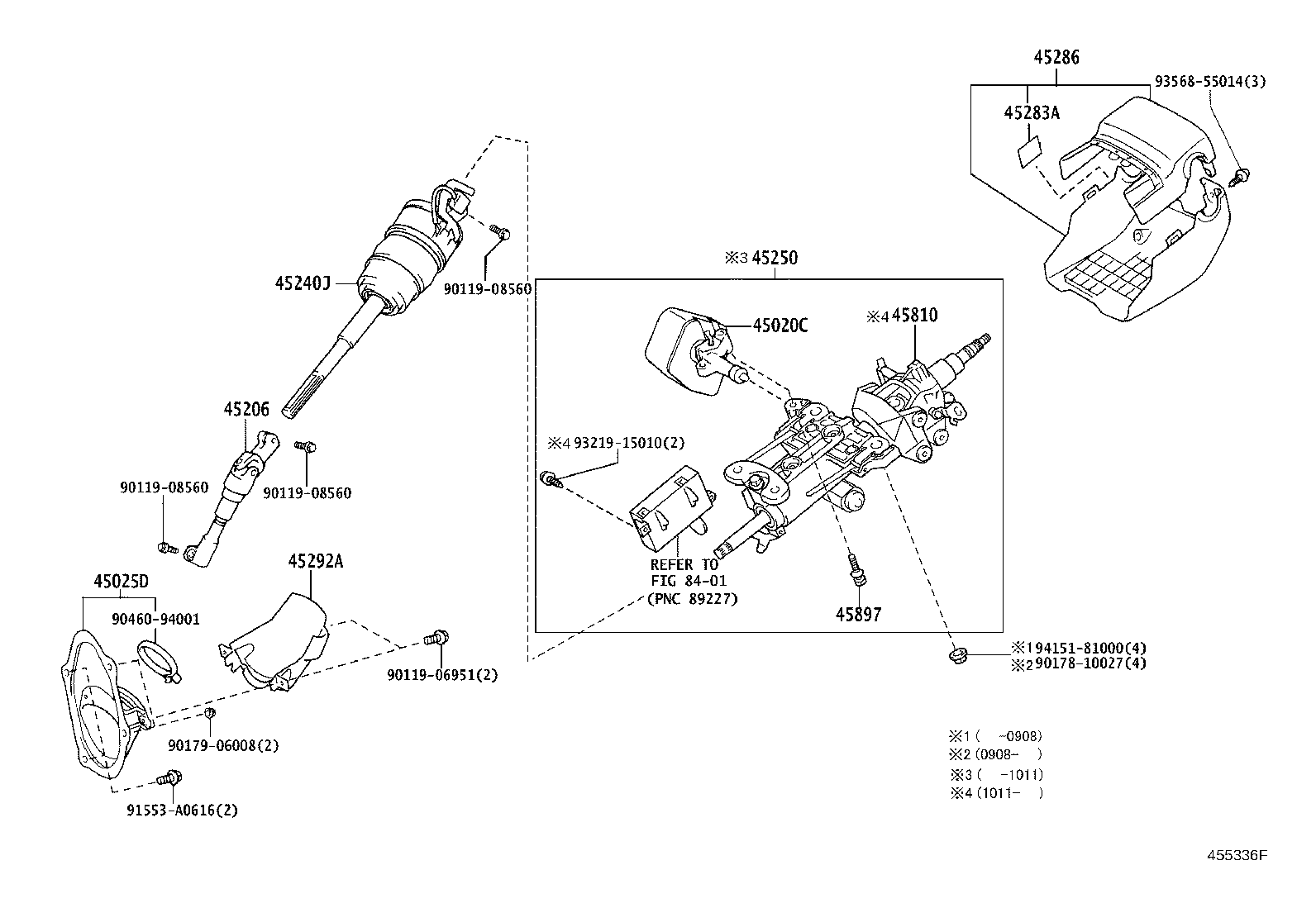

Figure 455334G 455334G 2009-03 → — Figure 455335G 455335G 2009-03 → — Figure 455336F 455336F 2009-03 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45240J Actuator Assy, Steering
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45283A Plate, Beam Change & Turn Signal Caution
45286 Cover, Steering Column
45292A Cover, Main Shaft Lower Dust
45810 Gear Assy, Tilt Steering, W/Motor
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
