Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

19 part groups · 2 illustrations

Illustrations

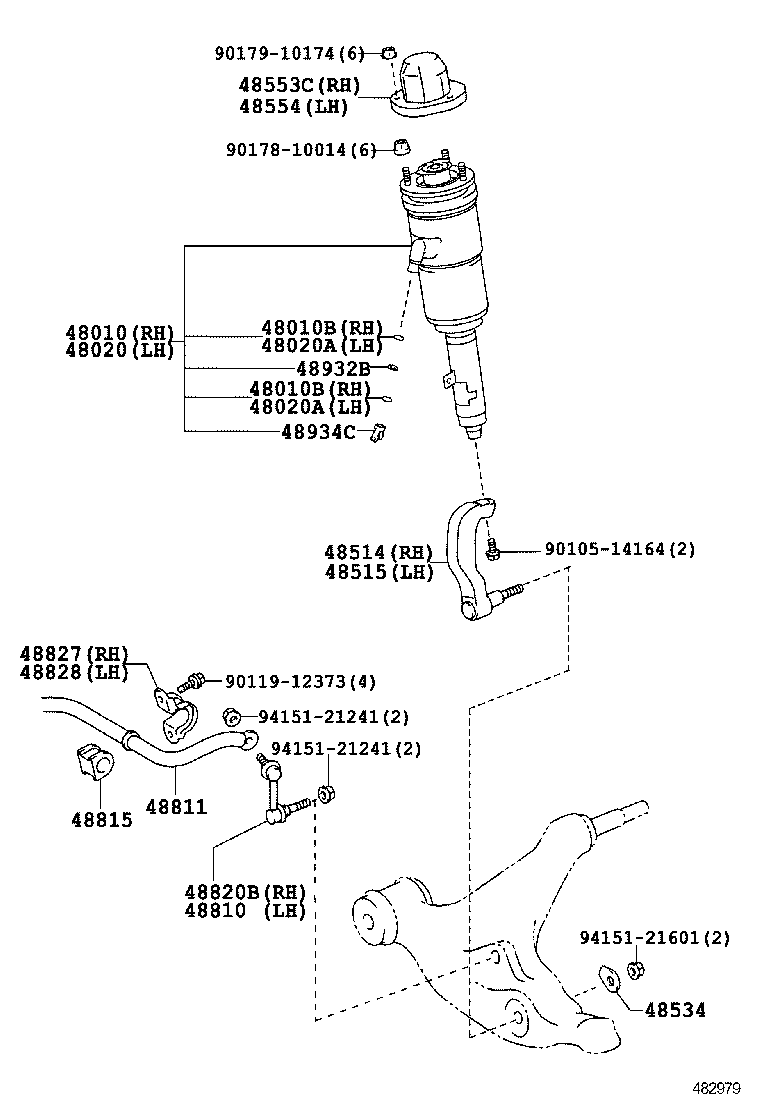

Figure 482980 482980 2009-03 → — Figure 482979 482979 2009-03 → —

Part groups

PNCDescription
48010 Cylinder Assy, Pneumatic, Front RH W/Shock Absorber
48010B Ring, O(FOR FRONT PNEUMATIC CYLINDER RH)
48020 Cylinder Assy, Pneumatic, Front LH W/Shock Absorber
48020A Ring, O(FOR FRONT PNEUMATIC CYLINDER LH)
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48534 Plate, Front Shock Absorber Upper Bracket
48553C Cap, Front Shock Absorber, RH
48554 Cap, Front Shock Absorber, LH
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
48932B Plate, Height Control Tube
48934C Connector, Height Control Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
