Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

20 part groups · 2 illustrations

Illustrations

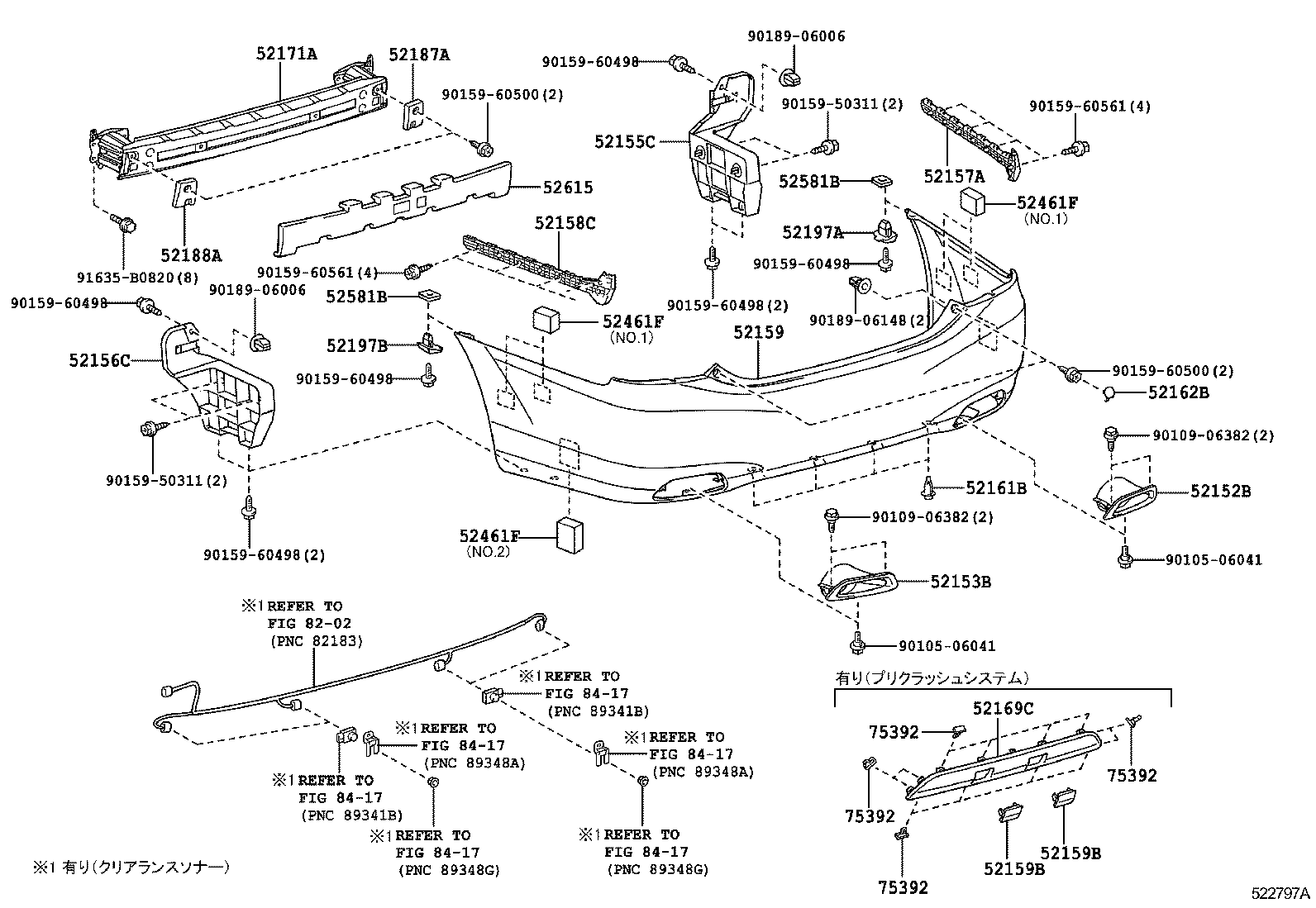

Figure 522088B 522088B 2009-03 → 2012-11 Figure 522797A 522797A 2012-12 → —

Part groups

PNCDescription
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52157A Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52159B Plate, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52169C Cover, Rear Bumper, Lower
52171A Reinforcement, Rear Bumper, NO.1
52187A Reinforcement, Rear Bumper Arm, RH
52188A Reinforcement, Rear Bumper Arm, LH
52197A Bracket, Rear Bumper Seal, RH
52197B Bracket, Rear Bumper Seal, LH
52461F Pad, Rear Bumper
52581B Protector, Rear Bumper
52615 Absorber, Rear Bumper Energy
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
