Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

31 part groups · 2 illustrations

Illustrations

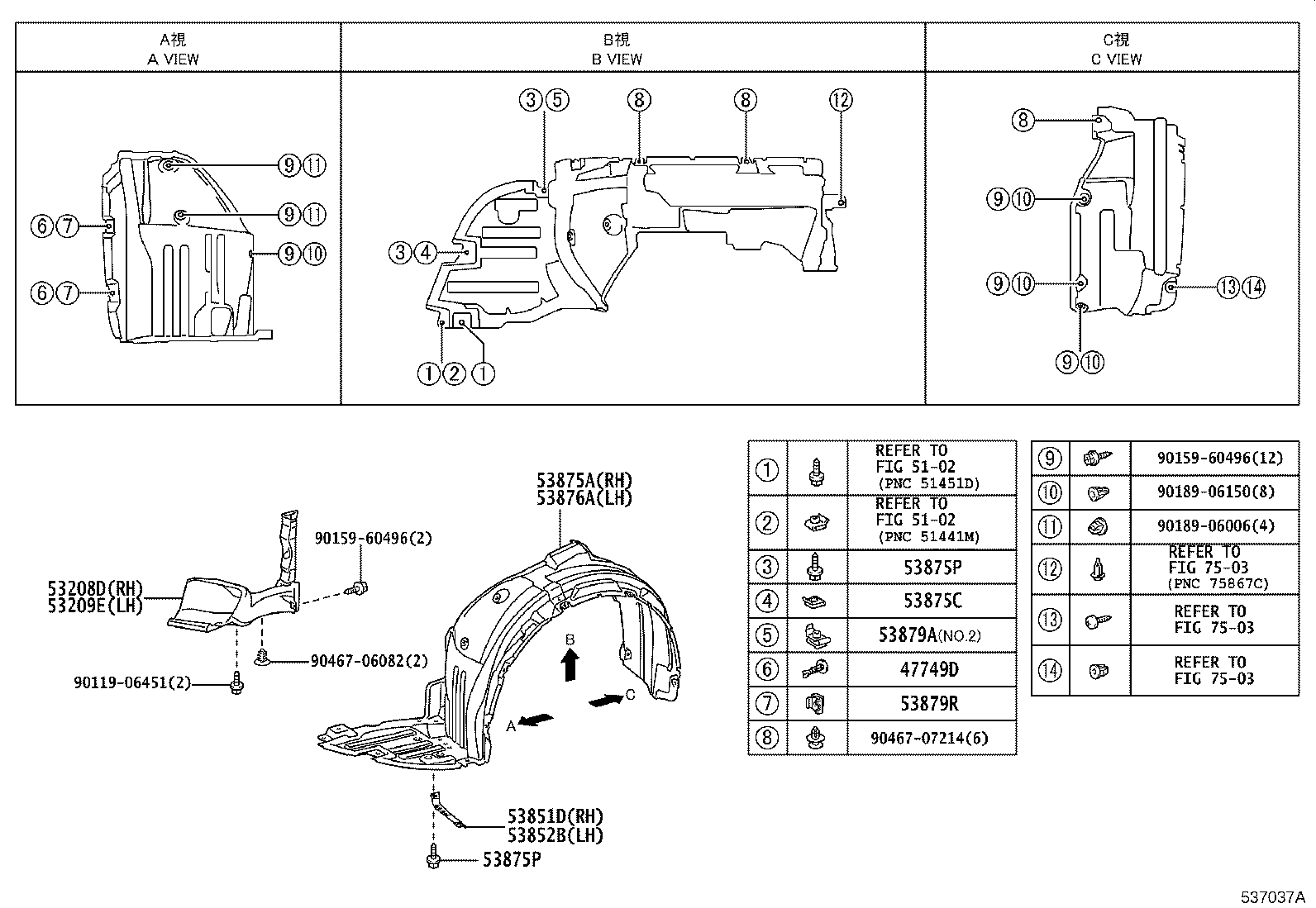

Figure 537036A 537036A 2009-03 → — Figure 537037A 537037A 2009-03 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53208D Duct Sub-assy, Cool Air Intake, NO.2
53209E Duct Sub-assy, Cool Air Intake, NO.3
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53378C Seal, Hood Air Intake Duct
53378D Clip(FOR HOOD AIR INTAKE DUCT SEAL)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53867A Retainer, Front Fender
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
53887A Seal, Front Fender Splash Shield, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
