Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01

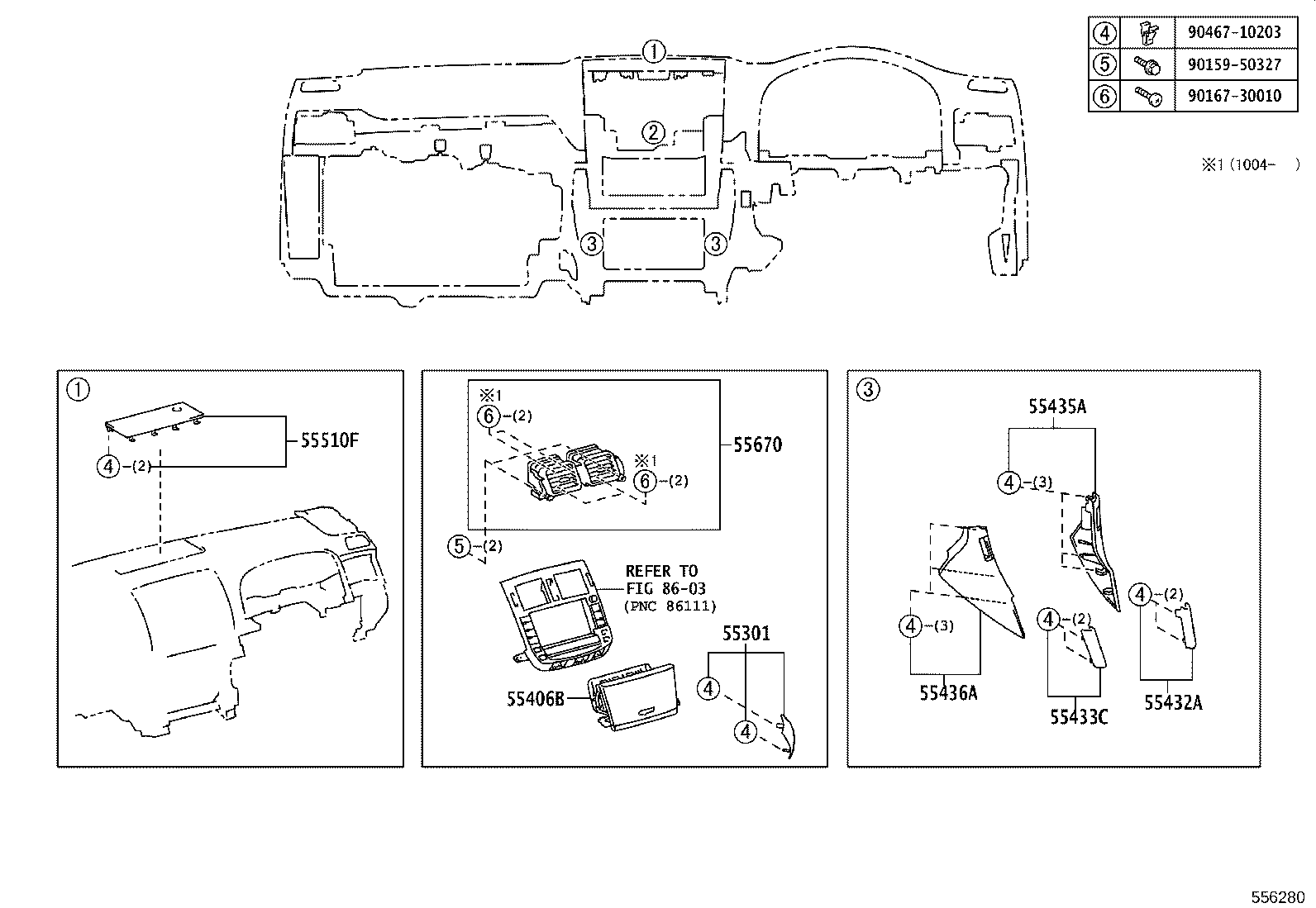

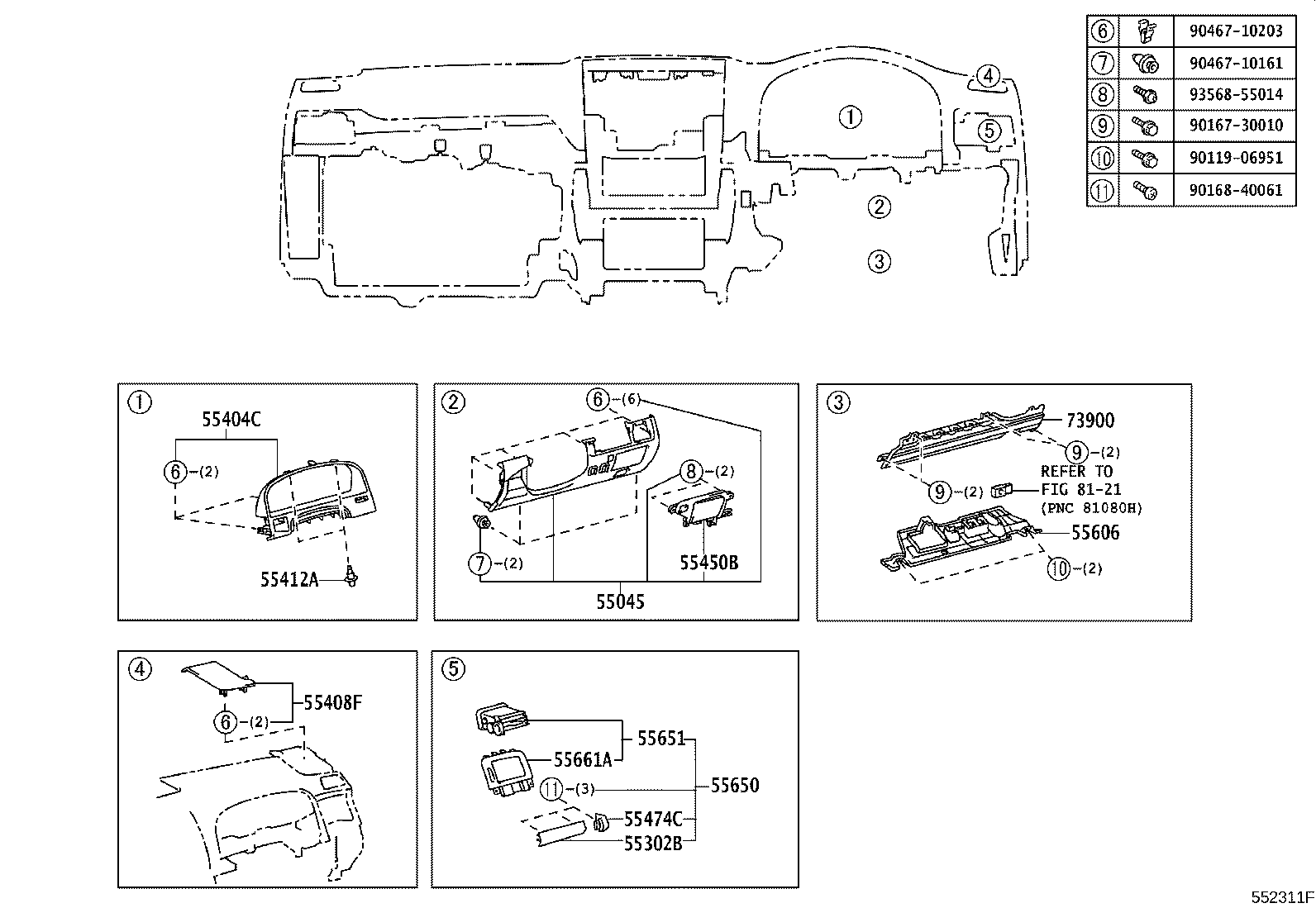

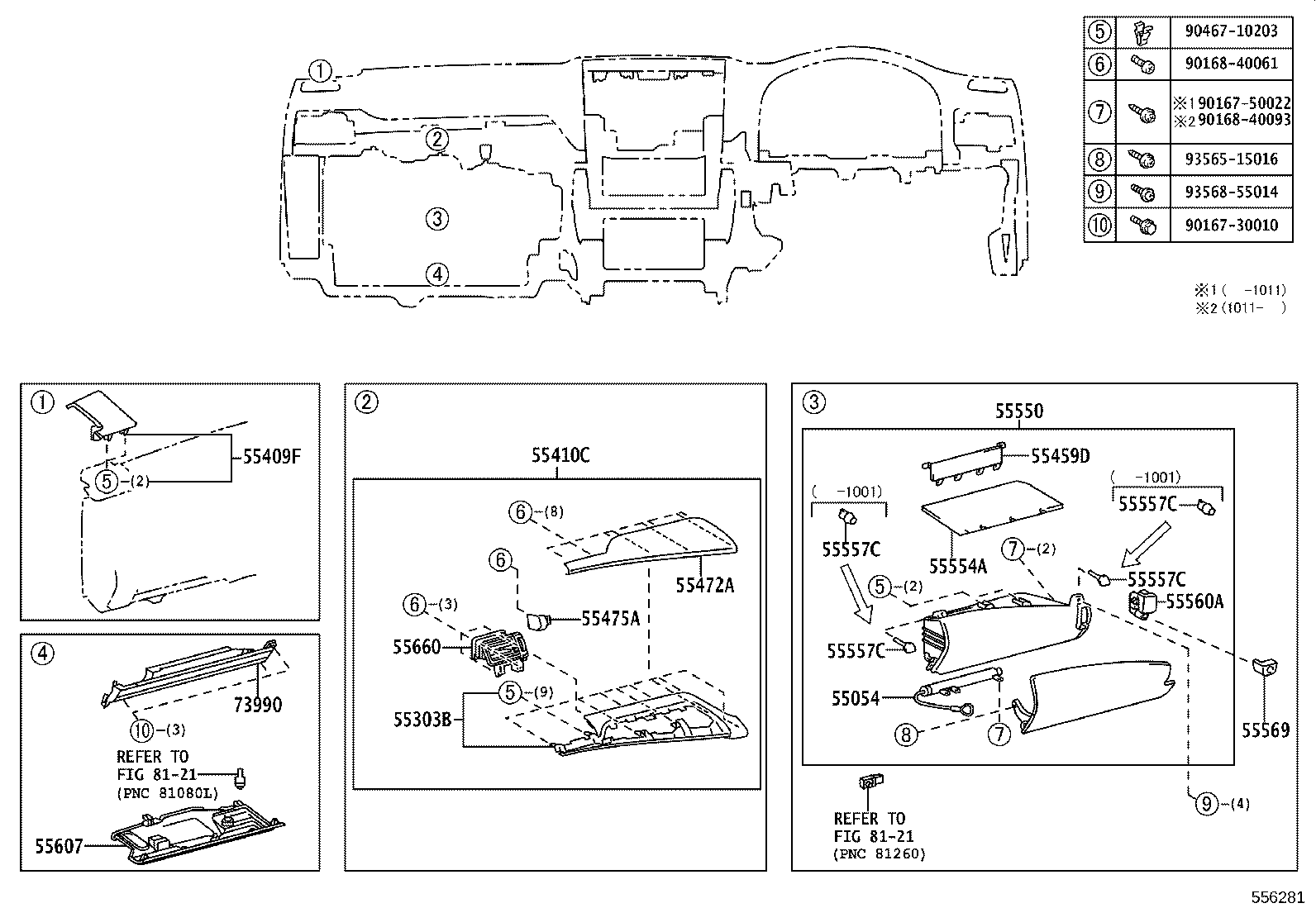

Instrument Panel & Glove Compartment
56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55302B | Panel Sub-assy, Instrument Side |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55312 | Panel, Instrument, Lower |
| 55313A | Panel, Instrument Main |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55326B | Stay, Instrument Panel, RH |
| 55327B | Stay, Instrument Panel, LH |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412A | Clip, Panel, Instrument Cluster Finish, End |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55417A | Retainer, Meter Hood, NO.2 |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55450B | Box Assy, Coin |
| 55459D | Cover, Instrument, Lower LH |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55550 | Door Assy, Glove Compartment |
| 55554A | Filler, Glove Compartment Door Pad |
| 55557C | Damper, Glove Compartment Door |
| 55560A | Lock Assy, Glove Compartment Door |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55651 | Register, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
